RS485 TO WIFI/ETH Rail-Mount Serial Server, RS485 to WIFI/Ethernet Module, Modbus MQTT Gateway

  • Mã sản phẩm: RS485 TO WIFI/ETH
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
890.000₫
PACKAGE CONTENT

Weight: 0.157 kg

Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply

  1. RS485 TO WIFI/ETH x1

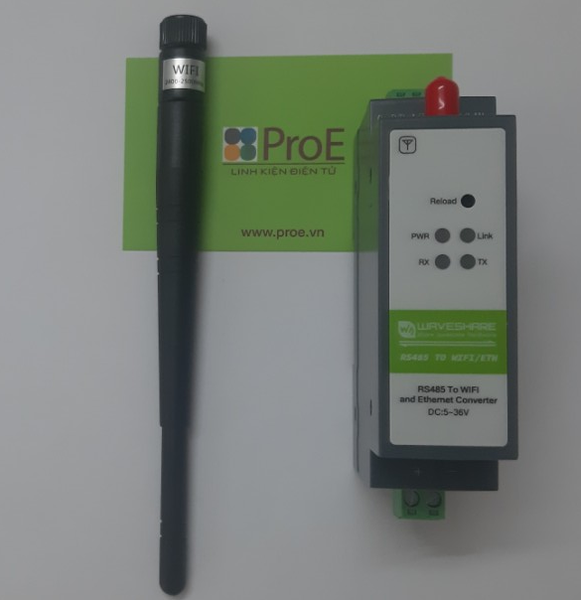

  2. Antenna x1

1

2

Rail-Mount Serial Server, RS485 To WIFI/Ethernet Module, Modbus MQTT Gateway

RS485 To WIFI/Ethernet Module

Rail-mount RS485 serial server



Modbus Gateway



MQTT Gateway



Features At A Glance

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications

OUTLINE
Communication interface RS485, screw terminal
Power supply 5 ~ 36V DC, screw terminal
Case PC + ABS, V0 flame retardant grade
Dimensions L × W × H: 109.66 × 28 × 64.71 mm
COMMUNICATION
Ethernet 10 / 100M auto-negotiation RJ45 connector
WIFI 802.11b/g/n compliant
Serial port RS485 interface (Anti-surge, Lightningproof, Over-current protection)
WIRELESS SPECIFICATION
Frequency Band 2.412 ~ 2.484 GHz
Wireless network Station / AP / AP+Station Mode
Security mechanism WPA-PSK / WPA2-PSK
Encryption type TKIP / AES
Transmitting power 802.11b: +19dBm (Max.@11Mbps)
802.11g: +18dBm (Max.@54Mbps)
802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity 802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
SERIAL SPECIFICATION
Baudrate 300 ~ 460800 bps
Parity bit none, odd, even, mark, space
Data bit 5 ~ 9 bits
Flow control N/A
SOFTWARE
Protocol TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration host, web browser, serial AT command
Communication method TCP/IP direct communication, VCOM
Operating mode Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
ENVIRONMENT REQUIREMENT
Operating temperature -40℃ ~ 85℃
Storage temperature -45℃ ~ 125℃
Humidity range 5% ~ 95% relative humidity



Primary Function

Support RS485 To WIFI, RS485 To Ethernet, Ethernet To WIFI, Etc.

Rail-Mount Serial Server

Industrial Rail-Mount Support, Easy To Install, Compact Size, Cost-Effective

Function Block Diagram

Support Transparent Transmission Mode

Supports TCP Server / TCP Client / UDP Server / UDP Client



Serial Command Mode

The user sends data to the server according to the protocol
Send data to different servers without restarting

Support HTTPD Client Mode

After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server

Support MQTT Function

Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms

Modbus Gateway Support

Support Modbus TCP And Modbus RTU Interconversion Mode

AT Command Mode

The user can query the current status of the module, or set related parameters, by sending AT commands

Features

Multi Configuration Methods
Supports muliti configuration methods such as hosts, Web Browser and serial port Configuration


Socket Distribution Protocol
In the transparent transmission mode, the serial device can send data to the specified Socket link; the network data of each Socket is sent to the serial device through the serial port.


Hardware Protection
ESD Level 4 Static Protection, Level 3 Surge Protection, EFT Level 3 Electrical Fast Transient/Burst Protection.


Customized registration packets, heartbeat packets
The registration package is used to identify the device information to the server, so that the server can identify the device.

Interface Introduction

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RS485_TO_WIFI/ETH
