PoE/ETH/USB HUB HAT PoE Ethernet / USB HUB HAT for Raspberry Pi Zero, 1x RJ45, 3x USB

PACKAGE CONTENT

Weight: 0.063 kg

1. PoE/ETH/USB HUB HAT x1
2. USB HUB Board x1
3. Screws pack x1
4. Screwdriver x1

PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant

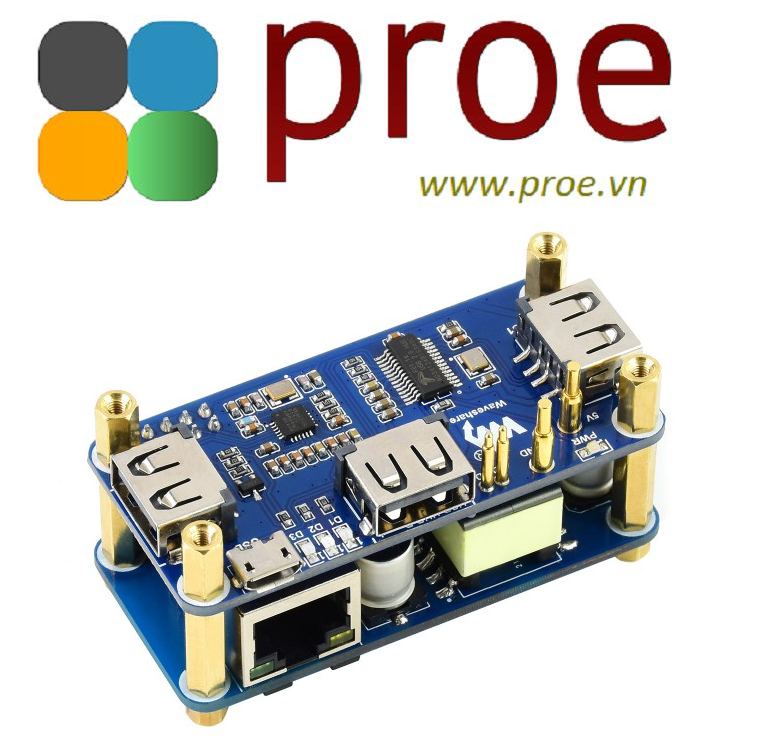

PoE Ethernet / USB HUB HAT

Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant

Features At A Glance

The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports.

• Designed for Raspberry Pi Zero, compatible with Zero series boards
• Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
• PoE (Power over Ethernet) feature, 802.3af-compliant
• Fully isolated SMPS (Switch Mode Power Supply)
• 3x extended USB ports, compatible with USB 2.0 / 1.1

Specifications

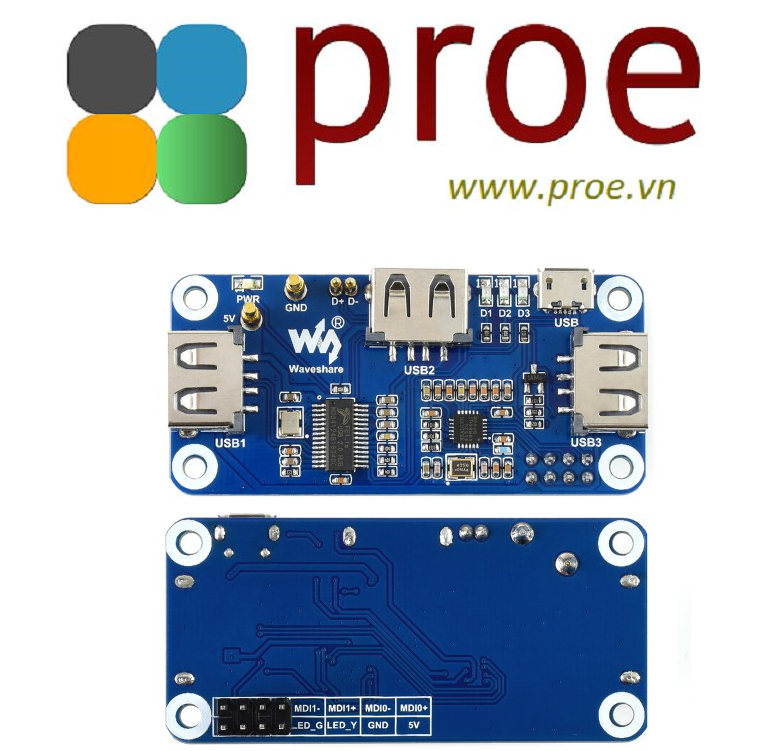

3x Extended USB 2.0 Ports

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

Extended Ethernet Port

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

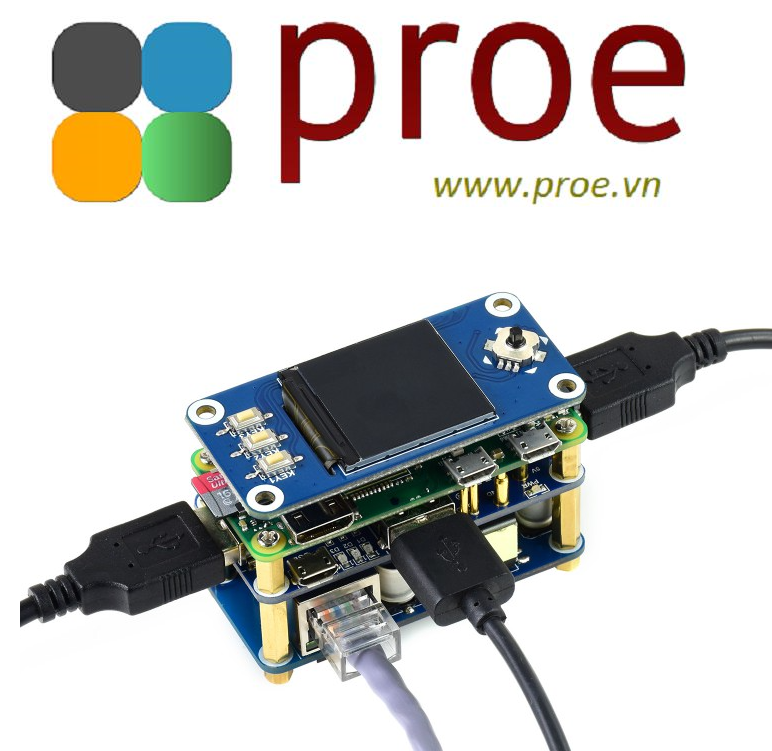

Application Example

For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.

Outline Dimensions

Resources & Services

Wiki: PoE/ETH/USB_HUB_HAT
