Features
● Integration of JetsonTM TX2 or JetsonTM Xavier NX, image sensor
and vision software suites, ready to deploy
● All-in-one design minimizes cabling, footprint and maintenance
● FPGA-based DI/O for accurate, real-time triggering
● USB Type-C port for video, power, and USB simplifies connectivity
● 1x microSD slot for external storage (not supported by NEON2000-JT2-X)
● Choose from four different image sensors
● DI/O, 1x LAN and 1x COM
● Supports C-mount lenses
● IP67-certified (NEON-2000-JT2-X Series)
Introduction

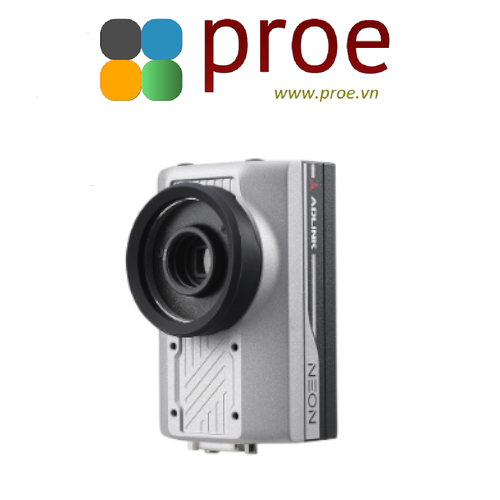

ADLINK's NEON-2000 Series of the NVIDIA® Jetson™-based
industrial AI cameras integrate the Jetson™ Xavier NX or Jetson™
TX2, an image sensor, an optimized OS, and broad I/O for
vision applications in a compact chassis with verified thermal
stability, saving users' total cost of ownership on integration
and troubleshooting, as well as minimizing cabling and space
requirements for installation.
Supporting four types image sensors, integration of DI/O, 1x
communication port, and 1x LAN port in a compact chassis, the
NEON-2000 Series is ideal for the AI vision applications at the edge.
For harsh environments requiring ingress protection, the NEON2000-JT2-X Series is IP67-certified, enabling AI vision capabilities in
critical applications.
Software Support
● Ubuntu 18.04 L4T (Linux for Tegra)
● Jetpack
● Basler pylon
Note: Supported software versions will be updated as released by NVIDIA.
Accessories
● 1.8m USB Type-C cable with screw lock
● USB Type-C hub/adapter
● 2m DB-15 to DB-37 I/O extension cable
● I/O extension board (DIN-37D-01)
● 12V AC/DC adapter (for NEON-2000-JT2 and
NEON-2000-JNX Series)
● C-mount lens, focal length 8mm, aperture f1.4
● M12 USB Type-C cable (for NEON-2000-JT2-X Series)
● M12 Ethernet cable (for NEON-2000-JT2-X Series)
● M12 I/O & power cable (for NEON-2000-JT2-X Series)
● Lens protector (for NEON-2000-JT2-X Series)
● M12 system flash cable (for NEON-2000-JT2-X Series)
Note: Use only recommended ADLINK power adapters and cables.
Specification - Datasheet: Link
