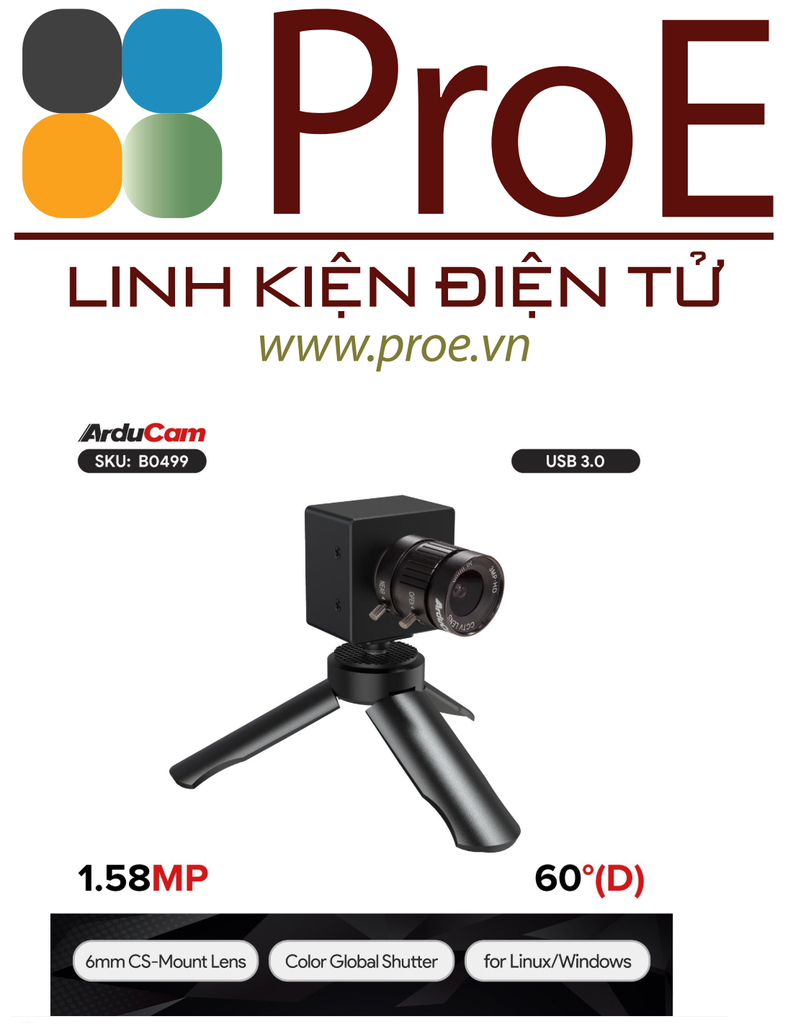

Arducam 1.58MP IMX296 Color Global Shutter USB 3.0 Camera Module
- Mã sản phẩm: B0499
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
9.950.000₫
Overview
Arducam's USB 3.0 camera series presents the IMX296 color global shutter model. With a 1.58MP CMOS sensor and a maximum still resolution of 1456x1088, this camera produces uncompressed, high-quality images in YUYV format.
The on-board ISP optimizes image quality, while the global shutter, USB 3.0 connectivity, and a rapid 44fps frame rate ensure seamless video. Equipped with a 6mm CS lens boasting a 60° diagonal field of view, it delivers accurate and detailed images for diverse applications.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Outstanding Imaging: Arducam's IMX296 USB3 camera boasts a 1.58MP color global shutter sensor for exceptional clarity at 1456x1088 resolution.

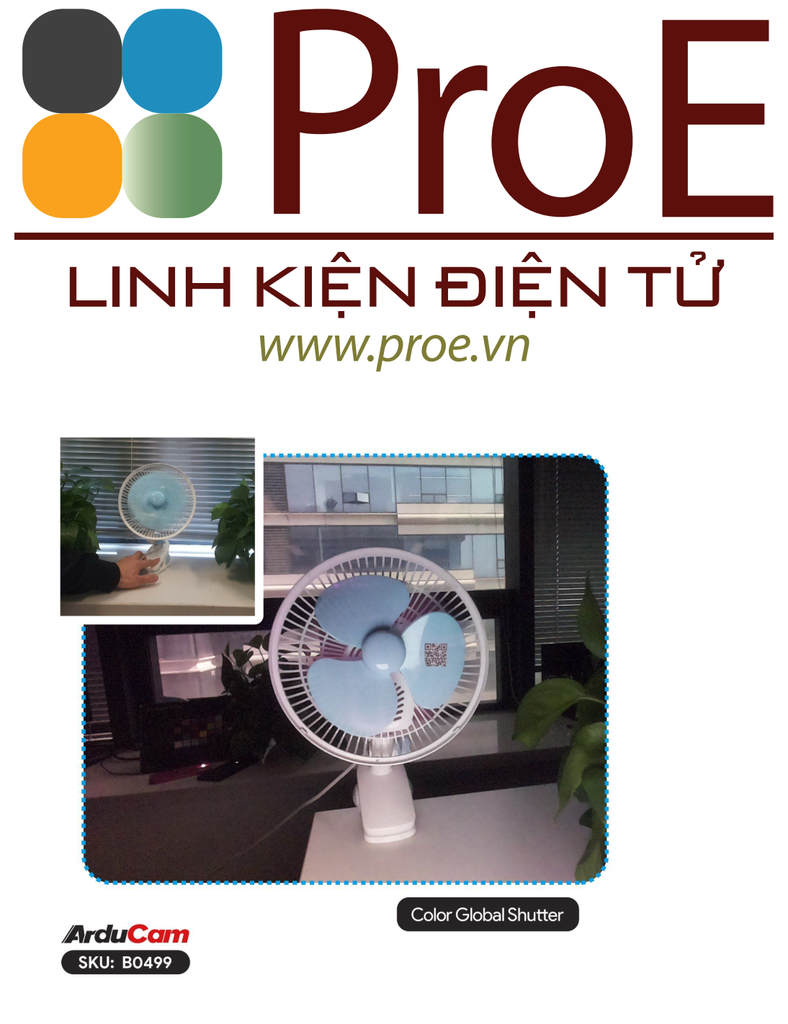

- High-Speed USB 3.0 Connectivity: Enjoy up to 44fps frame rate flexibility and global shutter functionality, ensuring artifact-free high-speed motion capture.

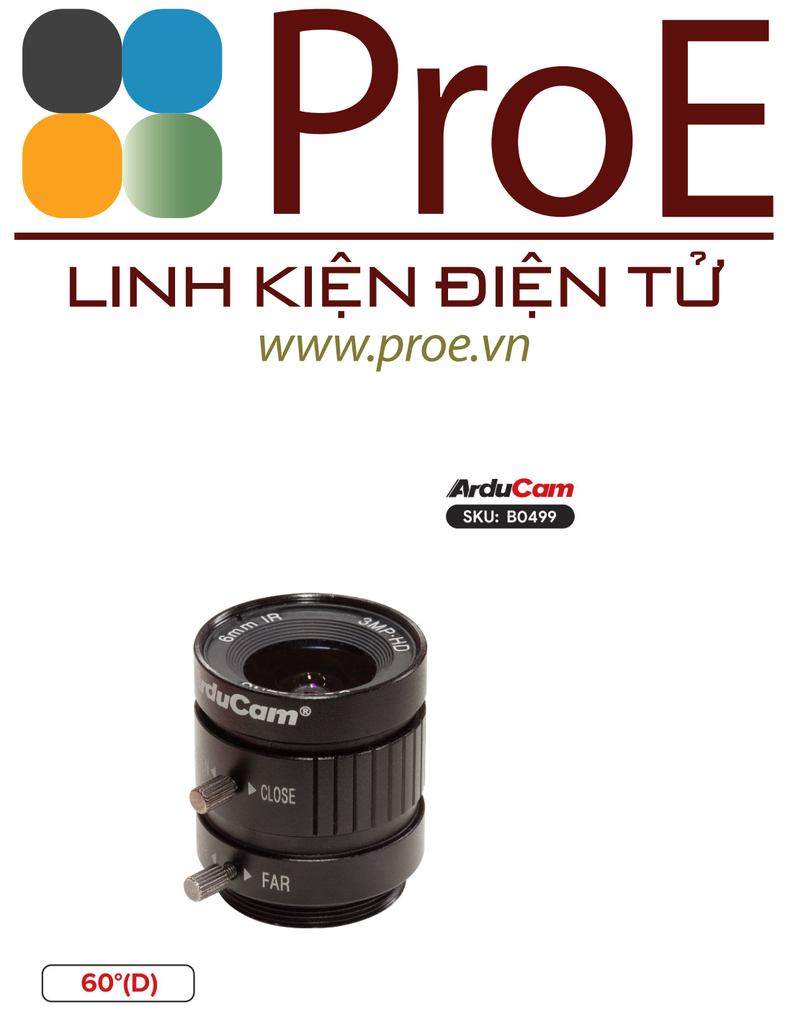

- Equipped with a 6mm CS mount lens, this camera allows manual adjustment for sharp, clear images tailored to your needs.
- Advanced Image Enhancement: On-board ISP with proprietary tech ensures top-tier image quality through de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV processes.

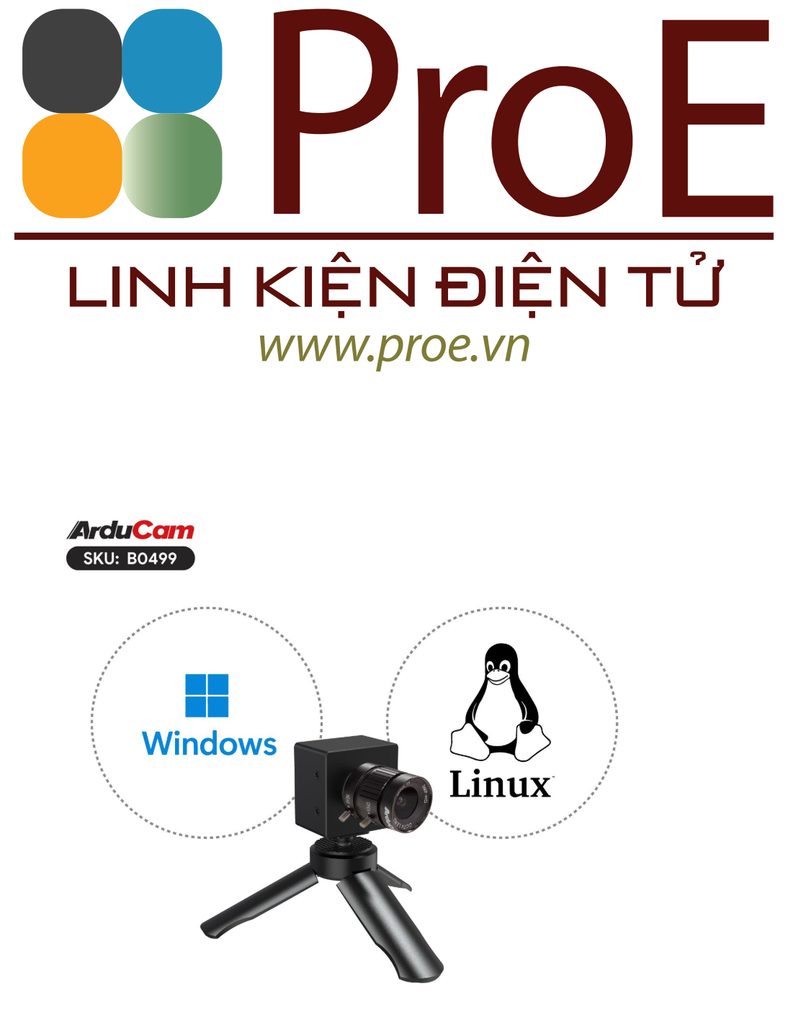

- Plug and Play: Seamless compatibility with Windows and Linux, plug-and-play functionality eliminates the need for additional drivers.
Specifications
| Image Sensor | |
| Sensor | IMX296 |
|---|---|
| Still Resolution | 1.58 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.9" |
| Output Format | YUY2 |
| Pixel Size | 3.45μm × 3.45μm |
| Sensor Active Area | 1456(H) × 1088(V) |
| Frame Rate (USB 3.0) | 1456×1088@44fps |
| Frame Rate (USB 2.0) | 1456×1088@10fps |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 60°(D)×50°(H)×38°(V) |
| Lens Mount | CS Mount |
| F.NO | F1.2 |
| E.F.L | 6mm |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Default Focus Range | 3m-∞ |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |

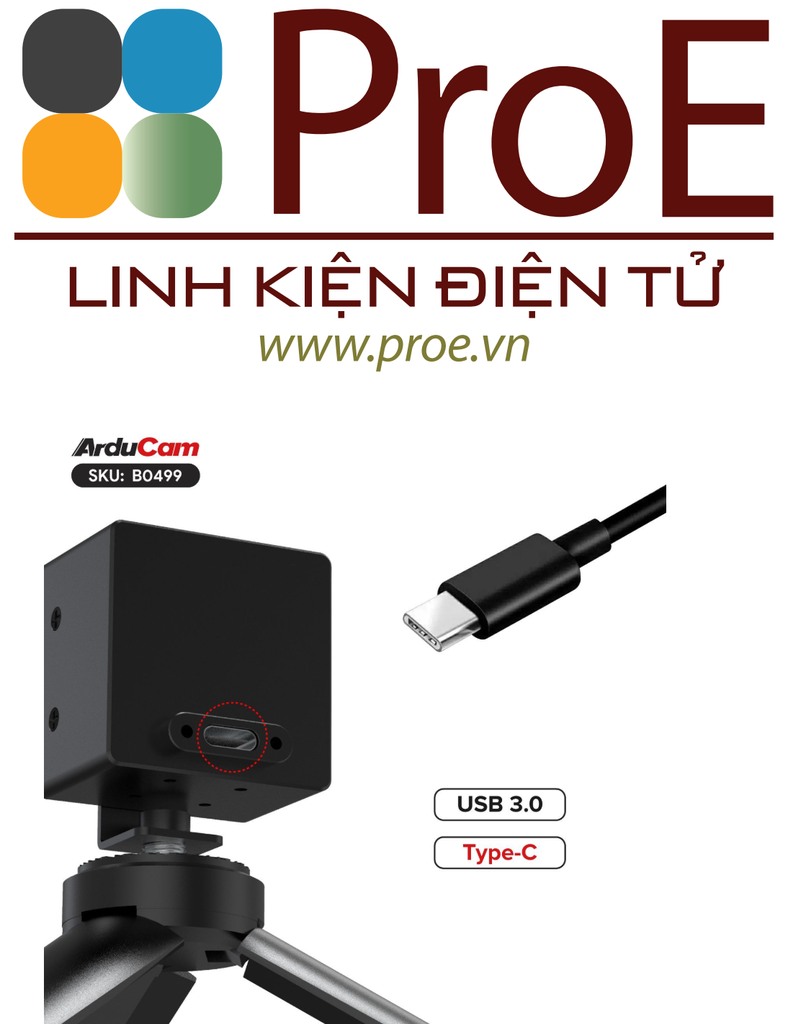

| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.89W , Min: 1.62W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) |

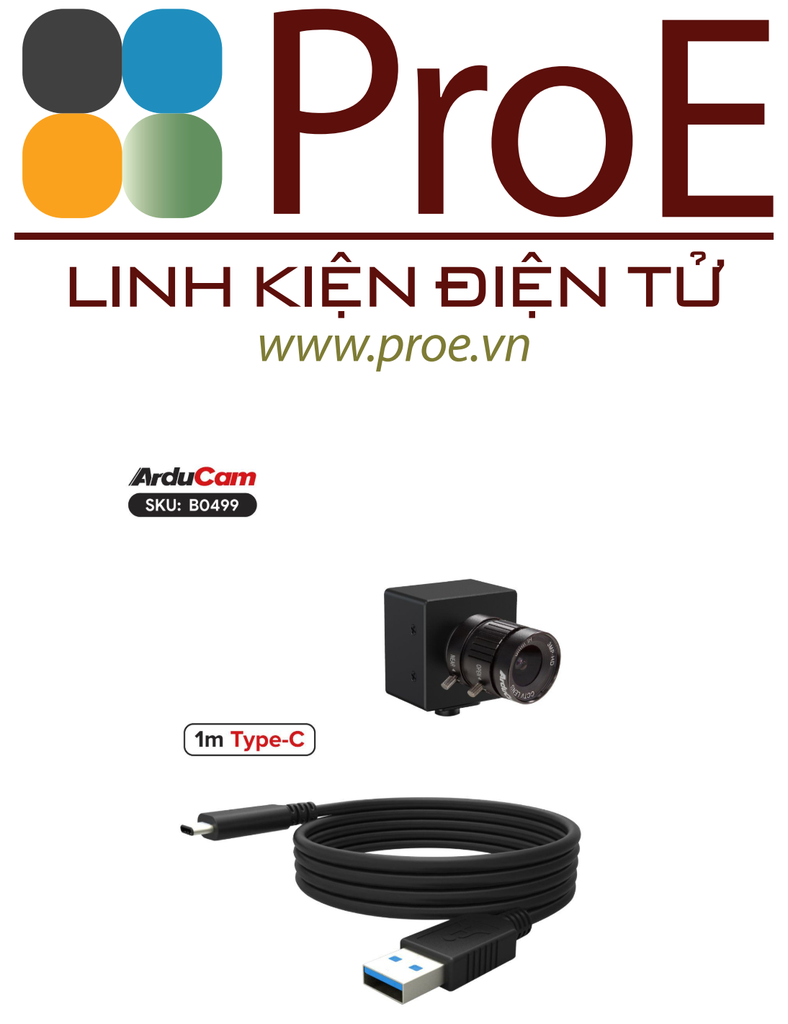

Package Including

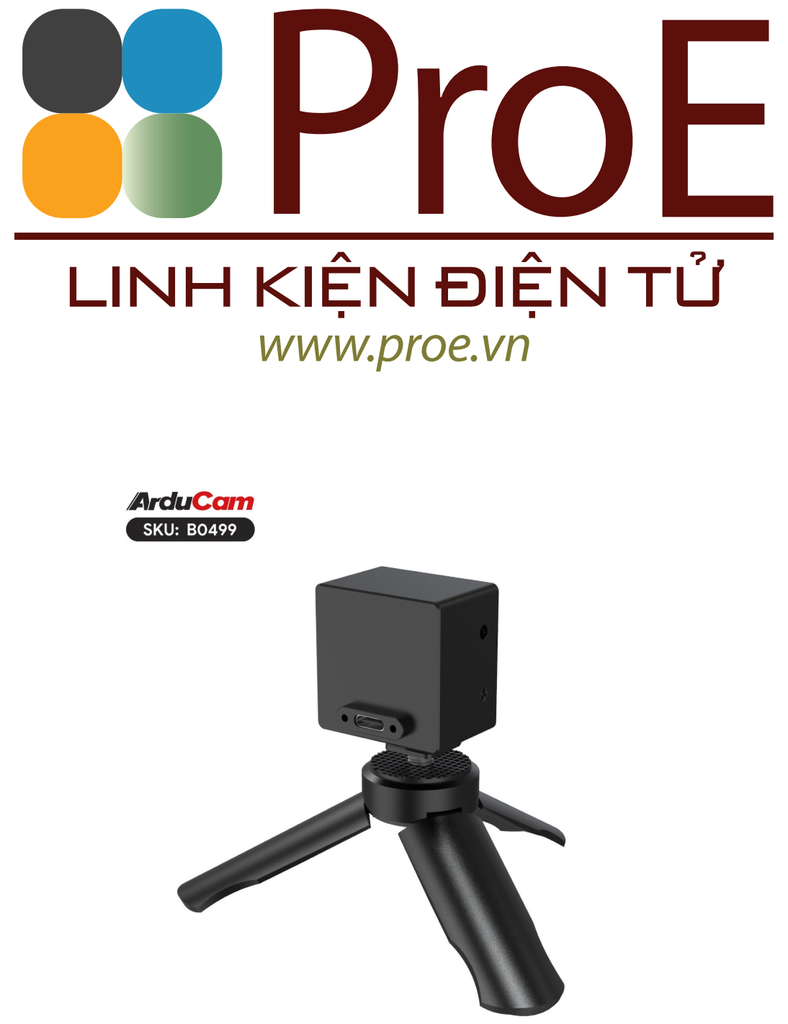

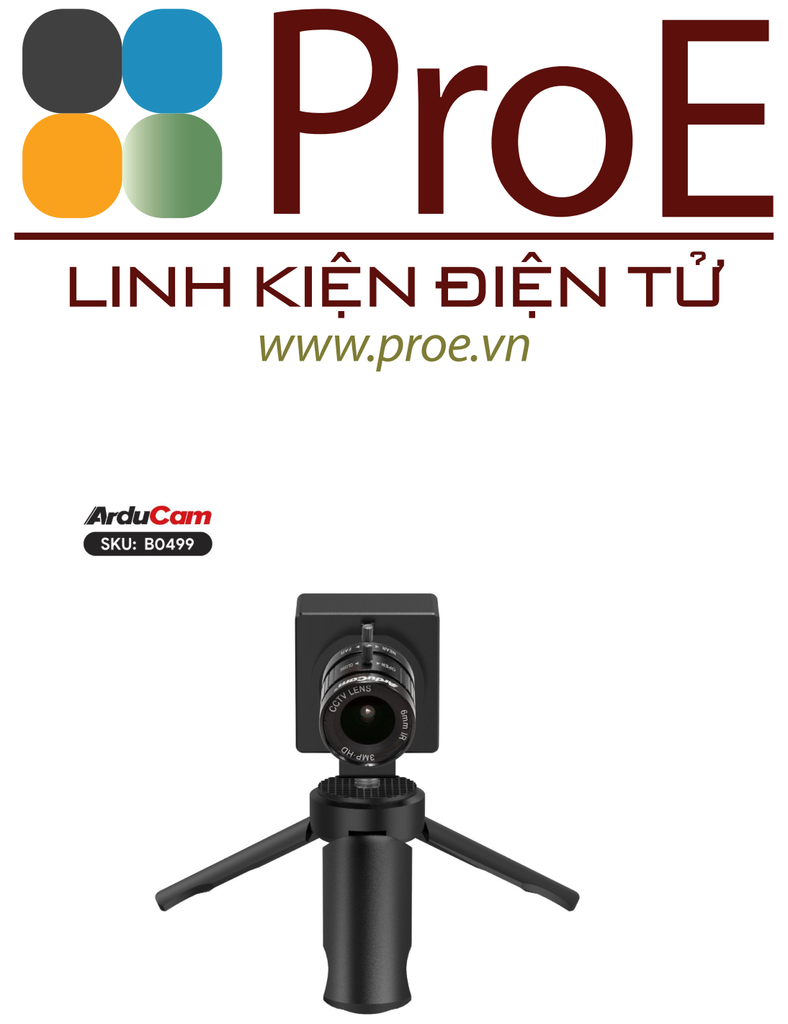

- 1 x IMX296 USB3 Camera with Back Cover and Tripod Adapter
- 1 x 1m USB A to Type-C Cable
