Arducam CSI to HDMI Cable Extension Module with 15pin 60mm FPC Cable for Raspberry Pi Camera Specific (Pack of 2, 1 Set)

  • Mã sản phẩm: Set 2 Arducam CSI to HDMI
  • Nhà sản xuất: uctronics
  • Website hỗ trợ:

Item Description

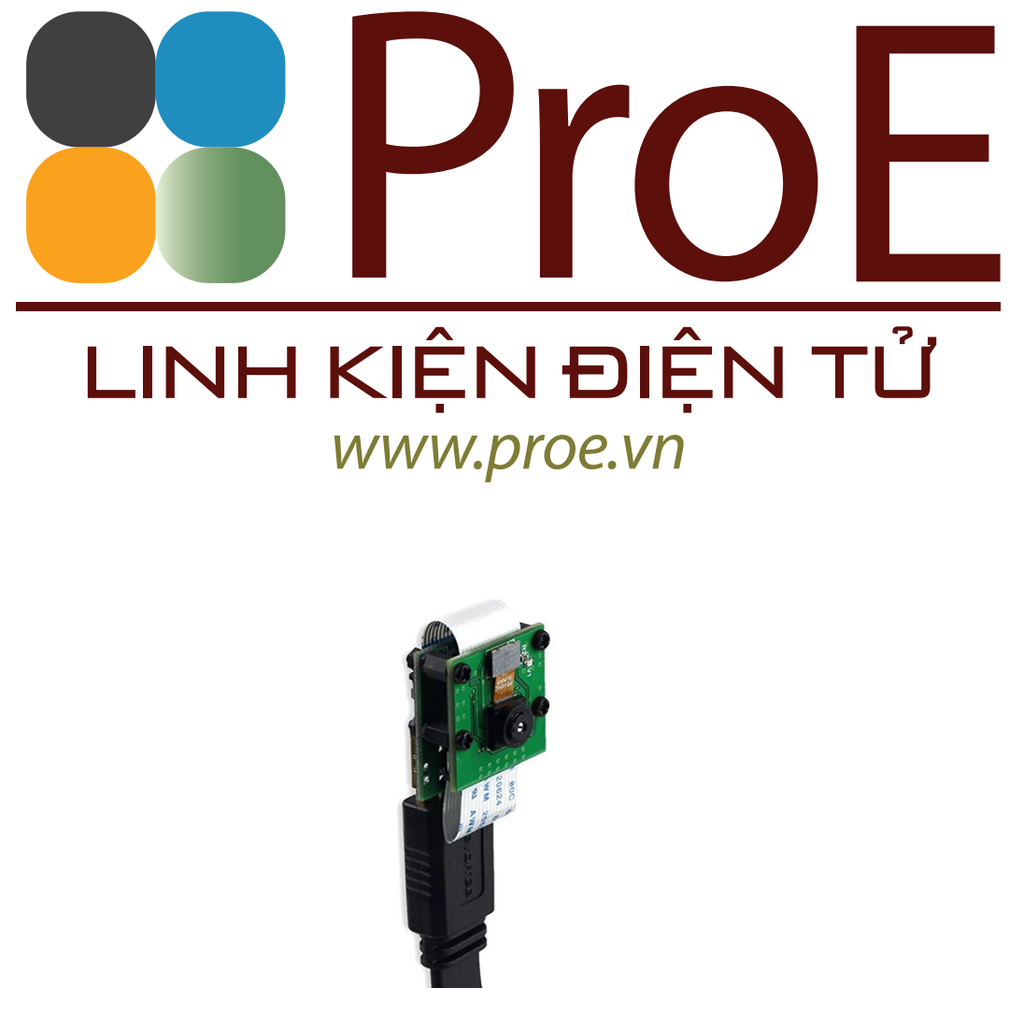

The CSI-HDMI adapter board is designed for Raspberry pi camera board (V1, V2 and HQ camera) to extend the camera over the long cables while keeping the high-speed CSI signals away from noise and interference.

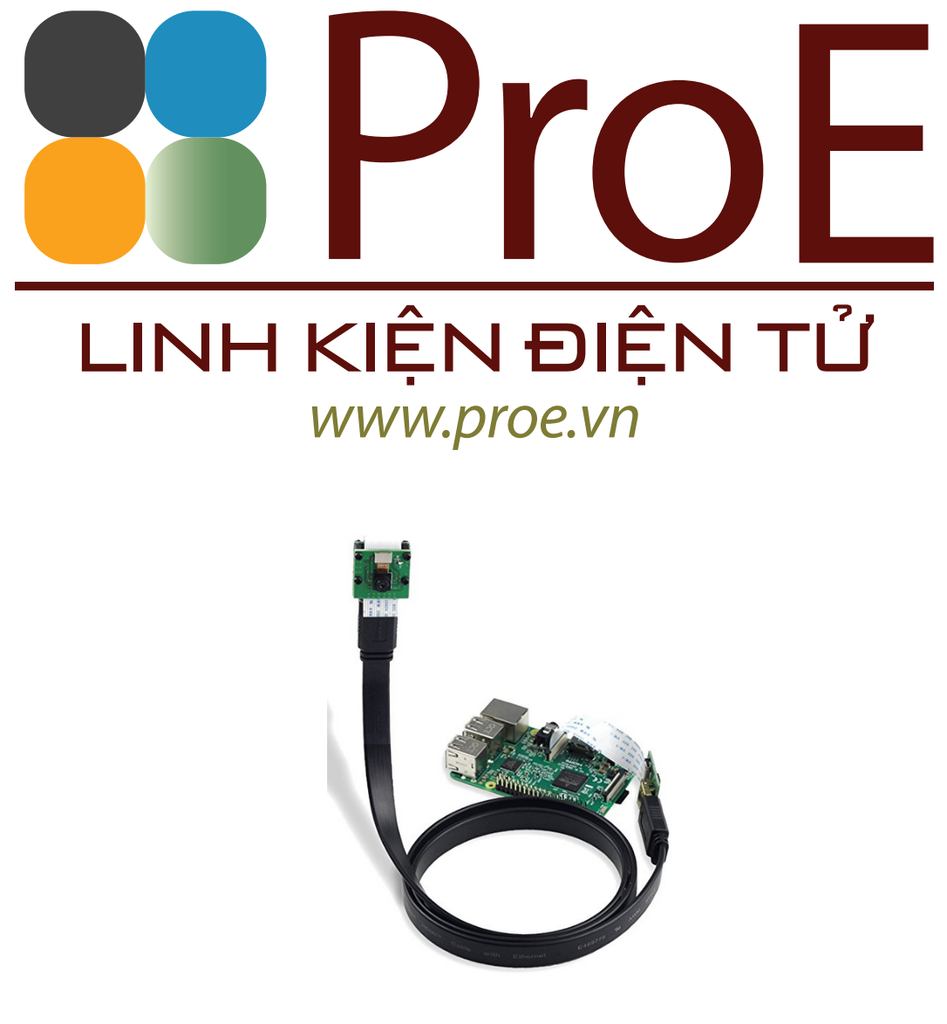

By using high speed HDMI cable, the camera can run over 10 meters, that high extend the usage of the Raspberry pi cameras. In addition to extend the camera signal, the adapter board provides another 3 signals to be extend with the camera signals together via the headphone jack connector.

It can be used to extend standard audio signals, GPIO signals or other sensor signals according to users need.

If you need a longer and stronger cable with solid connections, it is right thing for you.


  • Support NVIDIA Jetson and Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+, Pi Zero
  • HDMI cables can be up to 10 meters (more than 10 meters wasn't tested)
  • Reserved microphone and headphone jack for audio or GPIO signals
  • Three additional solder pads are available (same signals as headphone jack)
  • Size: 27.63 x 25.00mm

Mechanical/3D Drawing

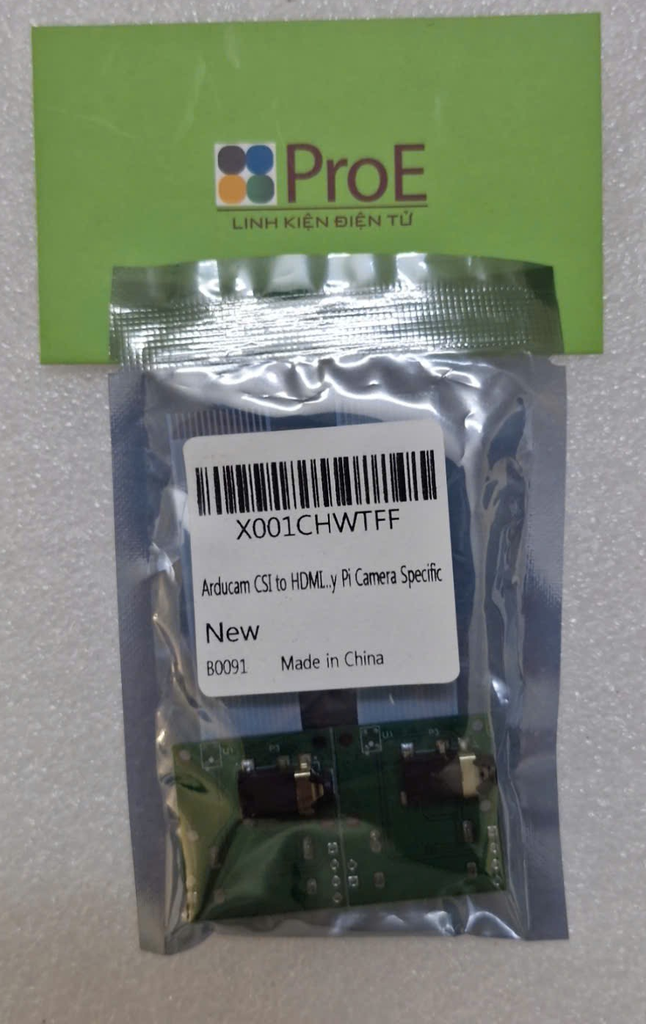

Package Including

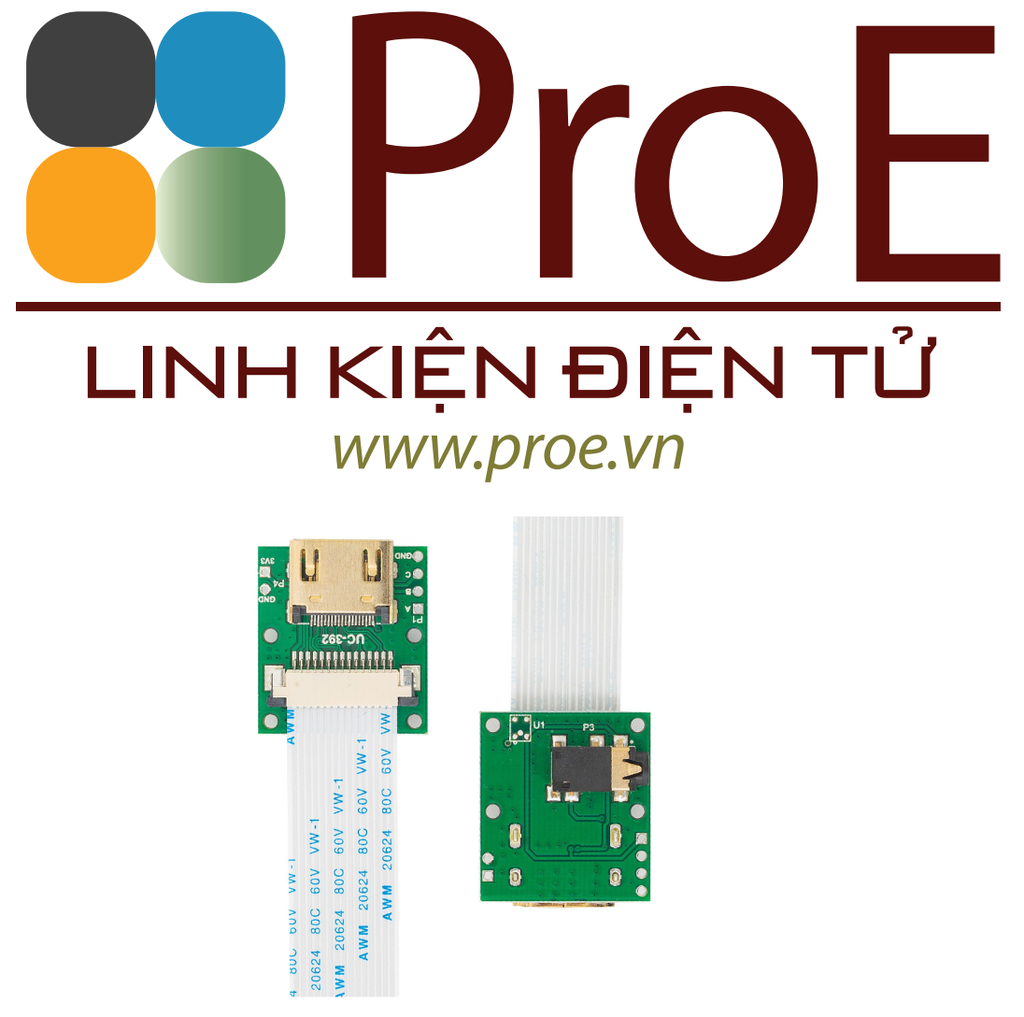

2pcs HDMI to CSI Adapter Board with 60mm 15pin Ribbon Cable
