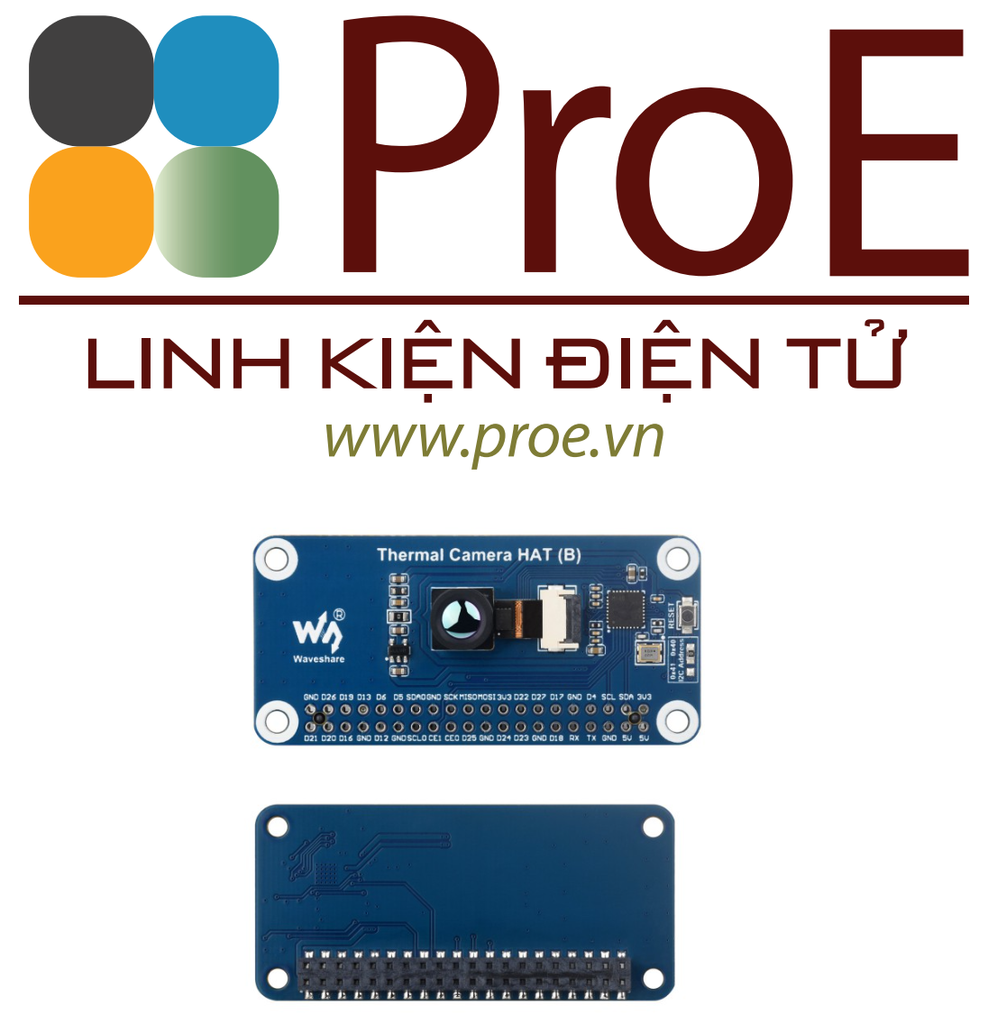

Long-wave IR Thermal Imaging Camera HAT (B)

Long-wave IR Thermal Imaging Camera HAT (B) For Raspberry Pi, Options for 45° / 90° FOV, Raspberry Pi IR Camera, 80×62 Pixels, Standard 40PIN GPIO Header

Long-wave IR Thermal Imaging
Camera HAT (B)

80×62 Pixels IR Array

Small Size | Non-contact | Motion Detection

Features

This is a long-wave IR thermal imaging camera HAT that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

Compared to the Thermal Camera HAT, this product features optimized internal filter and image processing algorithm, reducing the lens size to 9 × 9 mm and using FPC cable for connecting. The product provides basic version and wide angle version with 45° / 90° FOV.

Key features include:

• Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels
• Continuous operation and thermal imaging video stream due to shutterless design
• Calibrated each pixel to ensure uniformity and accuracy of temperature reading
• Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
• Up to 25FPS (Max) thermal imaging video stream output
• Provides lens options of 45° / 90° FOV
• Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Main applications:

• Long-term non-contact temperature online monitoring
• IR thermal imaging devices, IR thermometers
• Smart home, intelligent building, intelligent lighting
• Infant and elderly care
• Fever detection
• Industrial temperature control, security & safety, intrude/motion detection
• Small Target Thermal Analysis, Heat Trend Analysis and Solutions

Version Options

Thermal-45 Camera HAT (B)
Basic version: 45° FOV

Thermal-90 Camera HAT (B)
Wide angle version: 90° FOV

Specifications

Onboard 40PIN GPIO Header

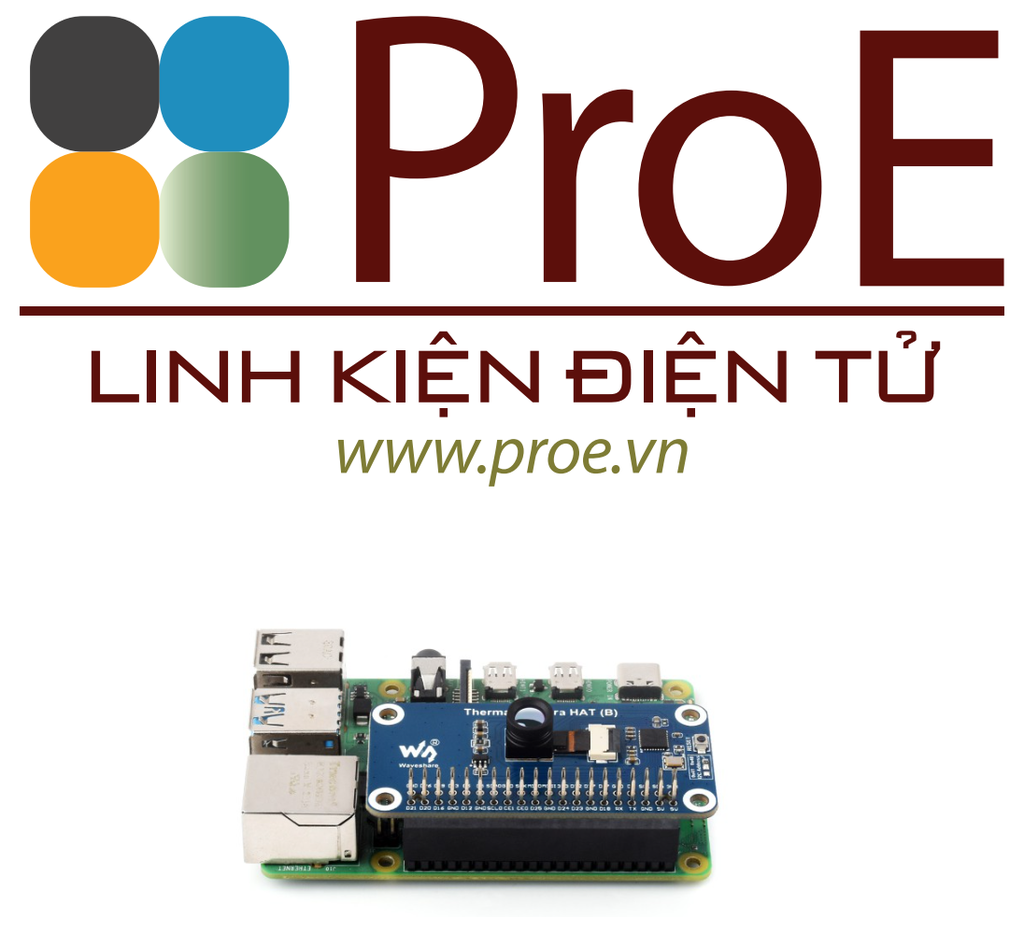

Compatible with Raspberry Pi boards

* for reference only, the Raspberry Pi boards above are NOT included

Application Scenarios

Outline dimensions

Thermal-45 Camera HAT (B)

Thermal-90 Camera HAT (B)

Resources & Services

Wiki: www.waveshare.com/wiki/Thermal_Camera_HAT_(B)

Weight: 0.024 kg

Thermal-45 Camera HAT (B)

1. Thermal-45 Camera HAT (B) x1
2. 2 × 20 PIN female header x1
3. Screws pack x1

1

2

3

Thermal-90 Camera HAT (B)

1. Thermal-90 Camera HAT (B) x1
2. 2 × 20 PIN female header x1
3. Screws pack x1

1

2

3
