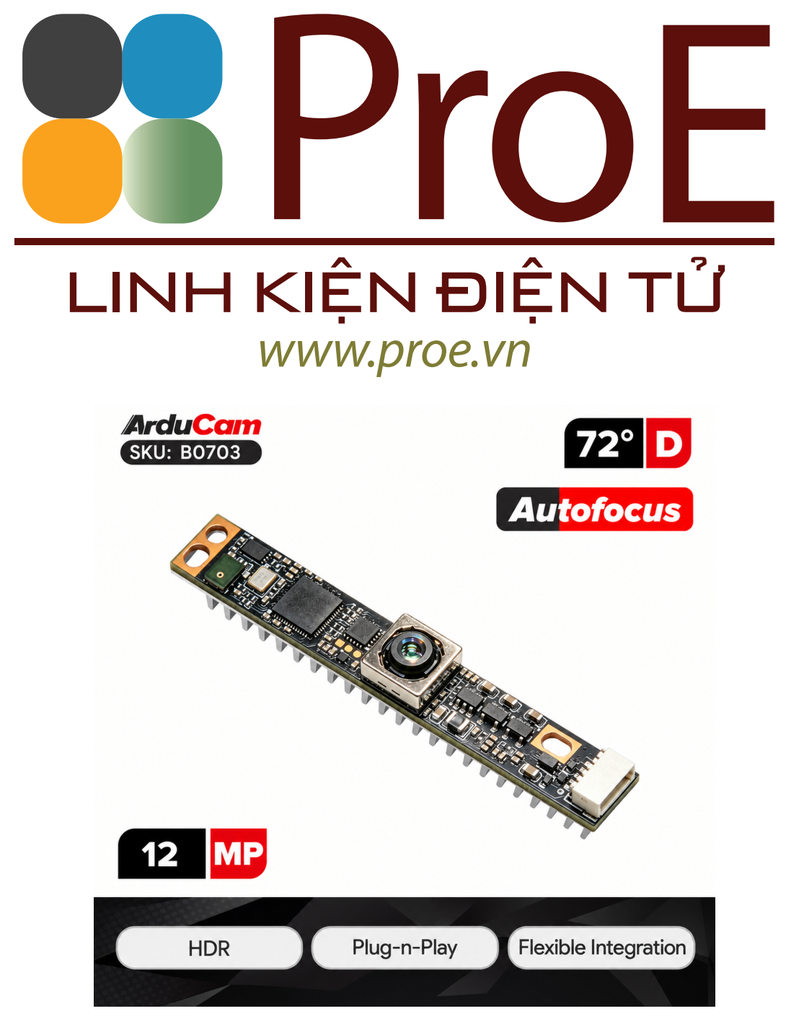

12MP HDR USB2 UVC Autofocus Camera Module for Windows, Linux, and Android

Overview

A 12MP USB camera module with HDR support and an autofocus lens, designed for high-quality imaging up to 4608×2592 resolution. Its integrated 650nm IR-cut filter ensures accurate color performance, while the sturdy metal housing provides effective heat dissipation and protection. With plug-and-play compatibility on Windows, Linux, Android, and macOS—no driver required—it is a reliable UVC solution for applications demanding clarity, durability, and wide dynamic range.

Applications

• Robotics
• Precision Agriculture
• Medical and Scientific Research
• Document Scanning and Archiving
• Broadcast and Media Production

Features

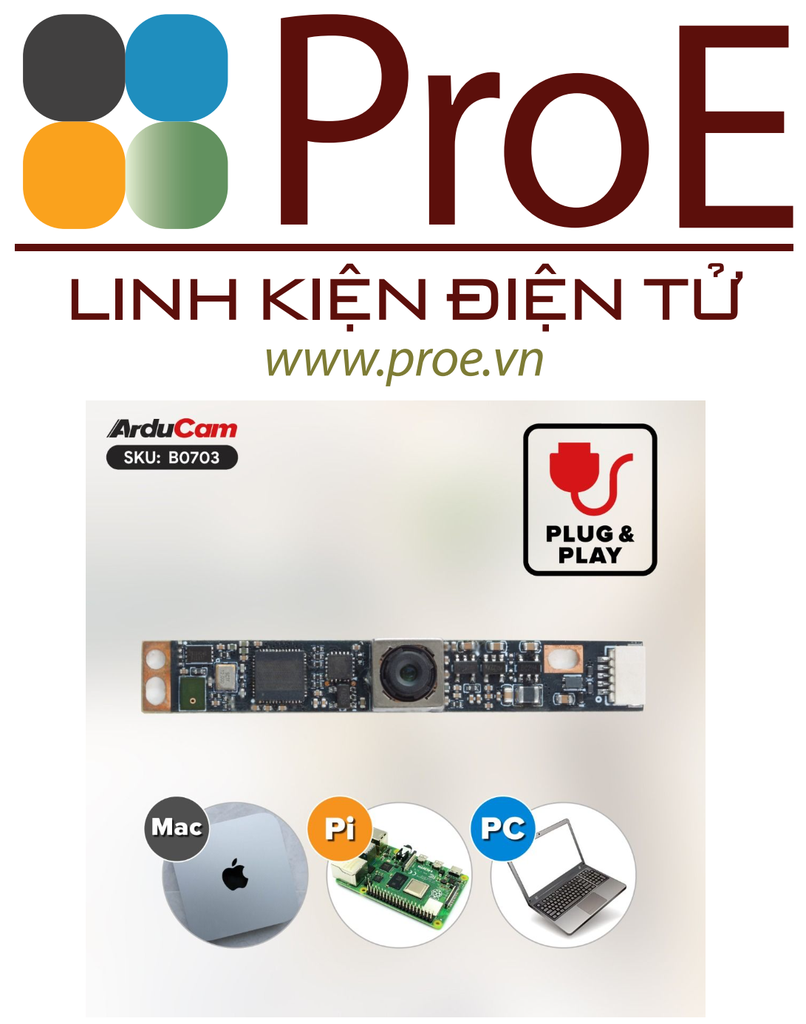

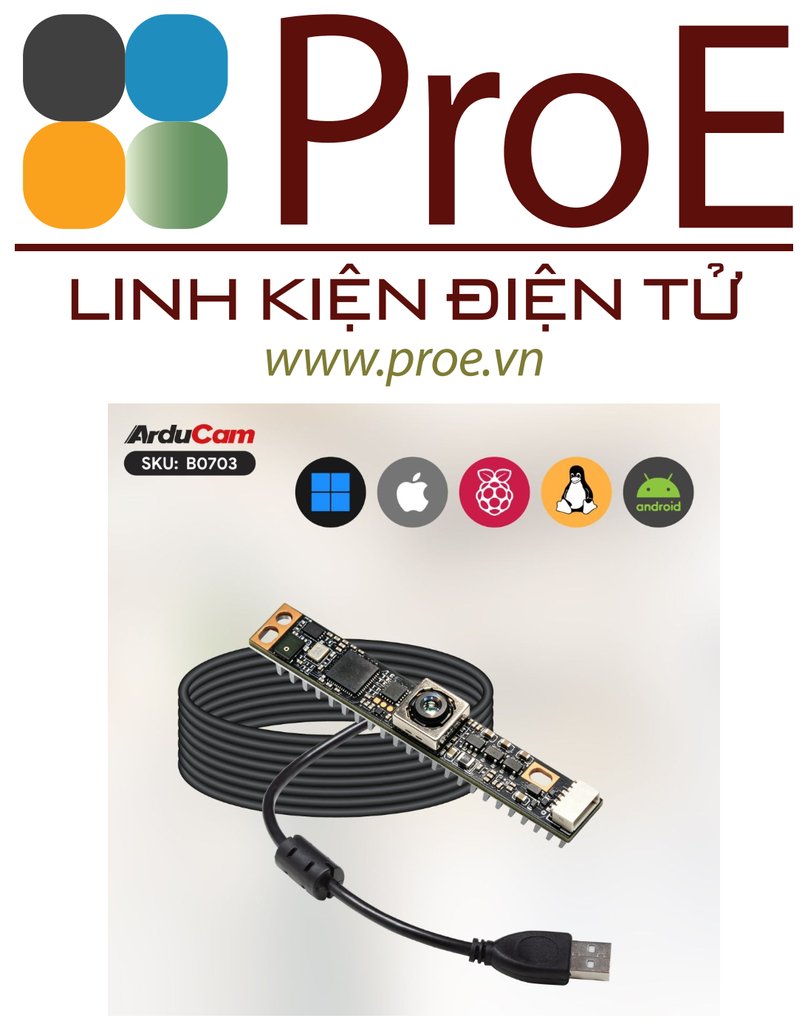

• [Plug-and-Play] This 12MP camera module offers hassle-free plug-and-play operation across Windows, Linux, Android, and macOS platforms. No additional drivers or software are required—simply connect via USB and start capturing high-quality images instantly.
• [HDR] Equipped with High Dynamic Range (HDR) technology, the camera captures well-balanced images that retain detail in both bright and shadowed areas, delivering superior image quality in challenging lighting environments.
• [High Resolution] Featuring a 12MP sensor, the camera produces sharp still images with a maximum resolution of 4608 × 2592 pixels, ensuring clear and detailed visuals suitable for demanding applications.

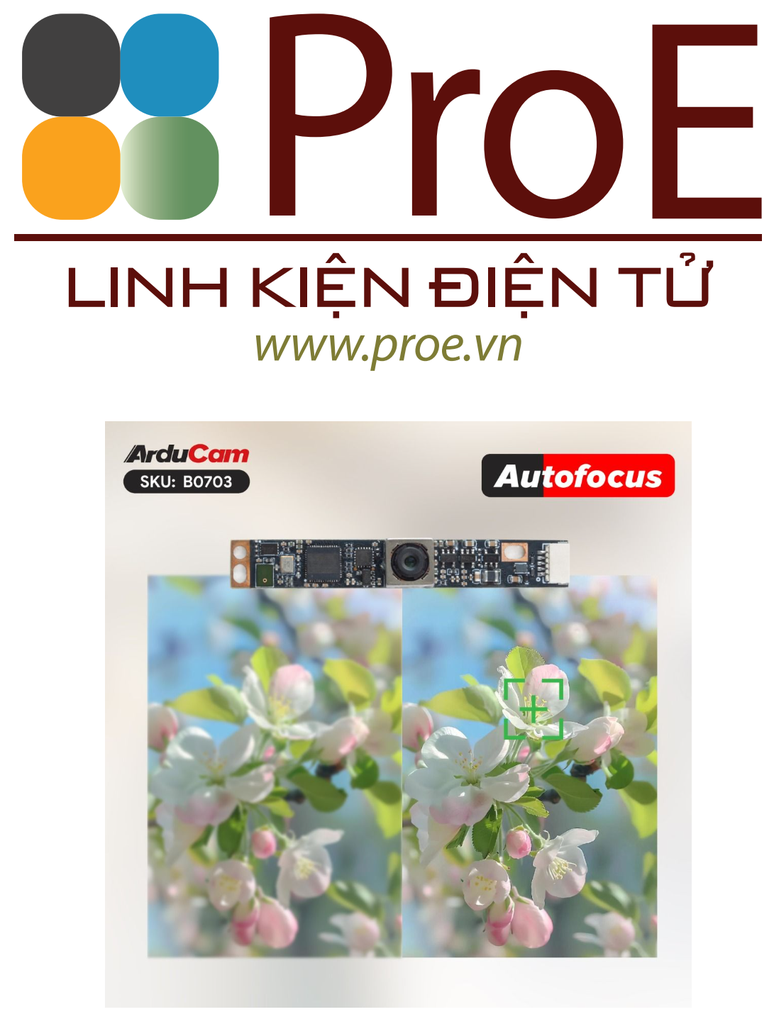

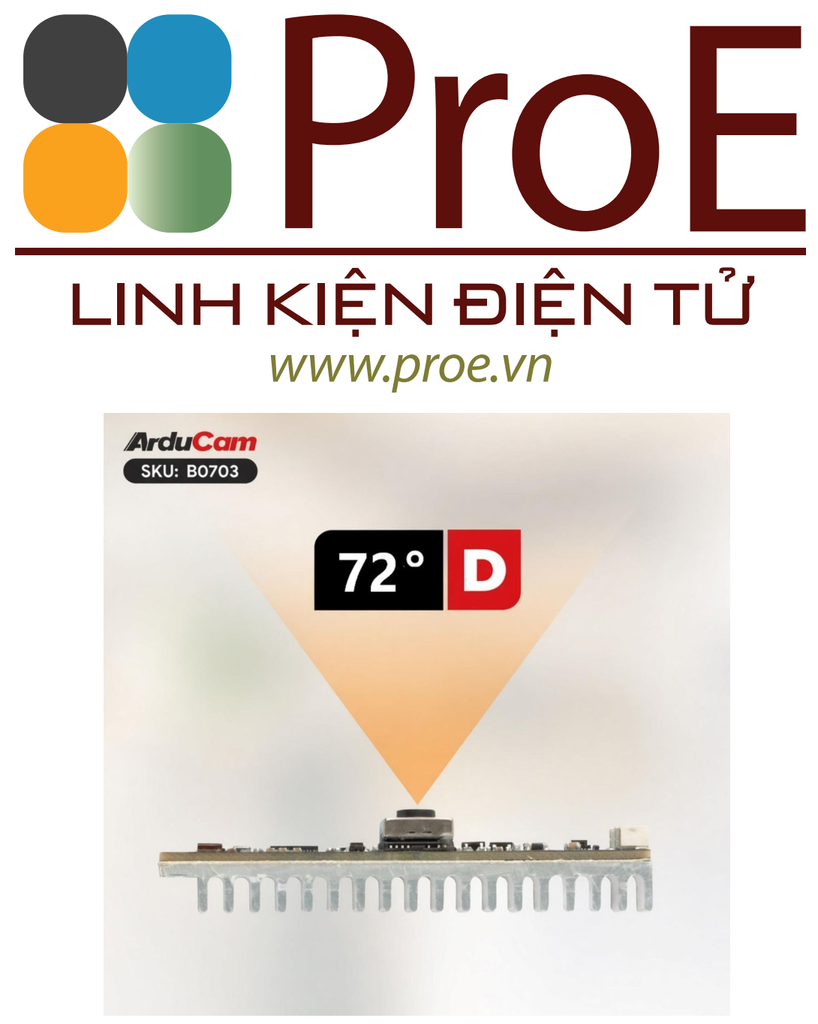

• [Autofocus] The module is fitted with a high-quality 63°(HFOV) autofocus lens designed for consistent sharpness at a varifocal distance. An integrated 650nm IR-cut filter enhances color accuracy by blocking infrared light, making it ideal for true-to-life color reproduction.

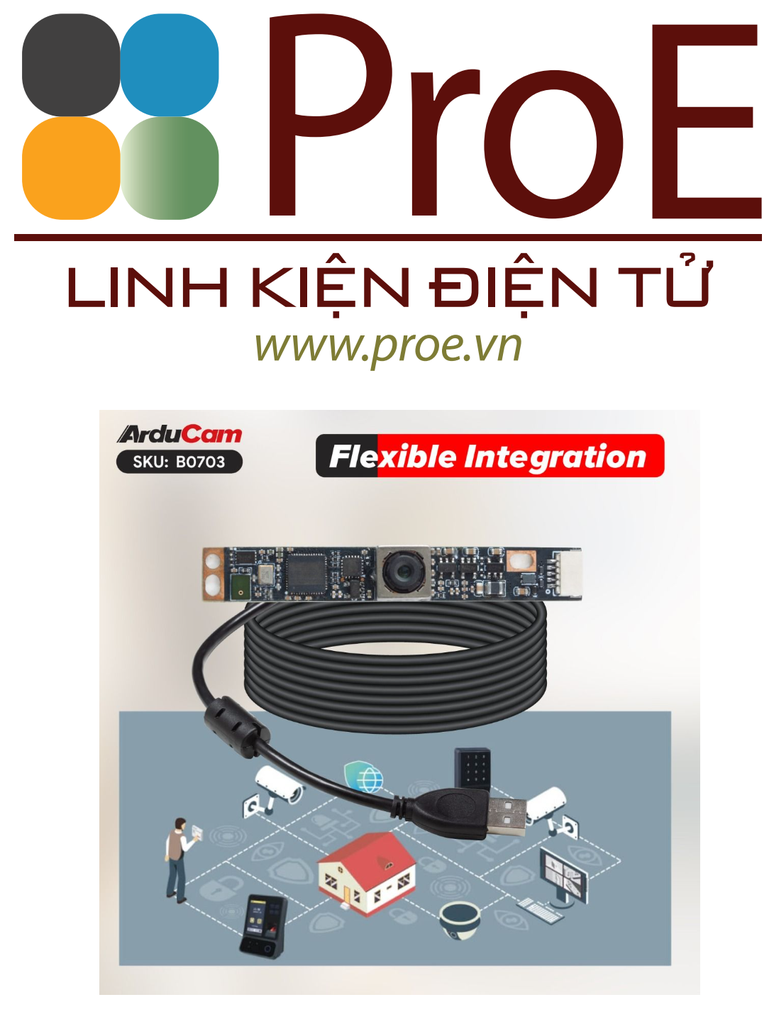

• [Versatile & Flexible Integration] Engineered with an elongated slim profile and standardized mounting points, allowing engineers to effortlessly embed the camera into narrow bezels, tight slots, and compact devices.

Specifications

HDR*: The HDR feature is disabled by default. Activation requires enabling the Low-light Compensation option in the parameters GUI.

Package Including

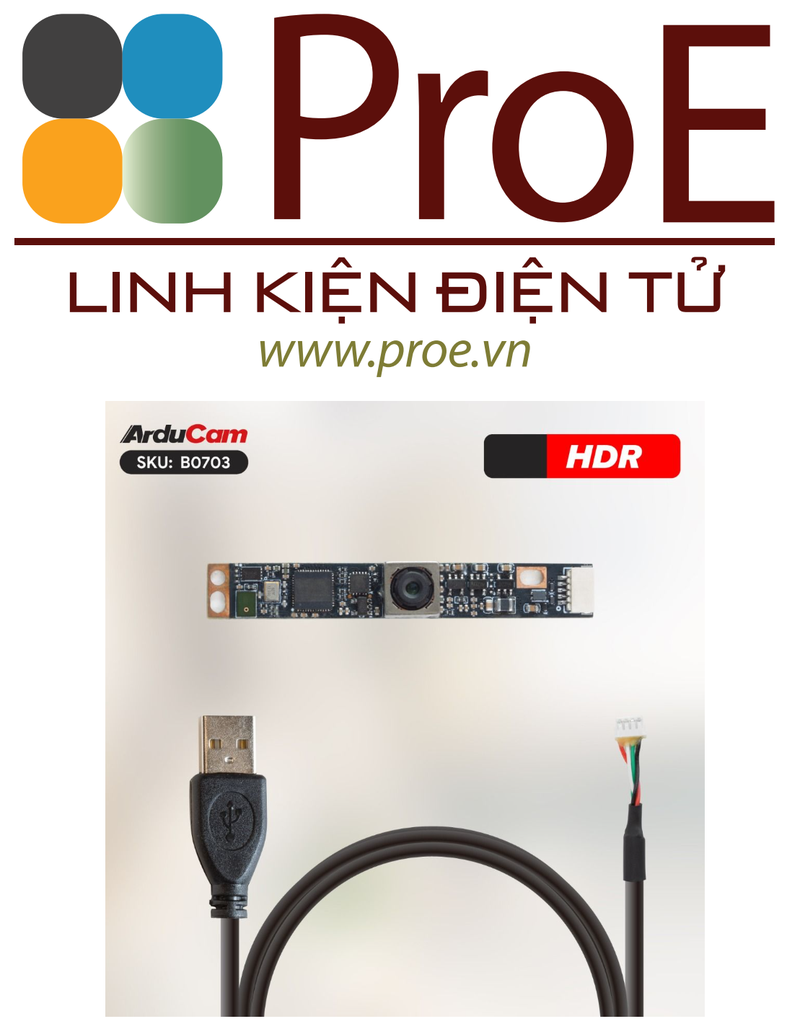

• 1 x Arducam A708-slim 12MP High Resolution HDR Autofocus USB2 UVC Camera Module
• 1 x 1m USB2 to SM05B-SRSS-TB JST Cable

Notes

• This module supports customized resolution, frame rate, etc.
• This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.

Documentation

• Quick Start Guide
