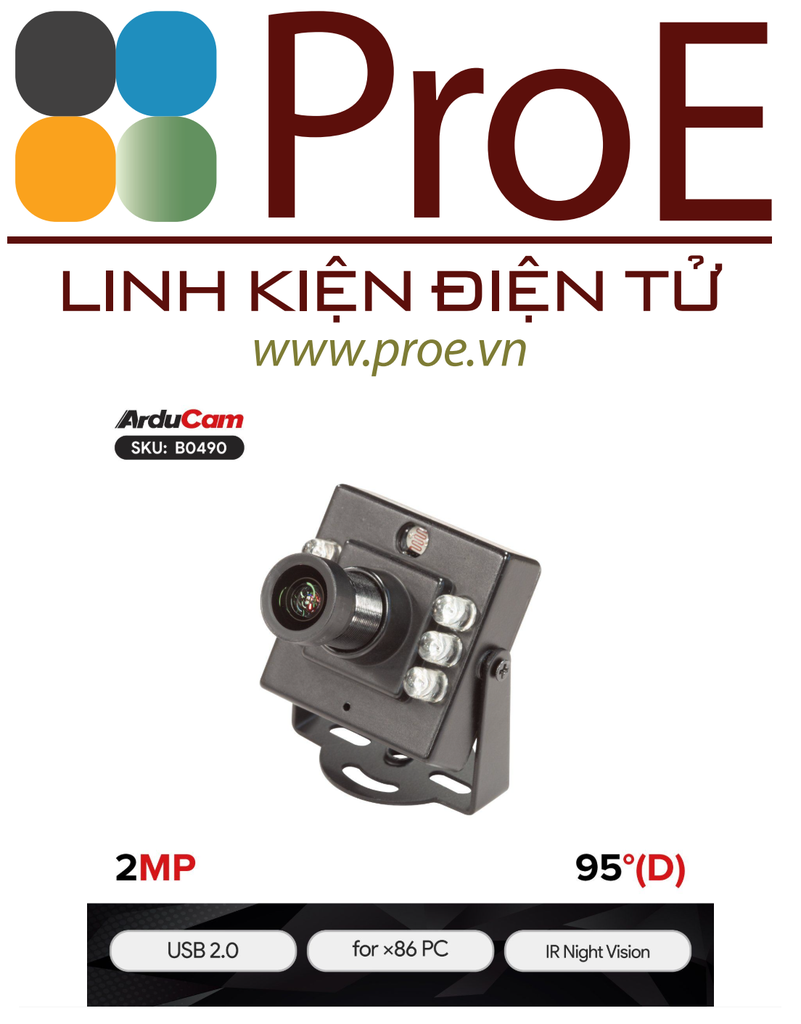

Arducam 2MP IMX462 Day and IR Night Vision USB Camera with Metal Case
- Mã sản phẩm: B0490
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
3.900.000₫
Overview
The IMX462 Day&Night USB Cam is the latest addition to Arducam's USB 2.0 camera series. This cutting-edge USB camera features a Starvis CMOS, the IMX462, paired with a lager aperture M12 lens, ensuring optimal light intake for flawless night vision capabilities. With six 940nm infrared LEDs and a 940@650nm double-pass filter on the lens, this camera effortlessly transitions between day and night modes, adapting to changing light conditions with the help of a photosensitive resistor.

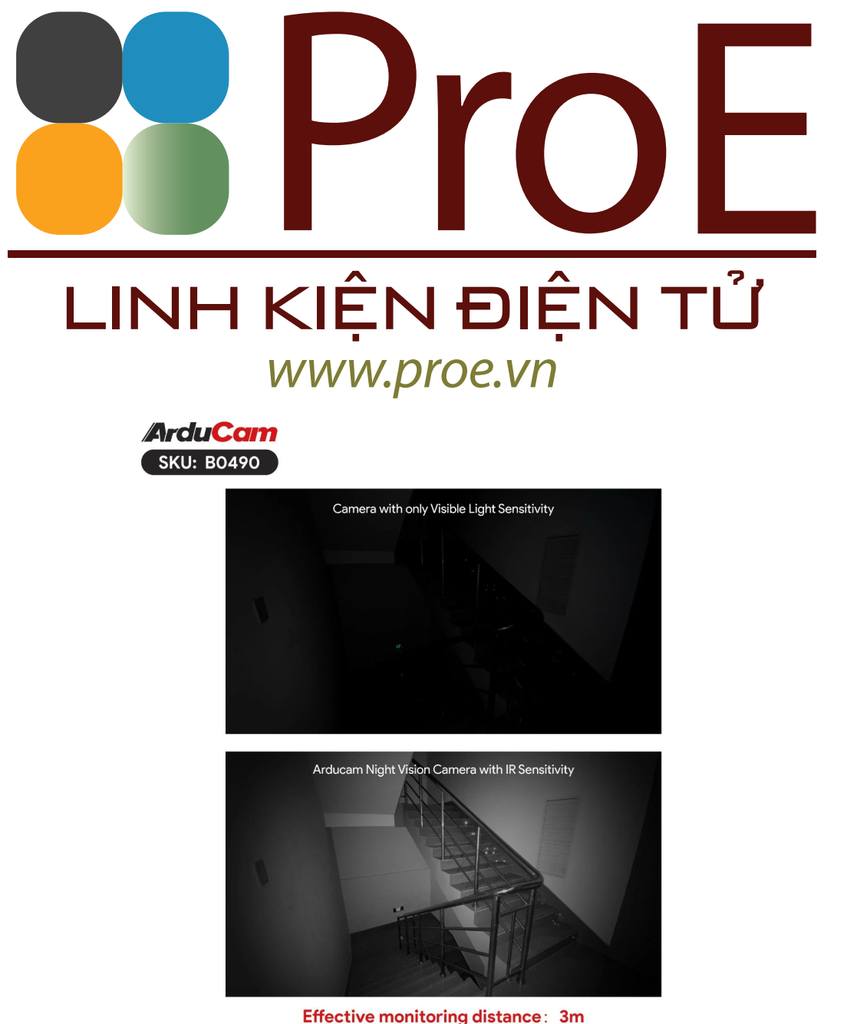

Under low-light scenarios, the camera activates its infrared LEDs, offering black-and-white night vision at an impressive range of 3 meters. During daylight, it seamlessly captures vibrant color images using visible light around 650 nm.
The Arducam USB 2.0 camera is designed for user convenience, featuring a plug-and-play functionality that requires no intricate installations or driver downloads. Whether you're a technology enthusiast or a seasoned professional, this USB camera ensures a hassle-free experience for capturing moments and engaging in seamless video conferences. Upgrade your imaging capabilities with the versatility and user-friendly design of the Arducam USB 2.0 camera.
Applications
- Machine Vision
- Automated Optical Inspection
- 3D Scanning and Metrology
- Video Conferencing
- Home Surveillance
Features
- 1/2.8" IMX462 CMOS Sensor for high-quality day and night vision.
- Intelligent IR Mode ensures automatic color-to-B&W transition in dark light.
- Powerful Night Vision with 6x 940nm IR LEDs for clear 3m night monitoring.
- Wide-angle clarity with a 95° Diagonal Field of View thanks to the HD lens.
- Smooth 30fps@1080p Video capture, making it ideal for reliable home surveillance.
Specifications
| Image Sensor | |
| Sensor | IMX462 |
|---|---|
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8" |
| Output Format | MJPG/YUY2/H.264 |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| Frame Rate | YUY2: 30fps320×240, 640×480; MJPG: 30fps@320×240,640×480,1280×720,1920×1080, H264: 30fps@1920×1080,1280×720, 640×480, 640×360 |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 95°(D)×83°(H)×67°(V) |
| Lens Mount | M12 Mount |
| F.NO | F1.6 |
| E.F.L | 4.3mm |

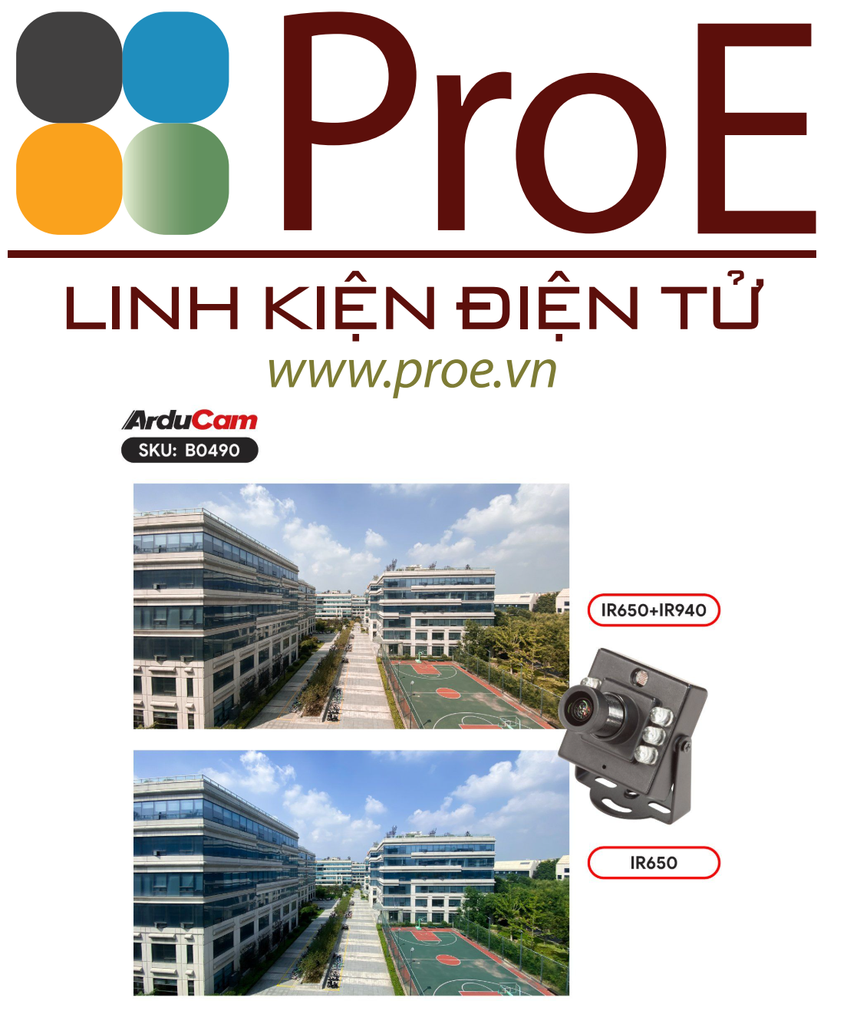

| IR Sensitivity | Dual Bandpass Filter Visible + 940nm NIR |
| Default Focus Distance | 2m-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.2W |

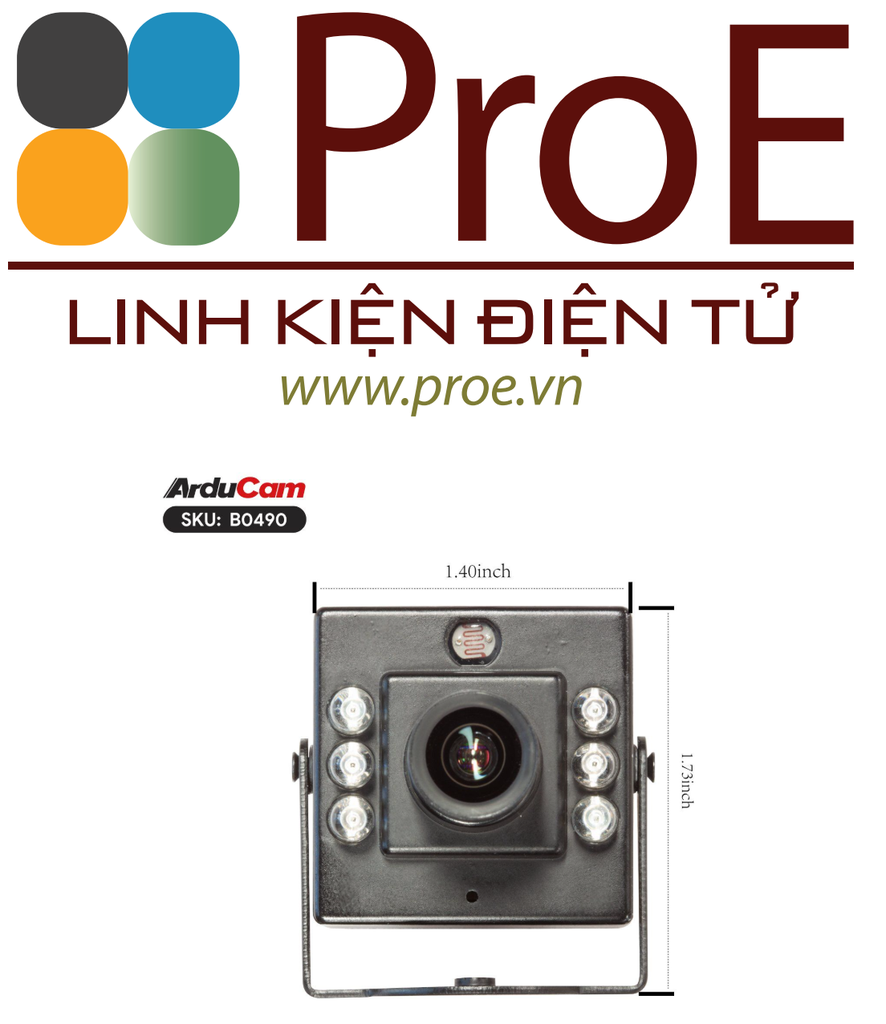

| Camera Board Size | 32×32mm(Hole Pitch: 28×28mm) |
| Functionality and Compatibility | |
| Audio | Single Microphone |

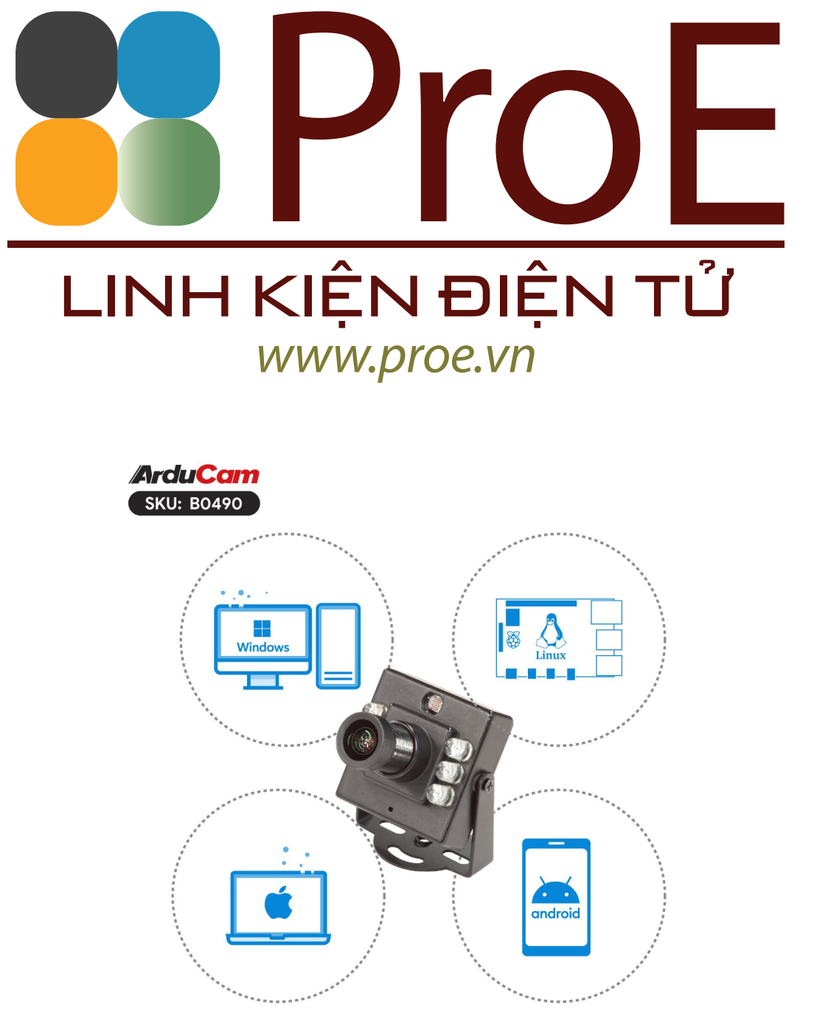

| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance(Auto/Manual), Backlight Contrast, Gain, Exposure(Auto/Manual). |
Package Including

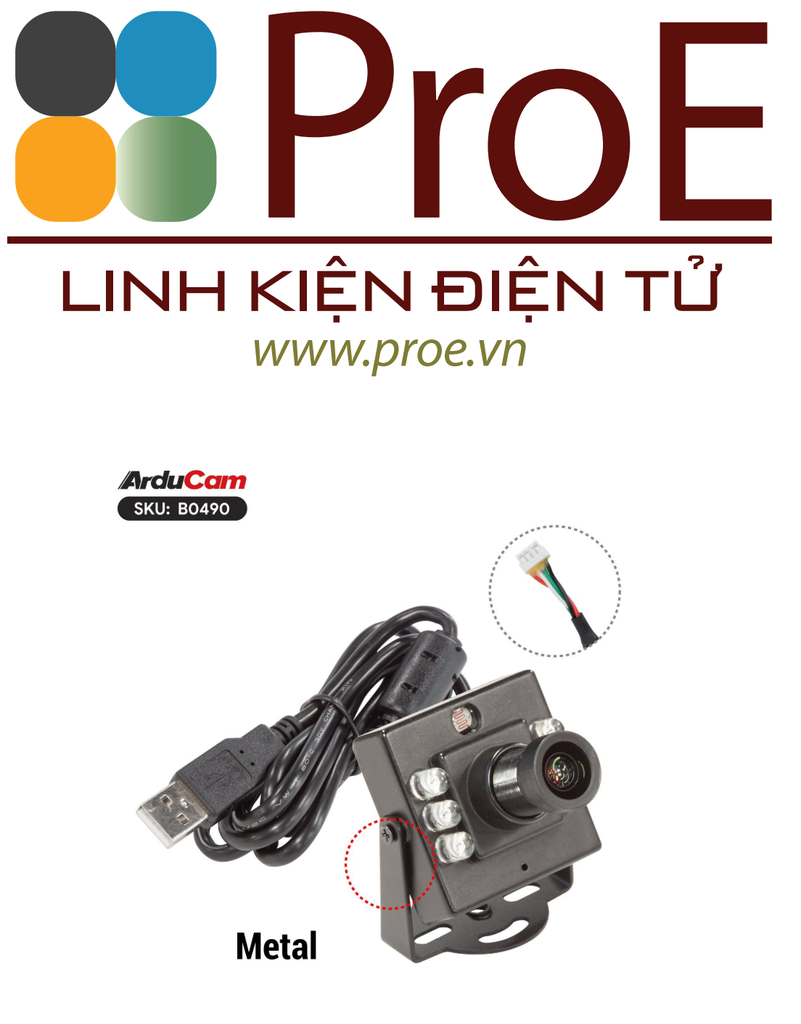

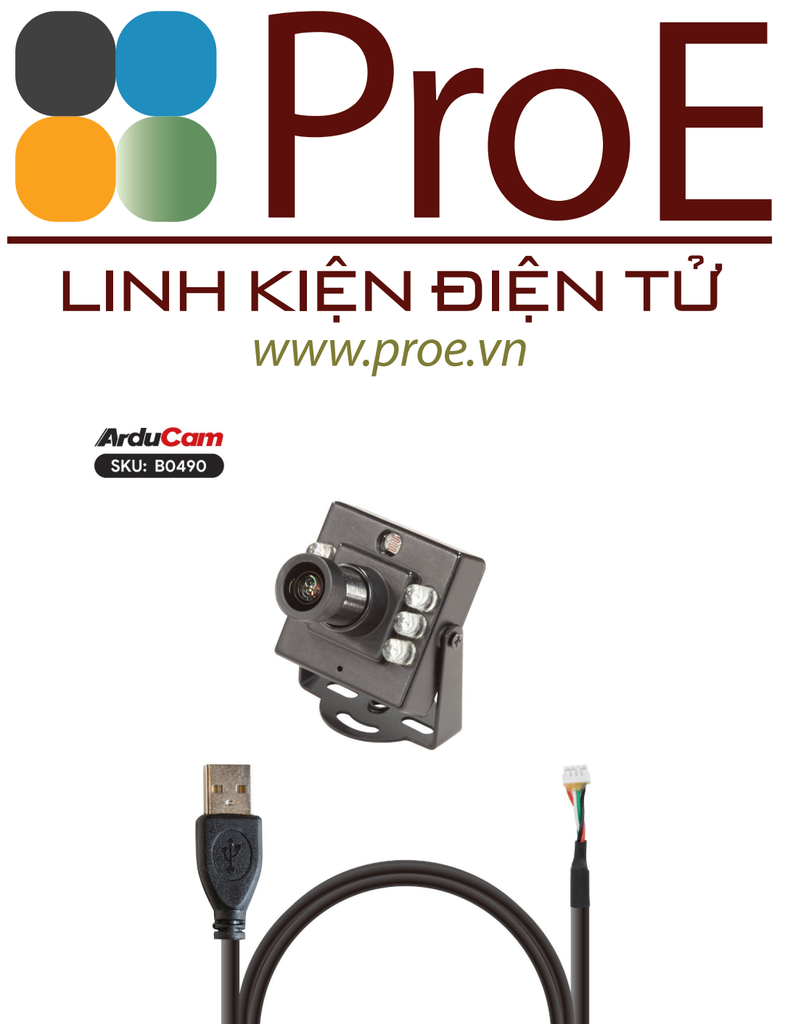

- 1 x IMX462 IR Night Vision USB Camera with Case
- 1 x 1m USB 2.0 Cable
- 1 x Quick Guide Start
