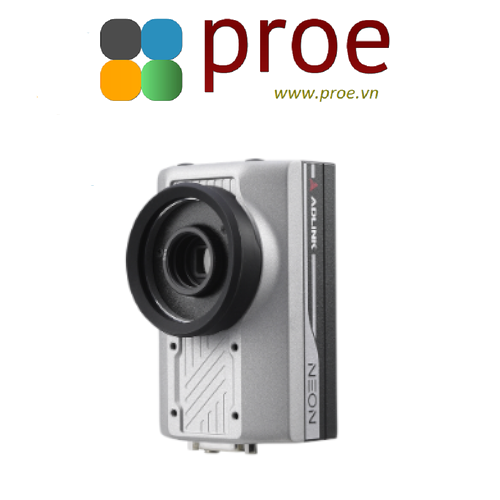

NEON-2000-JNX Series Starter Kit NVIDIA® Jetson Xavier™ NX-based AI smart camera starter kit

Features
● Integration of NVIDIA Jetson Xavier NX, image sensor and vision
software suites, ready to deploy
● All-in-one design minimizes cabling, footprint and maintenance
● FPGA-based DI/O for accurate real-time triggering
● Validated and comprehensive accessories, saves effort on
surveying and debug
● Pre-installed software and sample code, easy to get started

Introduction
NEON-2000-JNX series starter kits are available with the accessories
required for testing in the lab and quick deployment in the field.

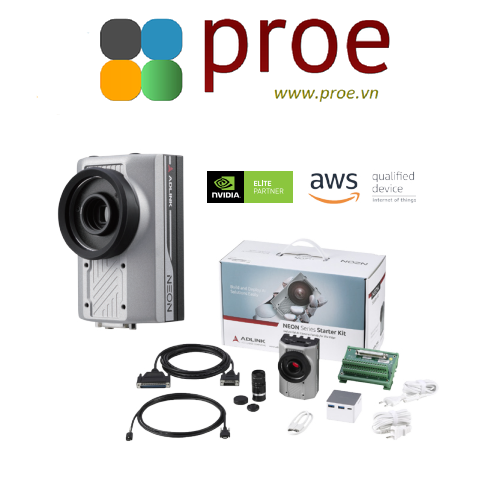

The starter kit contains the NEON-2000-JNX camera, lens, USB Type
C hub/adapter, 1.8m USB Type C cable, I/O extension board and
I/O cable, saving effort on surveying and debugging, and letting the
user just focus solely on the application.

Software Support
● Ubuntu
● Jetpack
● Basler pylon
Note: Supported software versions will be updated as released by NVIDIA.

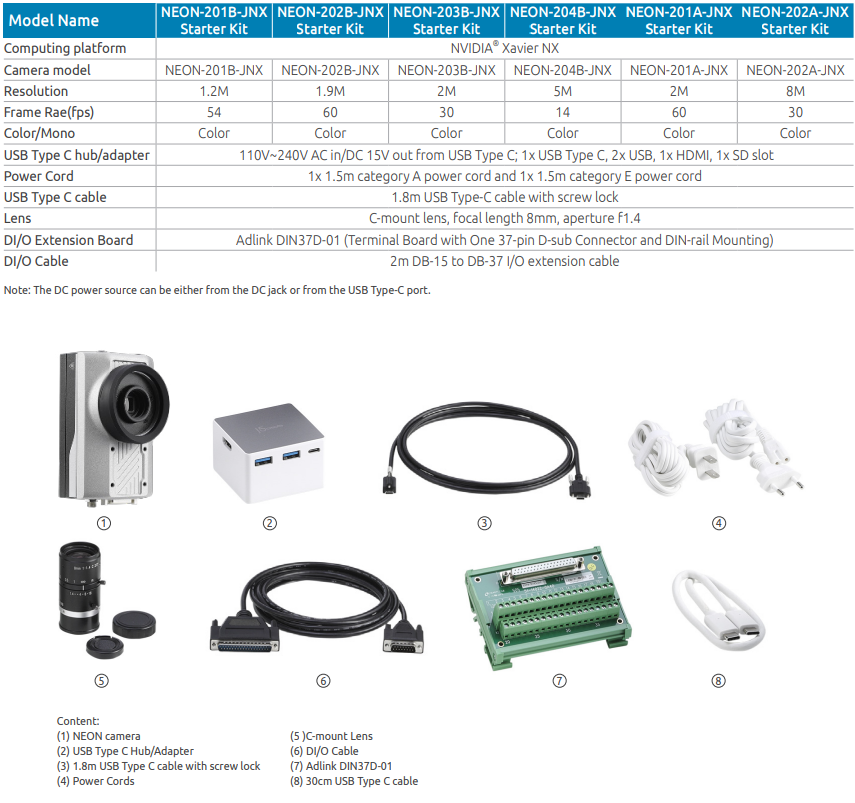

Specification

Ordering Information
● NEON-201B-JNX Starter Kit
NEON-201B-JNX camera, USB Type-C hub/adapter, USB Type-C
cable, power cords, lens, I/O extension board and I/O cable
● NEON-202B-JNX Starter Kit
NEON-202B-JNX camera, USB Type-C hub/adapter, USB Type-C
cable, power cords, lens, I/O extension board and I/O cable
● NEON-203B-JNX Starter Kit
NEON-203B-JNX camera, USB Type-C hub/adapter, USB Type-C
cable, power cords, lens, I/O extension board and I/O cable
● NEON-204B-JNX Starter Kit
NEON-204B-JNX camera, USB Type-C hub/adapter, USB Type-C
cable, power cords, lens, I/O extension board and I/O cable
● NEON-201A-JNX Starter Kit
NEON-201A-JNX camera, USB Type-C hub/adapter, USB Type-C
cable, power cords, lens, I/O extension board and I/O cable
● NEON-202A-JNX Starter Kit
NEON-202A-JNX camera, USB Type-C hub/adapter, USB Type-C
cable, power cords, lens, I/O extension board and I/O cable
