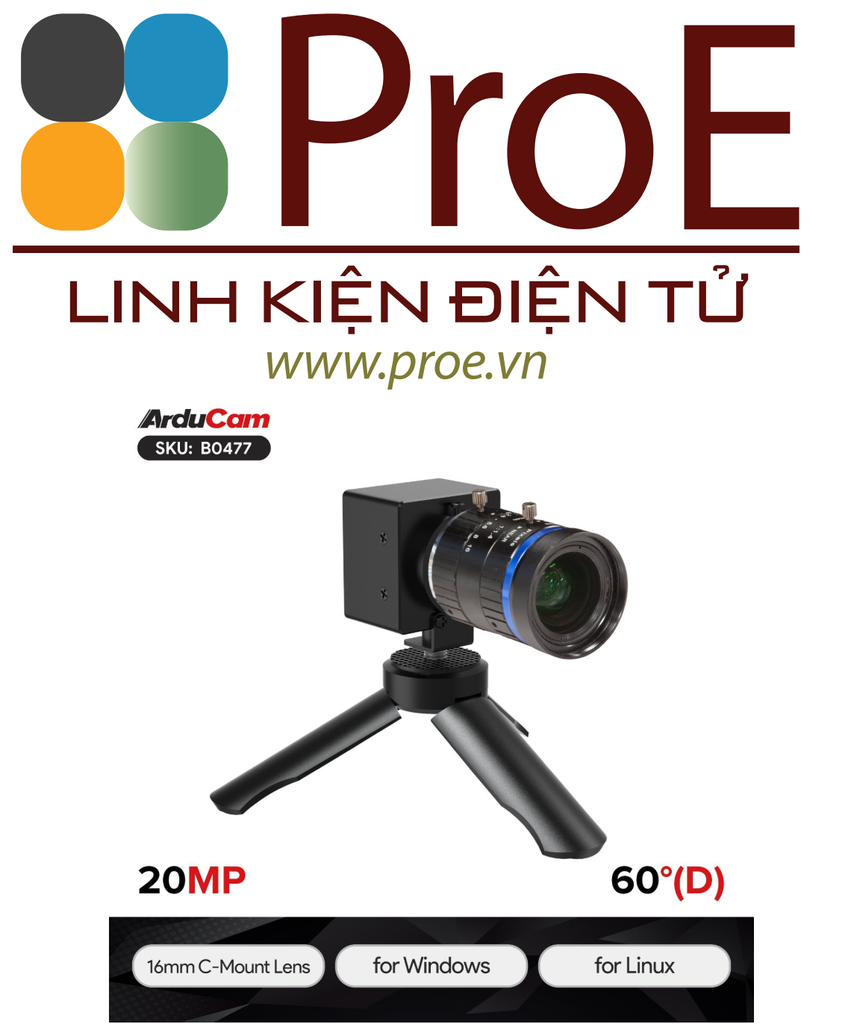

Arducam 20MP IMX283 USB 3.0 Camera Module with 16mm C-Mount Lens
- Mã sản phẩm: B0477
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
10.900.000₫
Overview
Arducam IMX283 USB 3.0 camera equipped with a 1-inch IMX283 CMOS. It achieves astonishing image clarity at a max resolution of 5472x3648. This camera offers programmable frame rates, providing the flexibility to reach up to 120fps at 720p resolution for dynamic video capture.
The camera features an onboard ISP and center-weighted exposure. This intelligent combination ensures uncompromised output in uncompressed YUY2 format. The camera's 16mm C-mount lens, boasting a 60° FOV, guarantees telephoto excellence, capturing scenes with precision and detail.

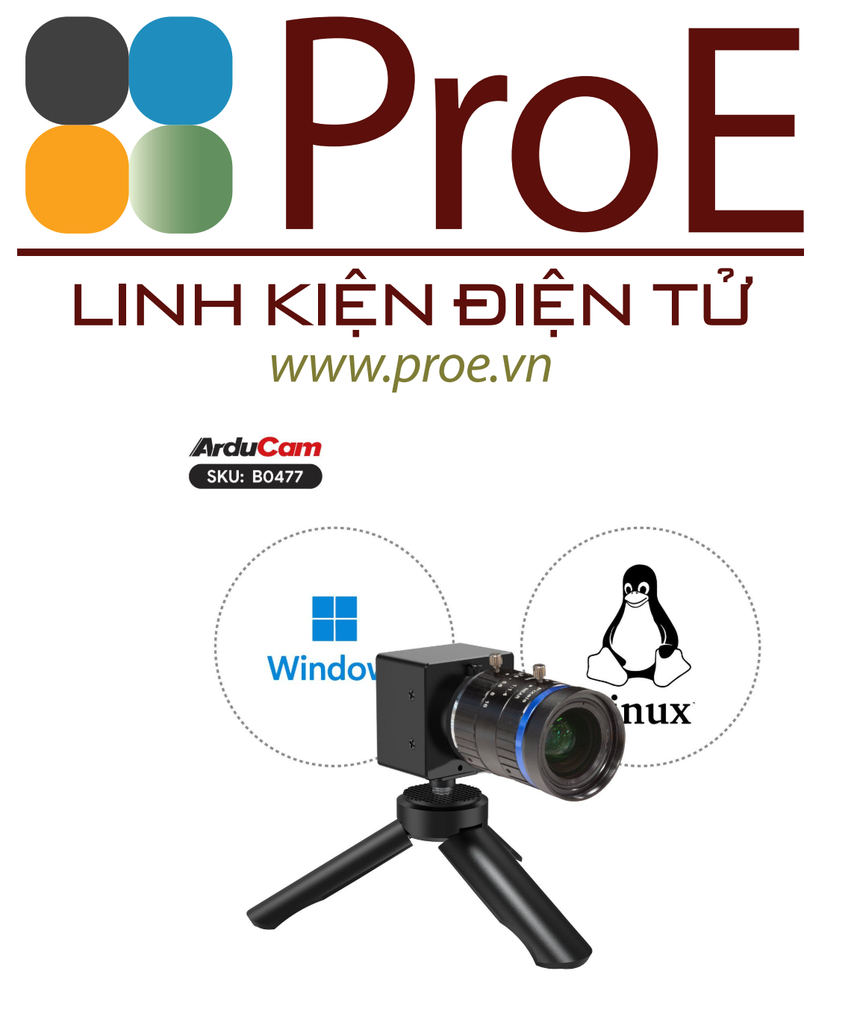

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Superior Imaging: Utilizing a 1-inch IMX283 CMOS sensor, achieve sharpness at max still resolution 5472x3648.
- Flexible Frame Rates: Program your desired frame rates, even reaching 120fps at 720p.
- Intelligent Processing: Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
- Telephoto Precision: Capture brilliance with a 16mm C-mount lens offering a 60° DFOV.

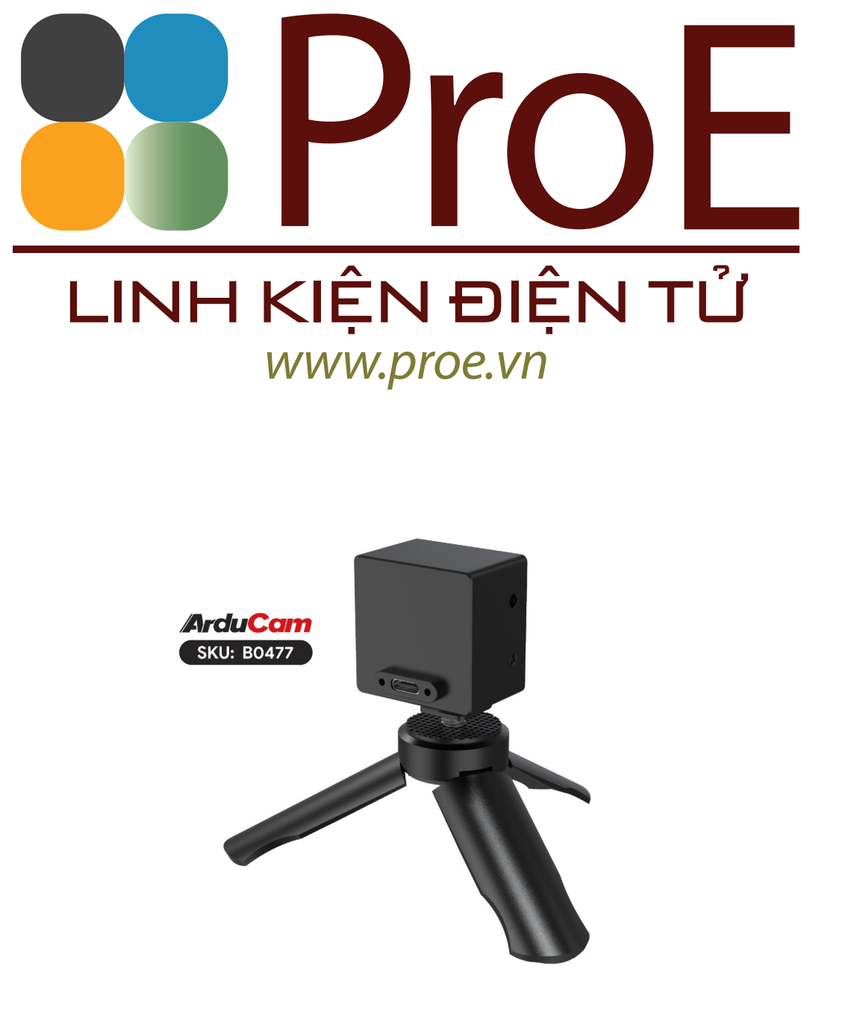

- Plug and Play: Encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity.
Specifications
| Image Sensor | |
| Sensor | IMX283 |
|---|---|
| Still Resolution | 20 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1" |
| Output Format | YUY2 |
| Pixel Size | 2.4 µm x 2.4 µm |
| Sensor Active Area | 5496(H)×3672(V) |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Frame Rate (USB 3.0) | 1280×720@120fps, 1920×1080@60fps, 2720×1536@40fps, 3840×2160@20fps, 5472×3648@9fps |
| Frame Rate (USB 2.0) | 1280×720@10fps |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 60°(D)×49°(H)×38°(V) |
| Lens Mount | C-Mount |
| F.NO | F1.4-16 |
| E.F.L | 16mm |
| *Default Focus Range | 5m-∞ |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.38W , Min: 0.75W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) |
*The lens is pre-locked at infinity for shipping. Users can adjust the focus as needed by loosening the screw and rotating the lens.

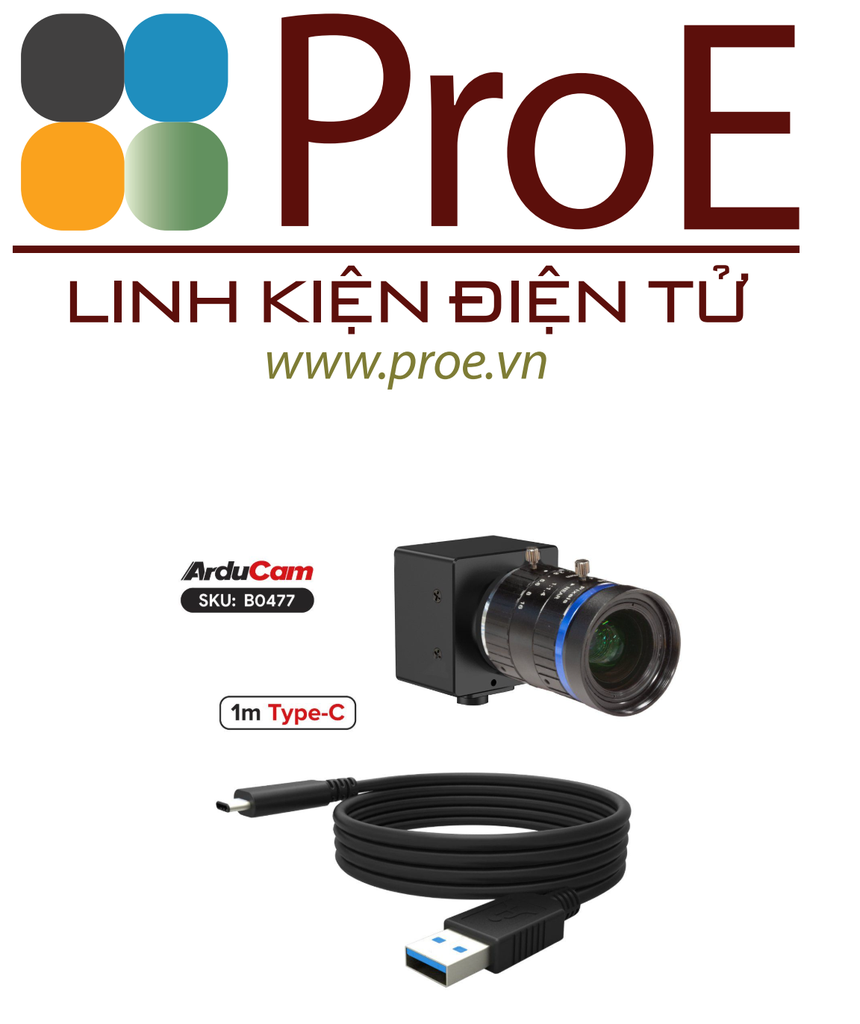

Package Including
- 1 x IMX283 USB3.0 Camera Module with Metal Case
- 1 x 1m USB A to Type-C Cable
