B029201
- Mã sản phẩm: B029201
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
2.900.000₫

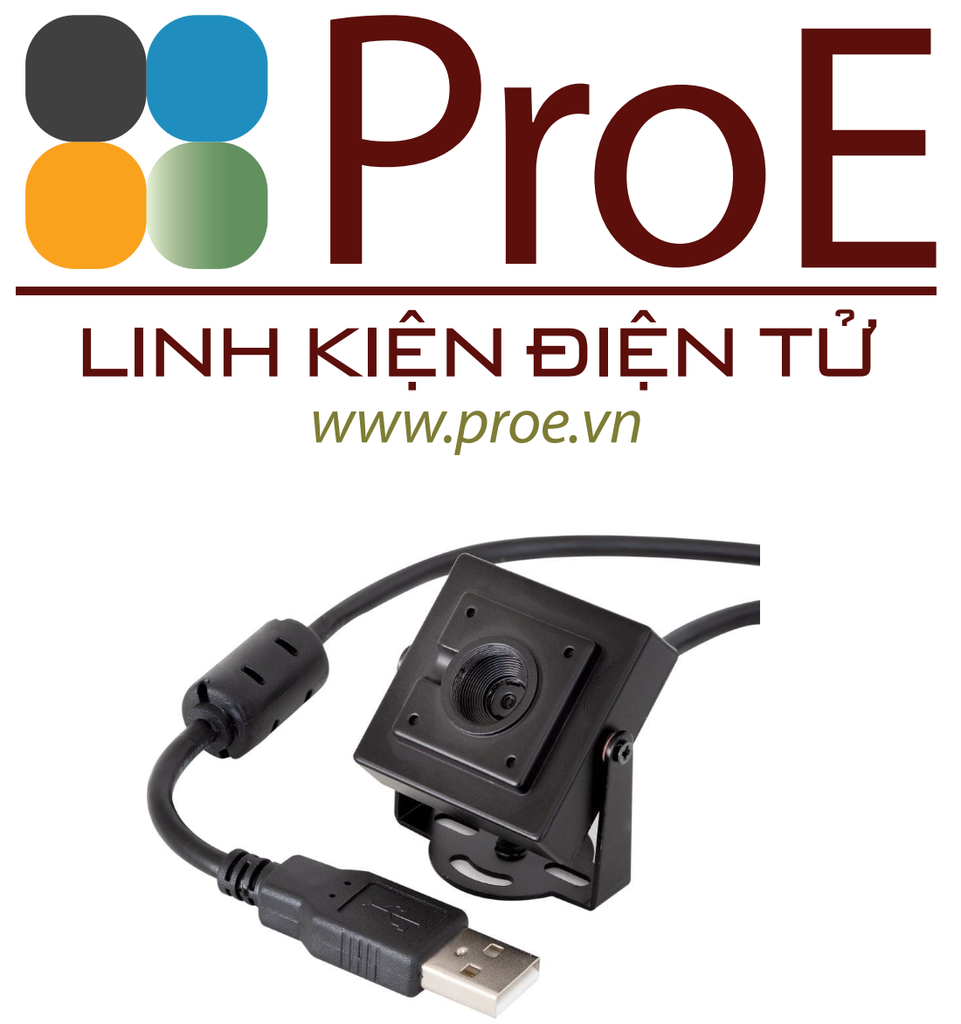

4K 8MP IMX219 Autofocus USB Camera Module with Metal Case, 1080P Mini UVC USB2.0 Video Webcam with Microphone, 3.3ft/1m Cable for Computer, Laptop, Raspberry Pi, Jetson Nano-Arducam-Standard Module
Overview
Arducam 8MP A219: 8MP USB camera module designed for high-quality imaging up to 3280×2464 resolution. With plug-and-play compatibility on Windows, Linux, Android, and macOS—no driver required—the A219 is a reliable UVC solution for applications demanding clarity, durability, and wide dynamic range.
Check upgraded version(B029202C) with additional HDR support and more preset AI resolution for quick training and development of AI models, while the sturdy metal housing provides effective heat dissipation and protection.
Features
[Plug-and-Play]
This 8MP camera module offers hassle-free plug-and-play operation across Windows, Linux, Android, and macOS platforms. No additional drivers or software are required—simply connect via USB and start capturing high-quality images instantly.
[AI Resolution]
Multiple preset AI image resolution. You can directly train and deploy your AI model without additional image cropping.
[Autofocus]
Featuring excellent autofocus lens, the camera automatically adjusts focus to maintain sharp and clear images across various distances, making it suitable for dynamic scenes and versatile applications.
[Upgraded Option]
Check B029202C, which is equipped with High Dynamic Range (HDR) technology, Autofocus Lens, and Metal Case. Same price, better performance.
Specifications
| General Sepcs | B029202C(Upgraded) | B029201-1(Standard) |
|---|---|---|
| Image Sensor | ||
| Still Resolution | 8MP | 8MP |
| Color Filter Type | Color | Color |
| Shutter Type | Rolling | Rolling |
| Optical Size | 1/4" | 1/4" |
| Output Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 1.12µm x 1.12µm | 1.12um x 1.12um |
| Sensor Active Area | 3280(H)×2464(V) | 3280(H)×2464(V) |
| Frame Rate(MJPG) | 3264x2448@25fps, 2592x1944@30fps; 1920x1080@30fps, 1280x720@30fps; 640x480@30fps; |
3264x2448@15fps, 2592x1944@15fps; 1920x1080@30fps, 1280x720@30fps; 640x480@30fps; |
| Frame Rate(AI Resolution(YUV)) | 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps; |
640x480@10fps, 320x240@10fps; |
| Lens | ||
| IR Sensitivity | Integral 650nm IR Filter, visible light only | Integral 650nm IR Filter, visible light only |
| Focus Type | Autofocus | Autofocus |
| FOV | 75°(D)×61°(H)×50°(V) | 72°(D)×60°(H)×47°(V) |
| Lens Mount | Stock Lens | Stock Lens |
| F.NO | F1.8 | F2.0 |
| E.F.L | 3.95mm | 2.96mm |
| Default Focus Range | 10cm-∞ | 10cm-∞ |
| USB Interface | ||
| Interface | USB 2.0 Device | USB 2.0 Device |

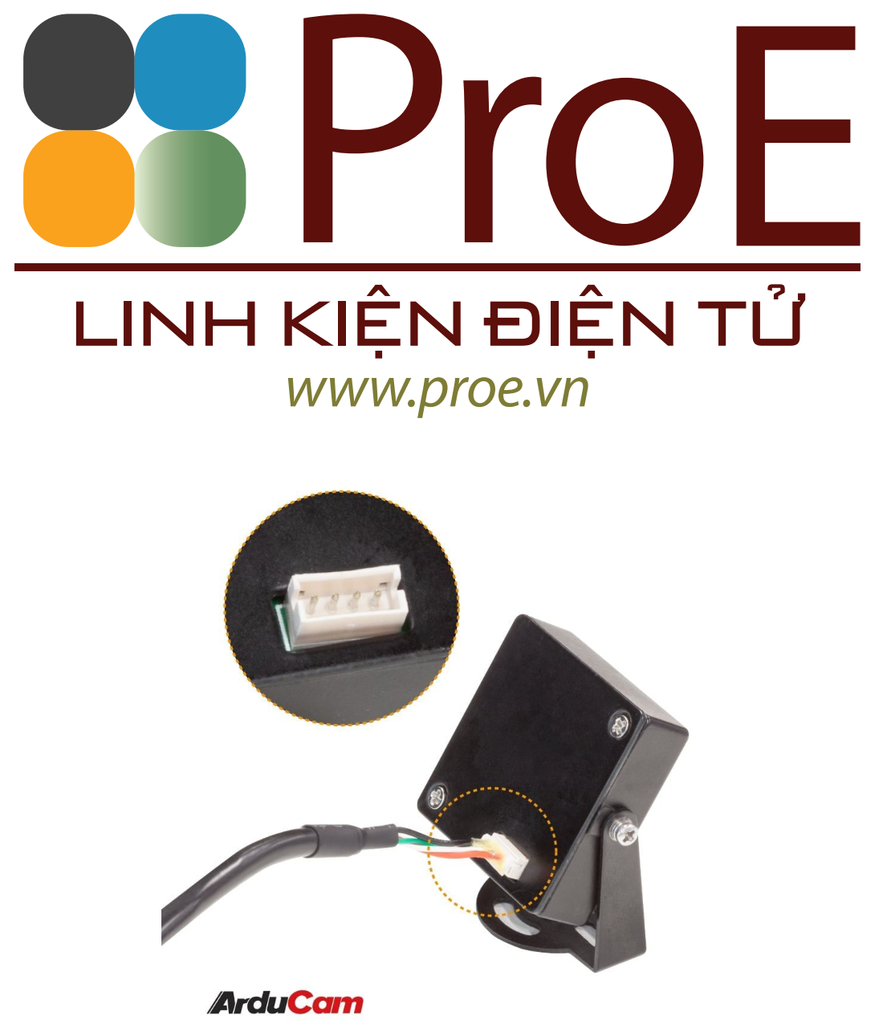

| Connector | B4B-ZR JST | B4B-ZR JST |
| UVC Compliant | No additional drivers required | No additional drivers required |
| Electrical and Mechanical | ||
| Operating Voltage | 5V | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.75W | 1W |

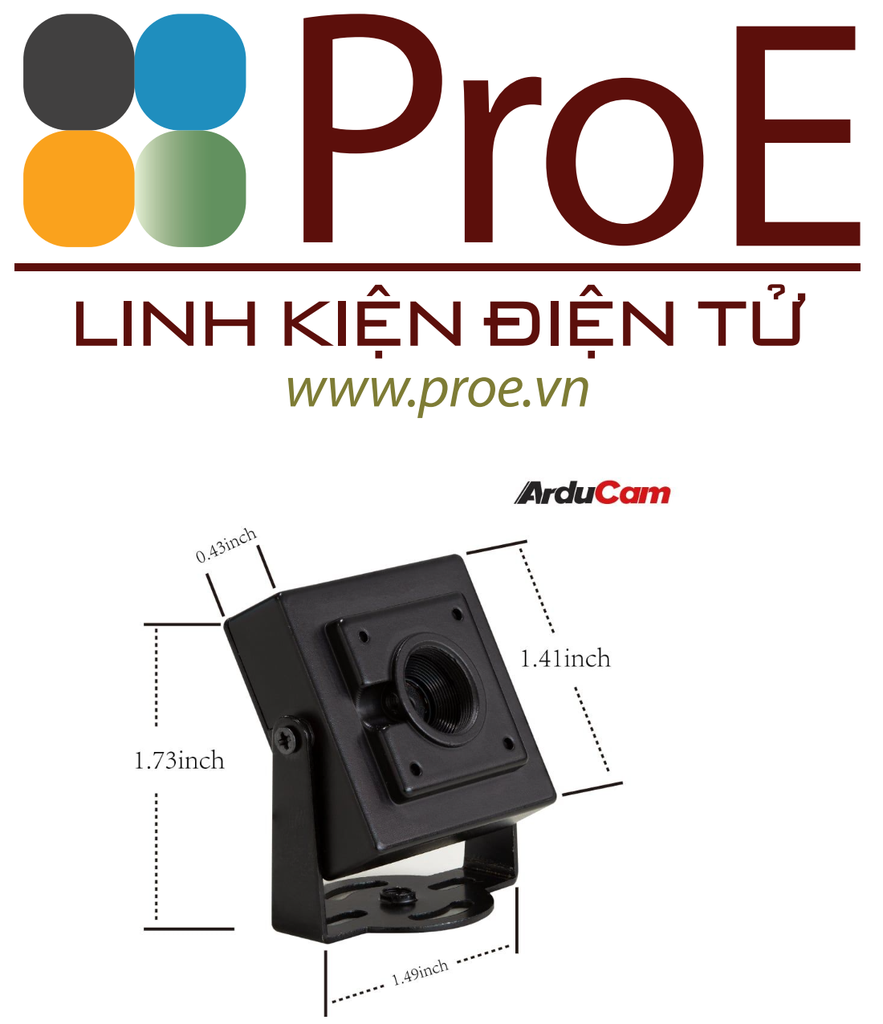

| Camera Board Size | 32mm x 32mm x 1.6mm | 38mm x 38mm |
| Functionality and Compatibility | ||
| HDR Support | YES | NO |
| Enclosure | with Metal Enclosure | with Metal Enclosure |
| Supported OS | Windows, Linux, MacOS | Windows, Linux, MacOS |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowlight Compensation, Gain, Focus (Auto/Manual), Exposure (Manual/Auto) | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Applications
Video conference
Home video surveillance system
Day&night low light vision security camera system
Dash cam
Monitoring 3D printer
Baby Camera
Robot and machine vision
Documentation
Manual.pdf |
