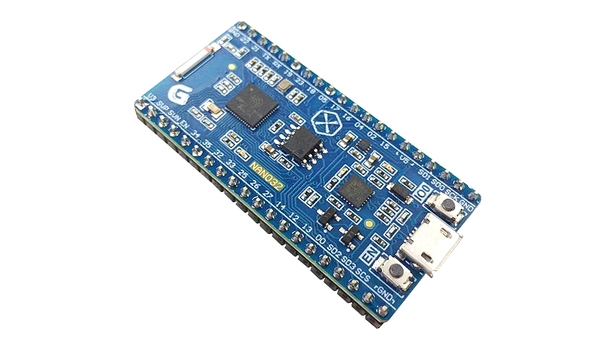

NANO32 esp32 IoT Development Board

NANO32 được trang bị chip ESP32 dual core, tích hợp WiFi SoC và dual mode Bluetooth LE, hổ trợ tự động upload chương trình qua MicroUSB và chế độ tiết kiểm năng lượng, phù hợp cho các dự án IoT.

NANO32 Features

• ESP32 SoC (System on Chip) with WiFi and Bluetooth BLE.
• 40MHz Crystal for CPU, 32.768KHz Crystal for RTC and low power operation.
• 4MB Flash (32Mbit).
• FTDI231 for USB to Serial.
• Auto-Reset for automatic flash.
• 3.3V 0.5A Regulator (tested for working up to 1A).
• 2.5dBi Peak Gain, 0.5dBi Average Gain Chip Antenna.
• High quality PCB: design and manufacture in Thailand.

Key Features of ESP32 SoC:

• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual mode Bluetooth (classic and BLE)
• 4 MByte flash (32Mbit)
• 2.2V to 3.6V operating voltage
• (-40°C) to +125°C operating temperature
• 32 GPIO

ESP32 Wi-Fi Spec:

• 802.11 b/g/n/e/i

• 802.11 n (2.4 GHz), up to 150 Mbps

• 802.11 e: QoS for wireless multimedia technology

• WMM-PS, UAPSD

• A-MPDU and A-MSDU aggregation

• Block ACK

• Fragmentation and defragmentation

• Automatic Beacon monitoring/scanning

• 802.11 i security features: pre-authentication and TSN

• Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)

• Infrastructure BSS Station mode/SoftAP mode

• Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P

• Power Management

• UMA compliant and certified

• Antenna diversity and selection

ESP32 Bluetooth Spec:

• Compliant with Bluetooth v4.2 BR/EDR and BLE specification

• Class-1, class-2 and class-3 transmitter without external power amplifier

• Enhanced power control

• +10 dBm transmitting power

• NZIF receiver with -98 dBm sensitivity

• Adaptive Frequency Hopping (AFH)

• Standard HCI based on SDIO/SPI/UART

• High speed UART HCI, up to 4 Mbps

• BT 4.2 controller and host stack

• Service Discover Protocol (SDP)

• General Access Profile (GAP)

• Security Manage Protocol (SMP)

• Bluetooth Low Energy (BLE)

• ATT/GATT

• HID

• All GATT-based profile supported

• SPP-Like GATT-based profile

• BLE Beacon

• A2DP/AVRCP/SPP, HSP/HFP, RFCOMM

• CVSD and SBC for audio codec

• Bluetooth Piconet and Scatternet

GPIO Peripherals:

• 3 x UARTs, including hardware flow control

• 3 x SPI

• 2 x I2S

• 12 x ADC input channels

• 2 x DAC

• 2 x I2C

• PWM/timer input/output availabe on every GPIO pin

• OpenOCD debug interface with 32 kB TRAX buffer

• SDIO master/slave 50 MHz

• Supports external SPI flash up to 16 MB

• SD-card interface support

Security Related:

• IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI

• Secure boot

• Flash encryption

• 1024-bit OTP, up to 768-bit for customers

• Cryptographic hardware acceleration:

  • AES

  • HASH (SHA-2) library

  • RSA

  • ECC

  • Random Number Generator (RNG)

Sensors Related Peripherals:

• Ultra low noise analog amplifier

• Hall sensor

• 10x capacitive touch interface

• 32 kHz crystal oscillator
