Luckfox Lyra Programmable Logic
- Mã sản phẩm: Luckfox Lyra PLC PoE Kit SKU 35423
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
0₫
Giá thị trường:
Wiki: https://wiki.luckfox.com/Luckfox-Lyra-PLC
Weight: 0.225 kg
Luckfox Lyra PLC
- Luckfox Lyra PLC × 1
- WiFi antenna ~11cm × 1
- USB Type-A to Type-C cable ~1m × 1
- SH1.0 3PIN cable ~100mm × 2
- SH1.0 4PIN cable ~100mm × 4
- Antenna connector rubber plug × 1
1
2
3
4
5
6
Luckfox Lyra PLC PoE Kit
- Luckfox Lyra PLC PoE Kit × 1
- WiFi antenna ~11cm × 1
- USB Type-A to Type-C cable ~1m × 1
- SH1.0 3PIN cable ~100mm × 2
- SH1.0 4PIN cable ~100mm × 4
- Antenna connector rubber plug × 1
1
2
3
4
5
6

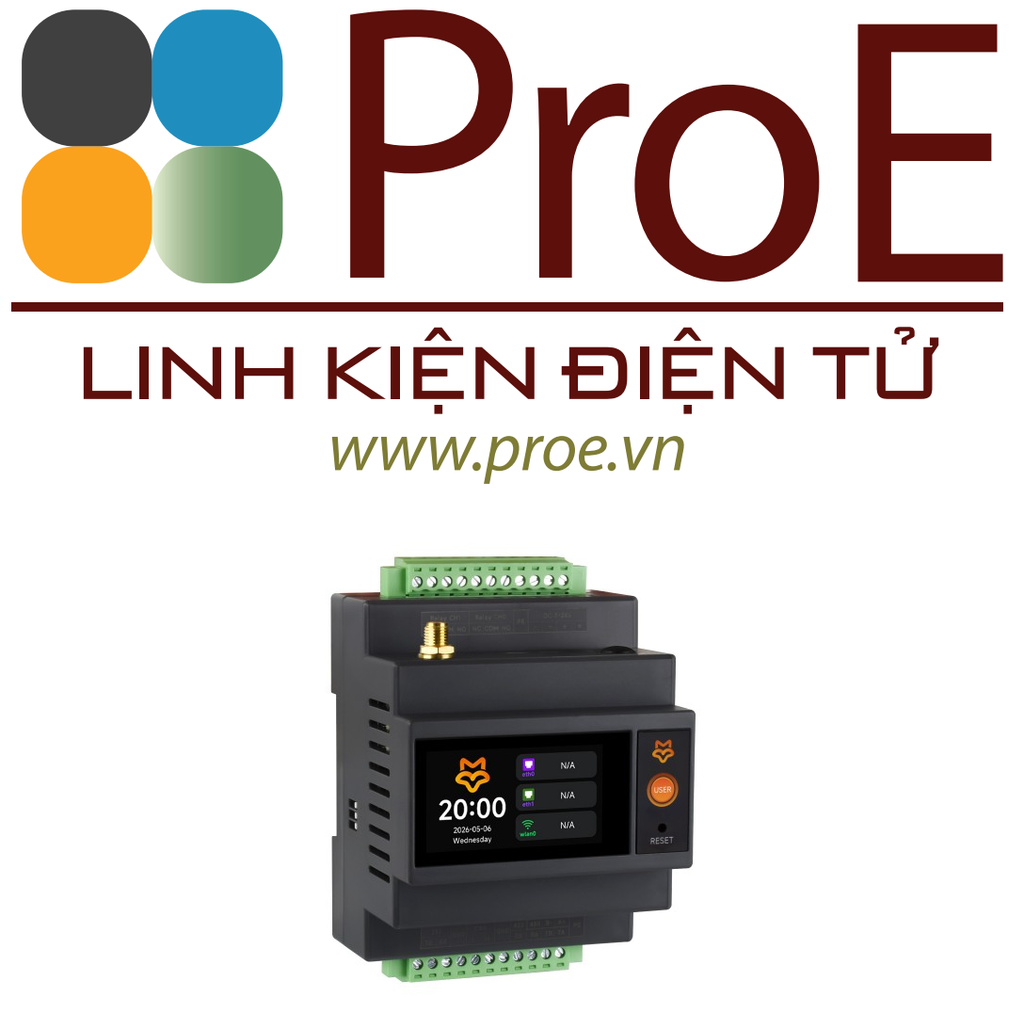

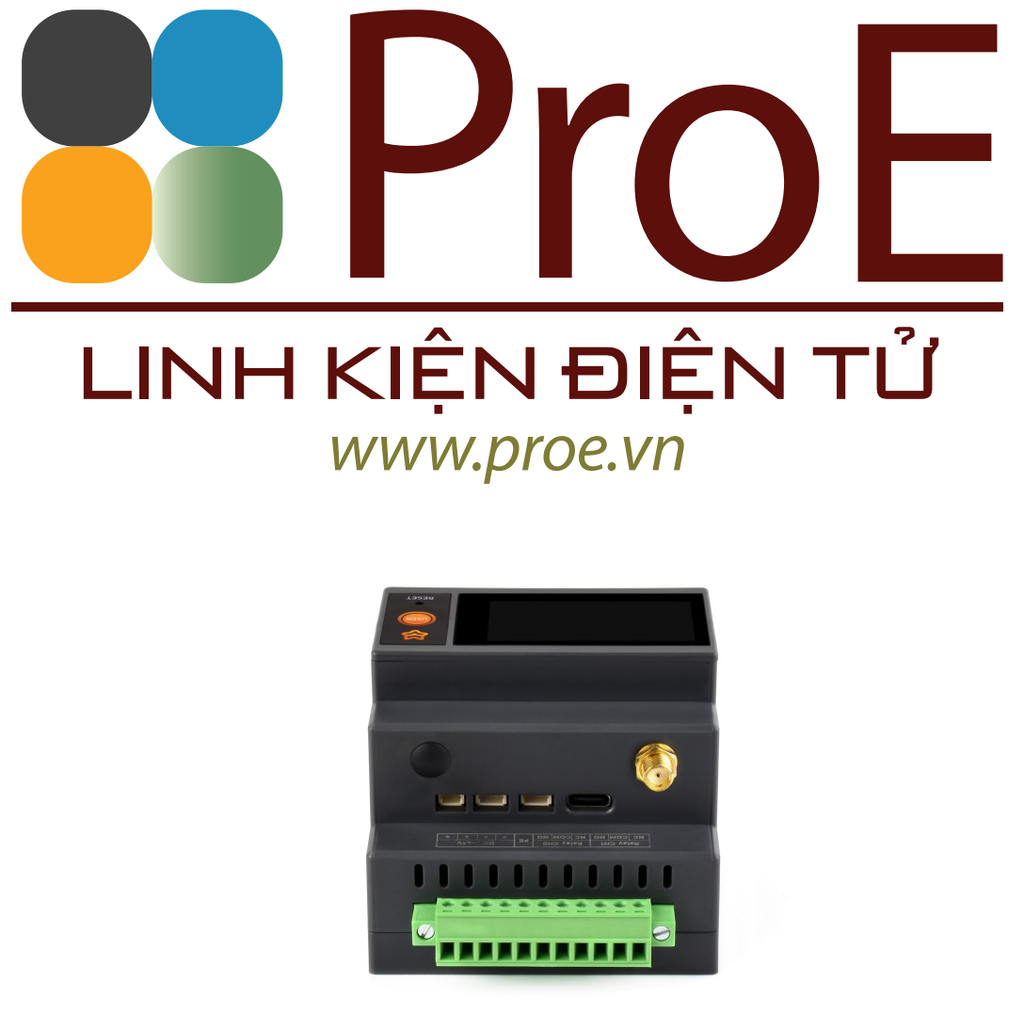

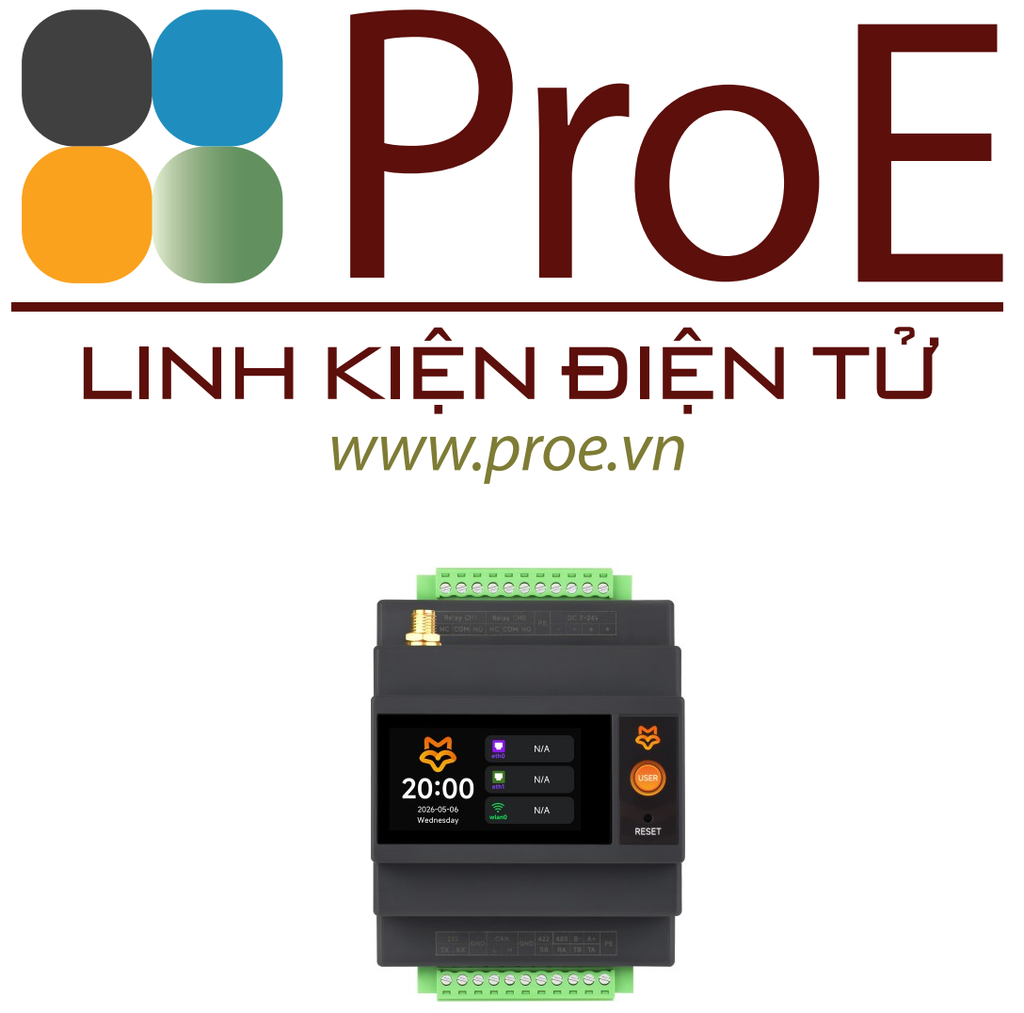

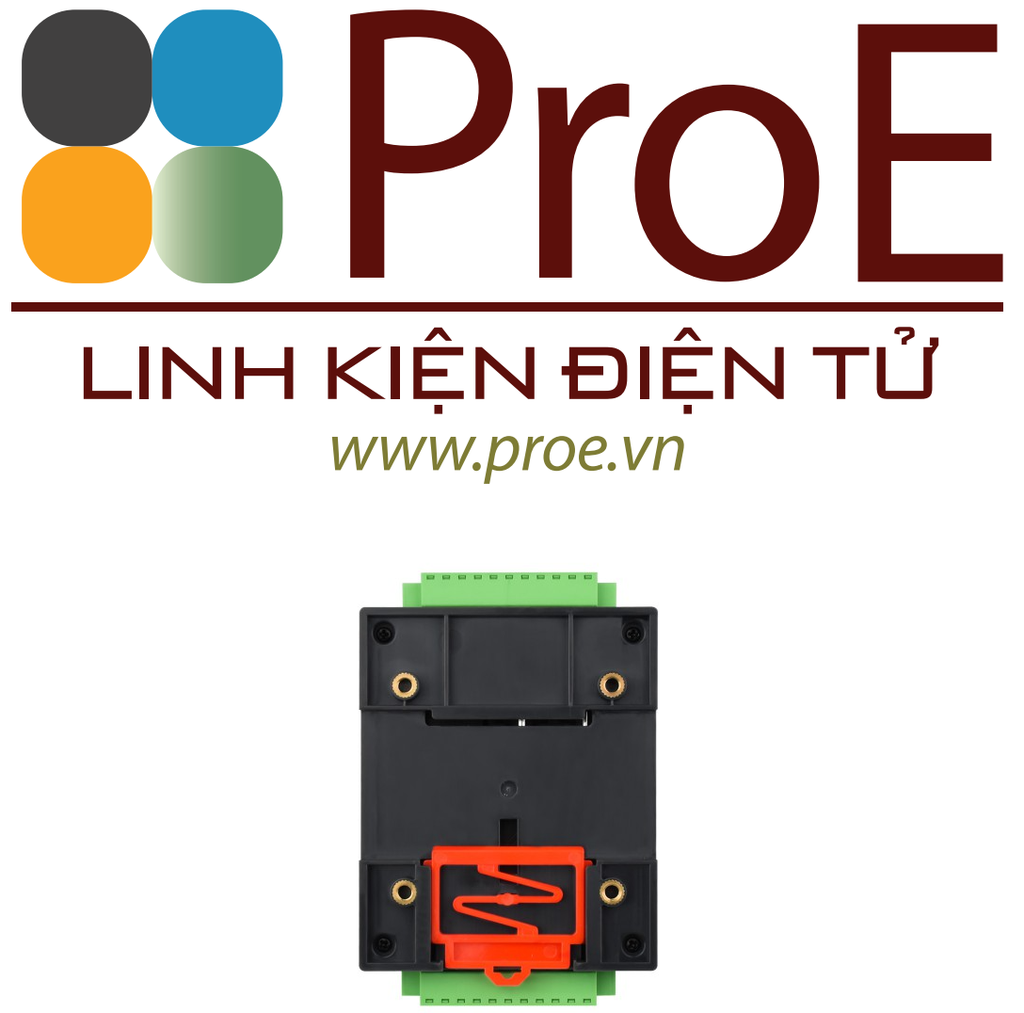

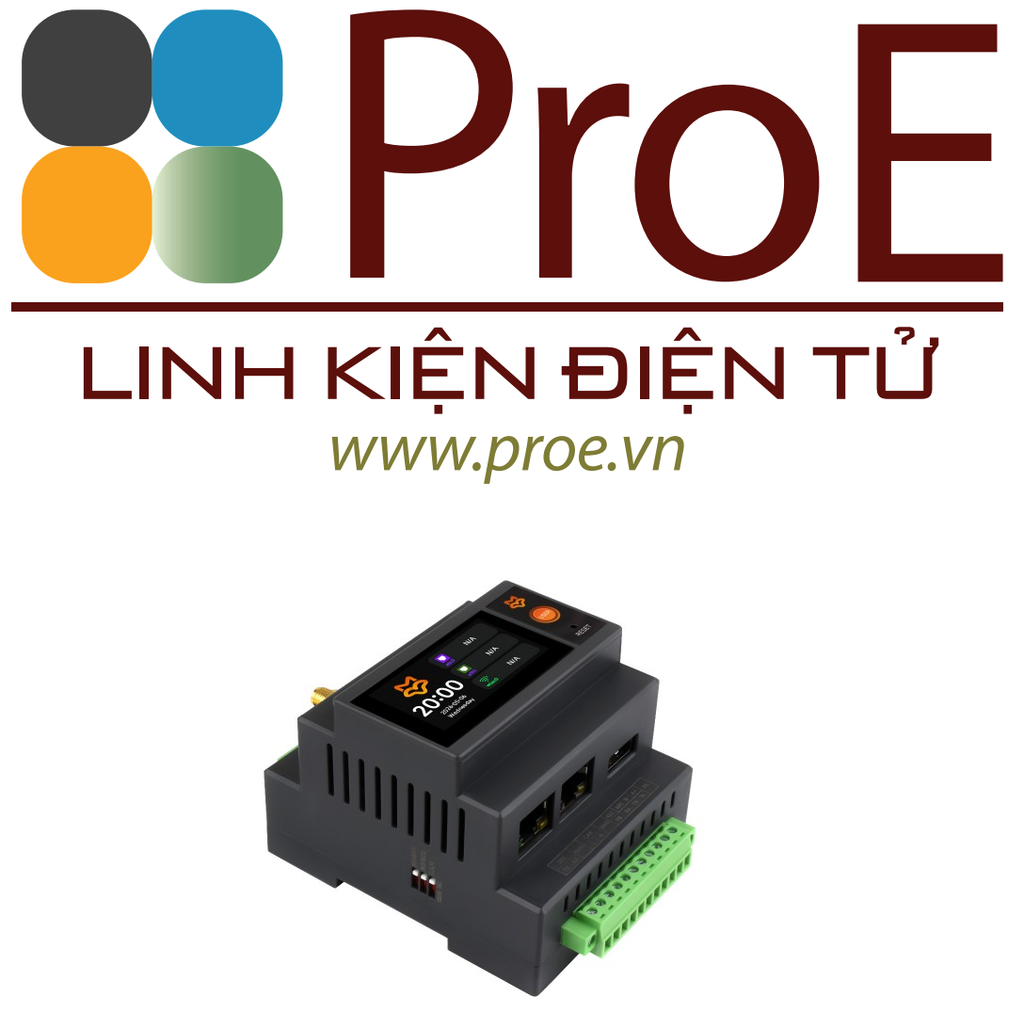

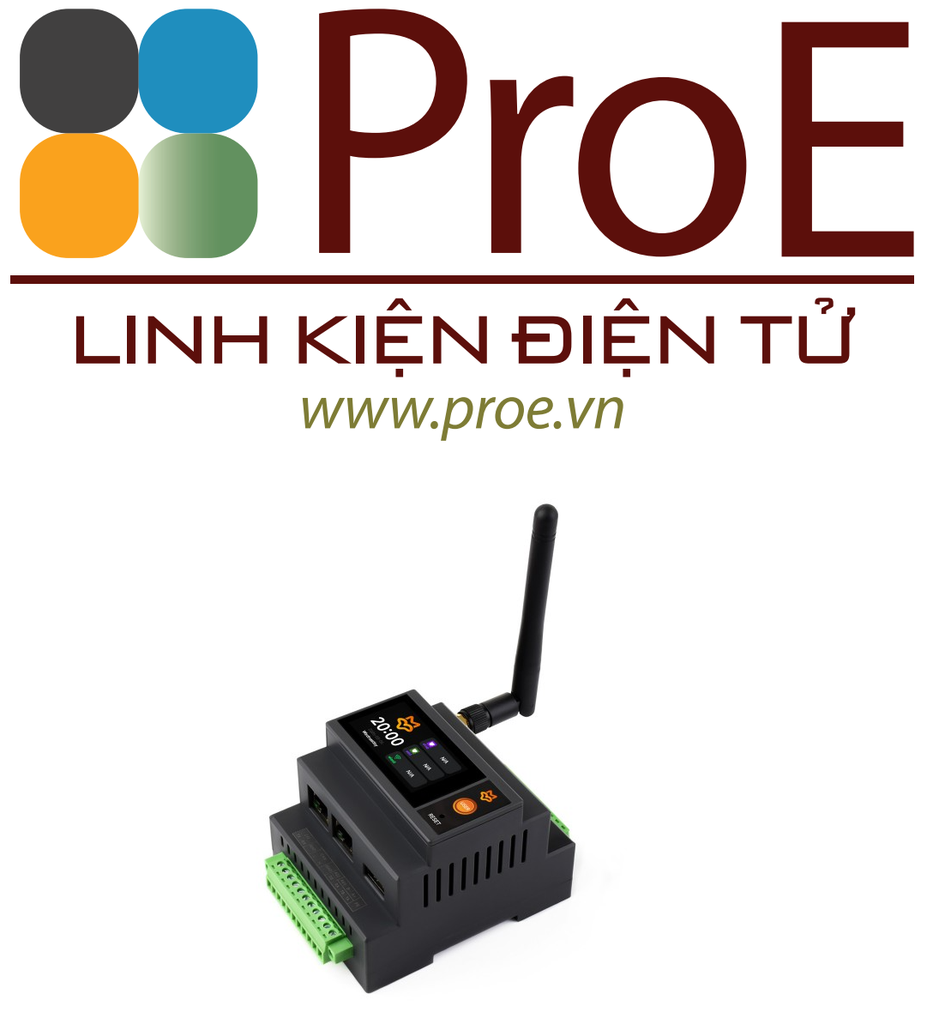

Luckfox Lyra Programmable Logic Controller, Based On RK3506B With Triple-Core ARM Cortex-A7, Onboard 1.9inch LCD Touchscreen And Dual 100Mbps Ethernet Ports, Optional PoE Function
Luckfox Lyra PLC
PLC Based on Luckfox Core3506, Supports Custom Development
Extensive I/O Interfaces and Robust Performance for Industrial Automation
Version Options
Specifications
| Processor | RK3506B |
| CPU | Triple-core ARM Cortex-A7 (1.2 GHz) |
| RAM | Onboard 512MB DDR3L |
| Storage | eMMC (8GB) |
| Display | 1.9inch LCD touchscreen, 170 × 320 pixels |
| USB | USB OTG2.0 × 1 Extended USB HOST2.0 × 1 via HUB |
| Ethernet | 10/100Mbps Ethernet port × 2 |
| Wireless Connectivity | Onboard 2.4 GHz Wi-Fi 6 / Bluetooth 5.2 / BLE |
| CAN | CAN × 1 |
| Serial Interfaces | RS232 × 1 RS422/RS485 × 1 (Shared port, selectable by wiring) |
| Relay Channels | 2 |
| Relay Contact Form | Normally Open (NO) × 1 Normally Closed (NC) × 1 |
| Relay Contact Rating | ≤10A 250V AC or ≤10A 30V DC |
| Buttons | Custom button × 1 (Used for firmware update by default) RESET button × 1 |
| Power Input | USB-C input: 5 V |
| Screw terminal power input: 7–24 V DC (wide input voltage range) | |
| PoE input (for PoE Version only): compatible with IEEE 802.3af PoE Standard |
Extensive Peripheral Interfaces
Supports wired and wireless connectivity, Provides RS232 / RS422 / RS485 / CAN / USB and Other Interfaces, Suitable for Data Collection and Reporting, Device Linkage Control, and Protocol Conversion
Linux-Based System
Comprehensive Software Ecosystem - Supports Multiple Languages
and Optional Installation of Node-RED, OpenPLC, and Other Software
Web-Based Management
Access the device management interface via a browser for quick system configuration
Remote Management and Maintenance
Multiple built-in remote access networking solutions enable remote management and debugging
Application Scenarios
Industrial Control
Smart Home
Smart Agriculture
Application Examples
Product Showcase
What's On Board
- 1.9inch LCD touch display
170 × 320 resolution, 262K colors - USER button
Used for firmware update by default; Press it when powering on or resetting to enter download mode - RESET button
Press with a SIM ejector tool (NOT Included) to reboot the system - USB Type-A HOST port
- Industrial screw terminal

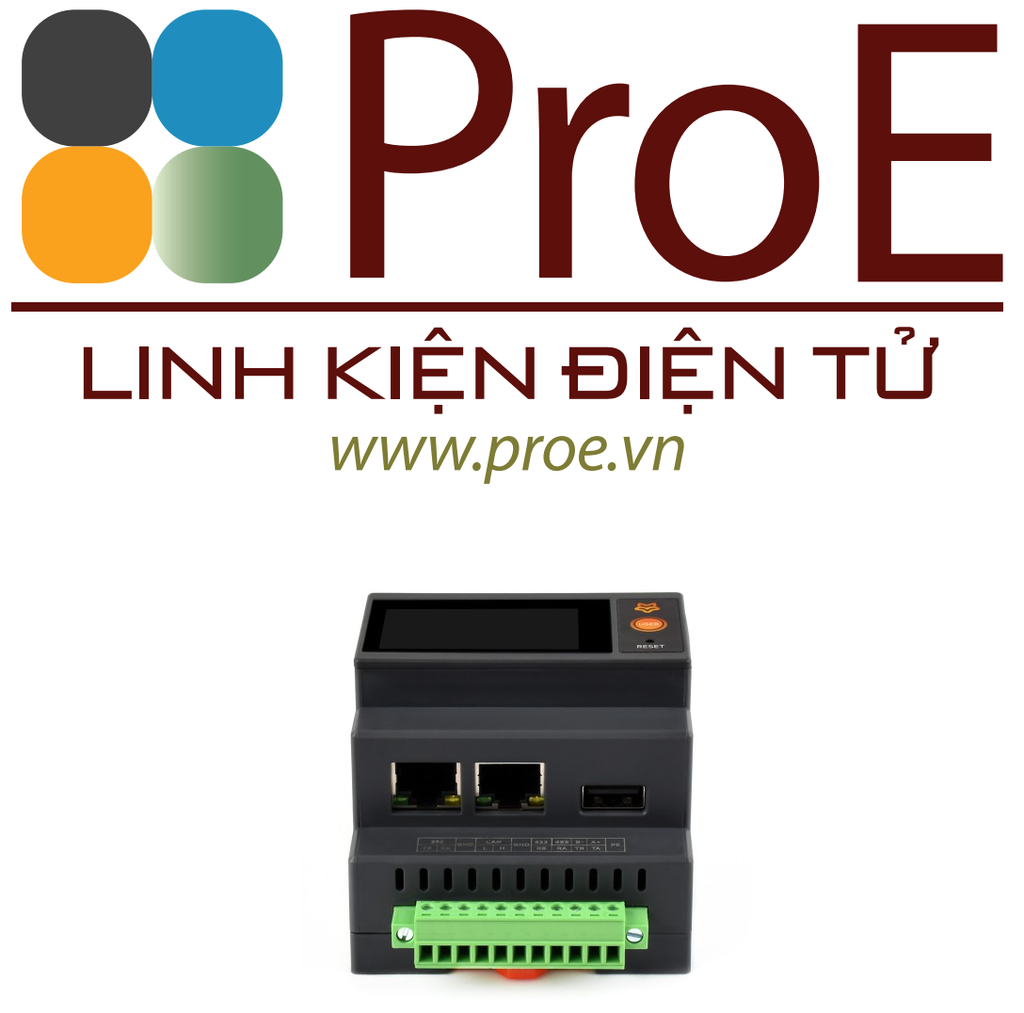

Includes RS232, RS422/RS485, and CAN interfaces - 100 Mbps RJ45 Ethernet port with LED indicators
- 100 Mbps RJ45 Ethernet port with LED indicators
Standard Version: No PoE support;
PoE Version: Supports power input via Ethernet cable from a PoE switch - Termination resistor switches
Lever the switch down to enable the 120Ω termination resistor for the corresponding interface
- Debug serial port
- Expansion I2C interface
Shares the I2C bus with the built-in RTC and temperature & humidity sensor - Expansion I/O interface
- USB Type-C OTG0 port
for power input and firmware flashing - Antenna connector
- Relay and DC power screw terminal
Includes 2-ch relay channels and a 7~24 V DC wide-range input
Pinout Definition
Outline Dimensions
