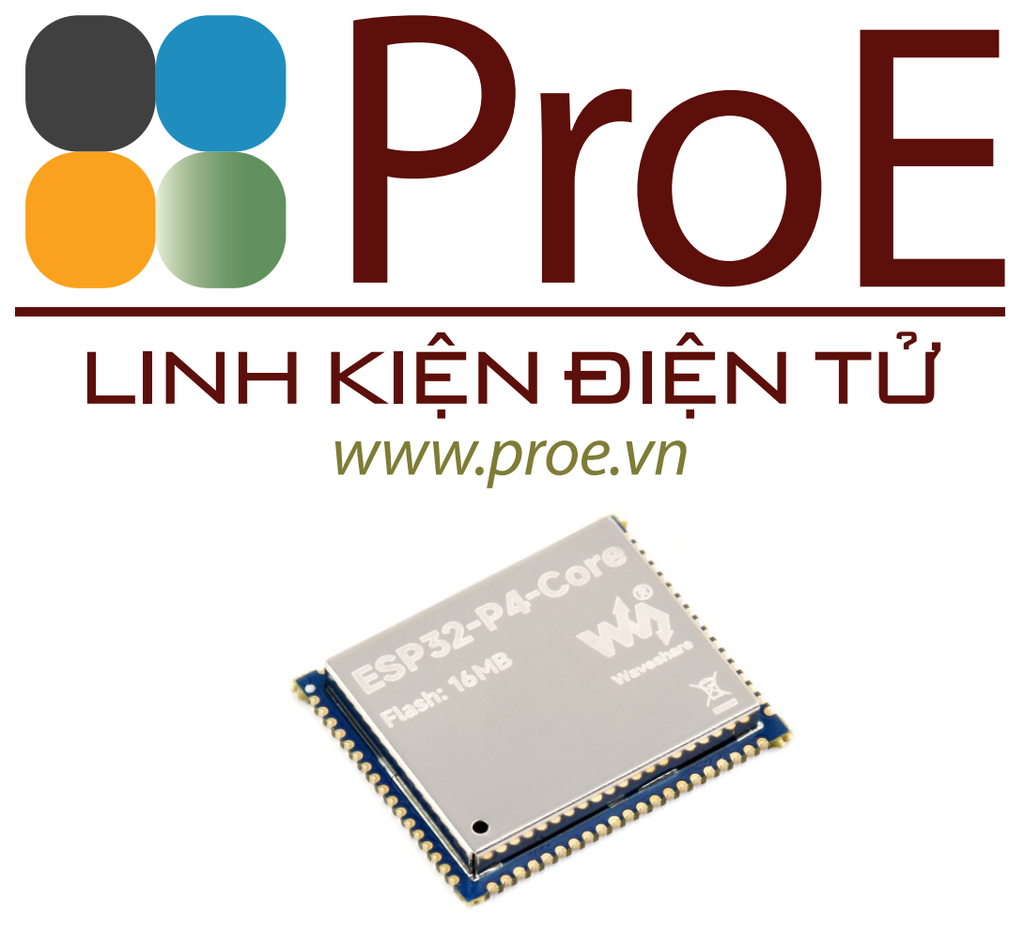

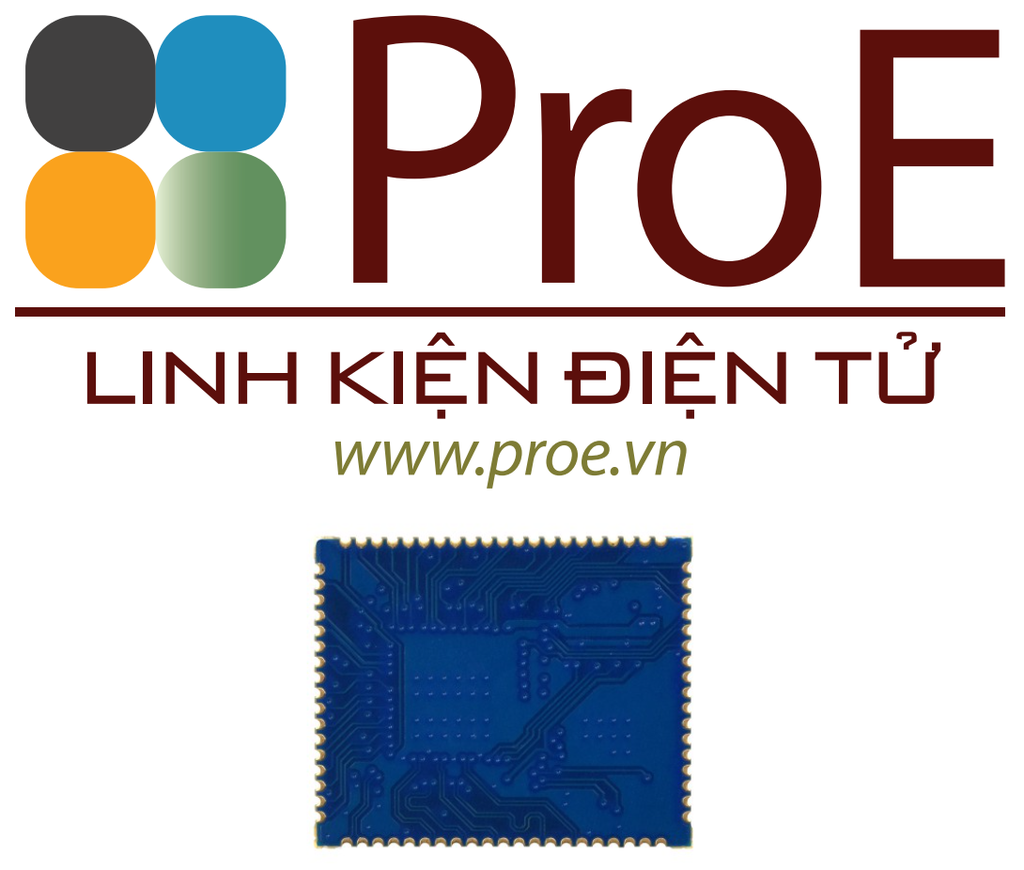

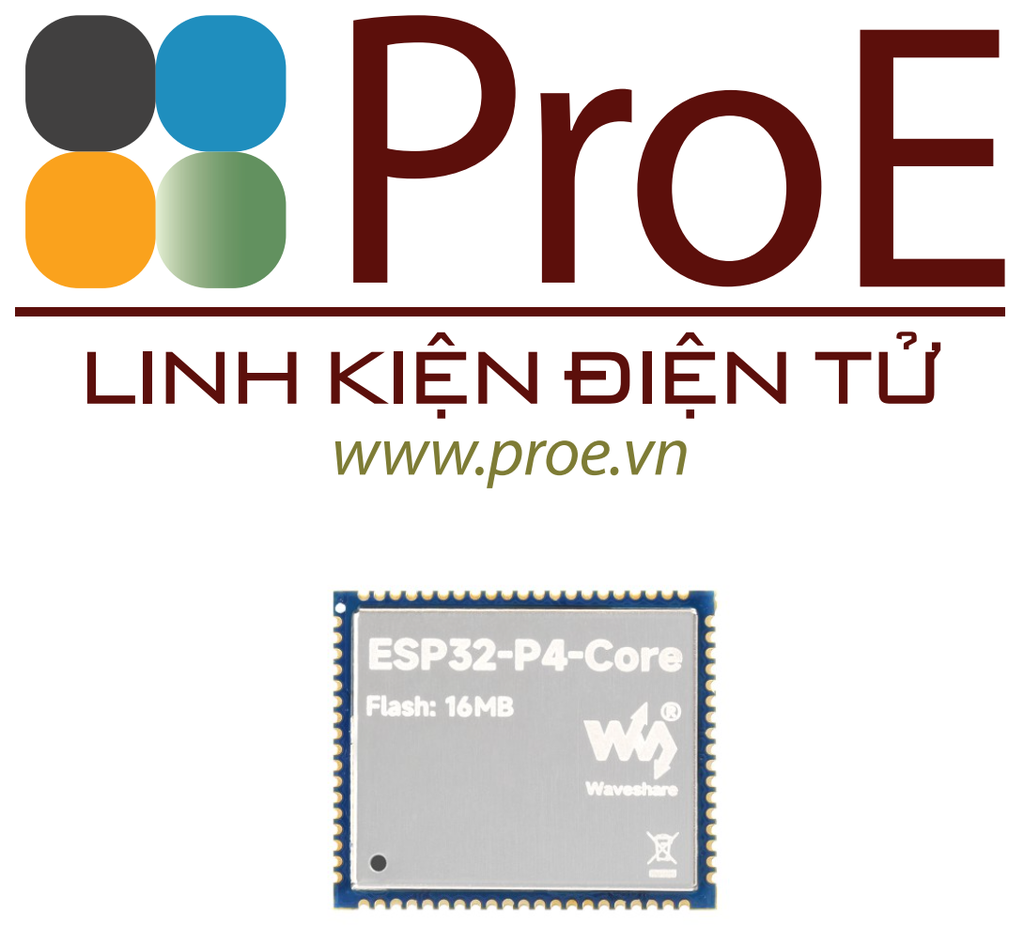

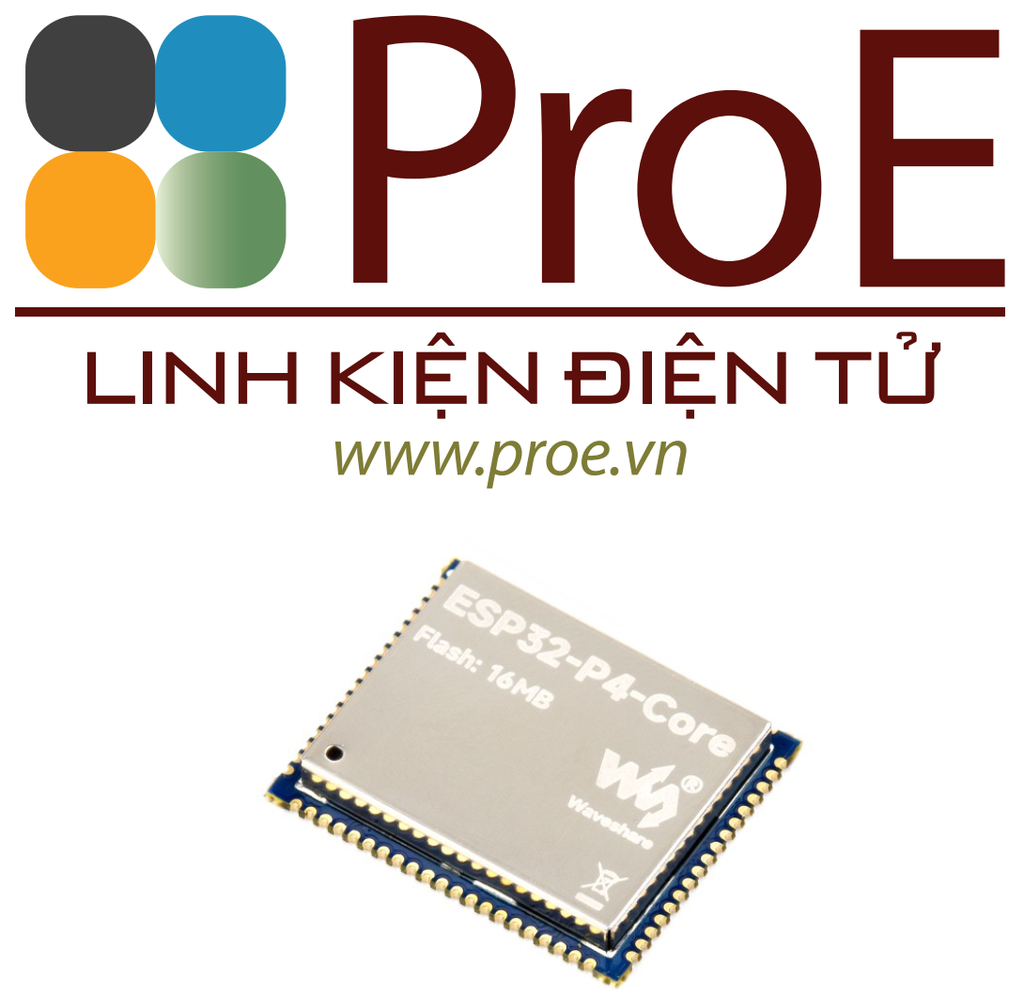

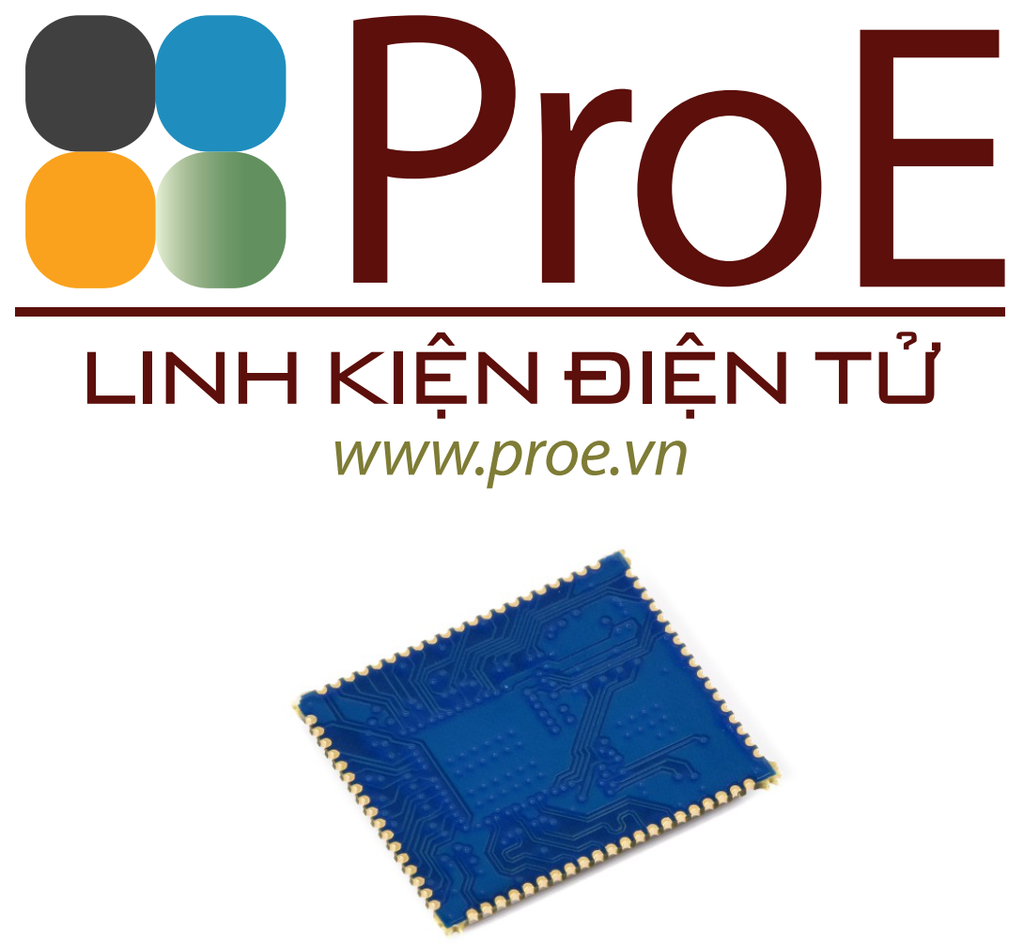

ESP32-P4-Core-32MB
- Mã sản phẩm: 36097
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
650.000₫
WIKI: docs.waveshare.com/ESP32-P4-Core
ESP32-P4-Core-32MB
ESP32-P4-Core-32MB x1
ESP32-P4-Core Module With 32-bit Dual-Core and Single-Core RISC-V Processors, Onboard 32MB PSRAM, Options For 16MB / 32MB Flash
ESP32-P4-Core
Based On ESP32-P4NRW32X
Version Options
ESP32-P4-Core
16MB Nor Flash
ESP32-P4-Core-32MB
32MB Nor Flash
* For functional evaluation or development testing of the module, the corresponding development board is available for purchase: ESP32-P4-Core-DEV-KIT.
Features at a glance
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PSRAM in the chip's package, options for onboard 16MB / 32MB Nor Flash
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Specifications
| Main Control Chip | ESP32-P4NRW32X |
|---|---|
| PSRAM | 32MB |
| Flash | options for 16MB / 32MB |
| Operating Voltage | 3.3V |
| Connector | castellated edge, pitch 1mm |
| Dimensions | 24 × 20 (mm) |
Pinout definition
High-quality Components
For stable performance of communication module
Original Chip
ESP32-P4NRW32X
Professional Shield
Anti-interference & ESD protection
Application examples
Image Recognition, Smart Watches, Smart Industry, Human-Machine Interface (HMI), Voice Recognition, and IoT Applications
Outline Dimensions
