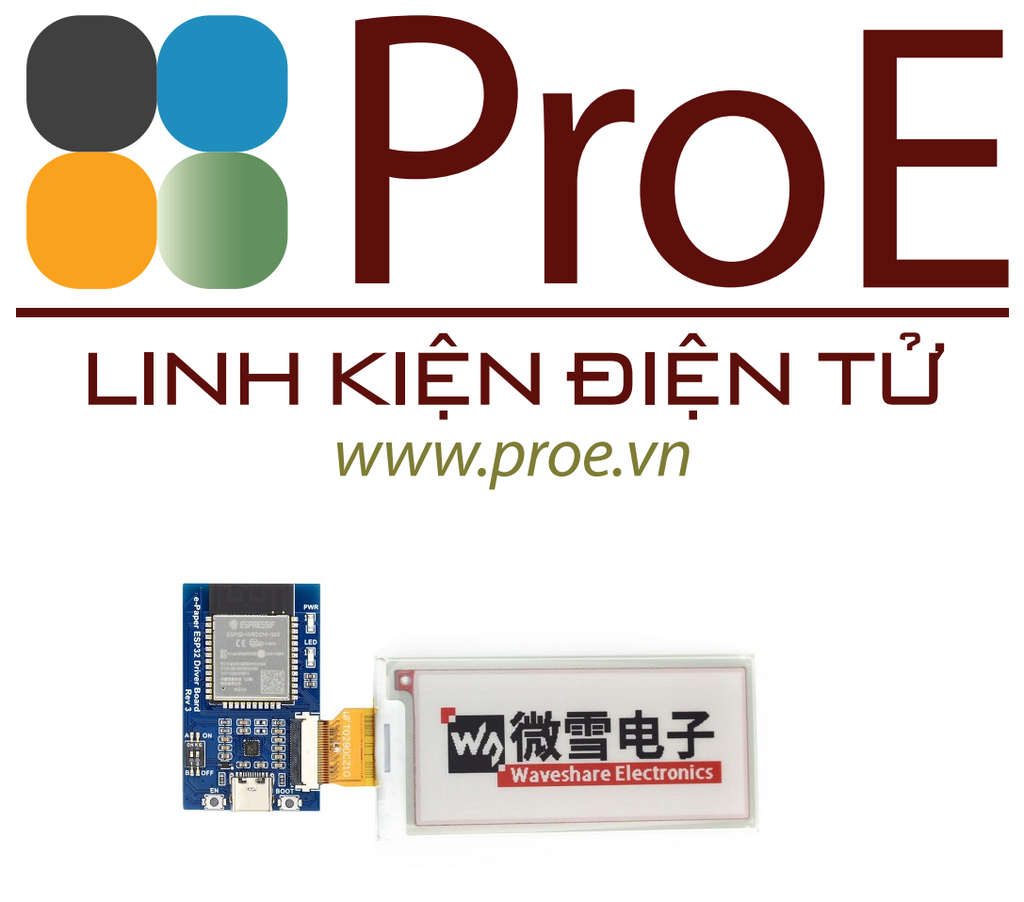

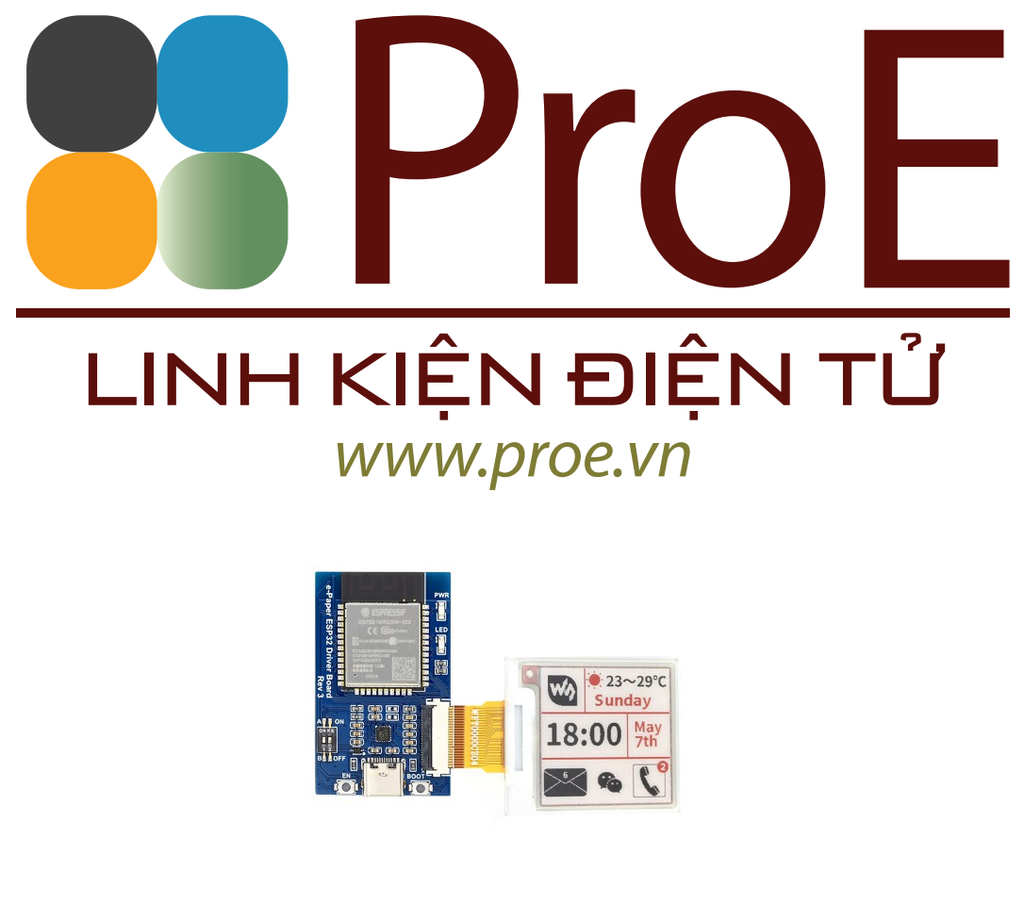

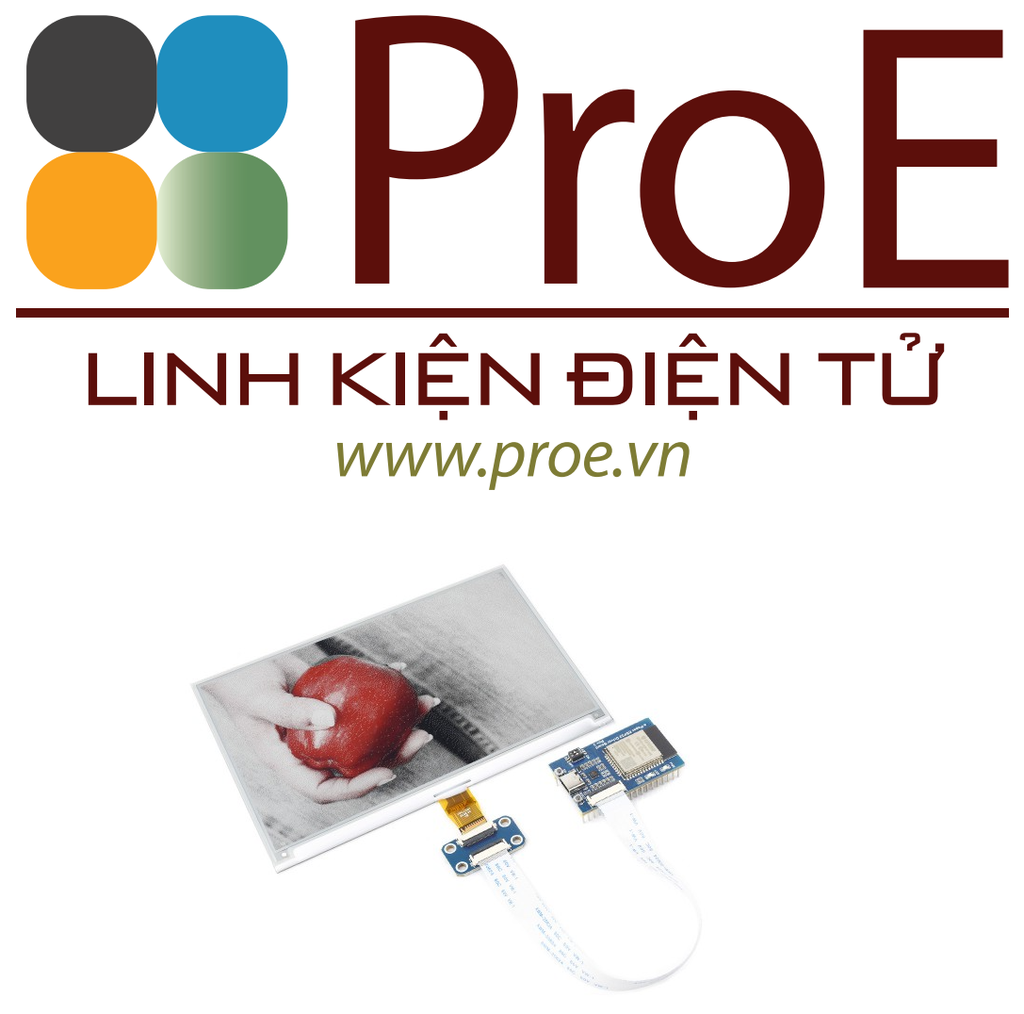

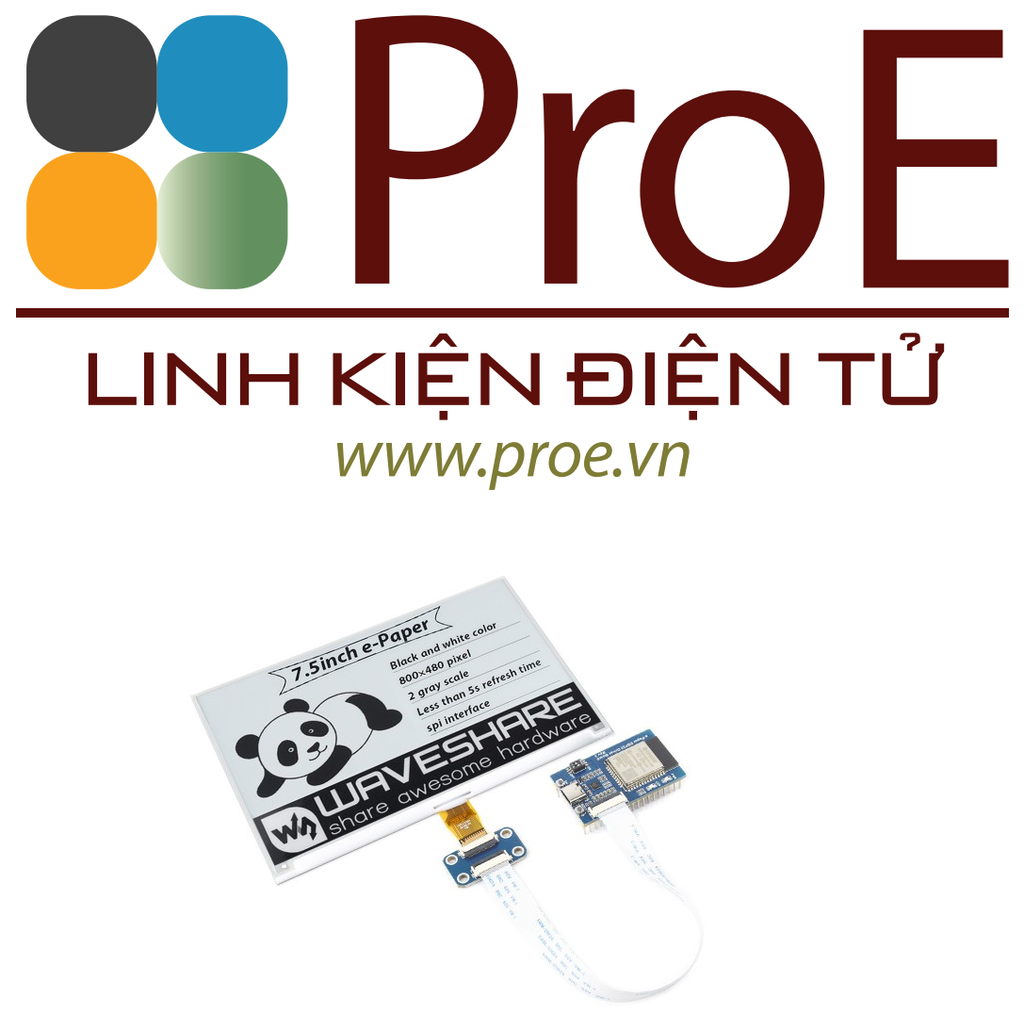

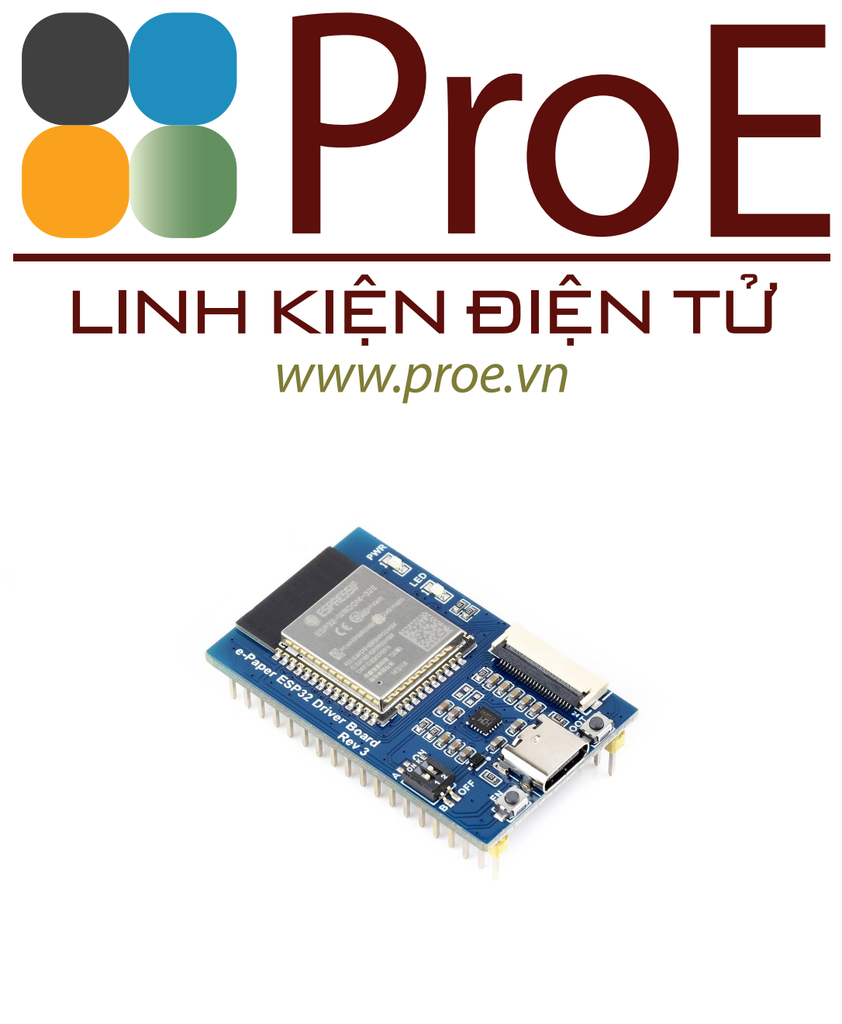

e-Paper ESP32 Driver Board
- Mã sản phẩm: 15823
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
690.000₫
Universal e-Paper Driver Board with WiFi / Bluetooth SoC ESP32 onboard, supports various Waveshare SPI e-Paper raw panels
e-Paper ESP32 Driver Board
Comes with Android APP
an easy way to display images on e-Paper from PC / smart phone via WiFi / Bluetooth
Features at a glance
The e-Paper ESP32 Driver Board is a wireless solution for refreshing e-Paper display content, suitable for applications such as: supermarket price tag, e-Card, serial port info monitoring, etc.
- Onboard ESP32, supports Arduino development
- Provides Android APP, allows to refresh display content via Bluetooth EDR
- Provides HTML host code, allows to refresh display content via remote webpage, suitable for Internet applications
- Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
- Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
- Comes with development resources and manual
Specifications
| WiFi protocol | 802.11b/g/n |
|---|---|
| Bluetooth protocol | Bluetooth 4.2，including traditional BR/EDR, and low power BLE |
| Interface | 3-wire SPI, 4-wire SPI (default) |
| Operating voltage | 5V |
| Operating current | 50mA ~ 150mA |
| Low power current | <2mA (cut off power supply for CP2102) |
| Dimensions | 29.46 × 48.25mm |
Transmitting image via Bluetooth EDR
comes with Android APP, easy to use
* for reference only, e-Paper display is NOT included.
Transmitting image via remote webpage
comes with HTML host code, suitable for sorts of Internet applications
Floyd-Steinberg Dithering support
more color combinations, better shadow rendering, better displaying effect
pinout definition
Outline dimensions
