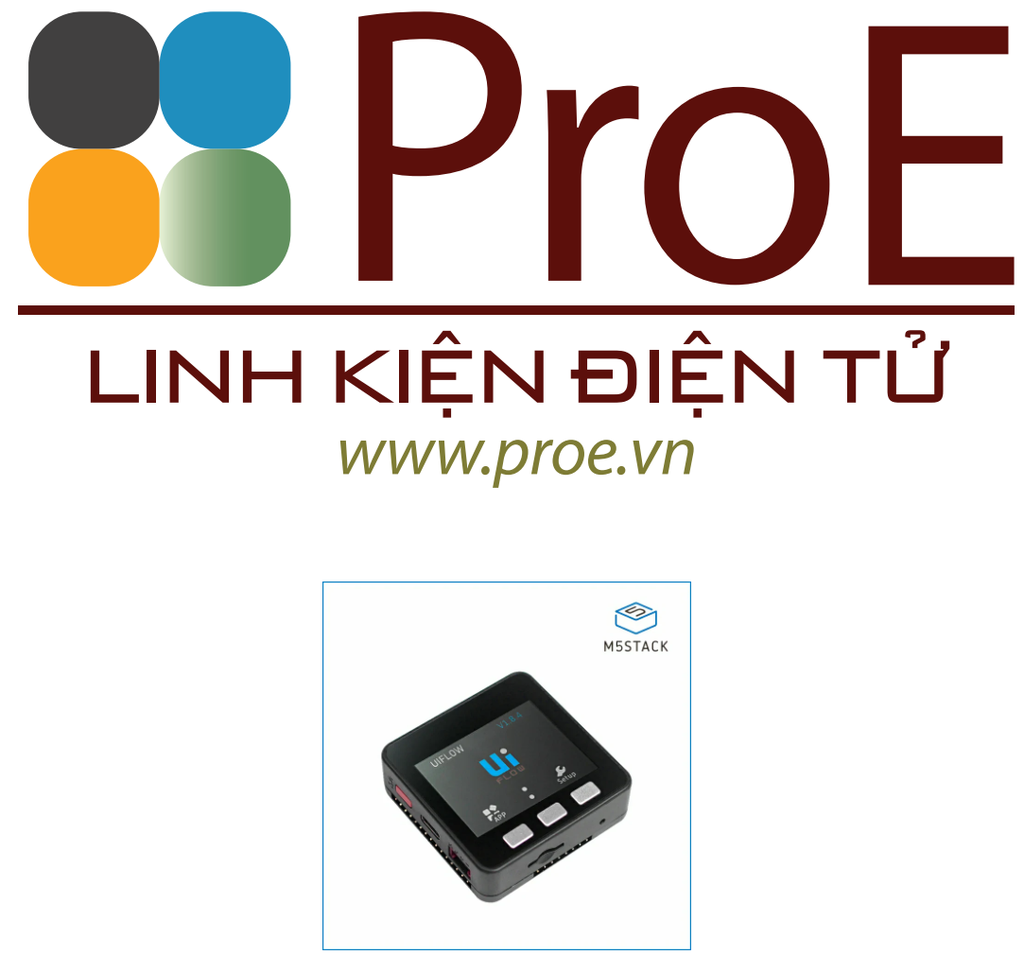

ESP32 Basic Core IoT Development Kit V2.7

Description

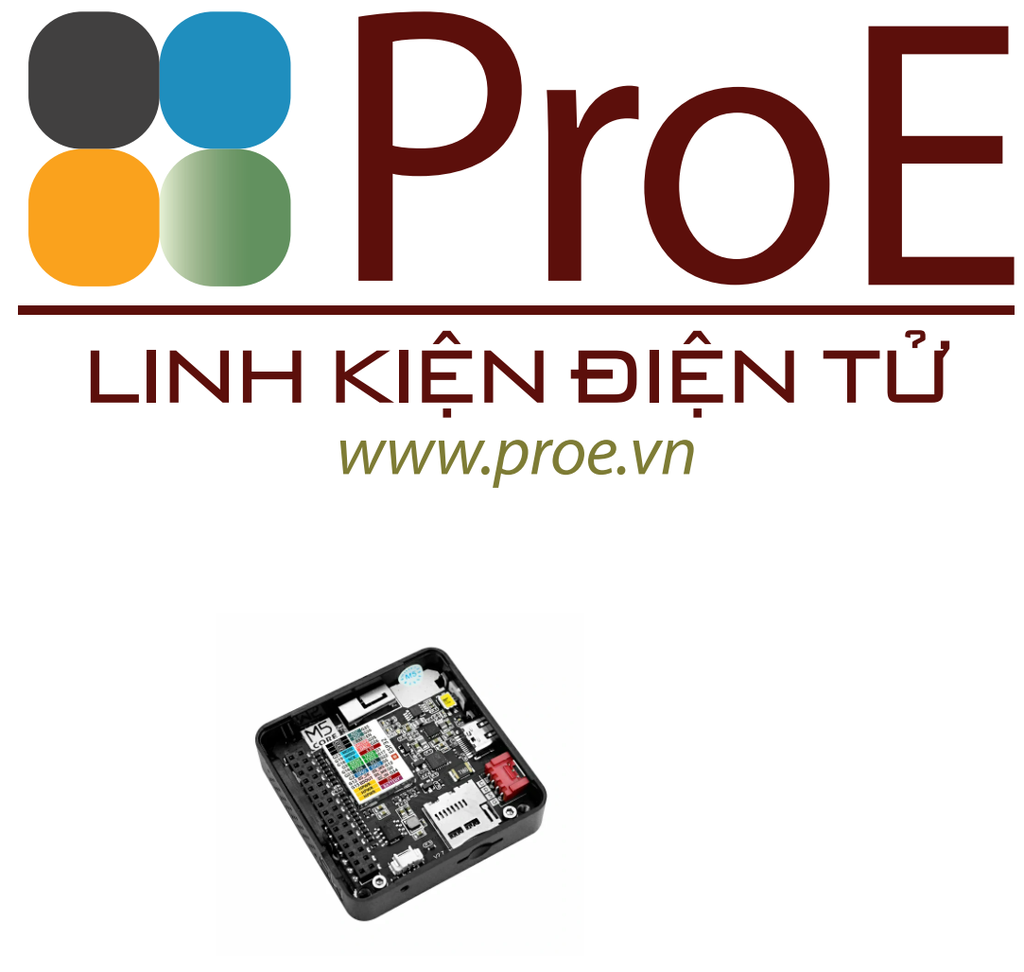

Basic v2.7 is a cost-effective IoT entry-level main controller. It uses the Espressif ESP32 chip, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of up to 240 MHz. It has onboard 16 MB FLASH memory, integrated with a 2.0-inch full-color high-definition IPS display panel, speaker, TFCard slot, and other peripherals. The full-cover casing ensures the stability of circuit operation even in complex industrial application scenarios. The internal bus provides multiple common interface resources (ADC/DAC/I2C/UART/SPI, etc.), with 15 x IO leads on the bottom bus, offering strong expandability. It is suitable for various product prototype development, industrial control, and smart building application scenarios.

Features

• Highly Productized:
  • Exquisite appearance design, directly corresponding to product landing from prototype development
  • Product-level full-cover casing for more stable circuit operation
• Low-Code Development:
  • Supports UIFlow graphical programming platform, scripting, no compilation, cloud push
  • Fully compatible with mainstream development platforms like Arduino, ESP-IDF
  • Supports FreeRTOS, efficiently organizing task logic and optimizing program execution efficiency through dual-core and multitasking mechanisms
• High Integration:

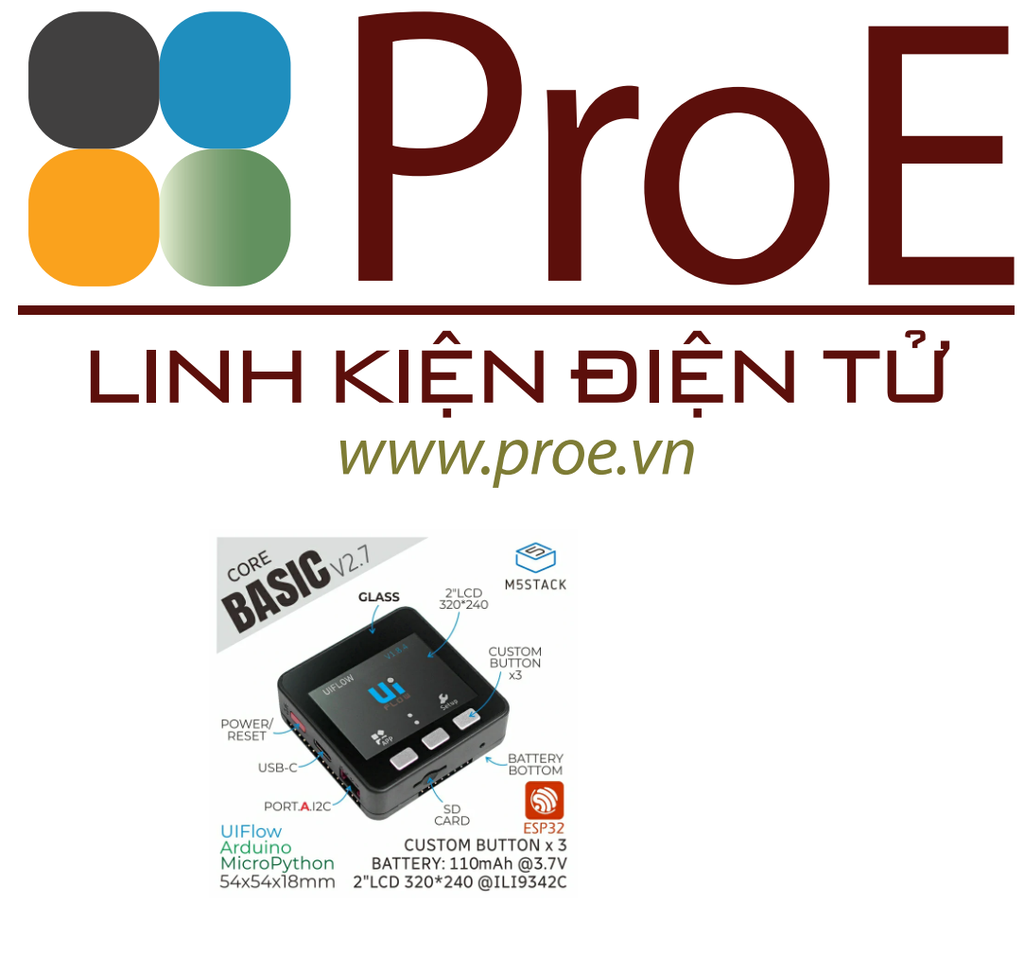

  • 2.0-inch IPS display panel, speaker, customizable buttons x3
  • Built-in lithium battery power supply, integrated power management chip, supports Type-C interface
  • Professionally modulated RF circuit provides stable and reliable wireless communication quality
• Strong Expandability:
  • 15 x IO leads
  • Easily integrate into M5Stack's hardware and software system, stackable module design, plug-and-play sensor expansion

• Developed based on ESP32
• 16M Flash
• Integrated full-color high-definition IPS display panel and various hardware peripherals
• Rich resource interfaces, compatible with M5Stack stackable module system and sensor system, extremely expandable

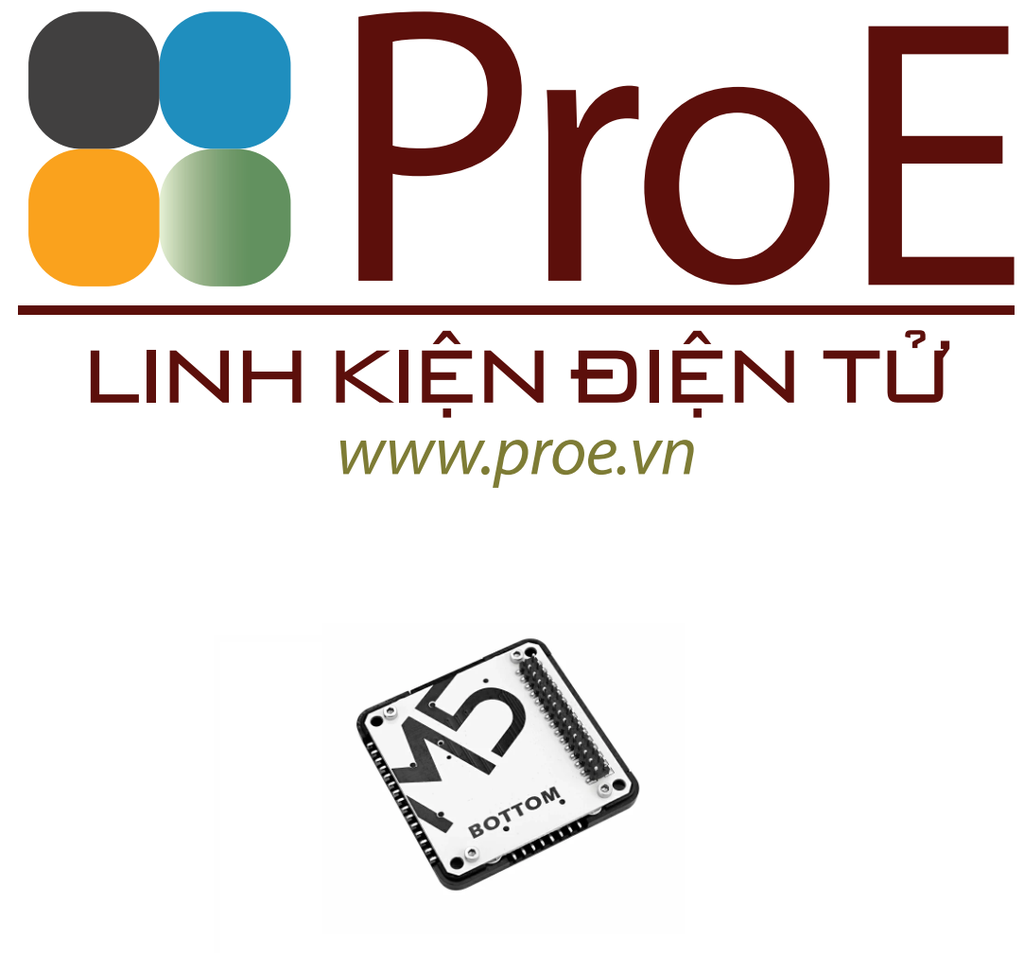

• Uses M5CORE BOTTOM base with built-in lithium battery, 15 x IO leads
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

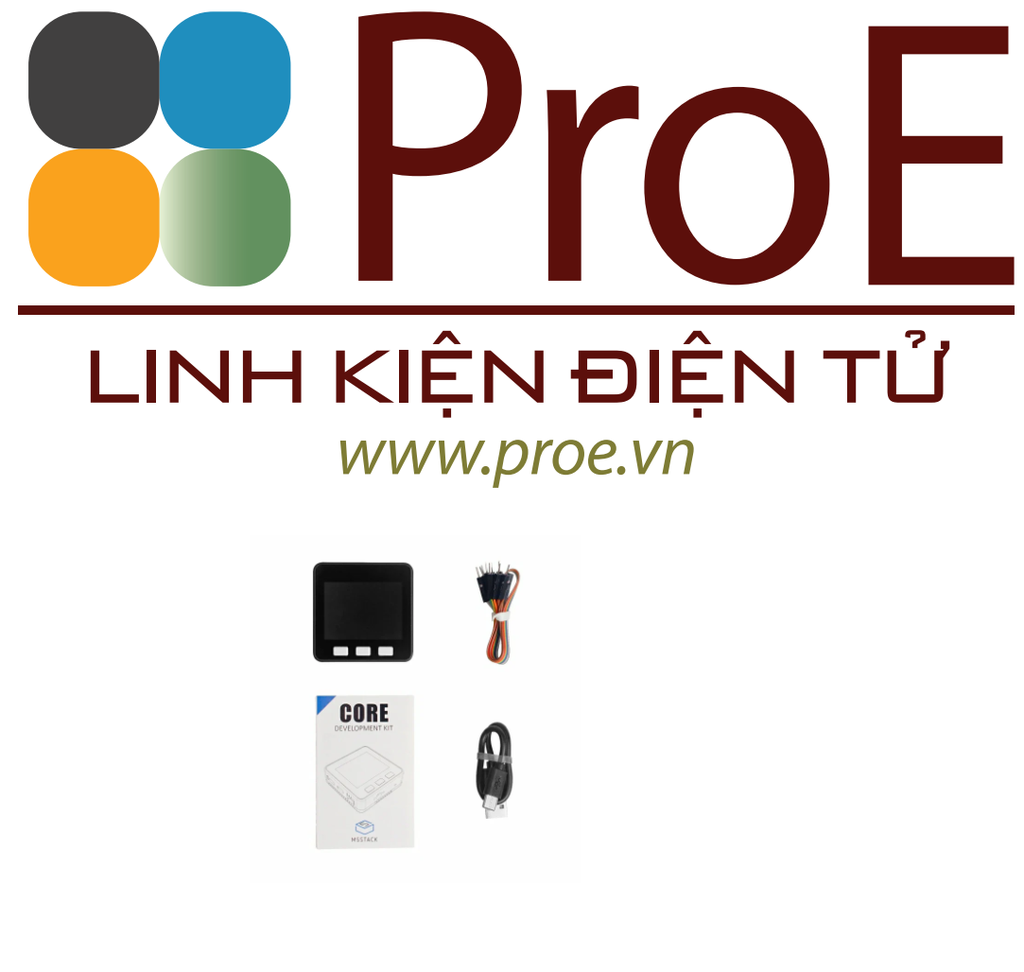

Includes

• 1 x Basic v2.7
• 10 x Dupont wires
• 1 x USB Type-C cable (20cm)
• 1 x User manual

Applications

• IoT Controller
• Maker DIY Projects
• Smart Home Control

Specifications
