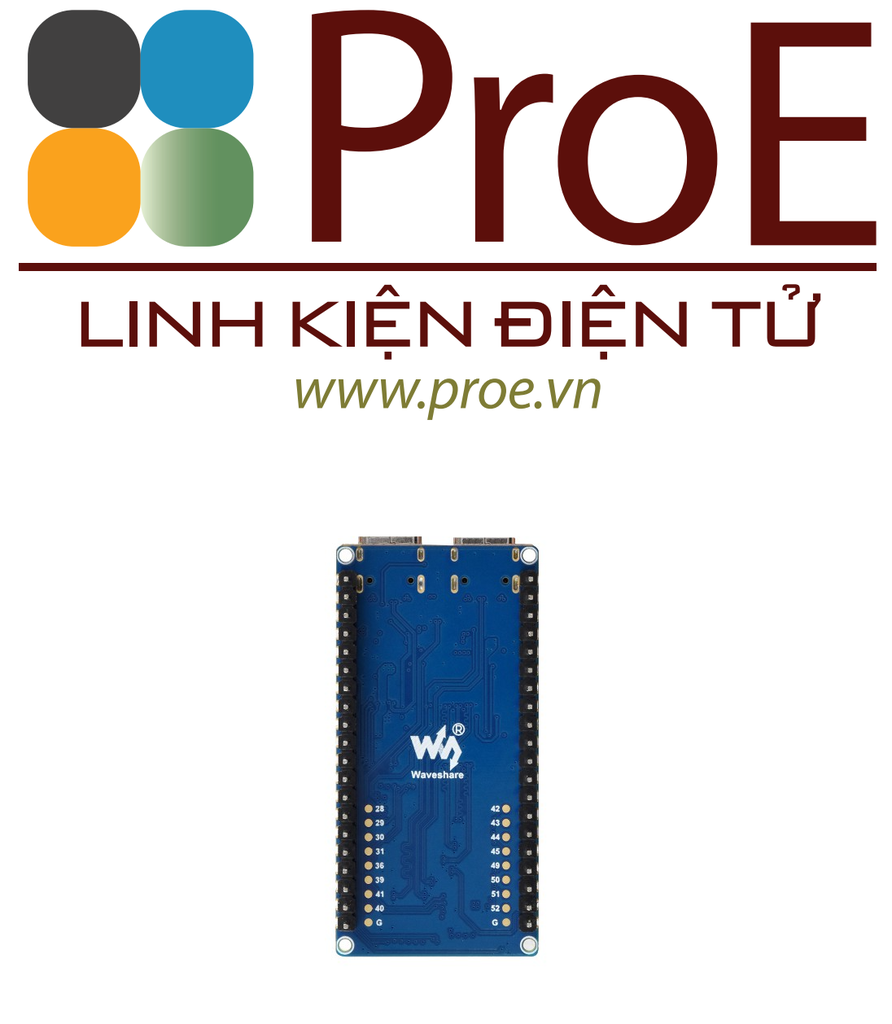

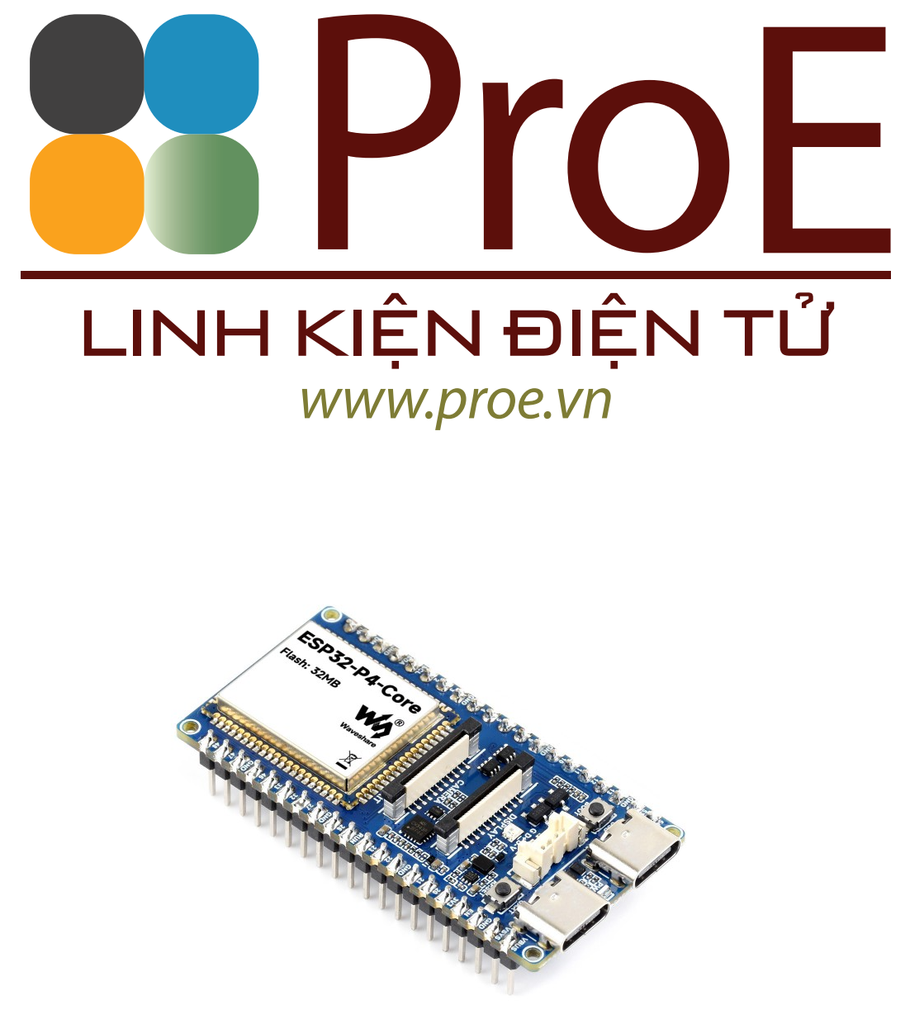

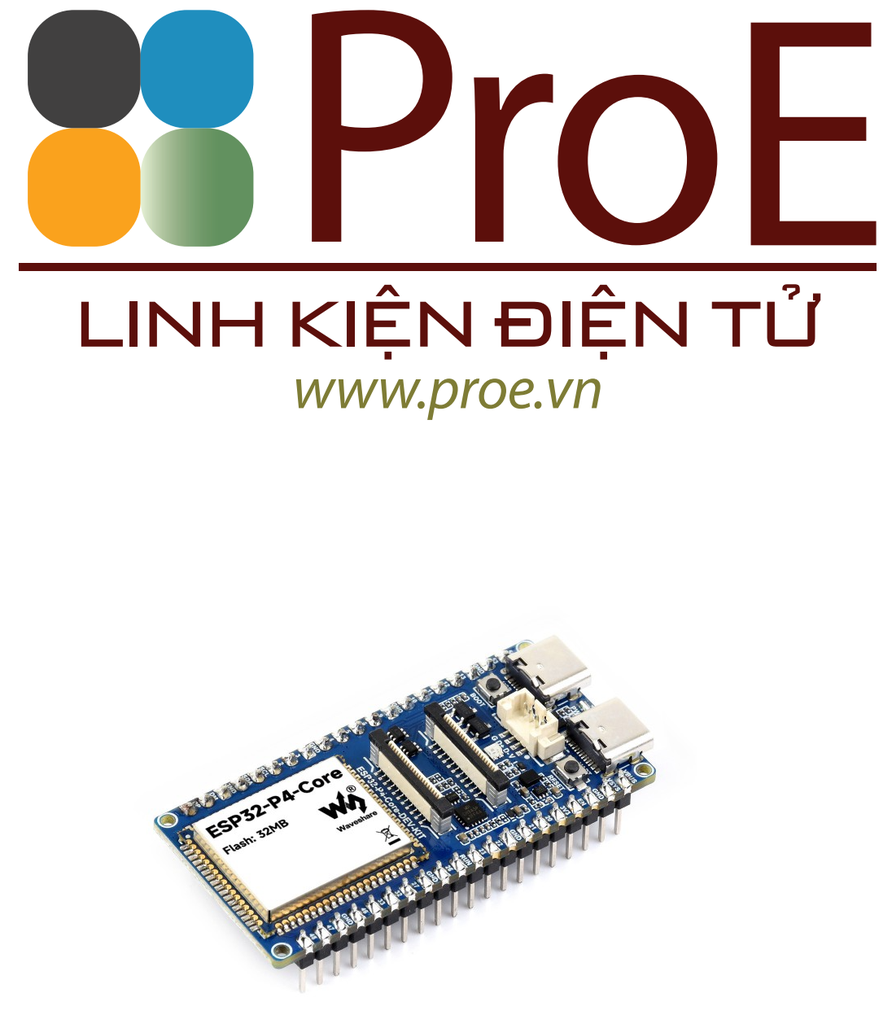

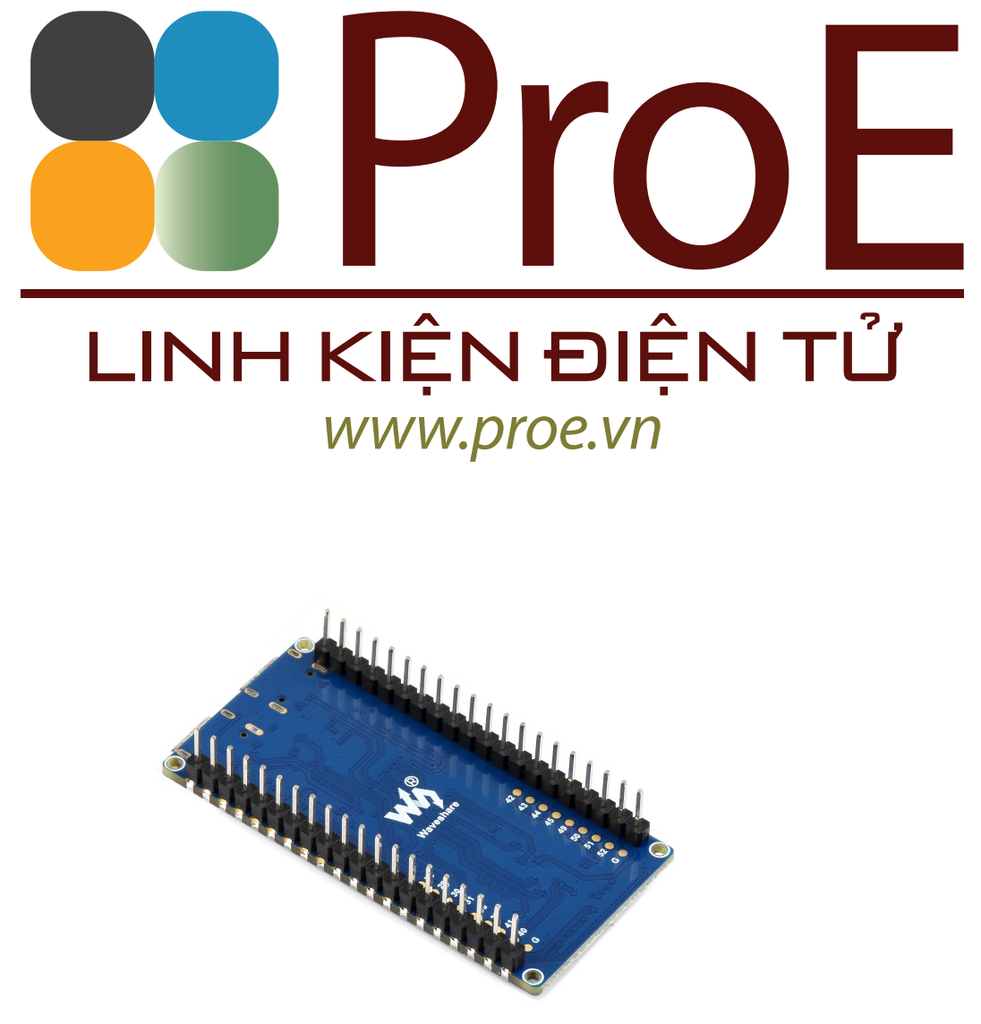

ESP32-P4-Core-DEV-KIT-M

The ESP32-P4-Core-DEV-KIT is a compact multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS for broader application compatibility.

The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI, MIPI-DSI, H.264 encoder, and other peripherals, making it ideal for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. The ESP32-P4-Core-DEV-KIT is designed for high-performance and high-security applications, meeting the requirements of embedded systems in areas such as human-machine interaction, edge computing, and IO expansion.

Key features:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 32MB NOR Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, and USB 2.0 OTG, etc.
• Adapting 2*20 GPIO headers, and with multiple GPIO pads on the back
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
