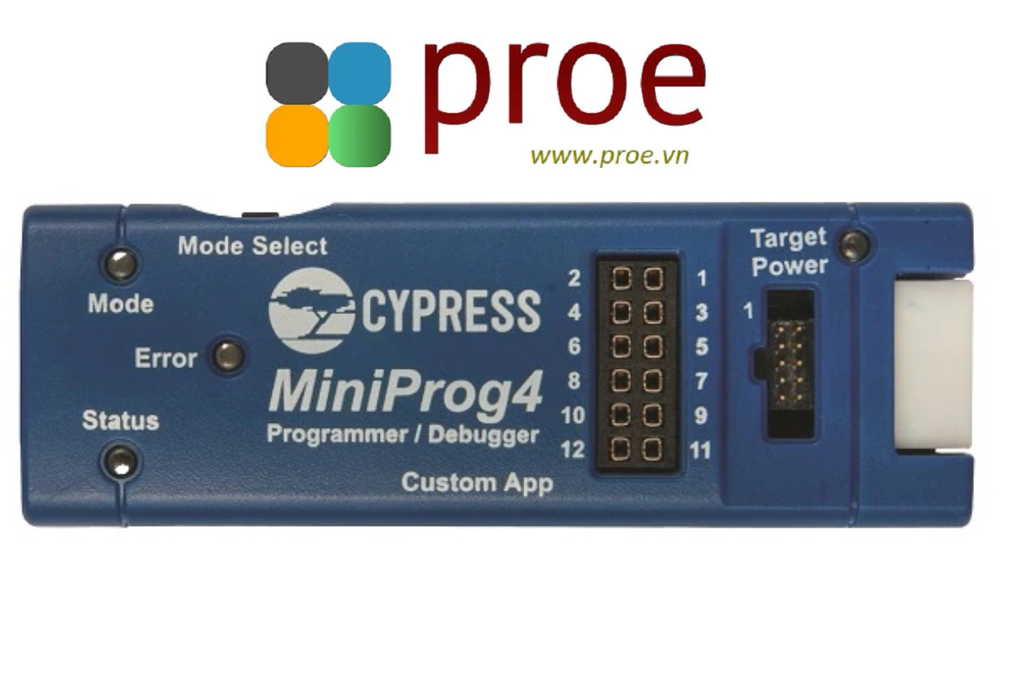

MiniProg4 Program and Debug Kit
- Mã sản phẩm: CY8CKIT-005
- Nhà sản xuất: Cypress
- Website hỗ trợ: https://www.proe.vn
3.800.000₫
MiniProg4 Program and Debug Kit
The MiniProg4 Program and Debug Kit is an all-in-one development programmer and debugger for PSoC™ 4, PSoC™ 5LP, and PSoC™ 6 MCU devices. Use MiniProg4 as a programmer or debug probe for supported devices. and development kits, like the PSoC™ 6 WiFi-BT Pioneer Kit.
MiniProg4 uses the industry standard CMSIS-DAP interface over Serial Wire Debug (SWD) protocol. It uses CMSIS-DAP V2.0.0 and V1.2.0 as the bulk and HID endpoints transport mechanisms. MiniProg4 implements USB bulk endpoints for faster communication. It also supports HID endpoints for use cases that require them, but communication is slower. Out of the box, MiniProg4 uses bulk endpoints.
MiniProg4 also provides USB-I2C, USB-SPI and USB-UART bridging functionality. MiniProg4 bridging capabilities are used by tools like CAPSENSE™. Tuner and the Device Firmware Upgrade Tool, delivered with ModusToolbox™ IDE. MiniProg4 support PSoC™ Creator, PSoC™ Programmer, and the Bridge Control Panel is planned.
Parametrics
| Parametrics | CY8CKIT-005 |
|---|---|
| Board Type | Evaluation Board |
| CapSense | No |
| Family | Microcontroller |
| Features | SWD via CMSIS-DAP |
| Input Type | DC |
| Product Description | The MiniProg4 Program and Debug Kit is an all-in-one development programmer and debugger for PSoC™ 4, PSoC™ 5LP, and PSoC™ 6 MCU devices. Use MiniProg4 as a programmer or debug probe for supported Infineon devices. and development kits, like the PSoC™ 6 WiFi-BT Pioneer Kit. |
| Qualification | Industrial ; Consumer |
| Target Application | Industrial automation ; Home entertainment ; Wearables |
