CY8CKIT-042-BLE-A Bluetooth® Low Energy 4.2 Compliant Pioneer Kit

The PSoC^® 4 Bluetooth^® Low Energy (BLE) Pioneer Kit enables customers to evaluate and develop Bluetooth 4.2 compliant solutions using the PSoC 4 BLE device with up to 256KB Flash and 32KB SRAM.

Bluetooth Low Energy Made Easy:

• The BLE Pioneer Kit supports system-level designs using PSoC Creator which includes numerous example projects to enable Bluetooth Low Energy mixed signal embedded designs.
• The Bluetooth Low Energy v4.2 specification has been abstracted into the new BLE Component in PSoC Creator, allowing for easy drag-and-drop designs.
• The kit has been designed to allow for maximum design flexibility enabling Arduino™ shields hardware compatibility and easy to use, FCC-certified PSoC 4 BLE Module.

Low System Cost:

• The BLE Pioneer Kit provides users easy access to the new PSoC 4 BLE device, while maintaining the familiar CY8CKIT-042 PSoC 4 Pioneer Kit design footprint.
• The kit includes a CY5677 - CySmart Bluetooth Low Energy 4.2 USB Dongle (BLE Dongle) that pairs with the CySmart master emulation tool, converting your Windows^® PC into a powerful Bluetooth LE debug environment.
• The kit has been designed to allow for easy development at a low cost. The kit design and layout allows for customers to easily develop embedded solutions that require both mixed-signal capabilities and a Bluetooth LE radio.

Lowest System Power:

• The BLE Pioneer Kit has been designed to allow customers to develop low power designs.
• The kit provides both power measurement jumpers and a coin cell holder and battery for low power evaluation.
• The kit allows the user to evaluate lower power modes in a wide operating voltage range of 1.7 - 5.5 V.

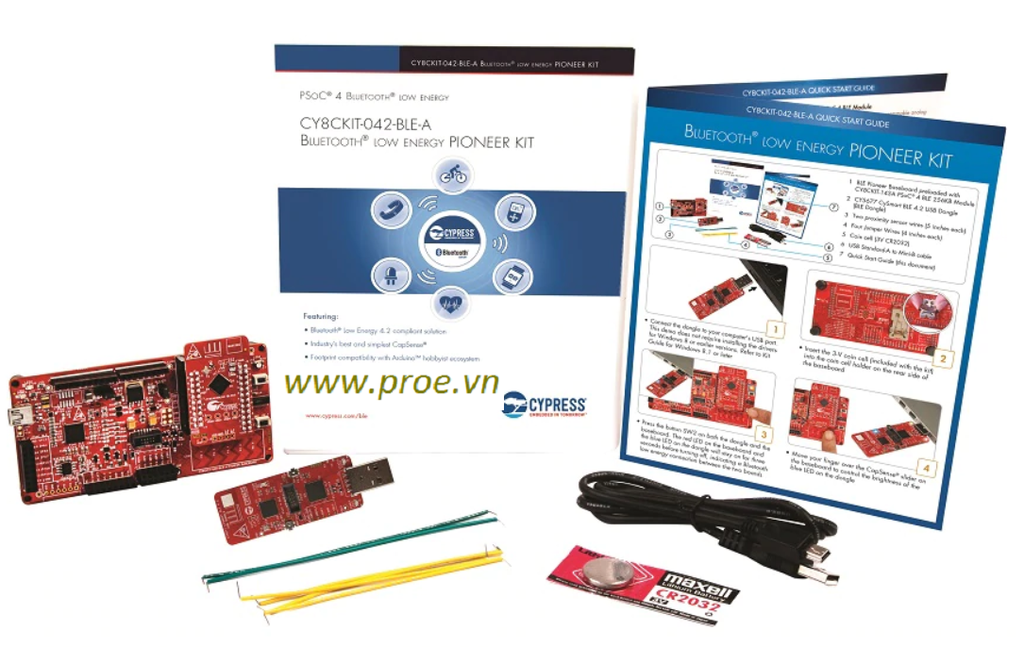

Kit Contents:

• BLE Pioneer Baseboard preloaded with CY8CKIT-143A PSoC 4 BLE 256KB module
• CY5677 - CySmart Bluetooth Low Energy 4.2 USB Dongle (BLE Dongle)
• Quick start guide
• USB Standard A to Mini-B cable
• Four jumper wires (4 inch) and two proximity sensor wires (5 inch)
• Coin cell (3V CR2032)
