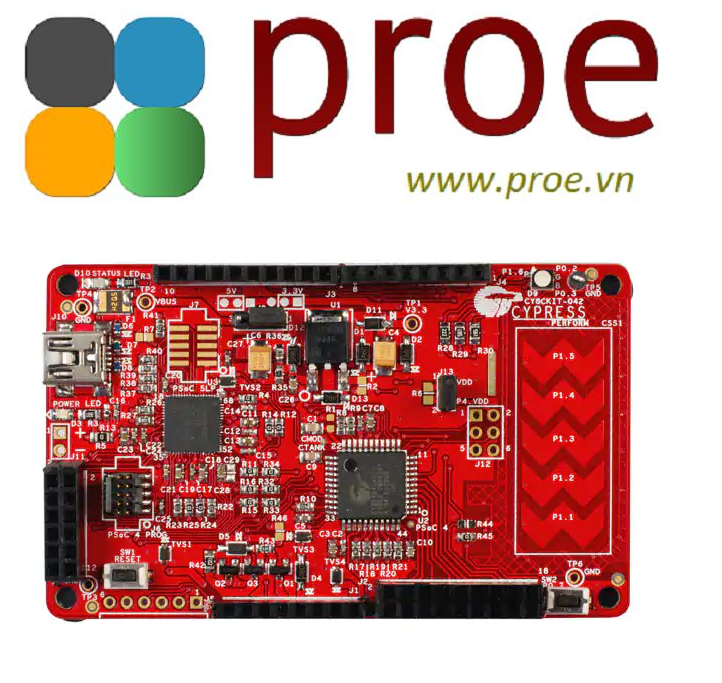

CY8CKIT-042 PSoC® 4 Pioneer Kit

The PSoC 4 Pioneer Kit is an easy-to-use and inexpensive development platform enabling you to create unique designs with the flexibility of PSoC^®4. Featuring the PSoC 4200 device family with up to 32KB Flash and 4KB SRAM, this kit gives you the power of an Arm Cortex-M0 combined with the fully customizable analog and digital fabric of the PSoC in the palm of your hands.

100 PSoC 4 Pioneer Kit Projects in 100 days

Infinitely Expandable

The PSoC 4 Pioneer Kit includes connectors for Arduino™ compatible shields and Digilent® Pmod™ daughter cards, enabling you to pick from a variety of 3rd party expansion boards. The board also features a CapSense® slider, an RGB LED, a user button, and more!

Designed for Low Power

The PSoC 4 architecture supports an extremely low-leakage hibernate mode consuming only 150nA. It features a best-in-class 20nA stop mode, eliminating the need for external power circuitry for sleep and wake-up control. While in active mode, it provides fully functional analog capabilities from 1.71 – 5.5V.

Debug like a Pro

An onboard PSoC 5LP device serves as the programmer and debugger, eliminating the need for external programmers. Interface through the USB connector to talk to your PC over SWD, USB-UART, or USB-I2C. With PSoC Creator™ you can design your system, write firmware, and step-through code using the built-in debugger.

kit Contents:

• PSoC 4 Pioneer Kit Board
• Quick Start Guide
• USB A to mini-B Cable
• Jumper Wires (x6)
