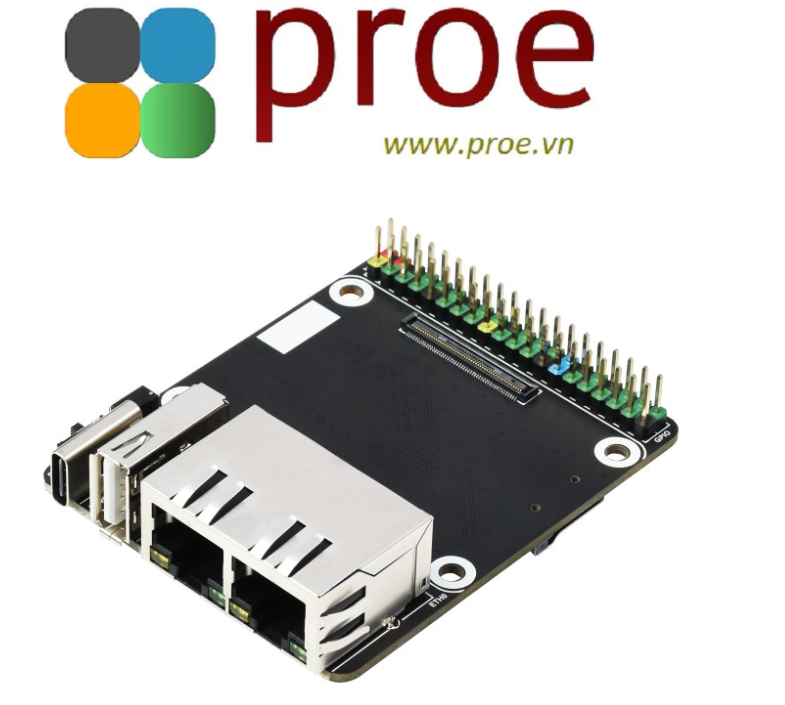

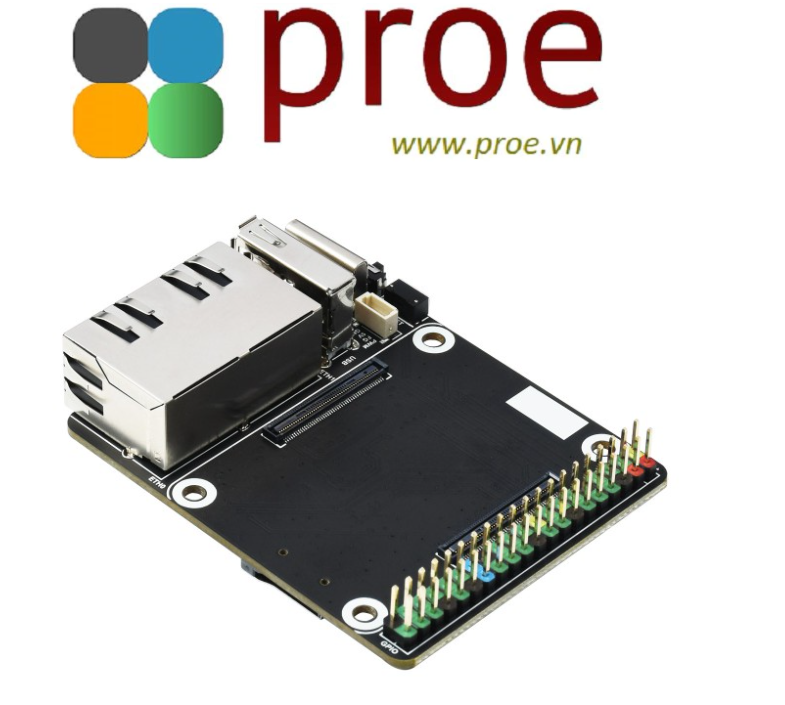

Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

  • Mã sản phẩm: CM4-DUAL-ETH-MINI
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
850.000₫
PACKAGE CONTENT

Weight: 0.033 kg

CM4-DUAL-ETH-MINI x1

Mini Dual Gigabit Ethernet Base Board Designed For Raspberry Pi Compute Module 4

Dual Gigabit Ethernet Base Board For CM4


Mini, Practical And Neat

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Specifications

CM4 SOCKET suitable for all variants of Compute Module 4
NETWORKING Dual Gigabit Ethernet RJ45 connector
USB USB 2.0 Port
PIN HEADER Raspberry Pi 40PIN GPIO header
STORAGE Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER 4-wire SH1.0 port, allows speed adjustment and measurement, 5V
POWER INPUT 5V, Type-C interface
DIMENSIONS 55.0 × 68.0mm

Connecting With Compute Module 4

Standard CM4 Socket And 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module

Rich Interfaces

Onboard ETH/Micro SD/USB Interfaces
Meet The Needs Of Specific Applications In Development

Application Example

Suitable For Raspberry Pi Or Other Industrial Occasions With Special Function Requirements

for reference only, CM4 is NOT included.

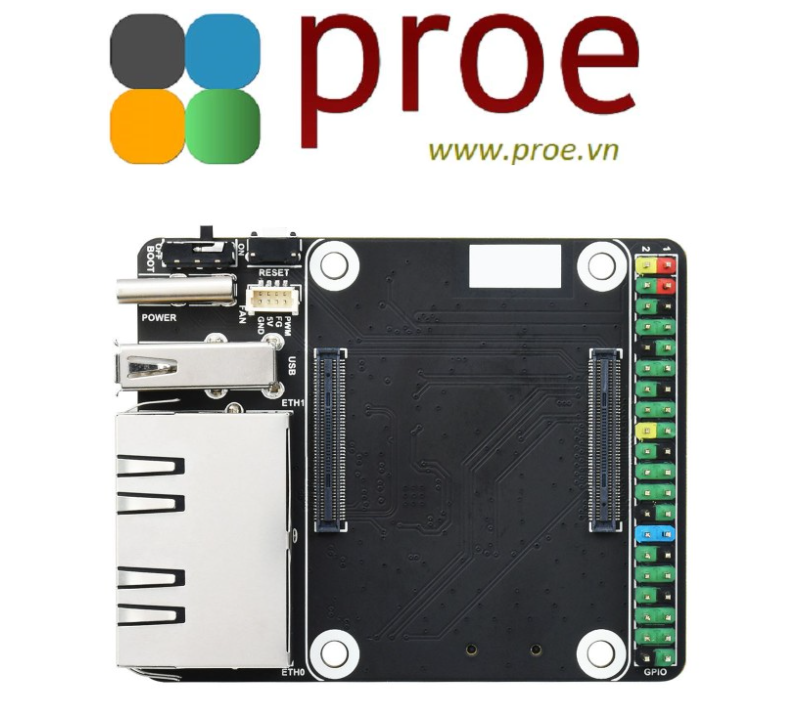

What's On Board

  1. 40PIN GPIO header
    for connecting sorts of HAT
  2. CM4 Socket
    suitable for all variants of Compute Module 4
  3. RJ45 Dual Gigabit Ethernet Port
    Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
    ETHERNET 0: CM4 original network port
    ETHERNET 1: PCIe extended network port
  4. USB 2.0 Type A port
    for connecting sorts of USB devices
  5. FAN header
    for connecting cooling fan, allows speed adjustment and measurement
  6. Reset button
  7. Boot switch
    ON: CM4 would be booted from USB-C interface
    OFF:CM4 would be booted from eMMC or Micro SD card

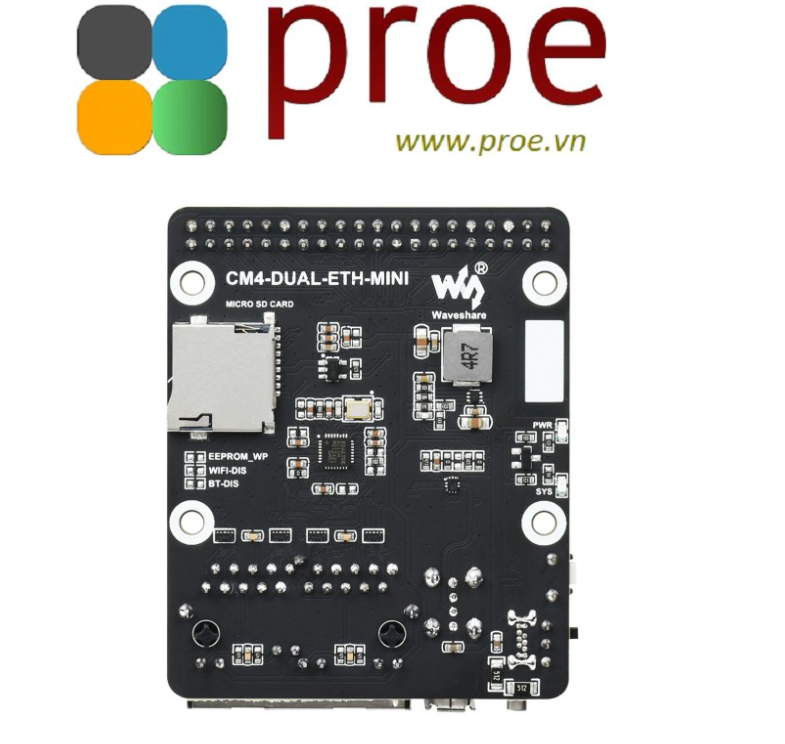

  1. Type-C port
    5V/2.5A power supply, or used for eMMC programming
  2. Micro SD card slot
    for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
  3. RTL8111H
    Gigabit NIC chip
  4. Indicator
    PWR: indicating the power supply status of Raspberry Pi
    SYS: indicating the working status of Raspberry Pi
  5. SYSTEM switch
    EEPROM_WP: Prevent EEPROM from being overwritten
    WiFi_DIS: WiFi disabled, only for CM4 version with antenna
    BT_DIS: Bluetooth disabled, only for CM4 version with antenna

Outline Dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-MINI
