IFC6410P-11-P1 Inforce Computing Inc

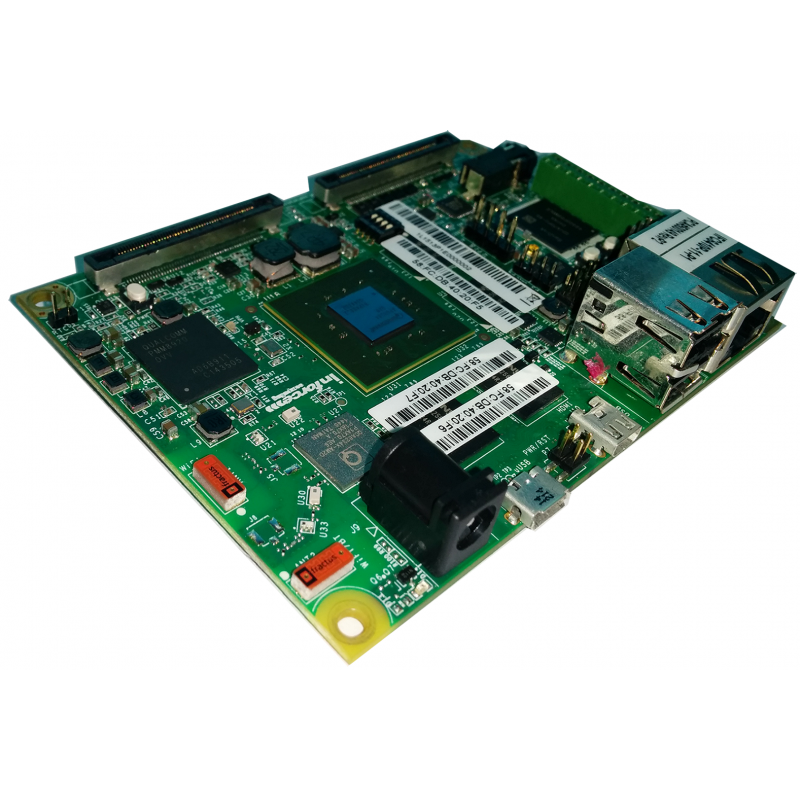

Inforce 6410 Plus is the next-generation enhanced version of the versatile and time-tested Inforce 6410 SBC. The application-ready platform of Inforce 6410 Plus comes in an ultra-small Pico-ITX form  factor,   suitable   for   a   multitude   of   embedded   designs.   The   plug-and-play  Inforce  6410 Plus SBC  provides  system  designers  instant access to the rich I/O and connectivity of the well-proven  and quad-core processing power of the Snapdragon 600 SoC. New features  such  as  a  short  profile  of  16mm,  GPS,  support  for  dual-MIPI-DSI  displays,  and  dual-MIPI-CSI  cameras  provide  an   ideal  choice  for  a  variety  of  unique  embedded  Android  and  Linux-based applications

• Qualcomm® Snapdragon™ 600 APQ8064 SoC
• Quad-core Krait™ 300 CPU @1.7GHz each, 2MB L2 cache,
• ARM®v7 compliant
• Adreno™ 320 GPU (QXGA/1080p) with support for OpenGL ES 3.0,
• DirectX, OpenCL, and Renderscript Compute
• Hexagon™ DSP v4 @500MHz for ultra low-power audio processing
• Intelligent scalable power management for superior energy efficiencies
• 2GB PCDDR3 RAM @533MHz; 4GB eMMC Flash memory
• MicroSD card connector, SATA
• Dual stream 802.11 b/g/n 2.4GHz/5GHz WiFi
• BT 4.0, GPS, Gigabit Ethernet
• Supports Dual-cameras (20MP total) on MIPI-CSI2
• μHDMI output for HD1080p60 Video and HD audio
• Dual MIPI-DSI-based panel and touch screen display
• Simultaneous MIPI-DSI (either channel) and HDMI-out display @1080p60
• Onboard Arduino shield adapter board connector

Specifications

• EU RoHS

  Compliant

• Type

  Development Kit

• Supported Device

  IFC6410P-10-P1

• Supported Device Technology

  Single Board Computer - SBC

• RAM Size

  2GB

• Program Memory Size

  4GB

• Program Memory Type

  eMMC Flash

• USB

  3

• RS232

  0

• Ethernet

  1

• I2C

  1

• CAN

  0

• SATA

  1

• SPI

  1

• UART

  1

• ADC

  0

• GPIO

  8

• Display Interface

  HDMI/MIPI-CSI2/MIPI-DSI

• Display Type

  LCD

• Operating Systems

  Linaro Ubuntu Linux

• PC Card Interface

  micro SD

• JTAG Support

  Yes

• Audio Interfaces

  Yes

• Main Program Memory Type

  Flash

• Linux

  Linaro Ubuntu Linux

• Daughter Cards

  No
