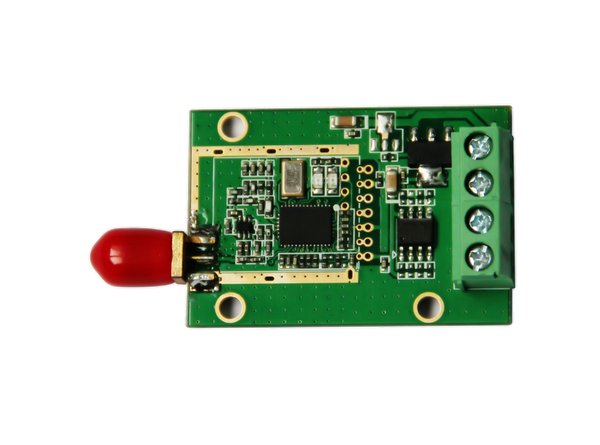

HM-TRPW-RS485 RF Data-link Modules

1. Descriptions of RF Data Link Transceiver Module HHM-TRPW-RS485:

HM-TRPW-RS485 series is a low cost, high performance transparent FSK RF Data link module transceiver module with operating at 433/470/868/915 MHz. It features small size, high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface, it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.

2. Features of RF Data Link Transceiver Module HHM-TRPW-RS485:

● Low cost, high performance , high reliability

● FSK modulation, 2-way half –duplex communication, strong anti-interfere

● 433/470/868/915MHz ISM band，globally license free.

● Maximal output power100mW(20dBm)，output power adjustable between 1-20dBm

● Sensitivity -117dBm

● Supply current for Tx 100mA@20dBm, 40mA@14dBm

● Supply current for Rx 25mA

● Low current sleep mode 1uA

● Standard RS485 interface

● Operation frequency can be configured, acceptable for several modules working in different frequency    with no disturbance on each other.

● Optional for frequency deviation and receiving ISM bandwidth, users can be modulated by software.

● Easily use, auto exchange on communication & transceiver

● Communication speed 1.2kbps -115.2kbps，can be modulated through software

● Afford ENABLE control signal，user self control work duty cycle

● RSSI function

● With LED indication

● Longer transmission distance，over 1Km in open air

● Small size 44.1X30X1.2MM.

● Tuning free

● Accord FCC,ETSI standard

3. Applications of RF Data Link Transceiver Module HHM-TRPW-RS485:

● Remote control, remote measurement

● Access control

● Data collection

● Intelligence household appliance

● Wireless meter

● Identification system

● IT household appliance

● Baby monitoring system
