Ultra-Wideband (UWB) Transceiver Development Kit

QM33120W UWB transceivers.

This kit can be used to evaluate the hardware performance of the devices in TWR, TDoA and AoA systems and can help to build an evaluation real time location system (RTLS). It also enables the development of applications based on DW3110, DW3120, DW3210, DW3220 UWB transceivers.

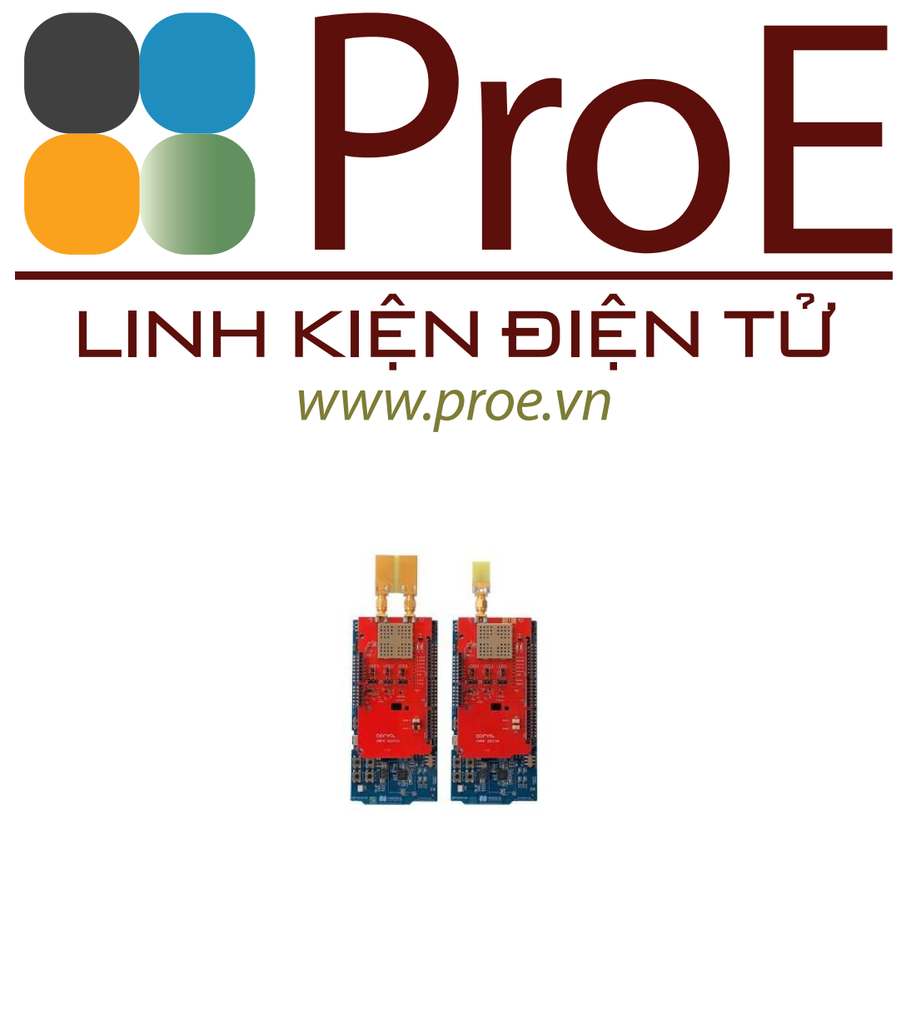

It includes two different daughter boards (AoA and non-AoA) mounted on two Nordic nRF52840 DK evaluation boards. Application firmware development is facilitated by the features of the Nordic boards such as on-board J-Link debugger, USB and Bluetooth® Low Energy interfaces.

The QM33120WDK1 is designed to develop applications compatible with PHY and MAC FiRa™ specifications.

Application Notes

User Manuals

Key Features

• Convenient kit for evaluation of DW3110, DW3120, DW3210, DW3220, QM33110W & QM33120W transceivers
• Daughter boards compatible with Nordic nRF52840 DK
• Provided with UWB CH5/CH9 dual and single antennas
• Access to all QM331x0W GPIOs and interfaces
• Headers on power traces to measure transceiver currents
• Software development with free to use IDE and debugger
• nRF52840 DK evaluation board with:
  • nRF52840 Soc with Bluetooth 5.3
  • USB interface
  • Integrated BLE antenna
  • J-Link on-board for debugging and flashing via USB
• Supports UWB RF bands 5 (6.5 GHz) and 9 (8 GHz)
• IEEE 802.15.4-2020 and IEEE 802.15.4z-2020 BPRF compliant
• Allow development of FiRa™ compatible applications
• Works with Apple Nearby Interaction software
• Software suite compliant with FiRa™ PHY/MAC specification
