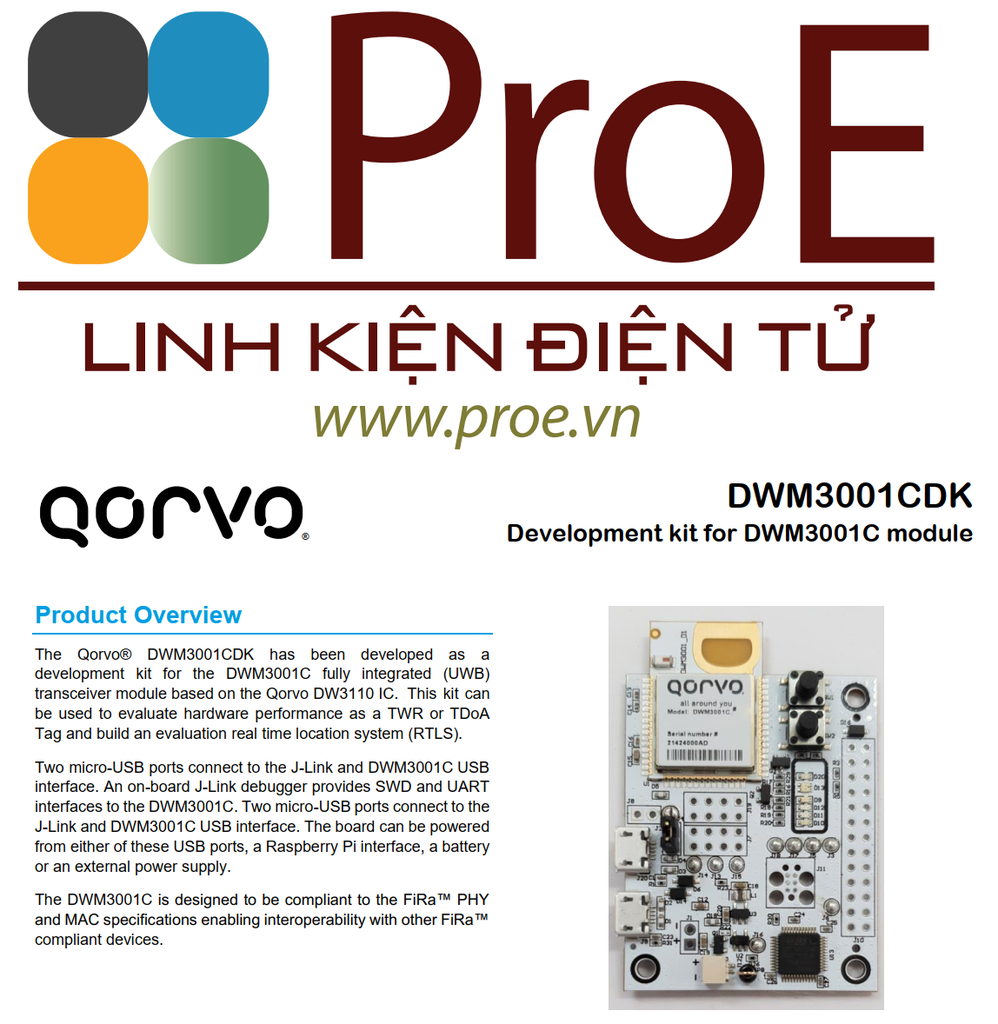

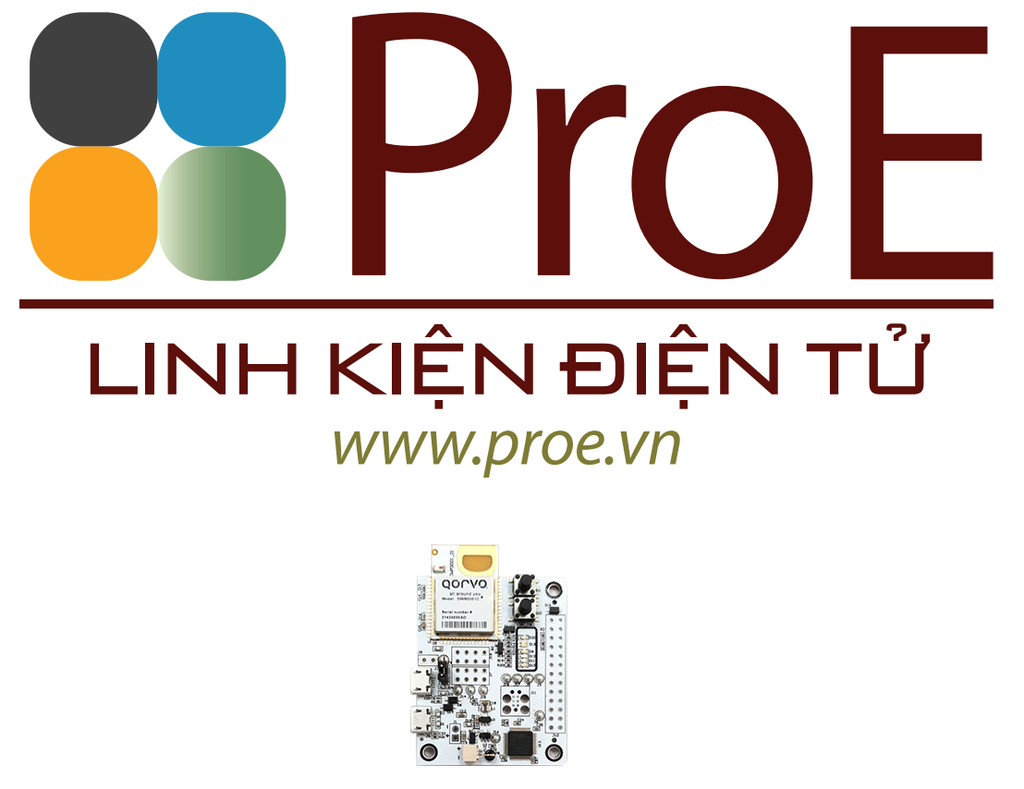

Qorvo's DWM3001CDK has been developed as a design kit for the DWM3001C fully integrated (UWB) module based on the Qorvo DW3110 IC. This kit can be used to evaluate hardware performance as a TWR or TDoA Tag and build an evaluation real time location system (RTLS).

Two micro USB ports connect to the J-Link and DWM3001C USB interface. An on-board J-Link debugger provides SWD and UART interfaces to the DWM3001C. Two micro USB ports connect to the J-Link and DWM3001C USB interface. The board can be powered from either of these USB ports, a Raspberry Pi interface, a battery or an external power supply.

The DWM3001CDK is interoperable with the Apple U1 & U2 chip.

The DWM3001C is designed to be compliant to the FiRa™ PHY and MAC specifications enabling interoperability with other FiRa™ compliant devices.

Key Features

• Convenient kit for evaluation of DWM3001C UWB module
• Interoperable with Apple U1 chip & U2
• Supports UWB channels 5 (6.5 GHz) and 9 (8 GHz)
• J-Link on-board for debug and flashing via USB
• USB port for direct connection to DWM3001C USB interface
• 26 pin Raspberry Pi compatible header
• Reset and user-defined buttons and LEDs
• Access to all DWM3001C GPIOs and interfaces
• Fully aligned with FiRa™ PHY, MAC and certification development

Typical Applications

• High precision real time location systems
• Location-aware wireless sensor networks
• Asset tracking
• Factory / warehouse automation & security
• Healthcare staff & patient location
• Retail security, navigation & customer analytics
• Connected home
