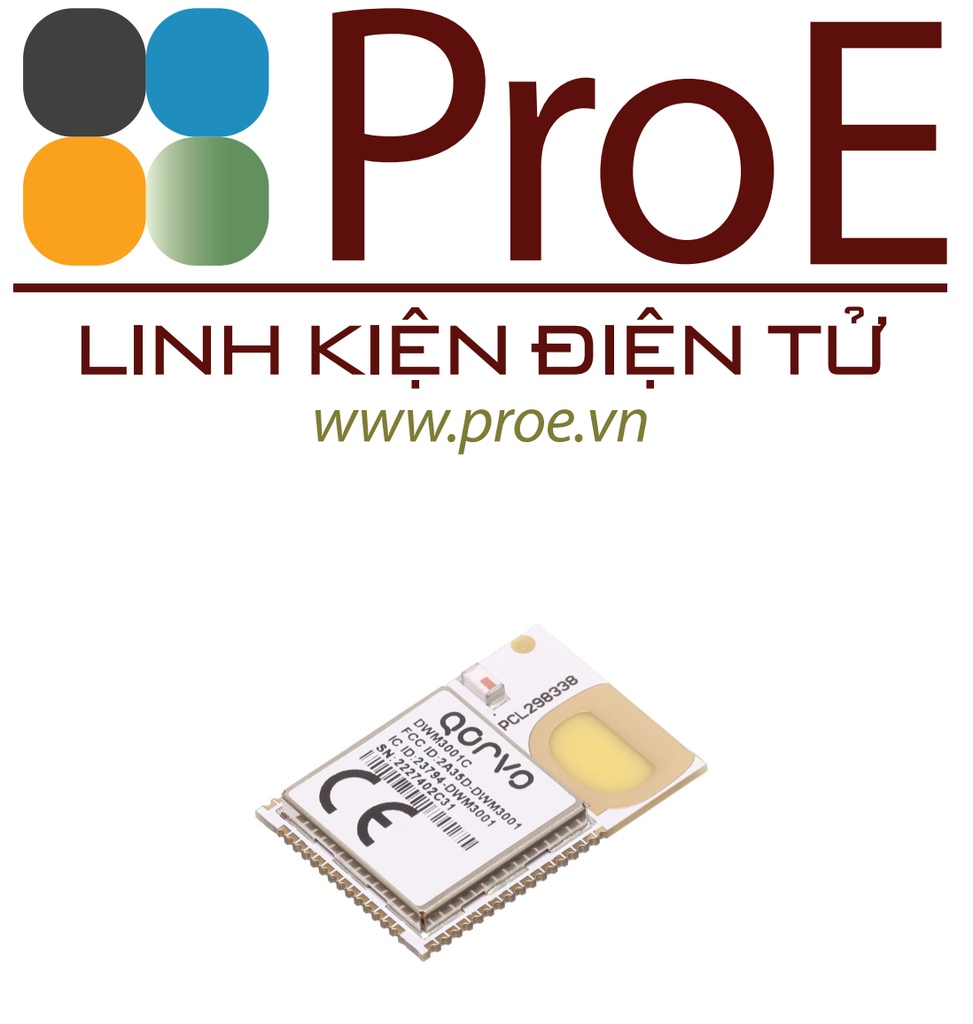

DWM3001C UWB XCVR MODULE
- Mã sản phẩm: DWM3001CTR13
- Nhà sản xuất: Decawave Limited
- Website hỗ trợ: https://www.proe.vn
2.400.000₫

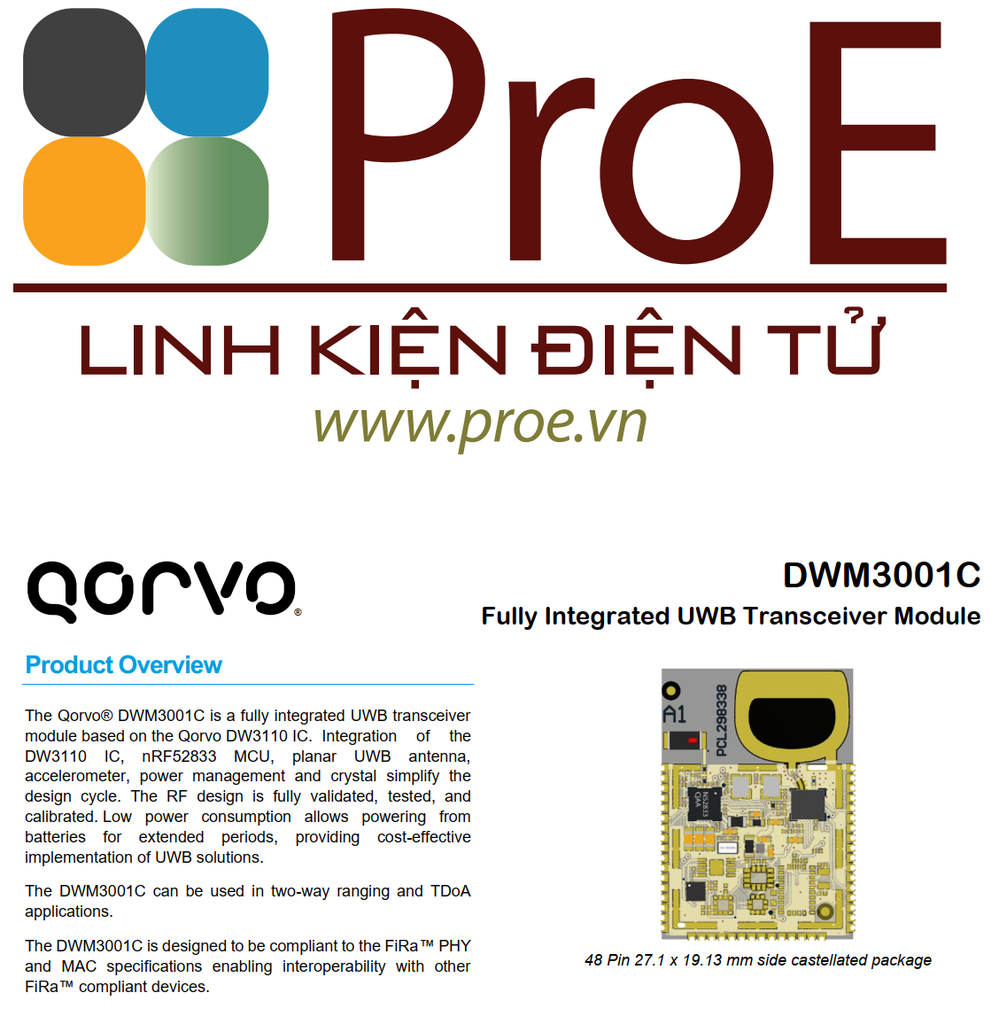

Qorvo's DWM3001C is a fully integrated UWB module based on the Qorvo DW3110 IC. Integration of the DW3110 IC, nRF52833 BLE SoC, planar UWB antenna, accelerometer, power management and crystal simplifies the design cycle. The RF design is fully validated, tested and calibrated. Low power consumption allows powering from batteries for long periods, providing cost-effective implementation of UWB solutions.
The DWM3001C can be used in two-way ranging and TDoA applications.
The DWM3001C module is interoperable with the Apple U1 & U2 chip.
The DWM3001C is designed to be compliant to the FiRa™ PHY and MAC specifications enabling interoperability with other FiRa™ compliant devices.
Key Features
- Interoperable with Apple U1 chip
- Supports UWB channels 5 (6.5 GHz) and 9 (8 GHz)
- Fully aligned with FiRa™ PHY, MAC and certification development
- FCC, SRRC and ETSI certification - Q4 2021
- Nordic nRF52833 BLE SoC
- Supply voltage VCC: 2.5 V - 3.6 V
- Power consumption optimized for battery applications
- UWB data rates of 850 kbps and 6.8 Mbps
| UWB Channels | 5, 9 |
| Integrated Antenna | Yes |
| MCU | Nordic Semiconductor nRF52833 Cortex-M4 |
| MCU Flash(KB) | 512 |
| Bluetooth® | Yes |
| Motion Sensor | STMicroelectronics LIS2DH12TR |
| Intended Applications | TWR Tag or Anchor, TDoA Tag or Anchor |
| Number of Tags | 100s (TWR), 1000s (TDoA) |
| Battery Life | Months (TWR), Years (TDoA) |
| Location Accuracy(cm) | < 15 (2D), < 30 (3D) |
| Voltage(V) | 2.5 to 3.6 |
| Package(mm) | 27 x 19.13 x 3.2 |
Product Briefs
| Product Brief Rev C – 04/2023 |
Data Sheets
| Product Data Sheet Rev F – 10/2025 |
Application Notes
CAD Layout Files
| PCB Symbol, Footprint & 3D Model (provided by SamacSys) |
Schematics
| DWM3001C-100 Schematic Rev B |
Software
| DWM3000 API Software and API Guide 08/2022 |
Other
| CE Reports DWM3001C | |
| DWM3001C EU Declaration of Conformity | |
| FCC Reports DWM3001C | |
| ISED Reports DWM3001C |
Điện tử ProE cung cấp linh kiện điện tử, thiết bị điện tử , linh kiện IoT chính hãng. ProE cung cấp dịch vụ đặt hàng linh kiện điện tử, thiết bị điện tử chính hãng theo yêu cầu cụ thể của khách hàng. Liên hệ : contact@proe.vn, SĐT: 0938946849
Website: www.proe.vn
Diễn đàn: https://www.facebook.com/groups/278263459284765/
Youtube Chanel: ProE Youtube
Facebook: ProE Facebook
Sản phẩm cùng loại
DWM1000 UWB ARDUINO SHIELD
1.590.000₫
Ultra-Wideband (UWB) Transceiver Development Kit
24.000.000₫

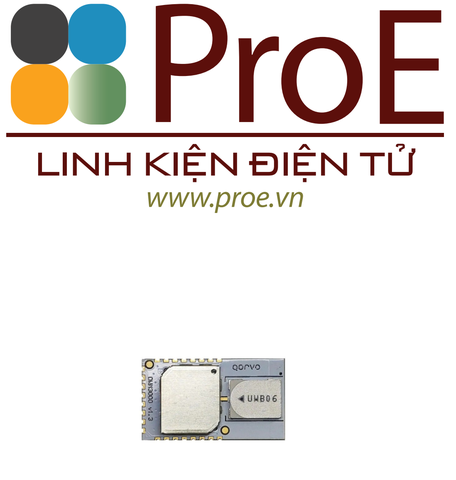

DWM3000 UWB Module
