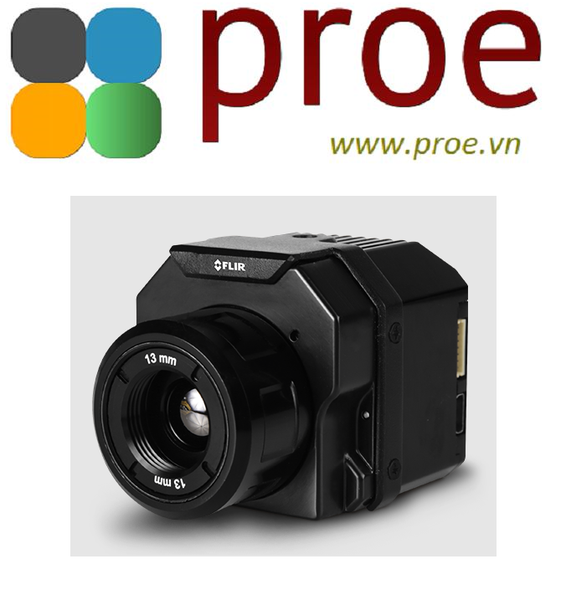

Radiometric Drone Thermal Camera
FLIR Vue Pro R
Model: Vue Pro R 336, 25° FOV, 13mm, 30Hz
The Vue Pro R gives drone operators and certified thermographers the power to gather accurate, non-contact temperature measurements from an aerial perspective. Every still image the Vue Pro R saves contains accurate, calibrated temperature data embedded in every pixel, adding even more value to your sUAS operations and services than ever. Vue Pro R adds fully radiometric data-gathering to sUAS applications like building and roof inspections, power grid inspections, infrastructure analysis, precision agriculture, and public safety.
SPECIFICATIONS
OVERVIEW
Precision Mounting Holes Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top
Size 2.26" x 1.75" (including lens)
Spectral Band 7.5 - 13.5 µm
Thermal Imager Uncooled VOx Microbolometer
Weight 3.25 - 4 oz (Configuration Dependant)
Zoom Yes – Adjustable in App and via PWM
CONNECTIONS & COMMUNICATIONS
Analog Video Output Yes
ENVIRONMENTAL & APPROVALS
Non-Operating Temperature Range -55°C to +95°C
Operating Temperature Range -20°C to +50°C
Operational Altitude +40,000 feet
IMAGING & OPTICAL
Color Palettes Yes – Adjustable in App and via PWM
Full Frame Rate 30 Hz (NTSC); 25 Hz (PAL)
Image Optimization for sUAS Yes
Invertable Image Yes - Adjustable in App
Lens Options 13 mm; 25° × 19°
Lens Options [FOV for NTSC Analog Output] 13 mm; 24° × 18°
Scene Presets & Image Processing Yes - Adjustable in App
Sensor Resolution 336 × 256
OPTIONAL POWER & HDMI VIDEO MODULE
HDMI Output 1280x720 @ 50hz, 60hz
Input Power Range 5 VDC – 28 VDC
Reverse Polarity Protection Yes
PERFORMANCE
Measurement Accuracy +/-5°C or 5% of reading
POWER
Input Voltage 4.8-6.0 VDC
Power Dissipation [peak] 2.1 W (3.9 W)
