ESP32-C5 Dual-Band Wi-Fi 6

ESP32-C5-WIFI6-KIT-N16R8

1. ESP32-C5-WIFI6-KIT-N16R8 x1
2. 20PIN header (black) x2

1

2

ESP32-C5-WIFI6-KIT-N16R8-M

ESP32-C5-WIFI6-KIT-N16R8 with pre-soldered headers x1

ESP32-C5-WIFI6-KIT-N32R8

1. ESP32-C5-WIFI6-KIT-N32R8 x1
2. 20PIN header (black) x2

1

2

ESP32-C5-WIFI6-KIT-N32R8-M x1

ESP32-C5-WIFI6-KIT-N32R8 with pre-soldered headers x1

ESP32-C5-WIFI6-KIT-N32R8-U x1

1. ESP32-C5-WIFI6-KIT-N32R8-U x1
2. 20PIN header (black) x2

1

2

ESP32-C5-WIFI6-KIT-N32R8-UM x1

ESP32-C5-WIFI6-KIT-N32R8-U with pre-soldered headers x1

ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU

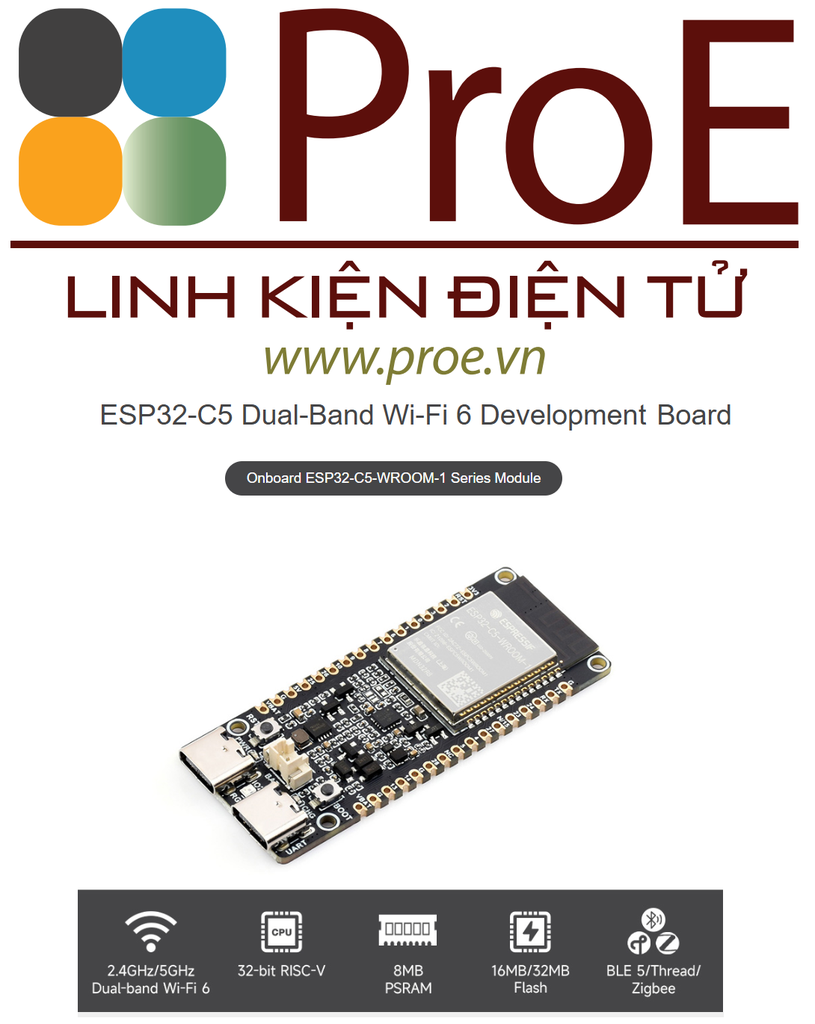

ESP32-C5 Dual-Band Wi-Fi 6 Development Board

Supports ESP-IDF, Arduino IDE, etc.

Onboard ESP32-C5-WROOM-1 Series Module

Version Options

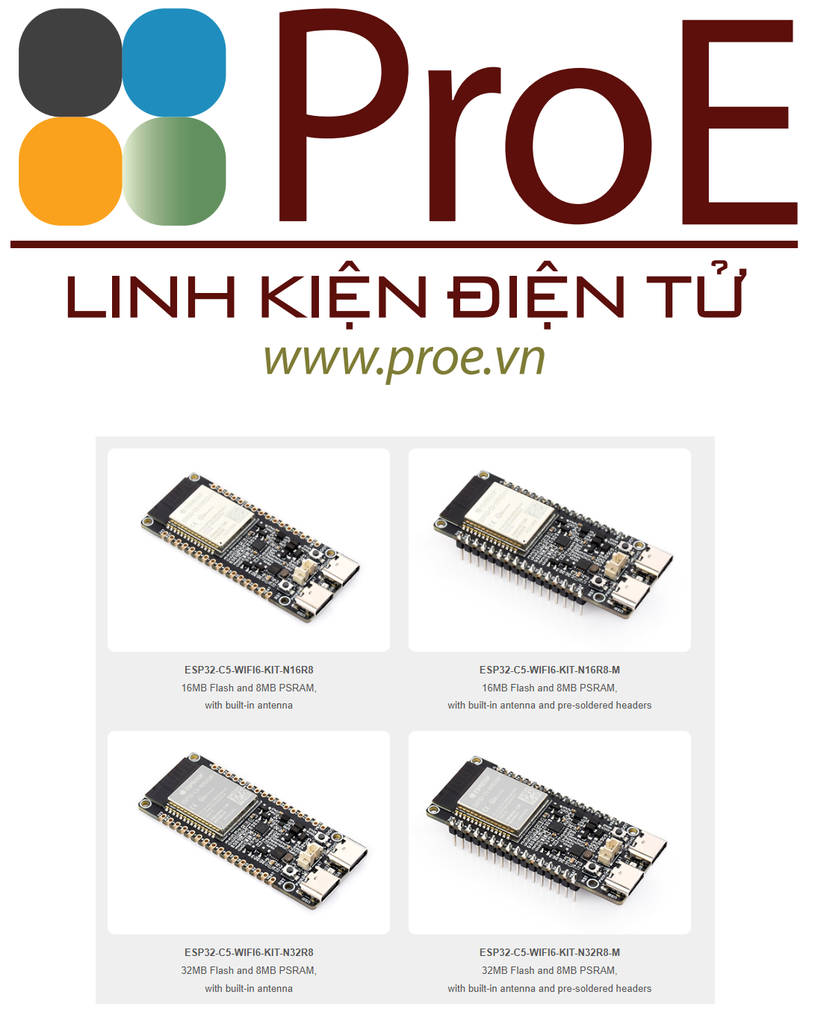

ESP32-C5-WIFI6-KIT-N16R8
16MB Flash and 8MB PSRAM,
with built-in antenna

ESP32-C5-WIFI6-KIT-N16R8-M
16MB Flash and 8MB PSRAM,
with built-in antenna and pre-soldered headers

ESP32-C5-WIFI6-KIT-N32R8
32MB Flash and 8MB PSRAM,
with built-in antenna

ESP32-C5-WIFI6-KIT-N32R8-M
32MB Flash and 8MB PSRAM,
with built-in antenna and pre-soldered headers

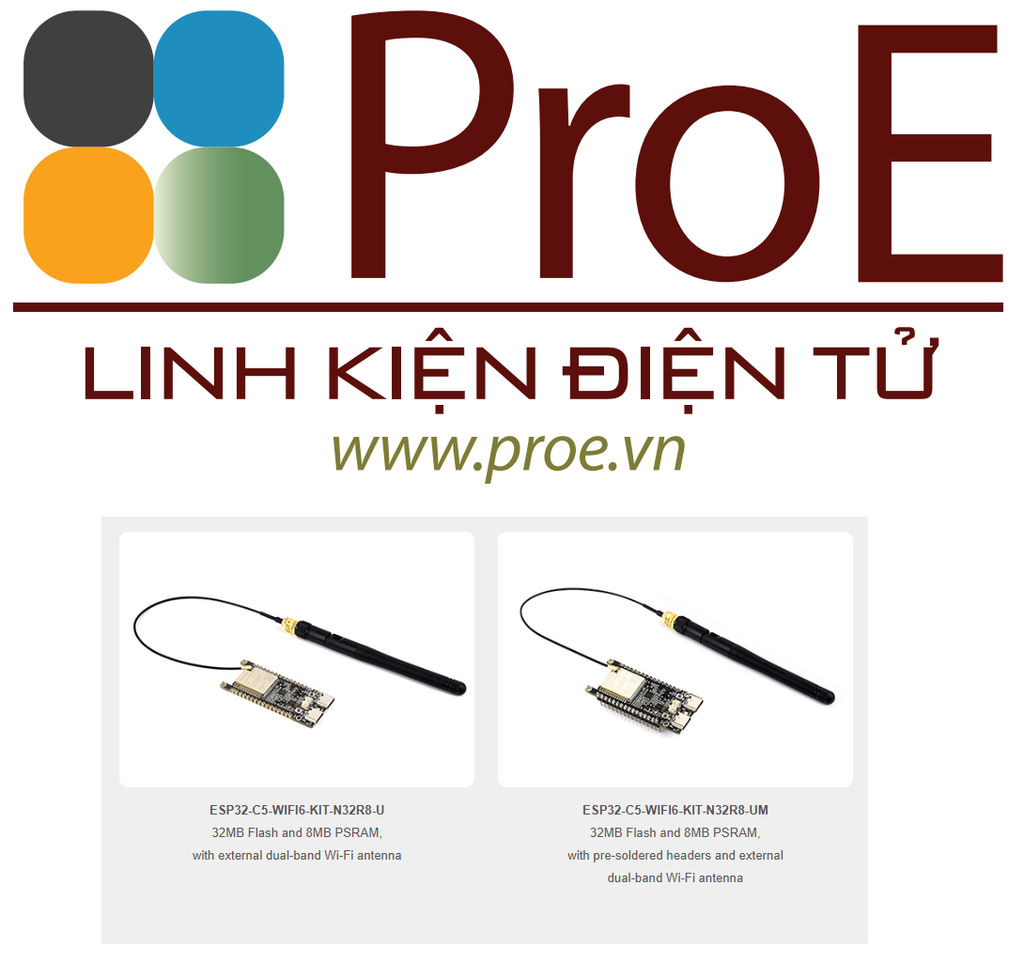

ESP32-C5-WIFI6-KIT-N32R8-U
32MB Flash and 8MB PSRAM,
with external dual-band Wi-Fi antenna

ESP32-C5-WIFI6-KIT-N32R8-UM
32MB Flash and 8MB PSRAM,
with pre-soldered headers and external
dual-band Wi-Fi antenna

Specifications

The ESP32-C5-WIFI6-KIT is a development board designed by Waveshare based on the ESP32-C5-WROOM-1 module for dual-band Wi-Fi and multi-protocol IoT gateway applications. The ESP32-C5 is a single-core RISC-V chip, supports dual-band Wi-Fi 6 (2.4GHz and 5GHz), and integrates BLE 5, Zigbee, and Thread protocols for flexible use as a smart home hub or cross-protocol communication gateway.
Equipped with 240MHz RISC-V processor, 384KB Static RAM, 8MB PSRAM, and provides options for 16MB or 32MB Flash, enables stable handling the concurrent tasks of multiple protocol stacks and running medium-load applications. Developers can leverage mature development frameworks such as ESP-IDF and Arduino for rapid prototyping and product implementation, making it suitable for IoT scenarios such as smart gateways and multi-protocol device integration.

Key features include:

• Adopts ESP32-C5-WROOM-1 series module with RISC-V 32-bit processor, up to 240MHz main frequency
• Integrated with 384KB Static RAM, 320KB ROM, and 8MB PSRAM, with options for 16MB or 32MB Flash
• Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
• Onboard batt. recharge management module, with reserved 3.7V MX1.25 Lithium batt. header for external batt. power supply
• USB Type-C port, easier to use
• Castellated module allows soldering directly to carrier boards, with rich peripheral interfaces
• Supports multiple low-power operating modes, enabling flexible adjustment of the balance between communication range, data rate, and power consumption to meet the power requirements of various application scenarios

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Based on ESP32-C5 chip

The ESP32-C5 is a Multi-protocol RISC-V MCU, supports dual-band Wi-Fi 6, Bluetooth (LE), and Zigbee / Thread, specifically designed for IoT applications requiring efficient wireless transmission

Supports dual-band Wi-Fi 6 /
BLE 5 / Thread / Zigbee

Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance

Function Block Diagram

Pinout Definition

Compatible with the pinout of the ESP32-S3-DevKitC-1 development board

Onboard Resources

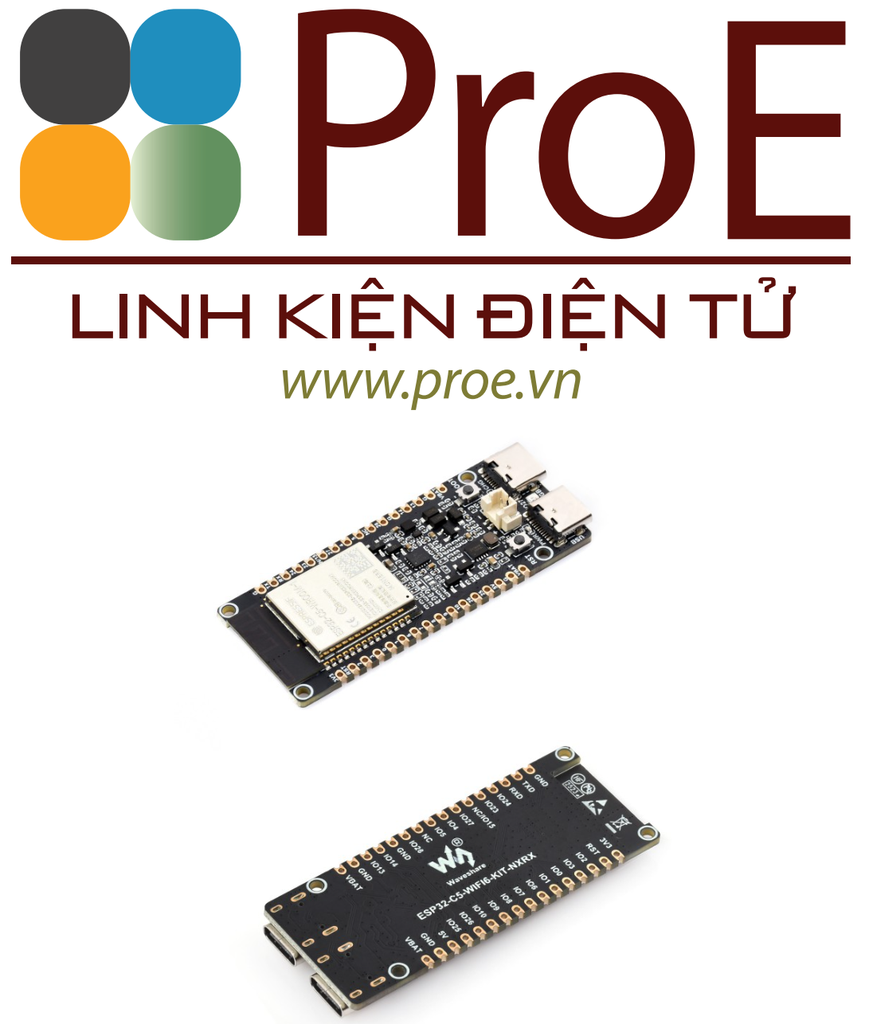

Product Show

With built-in antenna

With external dual-band Wi-Fi antenna

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-C5-WIFI6-KIT-NXRX
