Weight: 0.003 kg
1
Core1262-868M LoRa Module, SX1262, Anti-Interference, EU868 Band
Core1262-868M LoRa Module
EU868 band support
Features At A Glance
The Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has featuress including mini size, long range transmission, high anti-interference capability, and so on. The module uses EU868 band, combined with LoRa gateway, it can be connected to servers like TTN server to build LoRa network.
Specifications
RF chip | SX1262 |
Frequency range | EU868 (863~870MHz) |
Modulation | LoRa/(G)FSK |
Data rate | 0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK) |
Emit power | > 14dBm@3.3V |
Spreadind factor | SF5 ~ SF12 |
Operating voltage | 3.3V |
Module power consumption | emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz |
Communication bus | SPI |
Operating temperature | -40 ~ 85℃ |
Connector | castellated edge / solder holes |
Dimensions | 21.00×52.00mm |

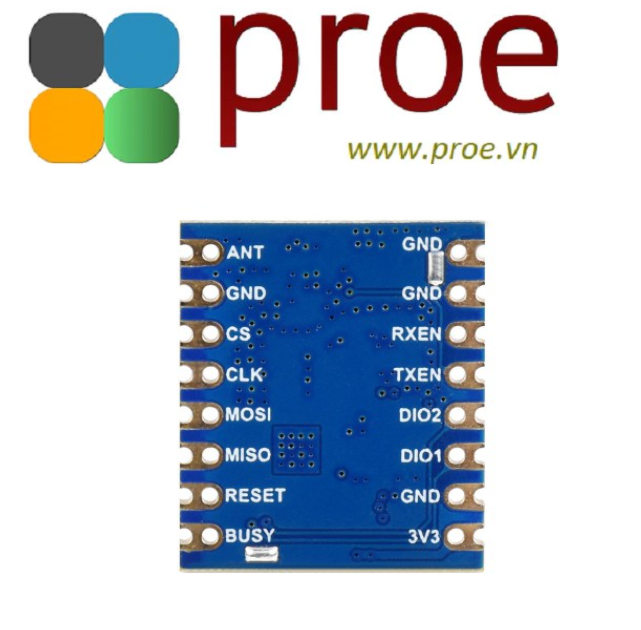

Pinout Definition
Application Example
Industrial Environment, Smart Home, And Data Acquisition...
Outline Dimensions
Resources & Services
WIKI: Core1262-868M
