ESP32-P4-WIFI6-DEV-KIT

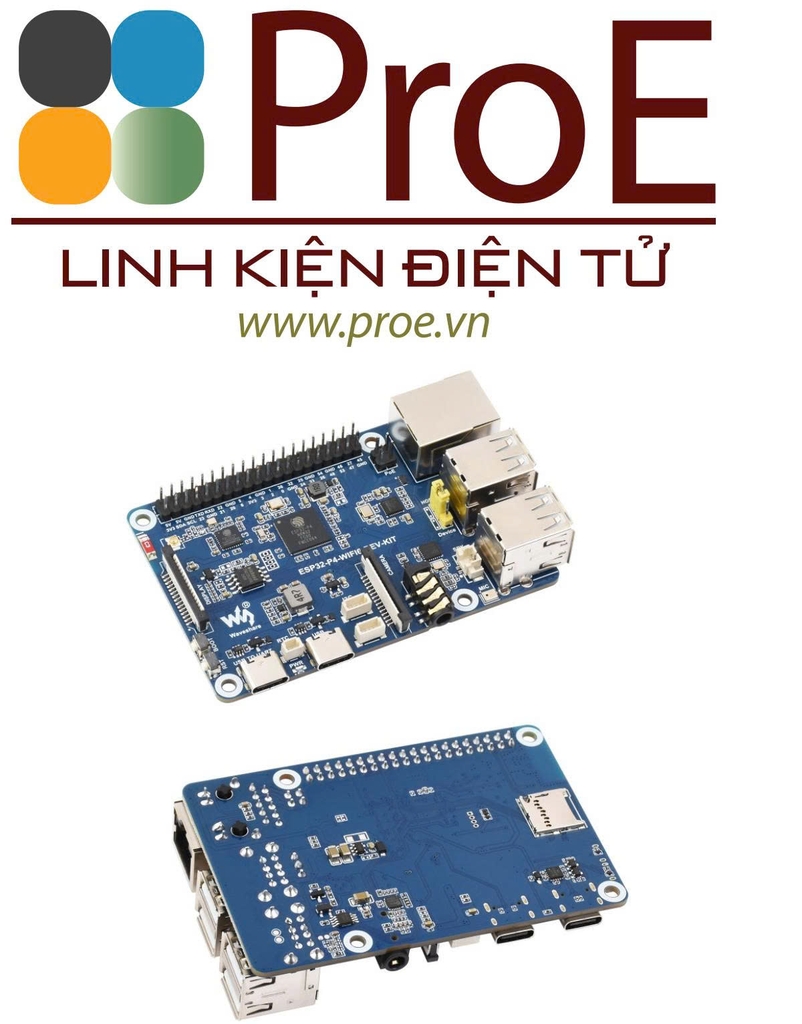

ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5 / BLE 5

ESP32-P4-WIFI6-DEV-KIT
Development Board

High-performance Development Board Based On ESP32-P4 And ESP32-C6

Rich Human-machine Interfaces

Development Board Introduction

This product is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and SDIO Host 3.0 for high-speed connectivity.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6-DEV-KIT meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
• Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Kit Selection

Kit Connection Examples

DSI Capacitive Touch Display Comparison

Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience

* the DSI LCD is only included in the ESP32-P4-WIFI6-DEV-KIT-B and ESP32-P4-WIFI6-DEV-KIT-C.

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

Highly integrated and powerful performance

Adopts ESP32-P4 Module, onboard ESP32-C6 and 16MB Nor Flash

WiFi 6 and Bluetooth module

Onboard ESP32-C6 chip to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE
for ESP32-P4-WIFI6-DEV-KIT, using SDIO interface protocol for communication,
stable connection and efficient transmission

Reserved PoE Module Header

More Flexible for Power Supply

Connect to a PoE Module for PoE Power Supply

Provides Both Network Connection And Power Supply for ESP32-P4-WIFI6-DEV-KIT board with Only One Ethernet Cable

* the PoE HAT (C) and the switch in the picture above are NOT included.

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

* The DSI LCD is only included in the ESP32-P4-WIFI6-DEV-KIT-B/C

What's On Board

1. ESP32-P4NRW32
   ESP32-P4 chip, with 32MB PSRAM
2. ESP32-C6
   SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4
3. 16MB Nor Flash
4. ESP32-C6 UART pads
5. PoE module header
   connect to external PoE module (NOT included) for PoE power supply function
6. 40PIN GPIO header
7. 100M RJ45 Ethernet port
8. USB OTG function selection
   switching to HOST end for expanding USB ports
9. USB-A ports
   USB OTG 2.0 high-speed ports, switching to HOST or DEVICE via jumper
10. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
11. Onboard microphone
12. 3.5mm audio jack
    Supports audio playback via connected headphones

13. Camera interface
    MIPI-CSI (2-lane), supports OV5647 camera, etc
14. Display interface
    MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screen
15. I2C interface
16. I3C interface
17. Type-C UART port
    for power supply, program burning and debugging
18. Type-C USB port
    for power supply, program burning
19. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
20. PWR
    Power indicator
21. ESP32-C6 SMD antenna
22. BOOT Button
    Press it when powering on or resetting to enter download mode
23. RST Reset button
24. TF card slot
    SDIO 3.0 interface protocol

Pin definition

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-P4-WIFI6-DEV-KIT
