ESP32-P4-WIFI6-POE-ETH

ESP32-P4-WIFI6-POE-ETH

1. ESP32-P4-WIFI6-POE-ETH x1
2. SH1.0 4PIN cable ~150mm x2
3. 1217 8Ω 2W speaker x1
4. 2.4G antenna x1
5. Screws pack x1

1

2

3

4

5

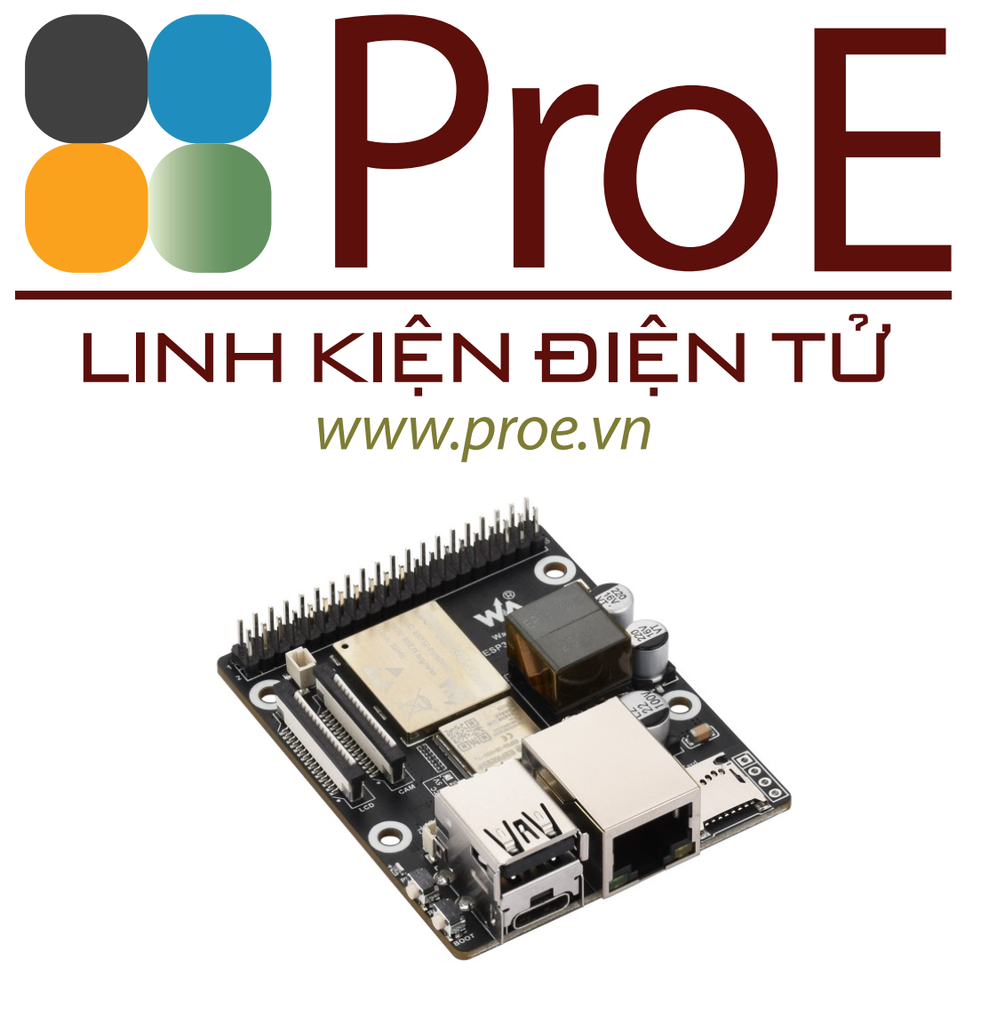

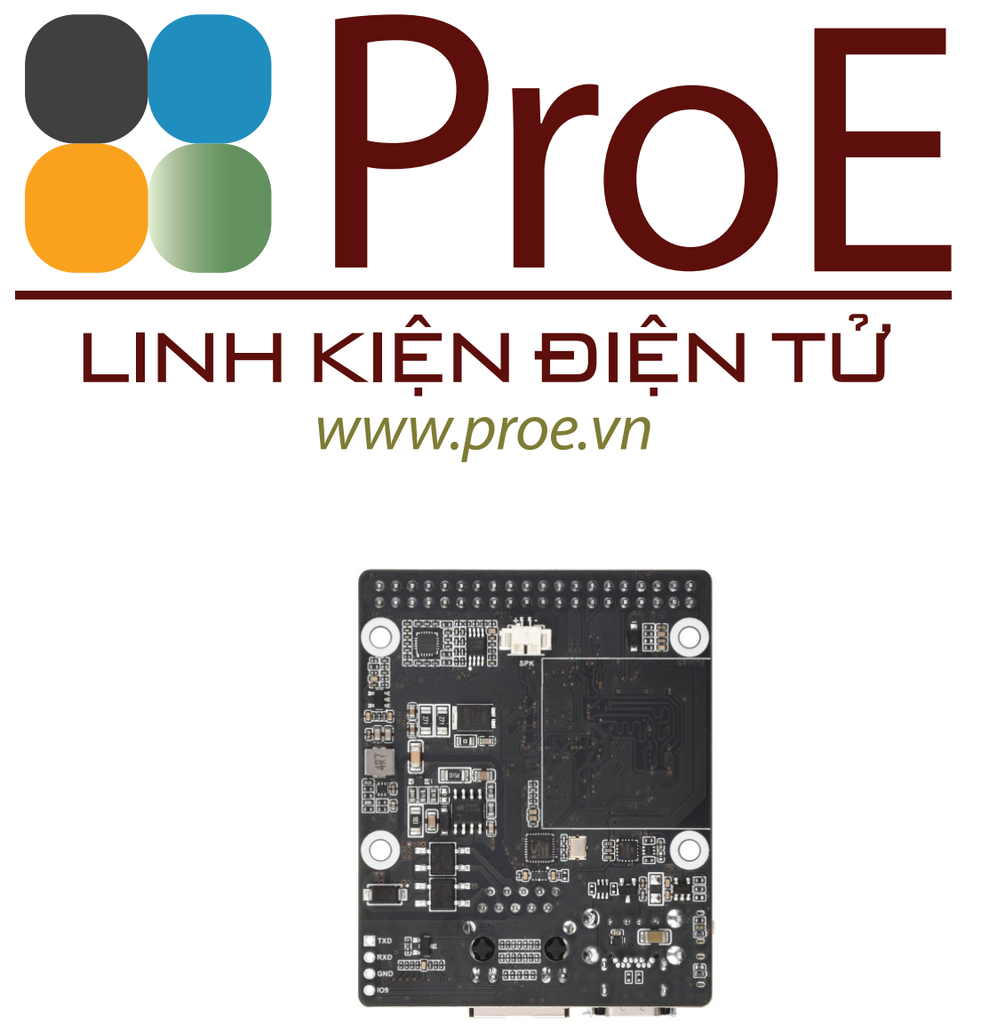

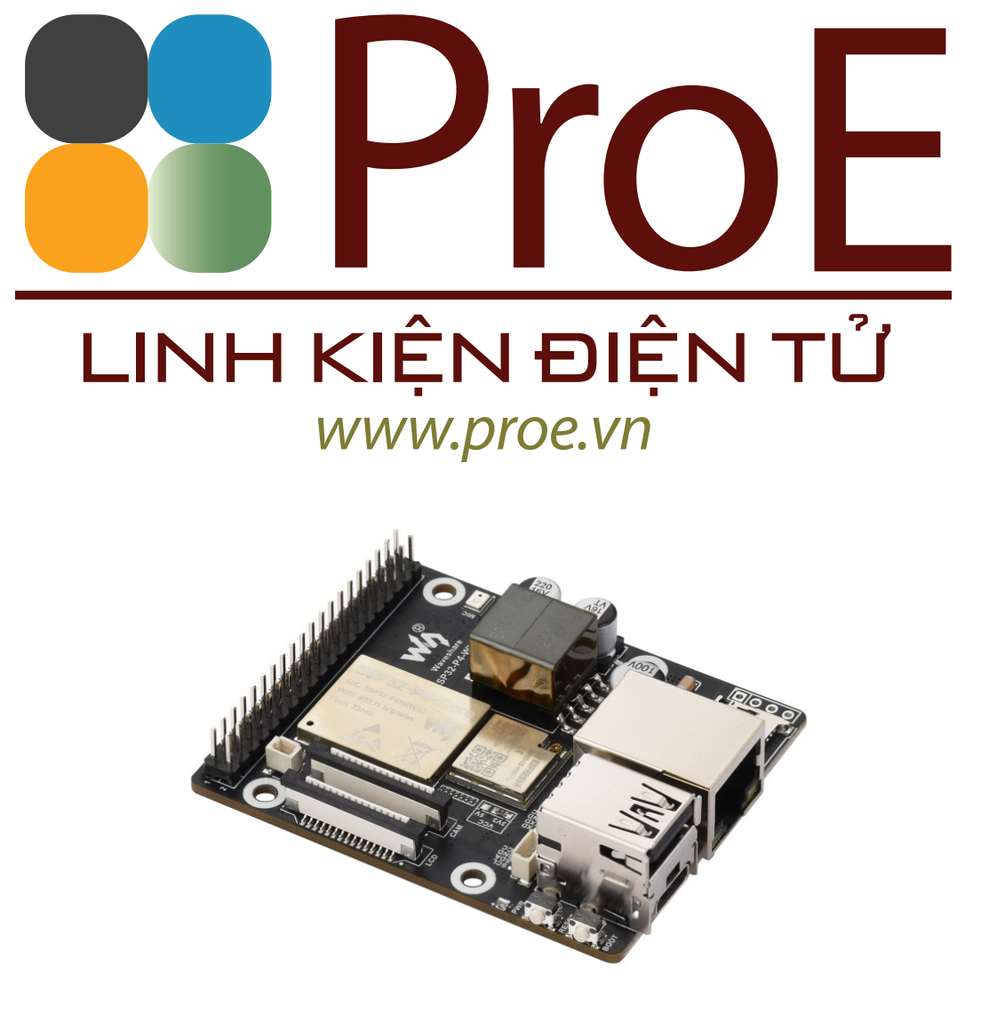

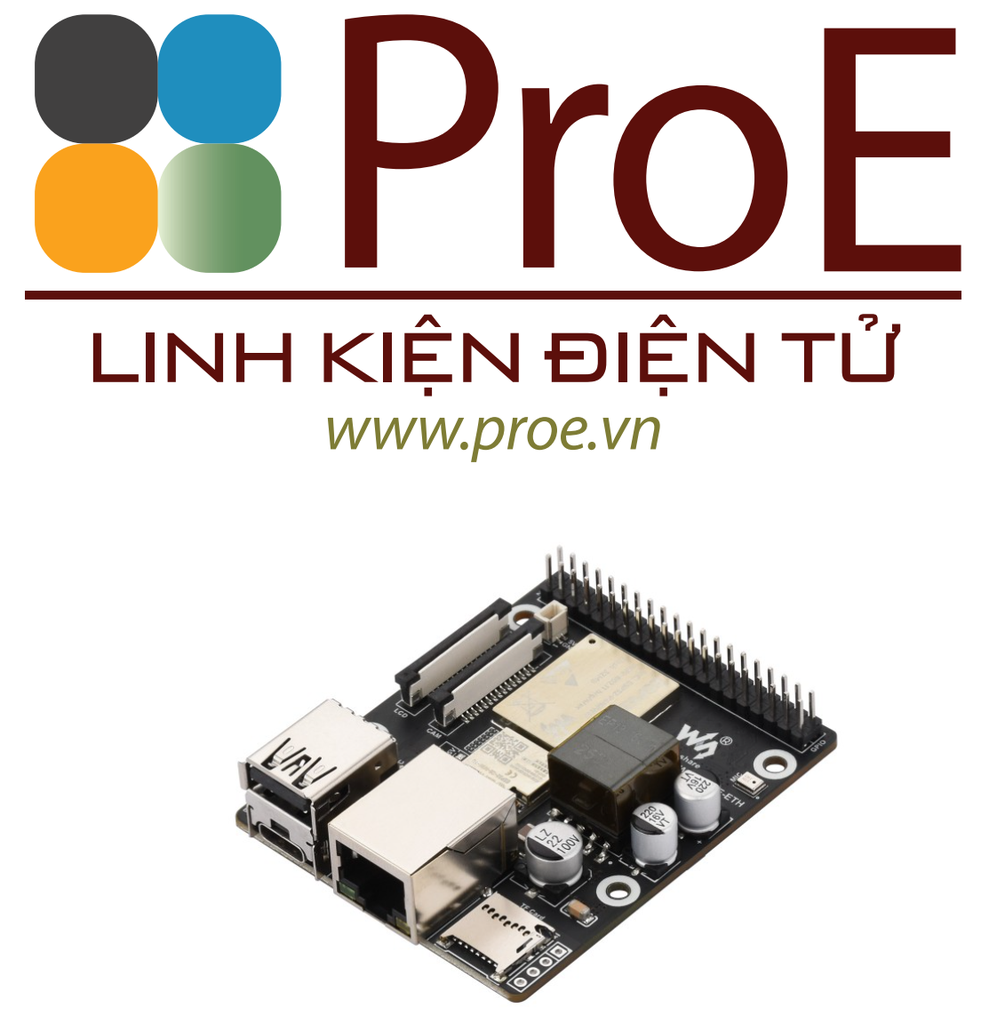

ESP32-P4-WIFI6-POE-ETH High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE), With integrated PoE Module For PoE Power supply

ESP32-P4-WIFI6-POE-ETH

High-performance Development Board Based On ESP32-P4 And ESP32-C6

Rich Human-machine Interfaces

Development Board Introduction

The ESP32-P4-WIFI6-POE-ETH is a multimedia development board based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE) wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with PoE functionality.

The ESP32-P4 adopts a 360MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6-POE-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt. header, etc.
• Adapting 2*20 GPIO headers with 28 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Kit Selection

Kit Connection Examples

DSI Capacitive Touch Display

Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience

* the DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

for reference only, please refer to the package content for detailed part list.

Highly integrated and powerful performance

Adopts ESP32-P4-Core Module, featuring 32MB PSRAM and onboard 32MB Nor Flash

Wi-Fi 6 and Bluetooth module

Onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4-WIFI6-POE-ETH, using SDIO interface protocol for communication, stable connection and efficient transmission

Integrated PoE Module

More Flexible for Power Supply

Supports PoE Power Supply

Provides Both Network Connection And Power Supply for ESP32-P4-WIFI6-POE-ETH board with Only One Ethernet Cable

for reference only, please refer to the package content for detailed part list.

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

*The DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.

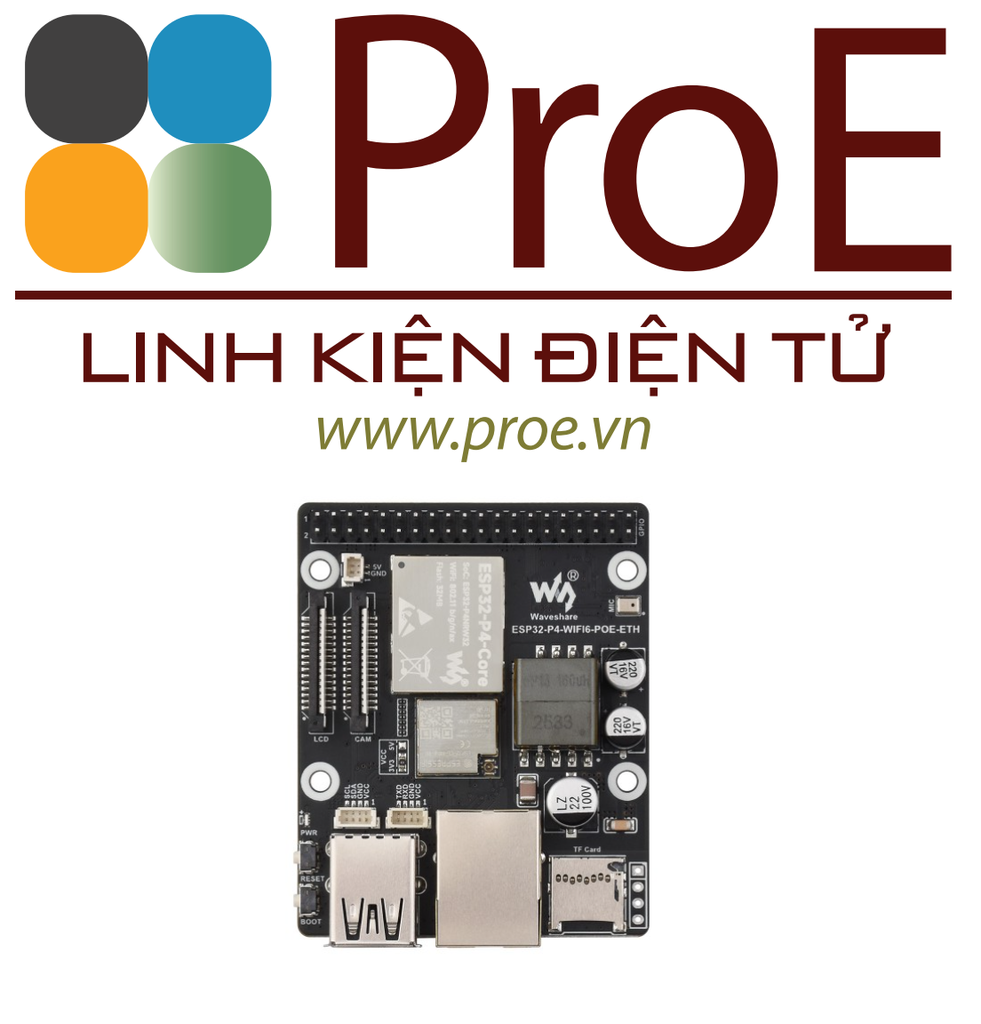

What's On Board

1. ESP32-P4-Core
   ESP32-P4NRW32, with 32MB Nor Flash
2. ESP32-C6-MINI1-U-H8 module
   SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4, onboard IPEX 3 connector for external antenna
3. Display interface
   MIPI-2lane
4. Camera interface
   MIPI-2lane
5. 5V power supply header
6. UART header SH1.0 4PIN
   for program burning and debugging
7. I2C header SH1.0 4PIN
   for connecting external I2C devices
8. Power indicator
9. RST button

10. Boot button
    Press it when powering on or resetting to enter download mode
11. Type-A and Type-C physical stacked design
    Type-A as USB OTG 2.0 High Speed port; Type-C as the UART port, for power supply, program burning and debugging
12. 100Mbps RJ45 Ethernet port
    Supports PoE function
13. TF card slot
    SDIO 3.0 interface protocol
14. ESP32-C6 UART pads
15. Onboard microphone
16. 40PIN header
17. Audio codec chip, amplifier chip and MX1.25 speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
18. IP101
    Ethernet chip

Pin definition

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-P4-WIFI6-POE-ETH
