10-DOF IMU Sensor Module for Raspberry Pi Pico, Onboard ICM20948 and LPS22HB Chip

  • Mã sản phẩm: Pico-10DOF-IMU
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
390.000₫
PACKAGE CONTENT

Weight: 0.01 kg

  1. Pico-10DOF-IMU x1

1

10-DOF IMU Sensor Module For Raspberry Pi Pico, Onboard ICM20948 And LPS22HB Chip

10-DOF IMU Sensor Module For Pico

Incorporates 9-Axis Motion Sensor ICM20948 And Baroceptor LPS22HB

Features At A Glance

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I2C bus for communication.

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

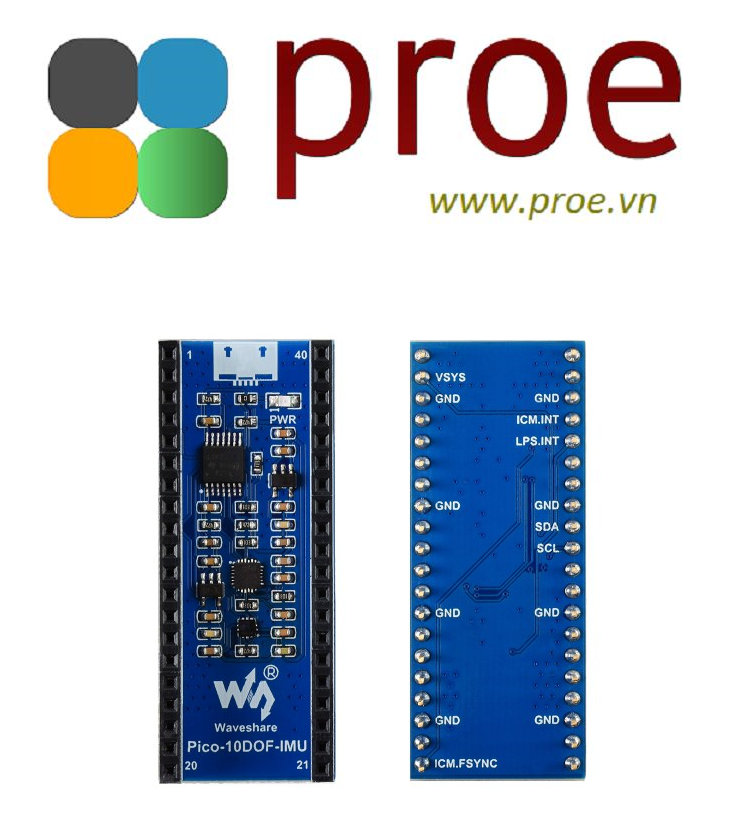

Pinout Definition

Outline Dimensions

Resources & Services


WIKI: Pico-10DOF-IMU



RT9193-18
1.8V linear voltage regulator Power indicator Raspberry Pi Pico header
for attaching to Raspberry Pi Pico, stackable design

Specifications

OPERATING VOLTAGE 5V
ACCELEROMETER resolution: 16-bit
measuring range (configurable): ±2, ±4, ±8, ±16g
operating current: 68.9uA
GYROSCOPE resolution: 16-bit
measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec
operating current: 1.23mA
MAGNETOMETER resolution: 16-bit
measuring range: ±4900µT
operating current: 90uA
BAROCEPTOR measuring range: 260 ~ 1260hPa
measuring accuracy (ordinary temperature): ±0.025hPa
measuring speed: 1Hz - 75Hz

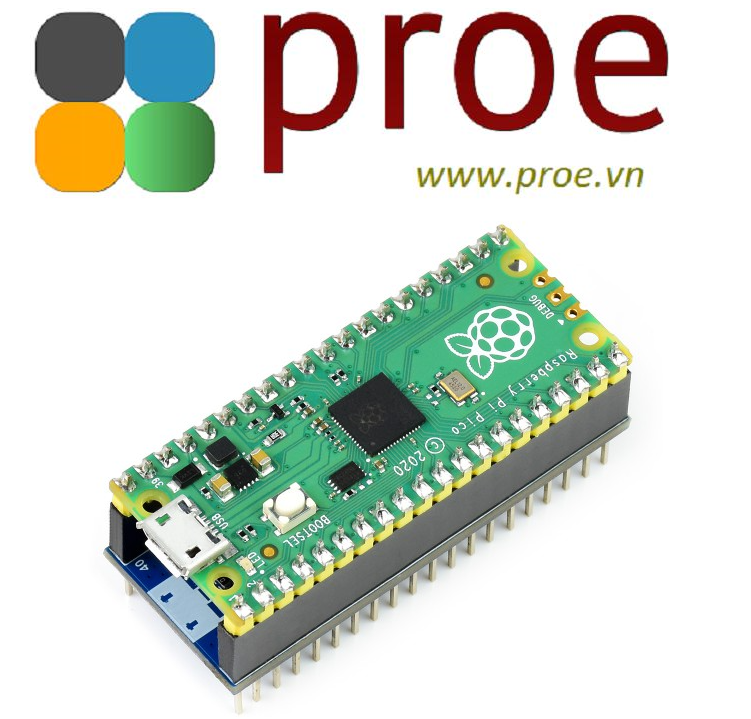

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

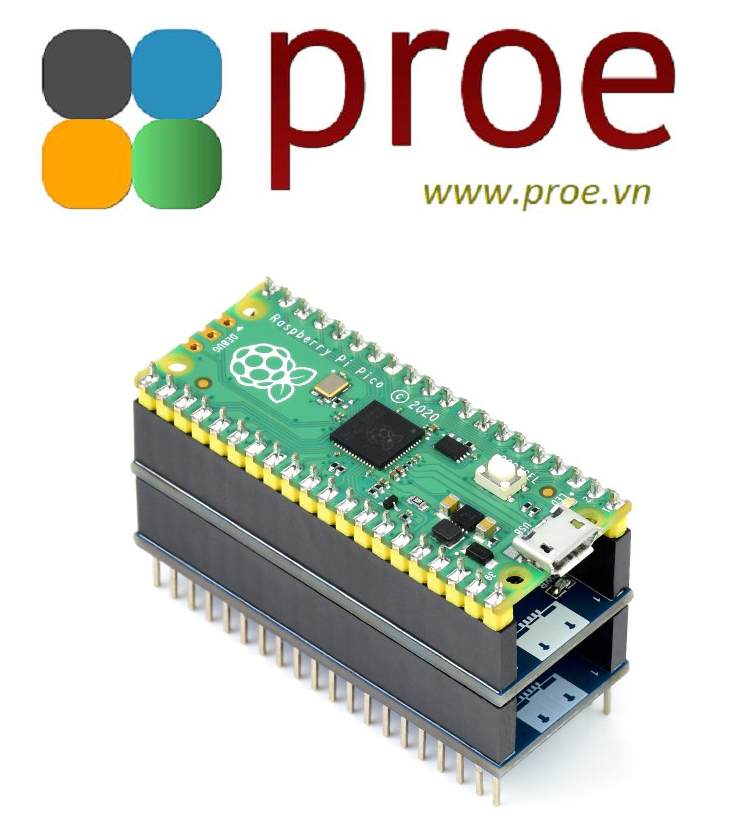

Stackable Design

Raspberry Pi Pico is NOT included.

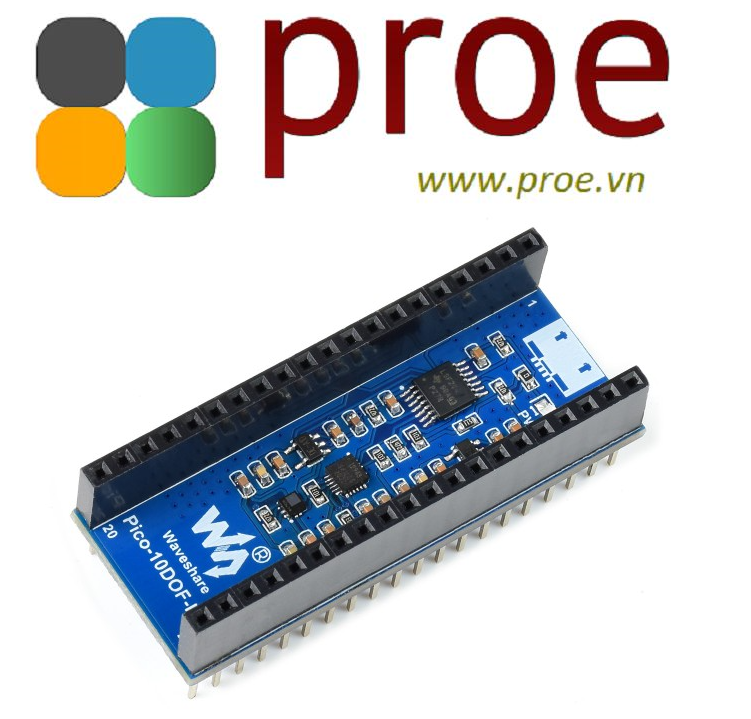

What's On Board

ICM20948
9-axis motion sensor, I2C bus LPS22HB
barometric pressure sensor, I2C bus RT9193-33
3.3V linear voltage regulator LSF0204PWR
4-ch voltage translator
Xem thêm Thu gọn
