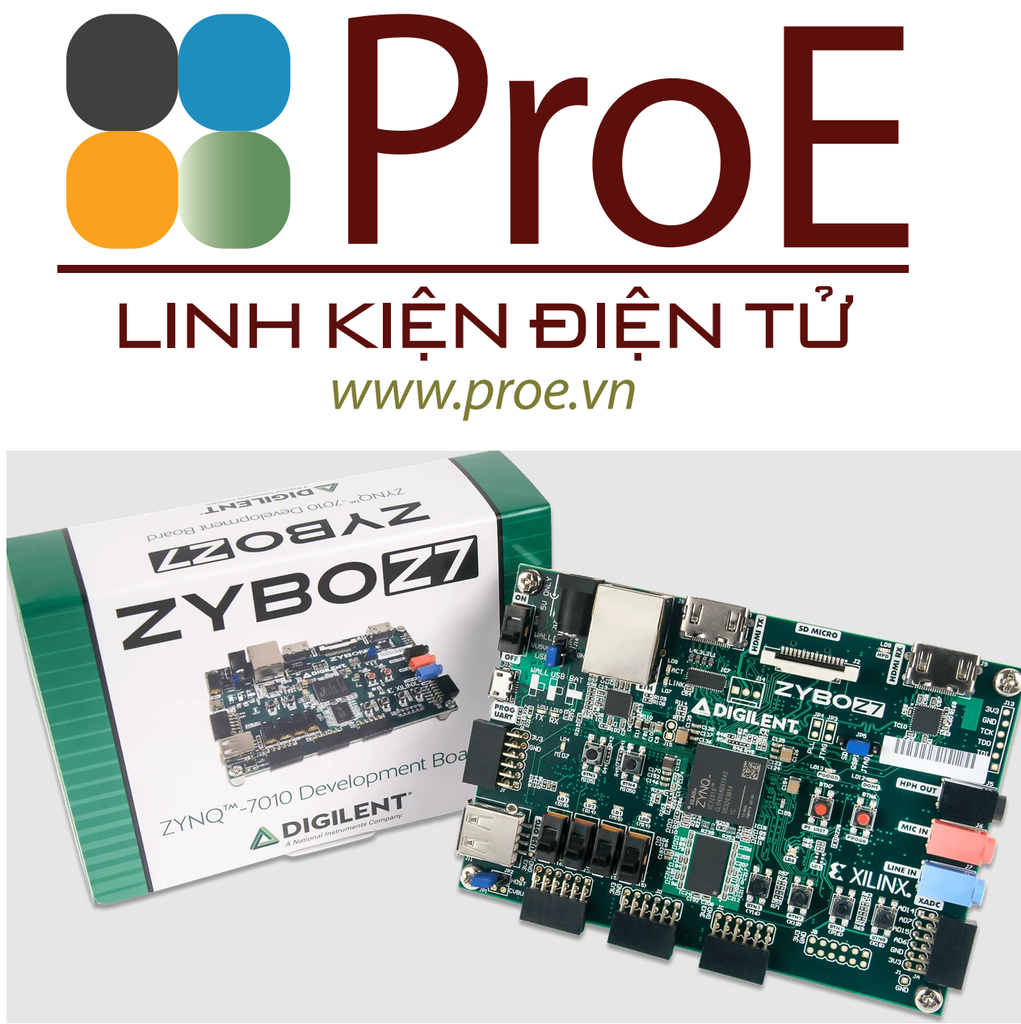

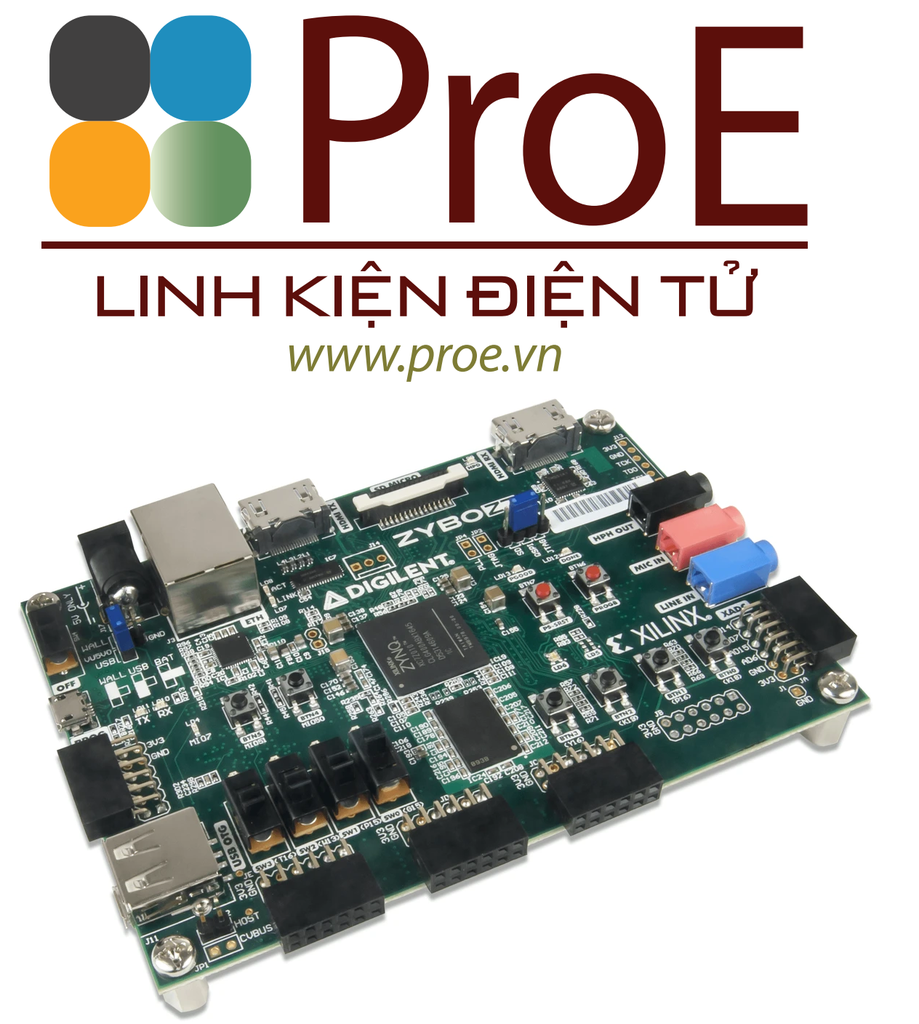

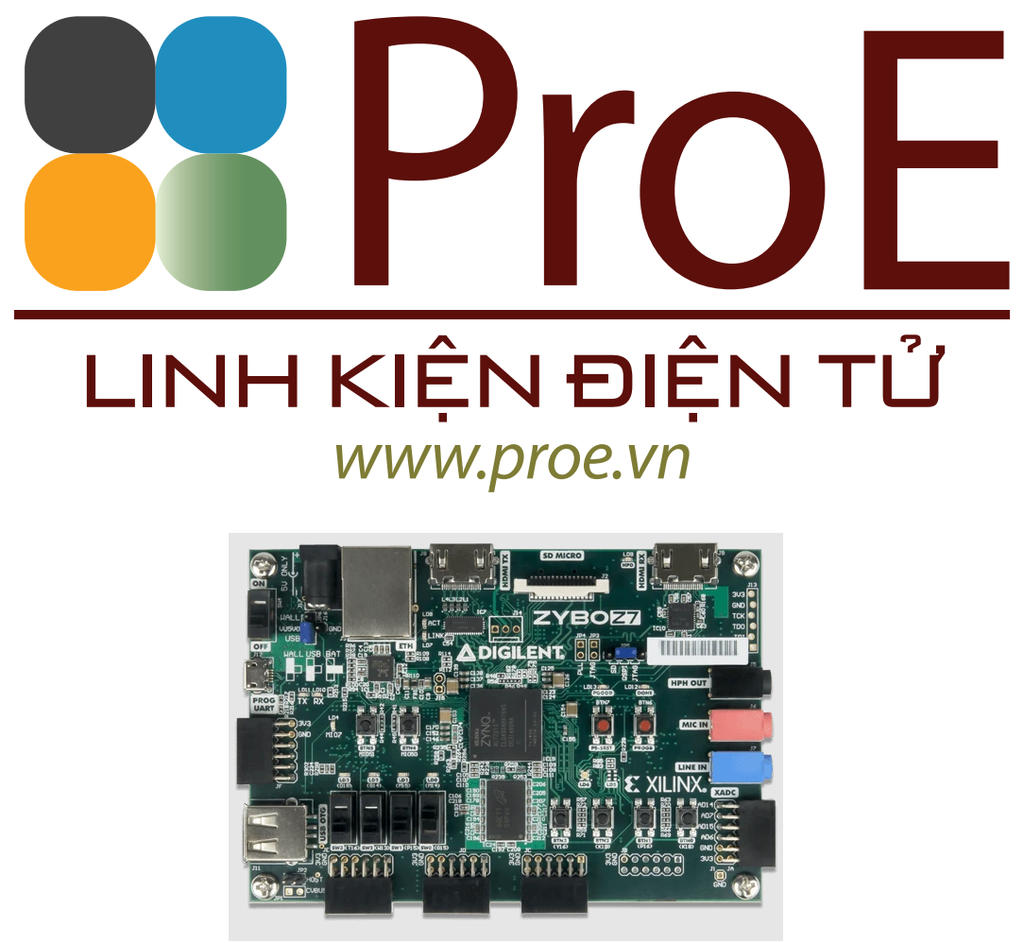

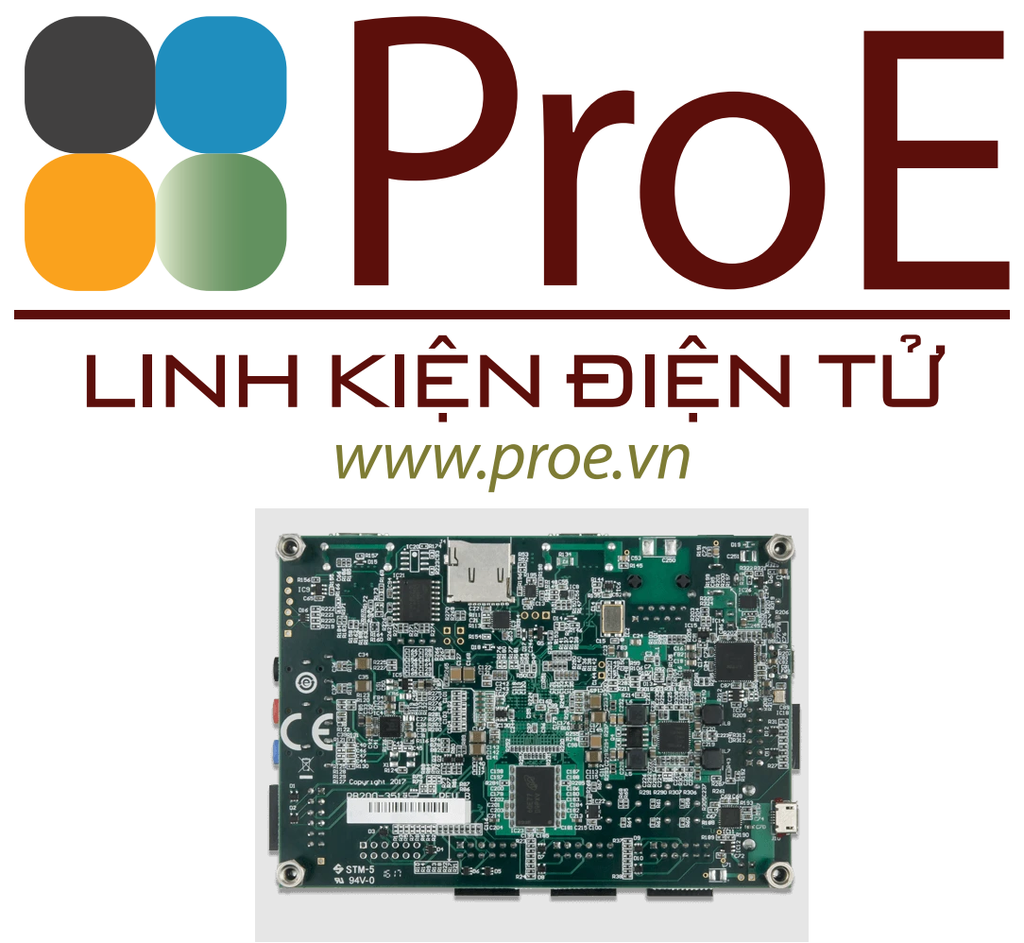

Zybo Z7 Zynq-7000 ARM/FPGA SoC Development Board

  • Mã sản phẩm: 410-351-20 Zybo Z7-20
  • Nhà sản xuất: Digilent
  • Website hỗ trợ: https://www.proe.vn
15.000.000₫

The Zybo Z7 is a ready-to-use embedded software and digital circuit development board built around the Xilinx Zynq-7000 family. The Zynq-7000 tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic.

A rich set of multimedia and connectivity peripherals make the Zybo Z7 a formidable single-board computer. A MIPI CSI-2 compatible Pcam connector, HDMI input, HDMI output, and high DDR3L bandwidth establish the Zybo Z7 as an affordable, yet capable, solution for high-end embedded vision applications. Attaching additional hardware is made easy by the Zybo Z7's Pmod connectors, allowing access to Digilent's catalog of over 70 Pmod peripheral boards, including motor controllers, sensors, displays, and more.

The Zybo Z7 is supported by Xilinx's Vivado Design Suite, including the free WebPACK version. You can also interact with the processing system (PS) with Xilinx's Vitis Unified Software Platform and PetaLinux Tools.

Features

  • ZYNQ Processor

    • 667MHz dual-core Cortex-A9 processor

    • DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports

    • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO

    • Low-bandwidth peripheral controller: SPI, UART, CAN, I2C

    • Programmable from JTAG, Quad-SPI flash, and microSD card (Micro B USB cable NOT included).

    • Programmable logic equivalent to Artix-7 FPGA

  • Memory

    • 1 GB DDR3L with 32-bit bus @ 1066 MHz

    • 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier

    • microSD slot

  • Power

    • Powered from USB or any 5V external power source

  • USB and Ethernet

    • Gigabit Ethernet PHY

    • USB-JTAG Programming circuitry

    • USB-UART bridge

    • USB 2.0 OTG PHY (supports host only)

  • Audio and Video

    • HDMI sink port (input) with CEC (Zybo Z7-20) and without CEC (Zybo Z7-10)

    • HDMI source port (output) with CEC

    • Audio codec with stereo headphone, stereo line-in, and microphone jacks

  • Switches, Push-buttons, and LEDs

    • 6 push-buttons

    • 4 slide switches

    • 5 LEDs

    • 2 RGB LEDs

  • Expansion Connectors

    • 6 Pmod ports on the Zybo Z7-20 (5 on the Zybo Z7-10)

  • Product Compliance:
    • HTC: 8471500150
    • ECCN: 5A992.c

What's Included

  • Zybo Z7-10 or Zybo Z7-20 (the Zybo Z7-20 variant comes with a heat sink)
  • Digilent cardboard packaging with protective foam
