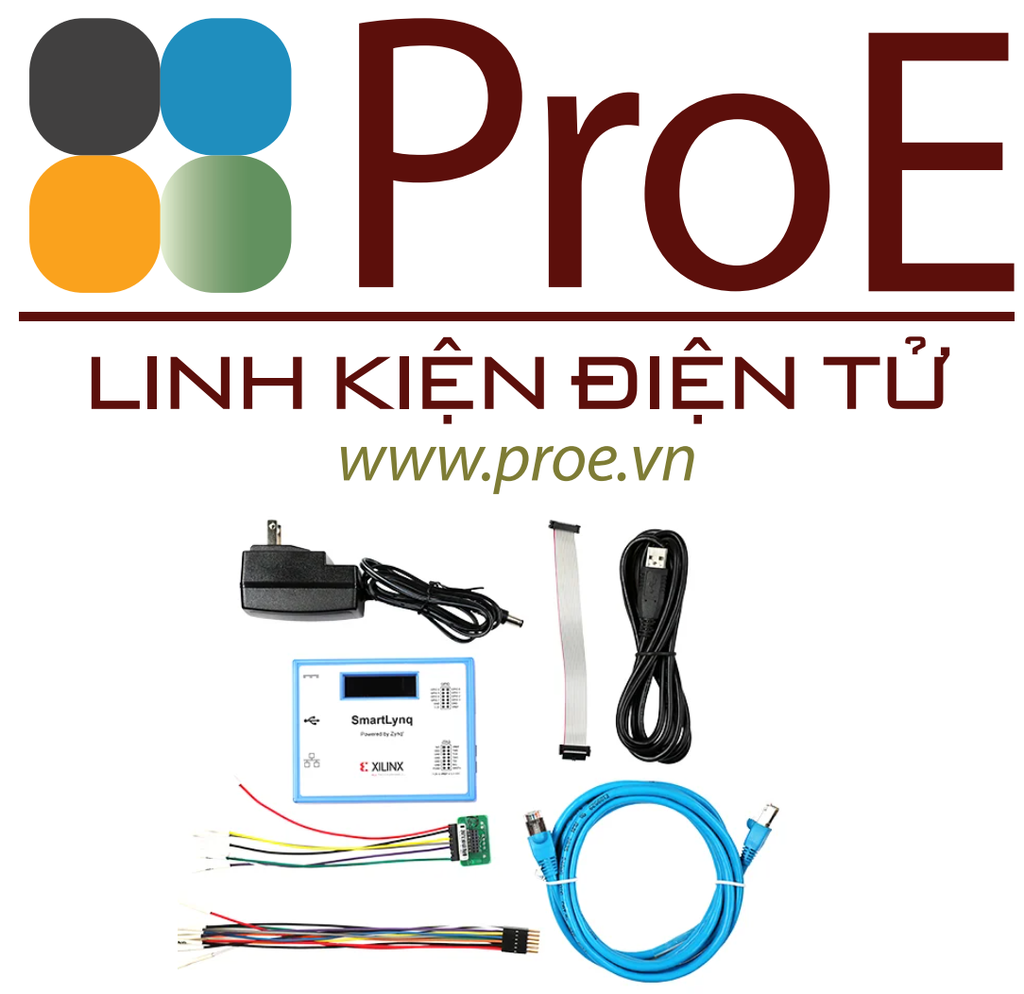

HW-SMARTLYNQ-G SMARTLYNQ DATA CABLE JTAG
- Mã sản phẩm: HW-SMARTLYNQ-G
- Nhà sản xuất: AMD XILINX
- Website hỗ trợ: https://www.proe.vn
29.900.000₫
This cable delivers:
- Up to 40Mbps throughput
- Ethernet host connection for remote access
- USB 2.0 host connection
- Faster embedded software debugging
- Support for Linux and Hypervisor aware debugging
- 8 GPIO for additional debug signals
The SmartLynq Data Cable is backward compatible with the Platform Cable USB II through a standard PC4 JTAG header connection to the target board. It provides higher throughput than previous generation cables, allowing for faster programming and debug. It is compatible with the Vivado™ Design Suite, Labtools, and AMD Software Development Kit.
Device Support
List of the supported device for different versions of Vivado can be found in the Release Notes.
|
Comparison Metric |
Platform Cable USB II |
SmartLynq Data Cable |
SmartLynq+ Module* |
|
Device Programming and Hardware Debug |
Y |
Y |
Y |
|
Basic Software Debug |
Y |
Y |
Y |
|
High-speed Debug Capability |
N |
N |
Y (up to 10Gb/s) |
|
OS / Hypervisor Aware Debug |
N |
Y |
Y |
|
Trace Capability |
N |
N |
AIE Trace Only |
|
Remote Access / Debug Capability |
N |
Y |
Y |
|
USB Host Interface |
Y (USB 2.0) |
Y (USB 2.0) |
Y (USB 3.0) |
|
10/100/1000 Ethernet Host Interface |
N |
Y |
Y |
|
Default Bitstream Programming Speed (MB/s) |
0.4 |
4 |
4 |
|
JTAG Max Clock Speed (MHz) |
24 |
40 |
100 |
|
Connection to Target via PC4 JTAG or Flying Wire Adapter Cable (provided) |
Y |
Y |
Y |
|
GPIO Available with Flying Lead Cable (provided) |
N |
Y |
Y |
|
Hardware Server Application |
On Host |
Local to Cable |
Local to Cable |
