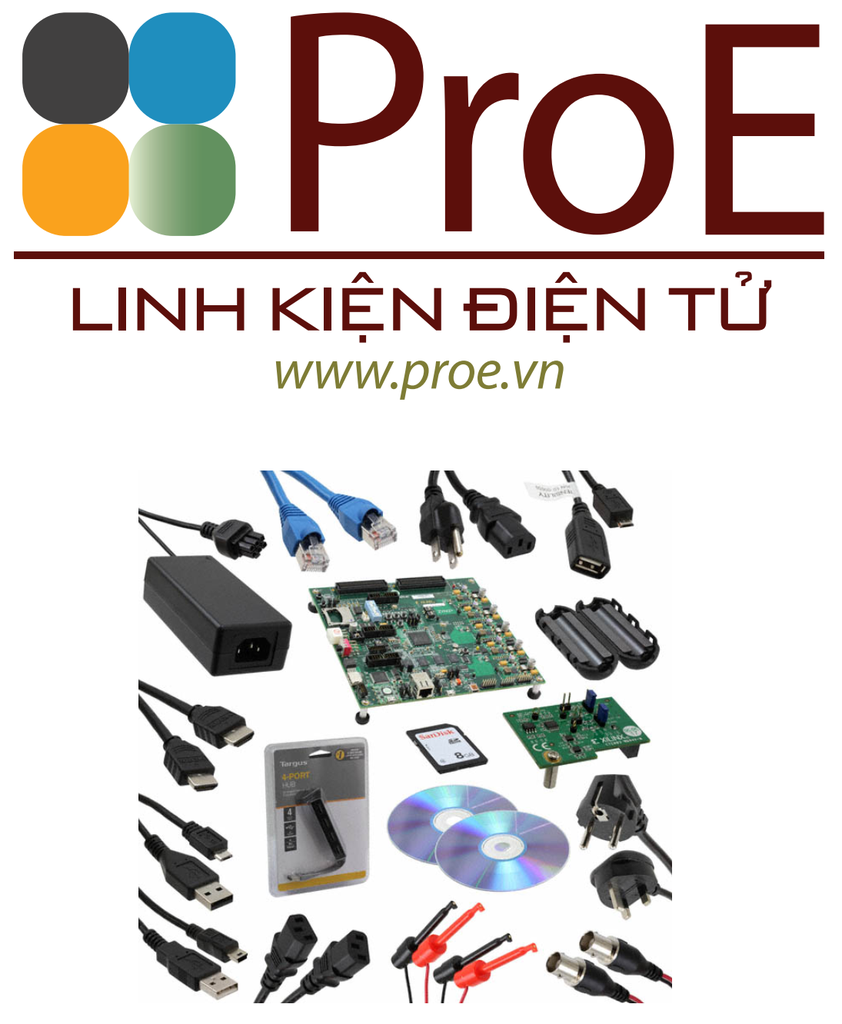

AMD Zynq™ 7000 SoC ZC702 Evaluation Kit

The AMD Zynq™ 7000 SoC ZC702 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.

Key Features & Benefits

• Optimized for quickly prototyping embedded applications using Zynq 7000 SoCs
• Hardware, design tools, IP, and pre-verified reference designs
• Demonstrates a embedded design, targeting video pipeline
• Advanced memory interface with 1GB DDR3 Component Memory
• Enabling serial connectivity with USB OTG, UART, IIC, CAN Bus
• Supports embedded processing with Dual ARM Cortex-A9 core processors
• Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII​)
• Implement Video display applications with HDMI out
• Expand I/O with the FPGA Mezzanine Card (FMC) interface

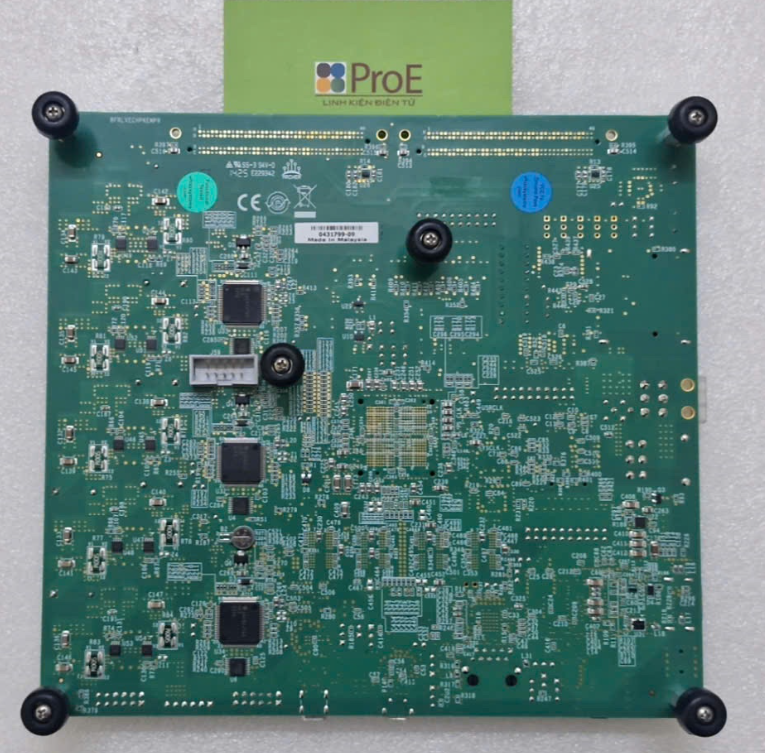

Board Features

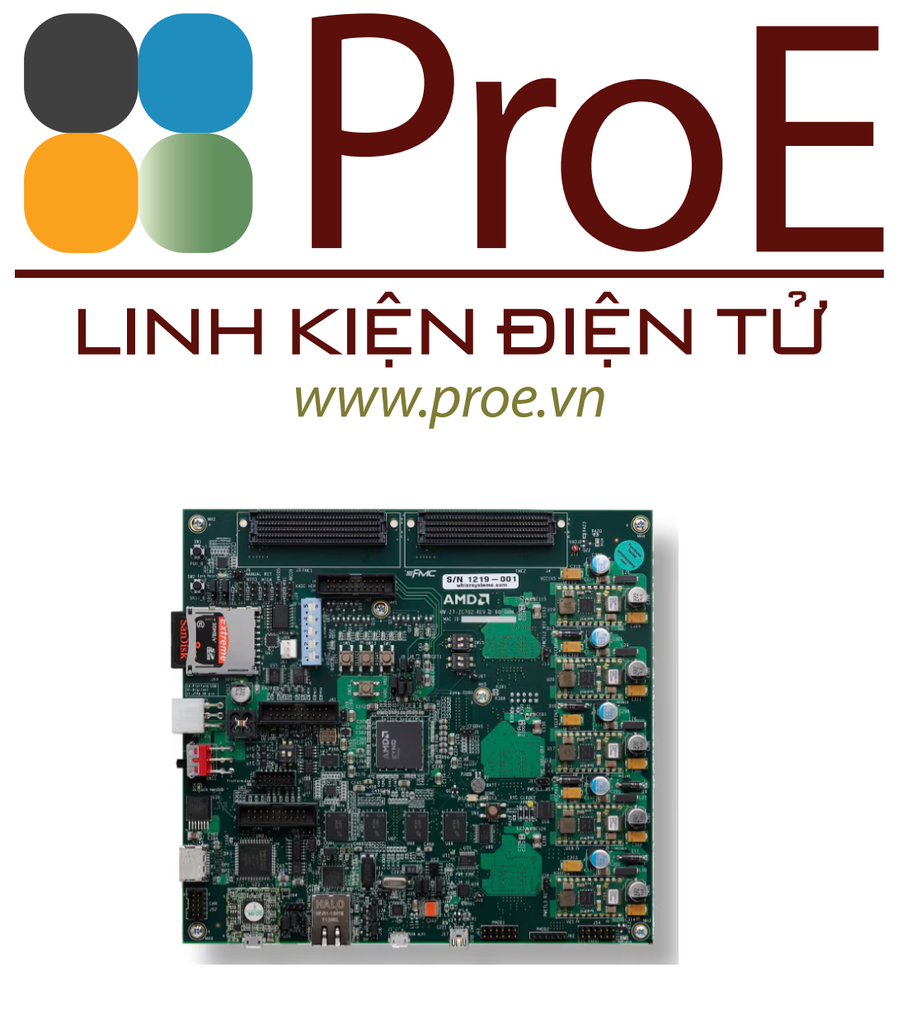

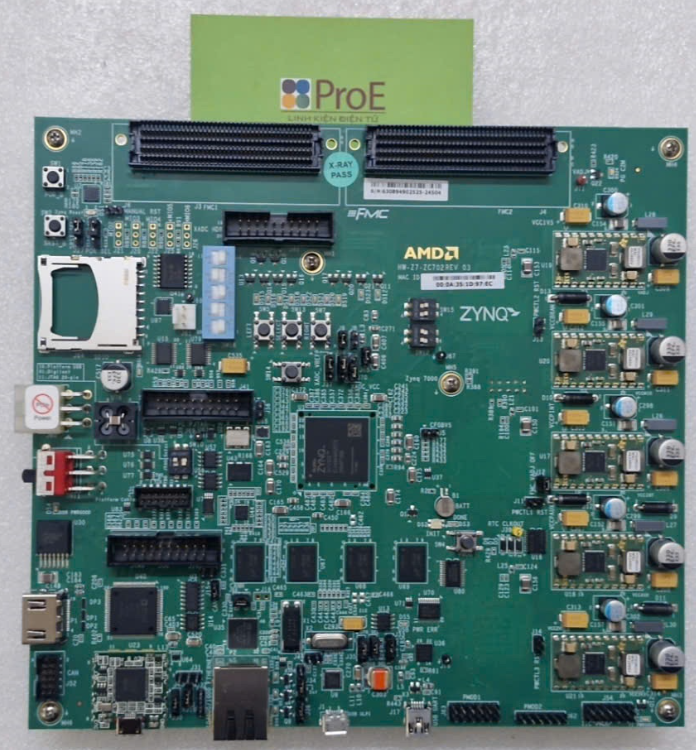

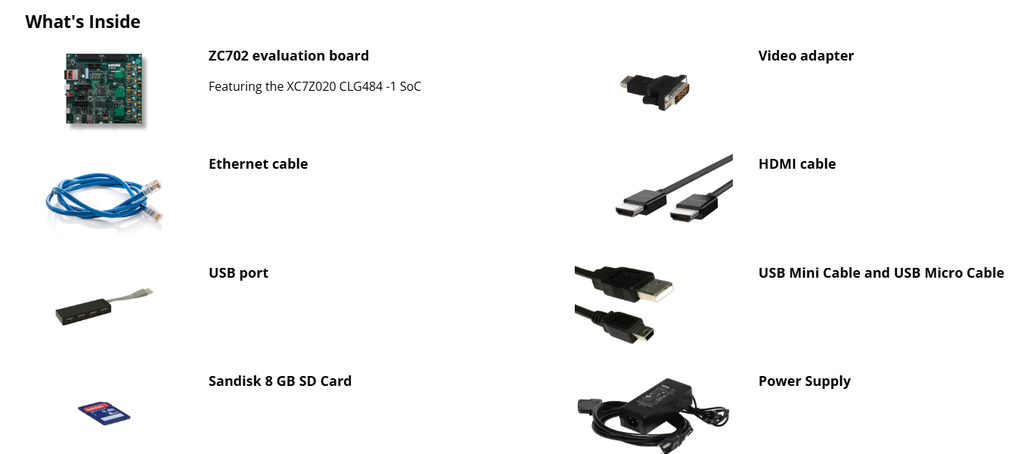

Featuring the ZC702 Base Board

Communication & Networking

• Gigabit Ethernet GMII, RGMII and SGMII
• USB OTG 1 (PS) - Host USB
• IIC Bus Headers/HUB (PS)
• 1 CAN with Wake on CAN (PS)
• USB UART (PS)

Clocking

• 200MHz Fixed PL Oscillator (Differential LVDS)
• 156.25MHz (default) I2C Programmable Oscillator (Differential LVDS)
• 33.33MHz Fixed PS System Oscillator (Single-Ended CMOS)

Video/Display

• HDMI Video OUT
• 8X LEDs

Expansion Connectors

• FMC #1-LPC connector (0 GTX Transceiver, 68 single-ended or 34 differential user defined signals)
• FMC #2-LPC connector (0 GTX Transceiver, 68 single-ended or 34 differential user defined signals)
• IIC HUB/Expander
• Dual Pmod (8 I/O Shared with LED's)
• Single Pmod (4 I/O Shared with PJTAG)

Configuration

• Onboard configuration circuitry
• 16MB Quad SPI Flash
• SDIO Card Interface (boot)
• PC4 and 20 pin JTAG ports

Memory

• DDR3 Component Memory 1GB
• Support 32 data width
• 16MB Quad SPI Flash
• IIC - 1 KB EEPROM

Control & I/O

• 3 User Push Buttons
• 2 User Switches
• 8 User LEDs

Power

• 12V wall adapter or ATX
• Voltage and Current measurement capability of supplies

Analog

• XADC header
