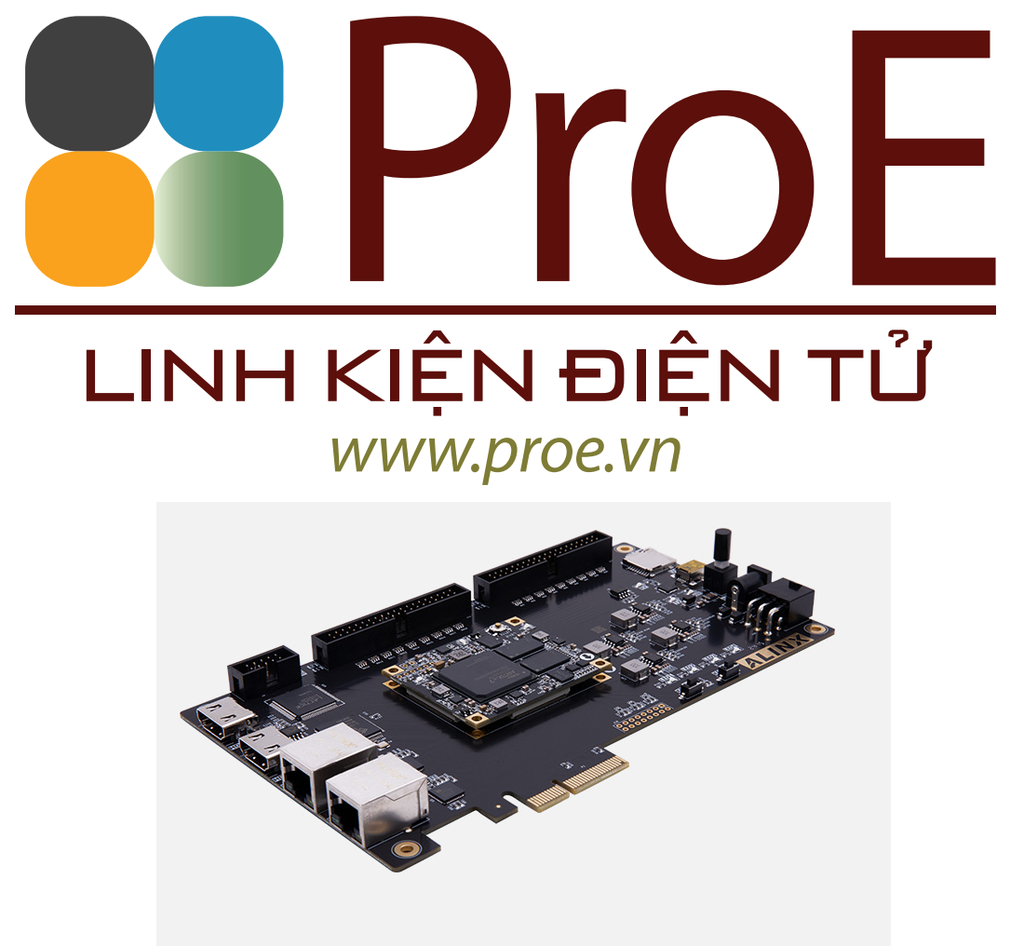

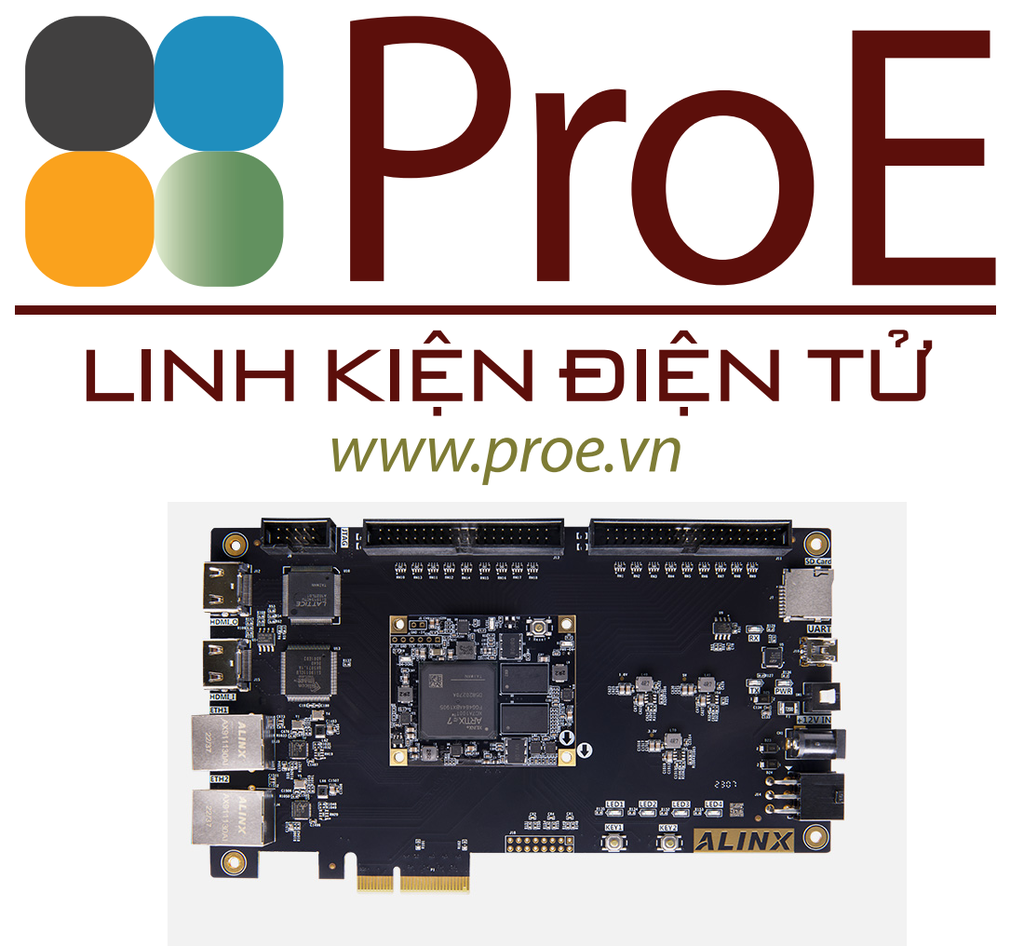

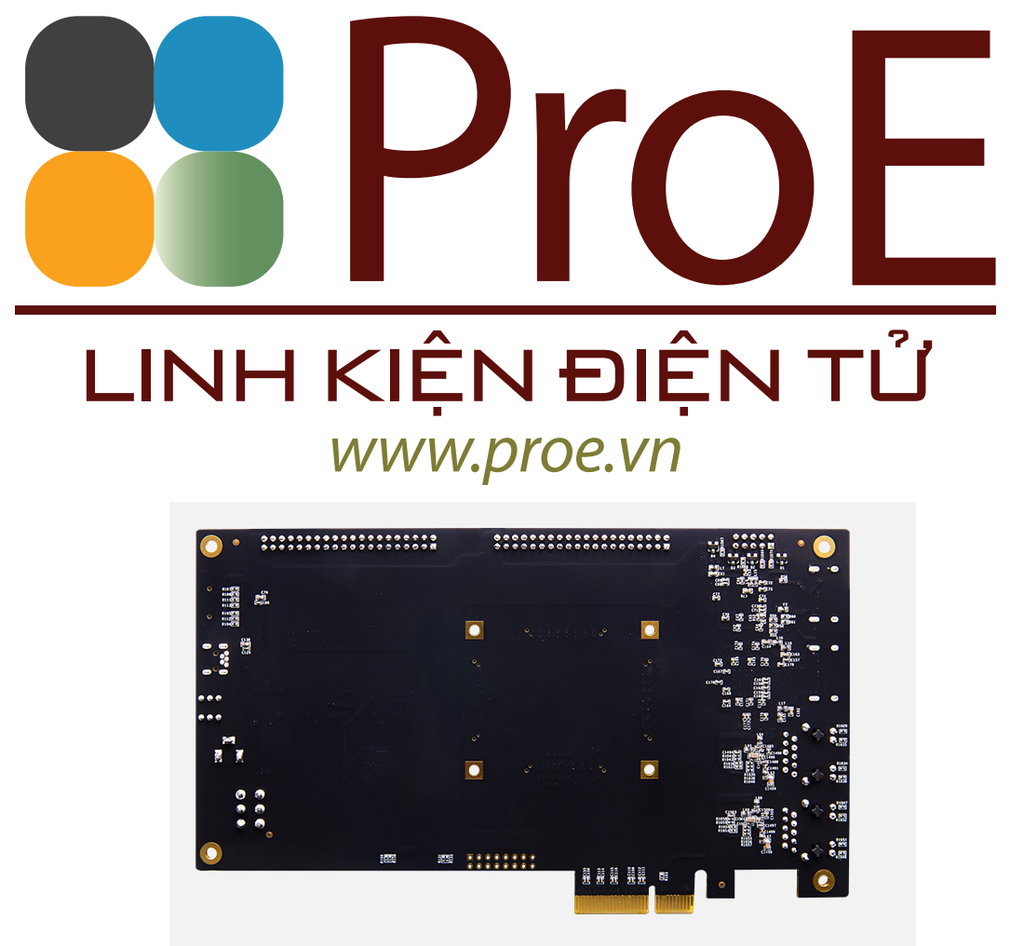

AX7103 FPGA Dev Board & Kit with AMD Artix™ 7 XC7A100T

Product Description

The AX7103/AX7203 FPGA development board equipped with the AMD/Xilinx Artix 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet,  PCIe, HDMI.

Provide high-speed communication (PCIe) and video applications (HDMI).

Key Features

• System-on-Module

  ● AMD/Xilinx Artix 7:
  ◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
  ◆ The 28nm node achieves an excellent cost/performance/power balance
  ● Pluggable module with 4 x Panasonic board-to-board connectors
  ● 1 GByte (32-bit) DDR3 SDRAM
  ● 16 MB QSPI Flash

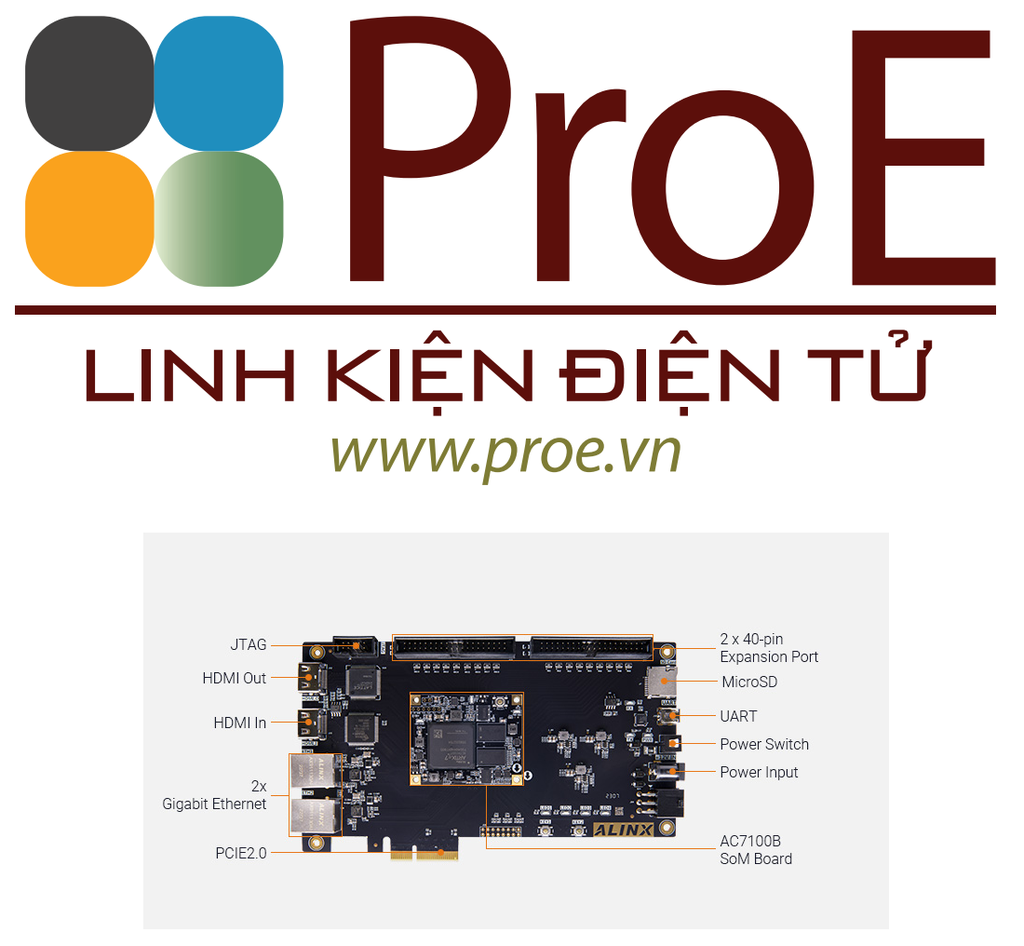

• Base Board

  ● 1 x PCIe® Gen2 x 4
  ● 2 x Gigabit Ethernet
  ● 2 x HDMI(1 x HDMI in + 1 x HDMI out)
  ● 1 x UART(USB to UART)
  ● 1 x MicroSD
  ● 1 x 512 Byte EEPROM 24LC04
  ● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
  ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY (2 x KEY)
  ● 12V single supply
  ● Dimensions: 188 x 111 mm form factor

• The AX7103 development board consists of a AC7100B SoM and base board. If you want to purchase AC7100B SoM separately.
  Please check the Relevant Products at the bottom of the page and click to learn more details.
