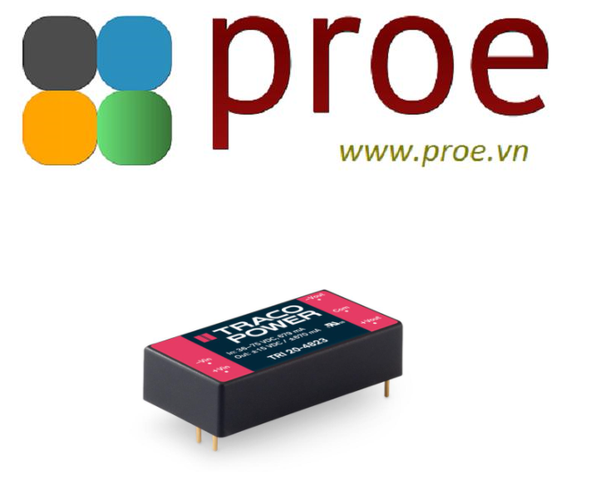

TRI 20-2415 DC DC CONVERTER 24V 20W

The new TRI 20 is a high isolation, regulated 20 Watt DC/DC converter series which comes in a compact 2”x1” package. The core characteristic of the TRI 20 series is a sophisticated reinforced isolation system which is able to withstand high test voltages (8000 VDC for 1s and 4200 VAC for 60s) and working voltages (1000 VACrms). Complementing this isolation characteristic is a high Common Mode Transient Immunity of 15 kV/µs. The new design allows to fully integrate an EN 55032 class A filter and greatly reduces the no-load power consumption. High efficiencies up to 90% allow safe operation from –40°C to +55°C without derating and up to +76°C with derating. All models have a wide 2:1 input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the TRI 20 series is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.

Specifications

Output Voltage

24 VDC

Output Current

840 mA

Power Rating

20 W

Number of Outputs

single

Input Voltage

18-36 VDC

Mounting Type

THD (Through-Hole Device)

Package Type

2" x 1", DIP24

Length

50.8 mm

Width

25.4 mm

Depth

12 mm

Efficiency

90 %

Maximum Temperature

76 °C

Minimum Temperature

-40 °C

Weight

30 g

Ripple and Noise

150 mVp-p typ.

Capacitive Load

295 µF

Adjustable Output

No

Remote On/Off

No

Safety Approvals

EN 62368-1

Insulation System

Reinforced Insulation

I/O Isolation Voltage

4200 VAC
