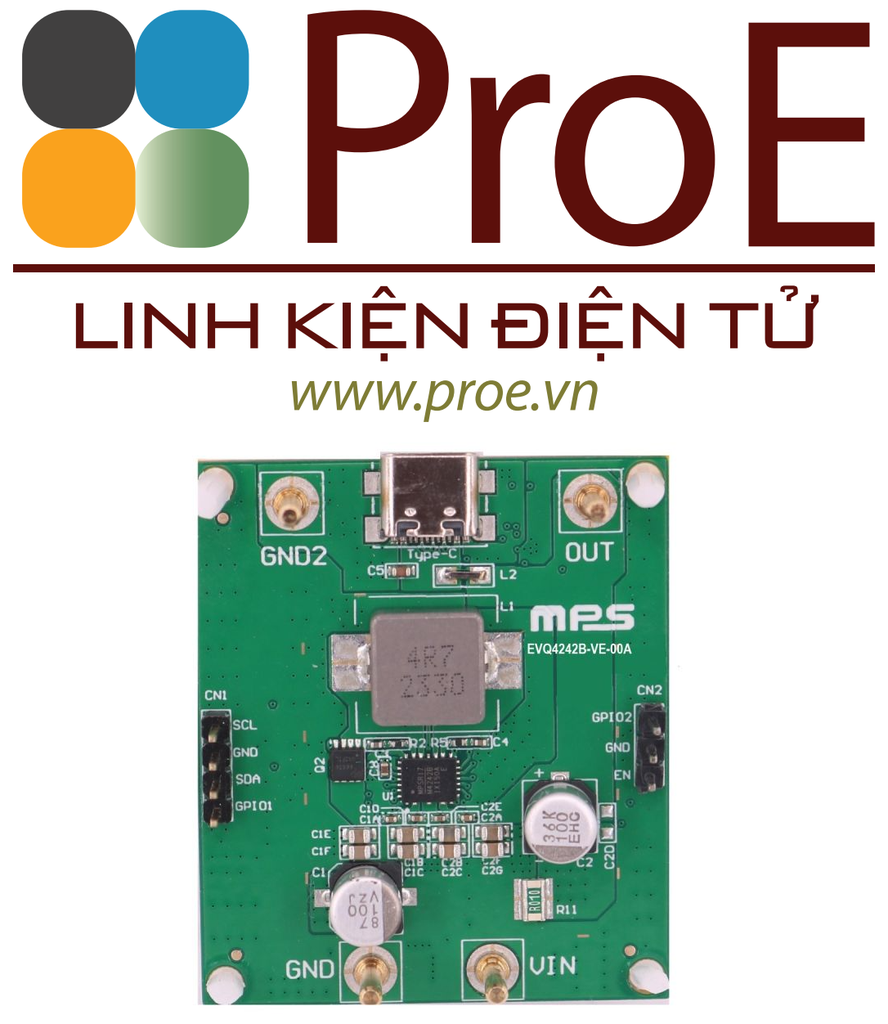

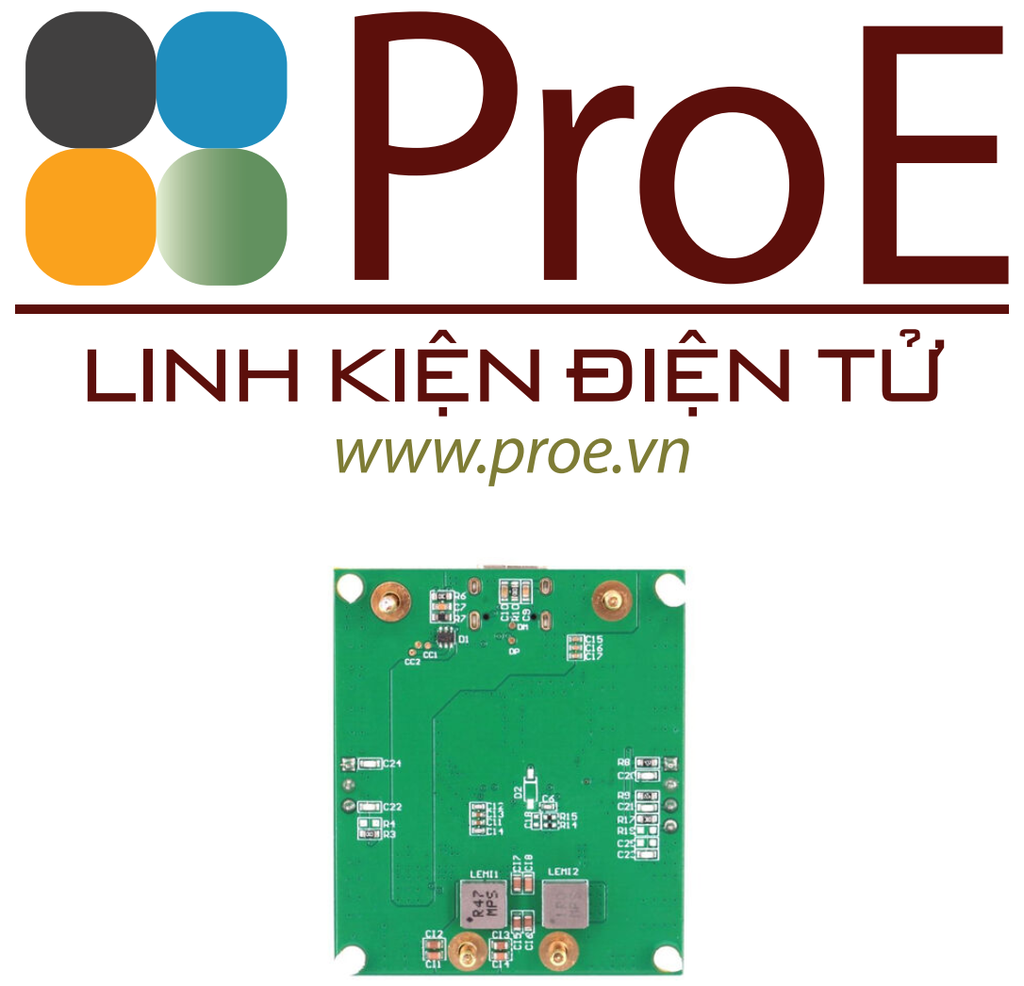

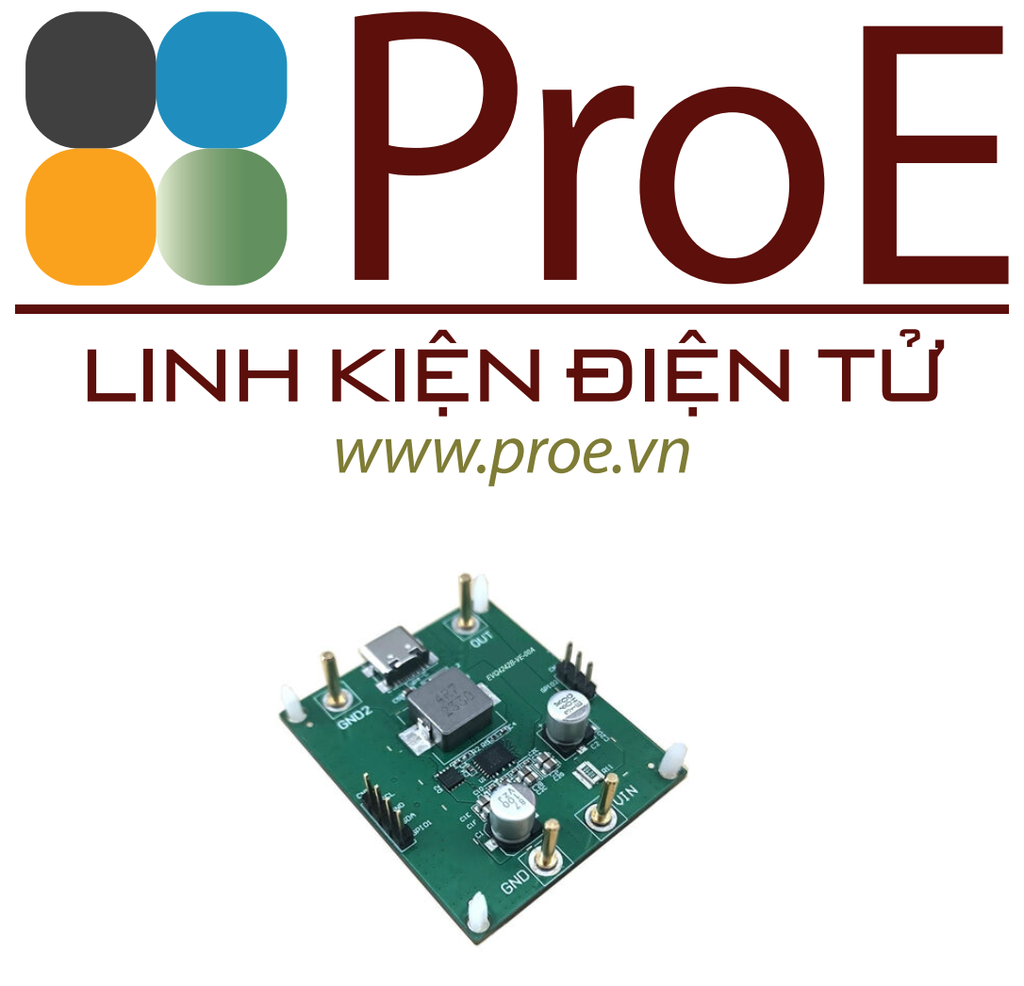

5A, 36V, Fully Integrated USB PD Solution with Integrated Buck-Boost Converter Evaluation Board, AEC-Q100 Qualified
- Mã sản phẩm: EVQ4242B-VE-00A
- Nhà sản xuất: TRACO Power
- Website hỗ trợ: https://www.proe.vn
2.990.000₫
5A, 36V, Fully Integrated USB PD Solution with Integrated Buck-Boost Converter Evaluation Board, AEC-Q100 Qualified
Features & Benefits
- All-In-One USB Power Delivery (PD) Solution for Automotive Sourcing Ports
- Integrated 4-Switch Buck-Boost Converter
- Integrated PD 3.1 Controller
- Wide 4.8V to 36V Operating Input Voltage (VIN) Range
- 3.3V to 22.5V Output Voltage (VOUT) Range
- Accurate Output CC Current Limit: ±5%
- External High-Side MOSFET (HS-FET) Can Be Paralleled
- Low Quiescent Current (IQ) when USB Type-C is Disconnected
- 250kHz/420kHz Configurable Frequency with Spread Spectrum (FSS)
- Supports USB PD R3.1, and PPS with 7 Power Data Object (PDO) List
- Passes USB-IF PD3.1 Certification Test (TID: 8822)
- Supports QC 3.0 Specification, Huawei FCP
- Supports Direct Charging Port (DCP) Schemes for BC1.2, 3A Divider Mode, and 1.2V/1.2V Mode
- CCx, DP, and DM Short to VBUS/VBATT Protection
- Battery Short-to-Ground Protection Driver
- I2C Slave Interface
- Output Line-Drop Compensation
- Configurable PD Power Management during Low Battery Voltages or High Temperatures
- Supports Dual-Port PD Power Sharing
- PWM Duty Cycle Configurable LED Driver
- Up to 120 Minutes for EN Off Delay
- Available in a QFN-22 (4mmx5mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
