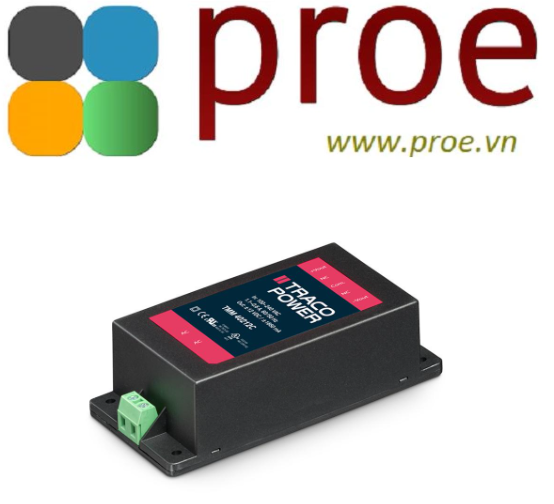

TMM 40215C

The TMM 40C Series of fully encapsulated 40 Watt AC/DC power supply modules feature a reinforced/double I/O isolation system according to latest medical safety standards 60601-3 3rd edition for 2 x MOPP (Means Of Patient Protection).
The high efficiency and the use of highest grade components make the units suitable for an operating temperature range of –40°C to +60°C while it goes up to 75°C with 50% load derating. EMI/EMC characteristics and the safety approval package qualify these modules not only for medical devices but also for demanding applications in transportation systems and for equipment in industrial an commercial environment.

Specifications

Output Voltage

±15 VDC

Output Current

1330/1330 mA

Power Rating

40 W

Number of Outputs

dual

Input Voltage

85-264 VAC / 120-370 VDC

Housing Type

Plastic Case

Mounting Type

Chassis Mount

Connection Type

Screw Terminal

Length

112 mm

Width

63.8 mm

Depth

34.1 mm

Efficiency

85 %

Maximum Temperature

80 °C

Minimum Temperature

-40 °C

Weight

320 g

Ripple and Noise

150 mVp-p typ. / 195 mVp-p max.

Capacitive Load

1000 µF

Remote On/Off

No

Safety Approvals

EN 60950-1, EN 62368-1, EN 60601-1, UL 508

Insulation System

Reinforced Insulation

I/O Isolation Voltage

4000 VAC
