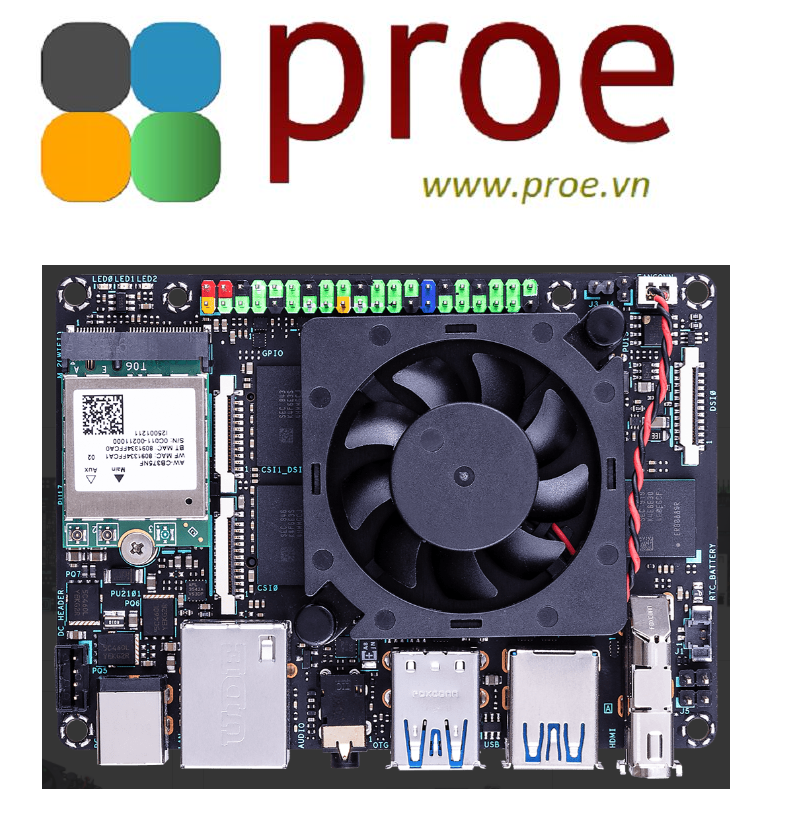

Tinker Edge R

  • Mã sản phẩm: Tinker Edge R
  • Nhà sản xuất: Asus
  • Website hỗ trợ: https://www.proe.vn
5.900.000₫

Tinker Edge R

Single-board computer for AI applications, with Arm® big.LITTLE™ technology and Rockchip NPU, easy for Machine-Learning deployment.

  • Arm® big.LITTLE™ A72+A53 Hexa-core SoC
  • Machine-Learning capability with Rockchip NPU
  • Multiple MIPI-CSI & DSI / HDMI / Type-C (DP)
  • 40-pin GPIOs & mPCIe for multiple expansions
  • 12V~19V DC-in offers stable power delivery
  • Linux & Android* supported
SoC Rockchip RK3399Pro
CPU Dual-core ARM® Cortex®-A72 @ 1.8 GHz
Quad-core ARM® Cortex®-A53 @ 1.4 GHz
GPU ARM® Mali™-T860 MP4 GPU @ 800 MHz
NN processor Rockchip NPU
Display 1 x HDMI™ with CEC hardware ready
1 x USB Type-C® (DP)
1 x 22-pin MIPI DSI (4 lane)
Memory Size Dual-CH LPDDR4 4GB (SYSTEM)
LPDDR3 2GB (NPU)
Storage 16GB eMMC
Micro SD(TF) card slot (push/pull)
Connectivity 1 x RTL8211F-CG GbE LAN
1 x M.2 802.11 a/b/g/n/ac wireless & Bluetooth 5.0 (2T2R)
Audio 1 x 3.5mm audio jack (with Mic & plug-in detection)
1 x S/PDIF TX pin
1 x PCM/I2S pins
USB 3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C OTG
Camera Interface 1 x 22-pin MIPI CSI-2 (4 lane)
1 x 22-pin MIPI CSI-2/DSI (4 lane) *
Expansions 1 x Mini PCIe slot (Full-Length, nano-SIM socket, for 4G/LTE)
Internal Headers 1 x 40-pin headers includes:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S
- up to 1 x S/PDIF TX
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin Recovery header
1 x 2-pin Power-on header
1 x 2-pin Reset header
1 x 2-pin DC Fan header
1 x 2-pin RTC Battery header
1 x 2-pin NPU UART header
Power Connector
(up to 65W)
1 x 12~19V DC Power Input Jack (5.5/2.5mm)
1 x 12~19V 4-pin DC Power Input Header
OS Support Debian 9 / Android 9
Dimension Pico-ITX, 3.9 inch x 2.8 inch (100 × 72 mm)
Environment Operation temperature: 0℃ ~ 55℃
Non operation temperature: -40℃ ~ 80℃
Non operation humidity: 0% ~ 85% (Non condensing)
Note * 3 MIPI interface, 1st CSI, 2nd DSI, and 3rd is CSI/DSI.
