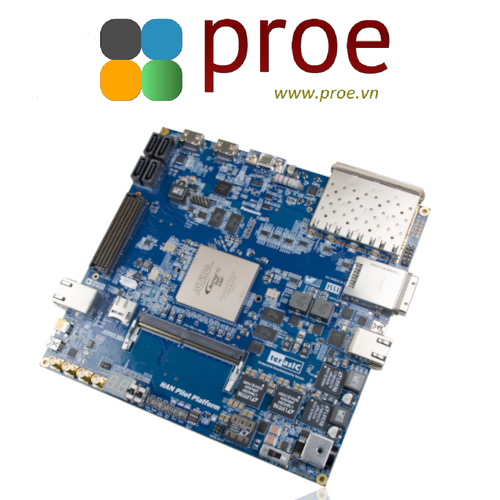

Terasic Arria 10 HAN Pilot Platform

Terasic’s HAN Pilot Platform is a high-performance flagship development kit based on Intel Arria 10 SoC FPGAs. With the goal of “being the pilot platform for HPC, Automotive, and Networking applications (HAN),” the board is purpose built for performance-demanding industrial embedded applications.

The Arria 10 SoC on the board features a dual-core ARM Cortex-A9 MPCore Hard Processor System and up to 660K of low-power FPGA logic elements, while providing the reconfigurability and performance of an FPGA and flexibility and ease of development of a CPU. The board itself combines a number of high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SDRAM (up to 8GB), 10GbE SFP+ and PCIe x4 ports for communication, and USB Type-C and HDMI interfaces for video and data processing, FMC connectors for I/O expansion.

With the rich hardware resource, HAN is the perfect platform for applications such as HPC & Analytics, Intelligent vision & Video processing, Automotive, Test & Measurement and Medical applications.

The HAN Pilot Platform has many features that allow users to implement a wide range of high performance designed circuits.The following hardware is provided on the board:

FPGA Device

• Intel ^® Arria10^® SoC 10AS066K3F40E2SG device (660K LEs)
• USB-Blaster II onboard for programming; JTAG Mode
• Serial configuration device – EPCQL1024
• One DDR4 SO-DIMM Socket, support ECC
• On-board 1GB DDR4-2400, 32-bit data width
• USB Type-C Interface
  • Power Delivery
  • DisplayPort TX with 4 lanes
  • USB 3.0/2.0
• HDMI TX/RX 2.0 for 4K2K@60- FPGA Transceiver
• PCIe Cabling Socket at Gen3 x4
• SFP+ Socket x4, 40Gbps
• SATA 3.0 Host and SATA Device x2 (SATA Connector x4)
• One Gigabit Ethernet Port
• SMA Clock-In and Clock-Out
• High Pin Count FMC Connector. Support VADJ 1.2V/1.5V/1.8V.
• Accelerometer, Gyroscope and Magnetometer
• Temperature Sensor
• Fan Control
• LED x2, KEY x2, Switch x2, 7-Segment x2

HPS (Hard Processor System)

• 1.5GHz Dual-core ARM Cortex-A9 processor
• MicroSD Socket
• On-board 1GB DDR4-2400, 32-bit data width
• 1 Gigabit Ethernet PHY with RJ45 connector
• USB OTG Port, USB mini-AB connector
• UART to USB, USB Mini-B connector
• RTC
• One user button and one user LED
• Warm reset button and cold reset button
