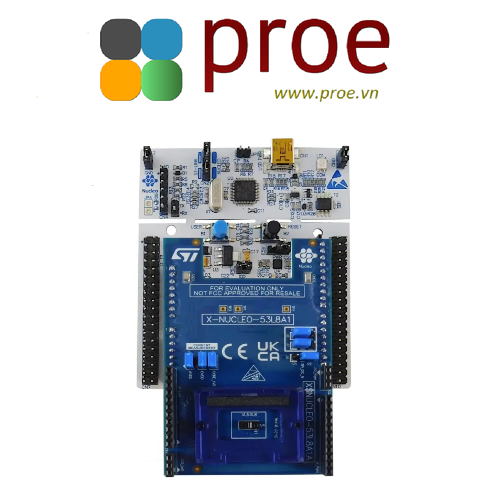

STM32 Nucleo pack with X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE development board

Description

The P-NUCLEO-53L8A1 is a complete evaluation kit that allows you to learn, evaluate, and develop applications using the different commercial products of the VL53L8 series Time-of-Flight sensors.

Two products are supported: VL53L8CX and VL53L8CH.

The VL53L8CX is an 8x8 multizone, ToF ranging sensor, which enhances performance under ambient light with a reduced power consumption. Based on STMicroelectronics FlightSense technology, the sensor is designed to provide accurate ranging up to 400 cm with a 65° diagonal FoV.

The VL53L8CH is the perfect Time-of-Flight sensor enabling AI applications, with enhanced performance under ambient light with a wide 65° diagonal FoV. The compact and normalized histogram (CNH) innovative data output is specially designed for artificial intelligence (AI) applications requiring multizone raw data from a high performance multizone ToF sensor.

The NUCLEO-F401RE STM32 Nucleo development board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features.

All features

• X-NUCLEO-53L8A1 Time-of-Flight expansion board based on the VL53L8 series for STM32 Nucleo

• NUCLEO-F401RE development board

• 0.25, 0.5, and 1 mm spacers to simulate air gaps

• One cover glass to protect the sensor from the dust

• Equipped with Arduino® UNO R3 connectors

• Full system software supplied, including code examples and graphical user interface

• RoHS, CE, UKCA, and China RoHS compliant
