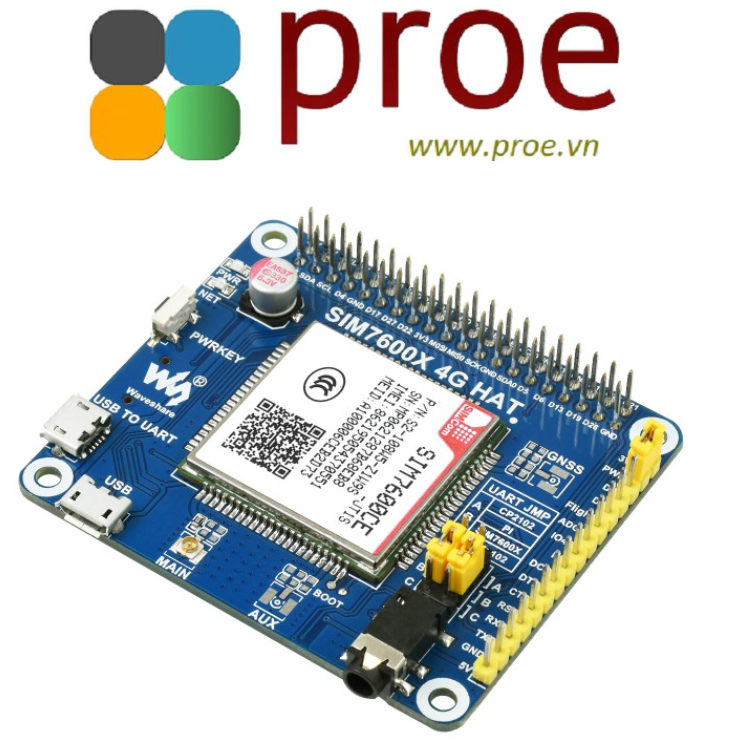

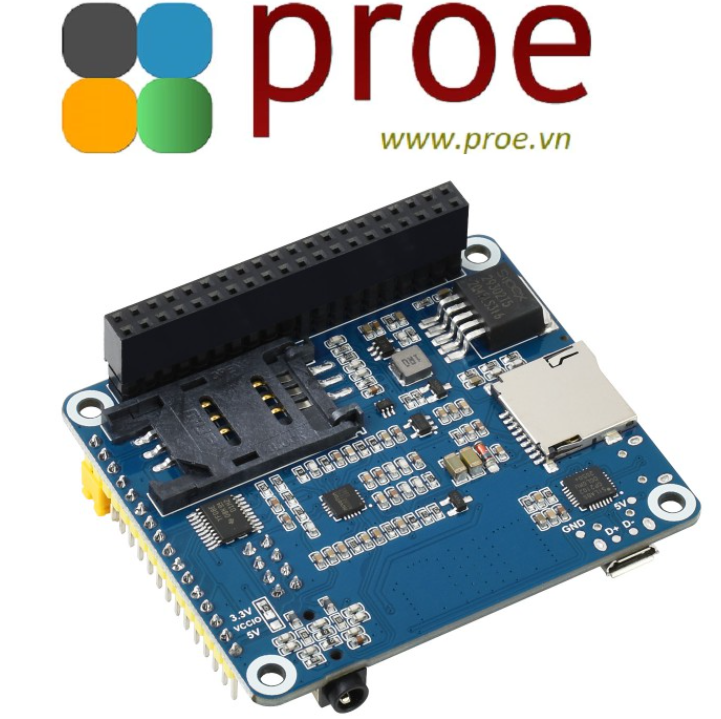

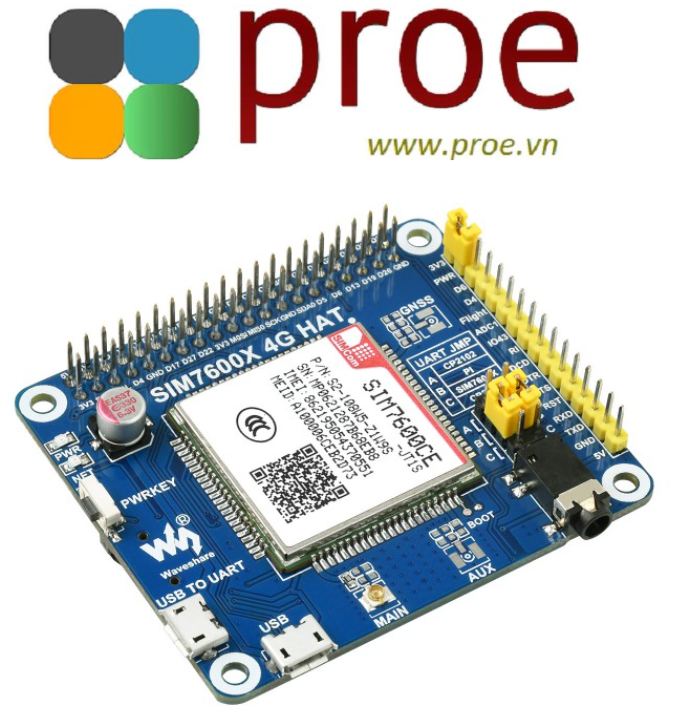

SIM7600CE-JT1S 4G HAT for Raspberry Pi, supports 4G / 3G / 2G communication, for China

PACKAGE CONTENT

Weight: 0.186 kg

1. SIM7600CE-JT1S 4G HAT x1
2. LTE Antenna x1
3. USB-A to Micro-B cable x2
4. RPi screws pack (2pcs) x1

1

2

3

4

SIM7600CE-JT1S 4G HAT For Raspberry Pi, Supports 4G / 3G / 2G Communication, Also LBS Positioning

For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:

Please check the supported bands according to your local service provider, select the proper one when placing order.

4G HAT FOR RASPBERRY PI

Enabling 4G / 3G / 2G Communication & LBS Positioning

Based on SIM7600CE-JT1S

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports LBS base station positioning
• Onboard USB interface, for testing AT Commands, establishing network connection, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data like files, messages, etc.
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the working status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

Dial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

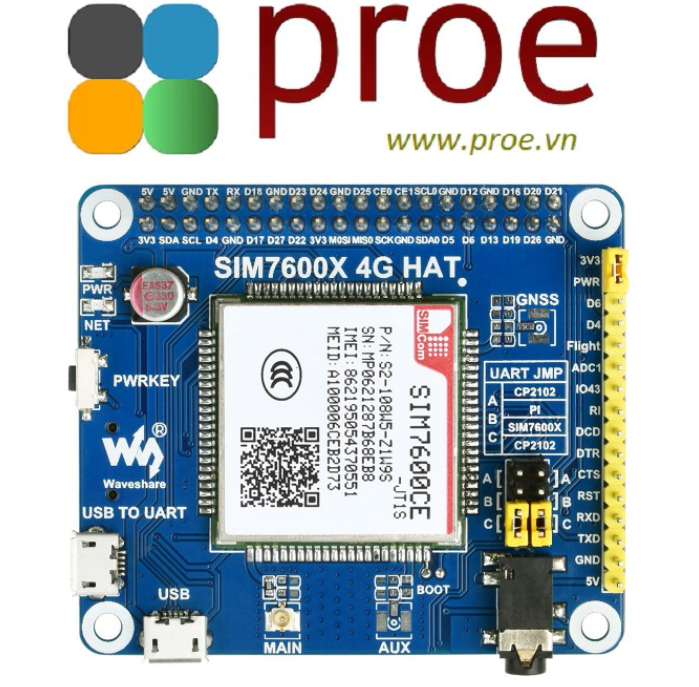

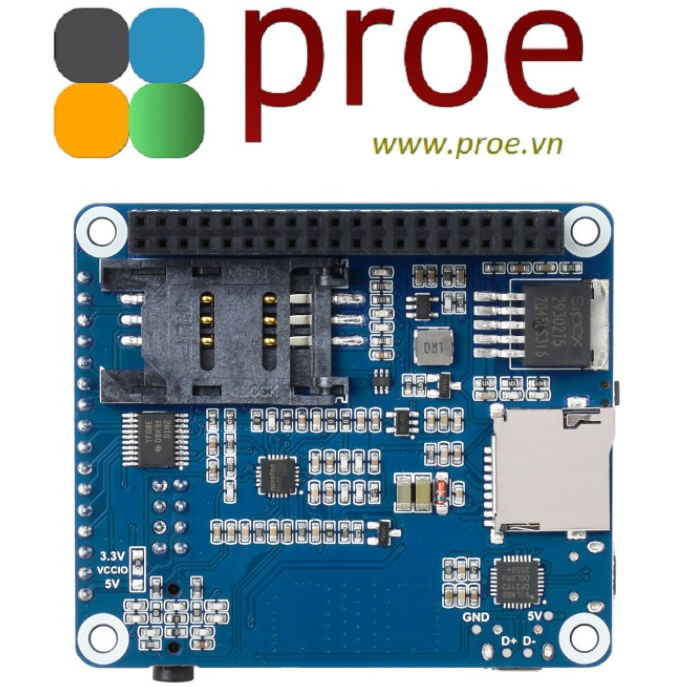

What's On Board

1. SIM7600CE-JT1S
2. CP2102 USB to UART converter
3. NAU8810 audio decoder
4. TXS0108EPWR voltage translator
   • translates 3.3V/5V into 1.8V
5. MP2128DT power chip
6. SPX29302 power chip
7. Raspberry Pi GPIO header
   • for connecting with Raspberry Pi
8. SIM7600 control interface
   • for connecting with host boards like Arduino/STM32
9. SIM card slot
   • supports 1.8V/3V SIM card
10. TF card slot
    • for storing data like files, messages, etc.
11. 3.5mm earphone/mic jack
    • for audio actions like making telephone call
12. USB interface
    • for testing AT Commands, and so on
13. USB TO UART interface
    • for serial debugging, or login to Raspberry Pi

14. MAIN antenna connector
15. Module power switch
16. Network status indicator
17. Power indicator
18. UART selection jumper
    • A: access Raspberry Pi via USB to UART
    • B: control the SIM7600 by Raspberry Pi
    • C: control the SIM7600 via USB to UART
19. PWR selection jumper
    • PWR - 3V3: auto startup on power-up
    • PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
20. Flight mode selection jumper
    • NC by default, no flight mode control pin
    • Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
21. Operating voltage selection jumper
    • VCCIO - 3.3V: set operating voltage as 3.3V
    • VCCIO - 5V: set operating voltage as 5V
22. USB connector solder pads
23. BOOT forced programming solder pads

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/SIM7600CE-JT1S_4G_HAT
