SIM7600G-H 4G Module (B)

  • Mã sản phẩm: SIM7600G-H 4G Module (B)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.500.000₫
PACKAGE CONTENT

Weight: 0.034 kg

SIM7600G-H 4G Module (B)

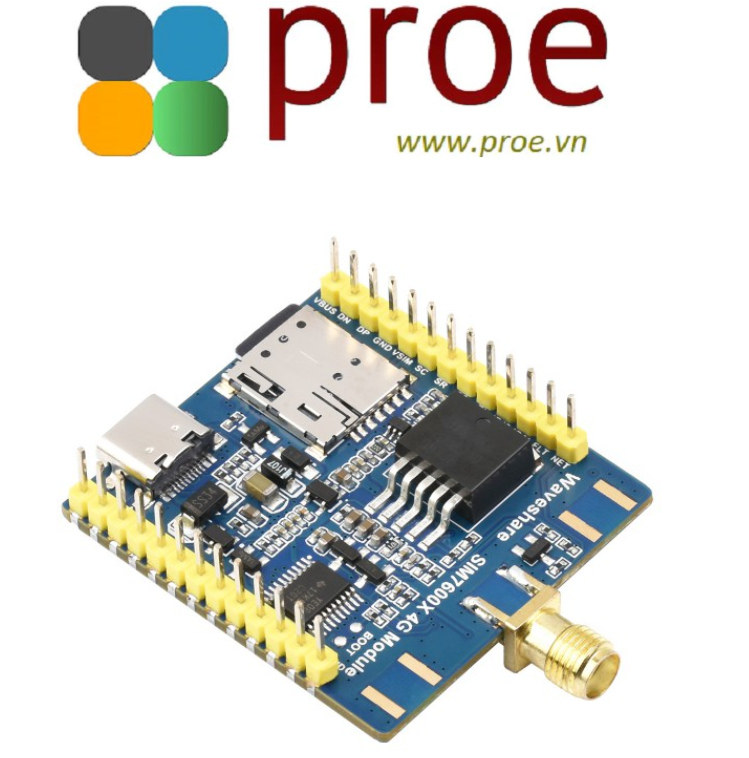

  1. SIM7600G-H 4G Module pre-soldered version x1

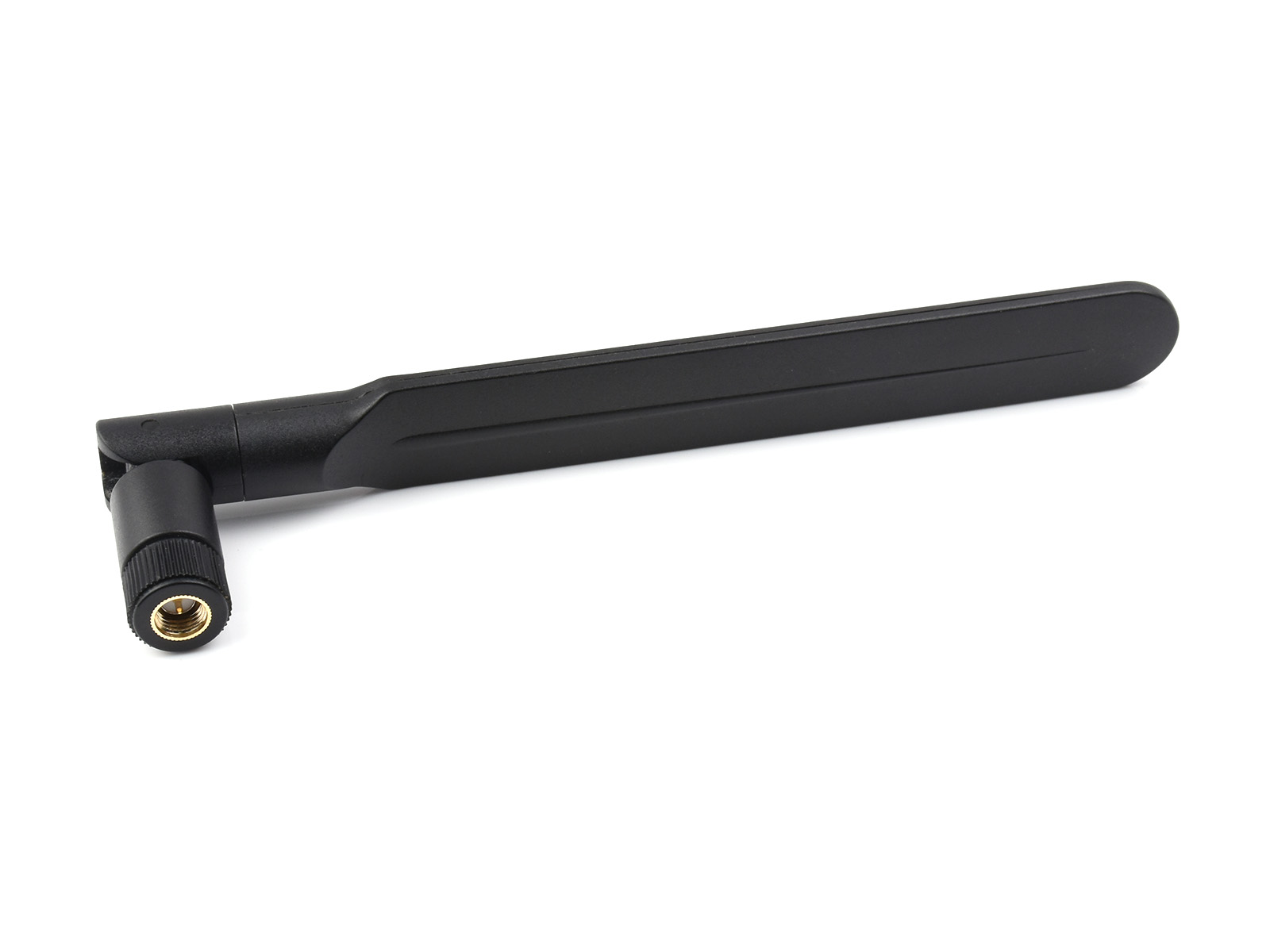

  2. 4G antenna x1

1

2

SIM7600G-H 4G Communication Module, Multi-Band Support, Compatible With 4G/3G/2G, With GNSS Positioning

SIM7600G-H 4G Module

Supports 4G/3G/2G Communication And GNSS Positioning



Version Options

Standard version
3× IPEX antenna connector, comes with 2× yellow pin header and FPC antenna



Pre-soldered version
pre-soldered SMA main antenna connector and pin header, comes with SMA antenna

Features At A Glance

  • Compatible with 2G/3G/4G network with global support
  • Supports dial-up, telephone call, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
  • Onboard USB and UART interface, for dial-up Internet access, cloud platform communication, GNSS positioning, etc.
  • Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header
  • Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility
  • Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
  • Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
  • Onboard multiple protection circuits: TVS protection for SIM card, power supply isolation between the USB port and pin header, VIN pin power supply anti-reverse, and so on, more safe and reliable
  • 2x LED indicators, easy to monitor the operating status
  • Adopts SIMCOM recommended power supply solution, supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use.
  • Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card
  • Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
  • Adapting 3-ch antenna connector, IPEX antenna connector version and SMA connector version optional, supports mass customization

Specifications

PARAMETERS
4G module SIM7600G-H
Applicable regions Global
FREQUENCY BAND
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Frequency band GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type C/A Code
16-channel
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SOFTWARE FEATURES
Network protocol TCP/IP/IPV4/IPV6/MQTT/MQTTS/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Internet access PPP/NDIS/RNDIS
USB driver Windows XP/7/8/10/11, Linux (driver free on Raspberry Pi Raspbian system)
SMS Supported types: MT, MO, CB, Text, PDU
HARDWARE INTERFACE
USB interface Can be used to access PC/Raspberry Pi/Jetson Nano and other hosts for 4G networking, positioning, AT command sending and receiving test, firmware upgrade, etc.
UART interface Can be used to access MCU for 4G networking, positioning, AT command sending and receiving test, etc., compatible with 3.3V/5V working level
SIM card slot Onboard Nano SIM card slot, adapting related pins, compatible with 1.8V and 3V SIM card
Antenna connectors MAIN: 4G main antenna (optional SMA connector or IPEX 1 connector version)
AUX: 4G auxiliary antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)
GNSS: Positioning antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)
Other interface Adapting other common control pins such as GPIO, PWR, RST, FLT
OTHER
Power supply USB port or VBUS - GND pin: 5V power supply
VIN - GND pin: 5V~26V wide-range voltage power supply
BAT - GND pin: 3.7V lithium battery power supply
Operating voltage 3.3V by default (configurable as 3.8V-5V via VIO pin by connecting external voltage)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 38.8 x 42.0mm



Global Band 4G / 3G / 2G Support


Dial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink)
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink)

Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility

Cloud Communication

Supports Communication Protocols Including
TCP, UDP, MQTT, MQTTS, FTP, FTPS, HTTP, HTTPS...

GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning

* GNSS antenna is NOT included By default, please choose the GNSS antenna according to your needs:

Active Ceramic Antenna
Compact size, must be used in outdoor



3m External Antenna
Supports indoor positioning near the window area, with a 3m extension cable to place the antenna receiver outdoor

SMS Sending And Receiving Support

Making Telephone Call* Or Sending SMS By AT Commands

* SIM7600G-H module supports telephone call function, since without adapting PCM and audio jack onboard, the AT commands and USB AUDIO development are required to realize telephone call via USB port

Small And Easy Integration

Castellated Design, Small Size, High Integration
Adapting Most Of The Common Interfaces, Easy To DIY And Embed Into The Device

Onboard Resources

Pinout Definition

PIN DESCRIPTION PIN DESCRIPTION
NET Network Indicator GND Power Ground
FLT Flight mode DTR Sleep mode wake up
IO41 Controll GPIO41 high or low level output by AT command CTS UART flow control
IO43 Controll GPIO43 high or low level output by AT command RTS UART flow control
RI Voice call wake up TXD UART Sending
SD SIM card data RXD UART Receiving
SR SIM card reset VIO VCCIO, default 3.3V when is not connected, configurable as 3.8V-5V via VIO pin by connecting external voltage
SC SIM card clock VIN wide voltage input, 5V~26V
VSIM SIM card power supply GND Power Ground
GND Power ground BAT 3.7V Lithium battery power input
DP USB signal cable Data+ RTS Module reset pin
DN USB signal cable Data- PWK module power on/off pin
VBUS USB power supply cable 3V3 power supply output



Hardware Connection Reference

Connected To PC / Raspberry Pi / Jetson Nano Boards Via USB





Connected To 5V* MCU Such As Arduino Via UART And VIN Power Supply Header



* the VIO needs to be connected to 5V when the operating level of Arduino is 5V;
and not connected when the operating level is 3.3V



Connected To 3.3V MCU Such As ESP32 Via UART And 3V3 Power Output Header

With VBAT 3.7V Lithium battery power input

Product Show







Outline Dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/SIM7600G-H_4G_Module
