Cat-1/GNSS HAT for Raspberry Pi, Based On SIM7670G module, Global Multi-band LTE 4G Cat-1 support, GNSS positioning, 3x USB 2.0 extended ports

WIKI: www.waveshare.com/wiki/SIM7670G_Cat-1/GNSS_HAT

PACKAGE CONTENT

Weight: 0.179 kg

1. SIM7670G Cat-1/GNSS HAT x1
2. USB-A to USB-C cable x1
3. GPS Antenna x1
4. LTE Antenna x1
5. 2×20PIN female pinheader x1
6. USB 3.0 Adapter x1
7. USB 2.0 Adapter x1
8. Screws pack x1

DESCRIPTION

Cat-1/GNSS HAT For Raspberry Pi, Based On SIM7670G Module, Global Multi-Band LTE 4G Cat-1 Support, GNSS Positioning, 3x USB 2.0 Extended Ports

SIM7670G LTE Cat-1/GNSS HAT For Raspberry Pi

Global Band LTE 4G Cat-1 Support, GNSS Positioning, 3x USB 2.0 Extended Ports

Features At A Glance

The SIM7670G LTE Cat-1/GNSS HAT is an LTE Cat-1 module, supports wireless communication modes including LTE-TDD, LTE-FDD, with up to 10Mbps downlink rate and 5Mbps uplink rate. Supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070/A7670E series, and the AT commands are mostly compatible with SIM800 series. It is suitable for IoT applications like remote information processing, monitoring devices, industrial routers, remote diagnosis, satellite positioning, and so on.

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
• Supports RNDIS, NDIS and ECM dial-up
• Supports GPS, GLONASS, Galileo, BeiDou positioning
• Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on
• Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC
• Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards
• SIM card slot, supports 1.8V/3V SIM card
• 6x LED indicators, easy to monitor the module operating status and USB connecting status
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards

Connecting With Raspberry Pi 5

Connecting With Raspberry Pi 4B

Connecting With CM4 IO Base Board

* for reference only, please refer to the Package Content for detailed part list

Global Multi Band Support Of LTE Cat-1

LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)

Dial-Up On Windows/Linux

Supports Connecting To Windows PC, Raspberry Pi, Or Other Linux Industrial Devices Via USB Interface For LTE Cat-1 Networking And Extending USB Ports

GNSS Positioning

Supports GPS, GLONASS, Galileo, BeiDou Positioning

What's On Board

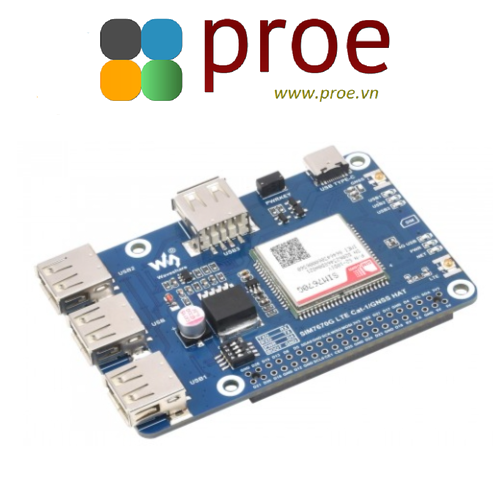

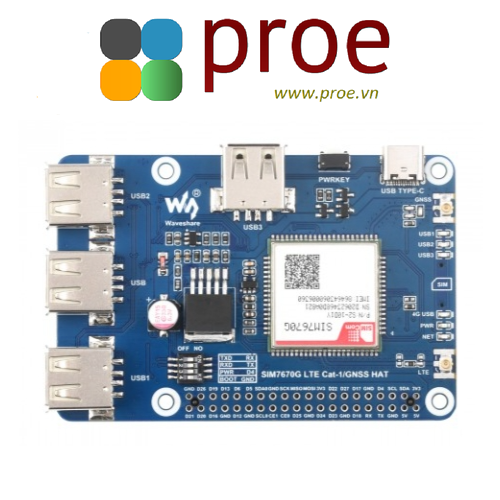

1. SIM7670G module
2. Raspberry Pi 40PIN GPIO header
3. DIP switches
   for switching to connect the UART and power ON/OFF control of the module to the Raspberry Pi GPIO;
   switches to BOOT for entering the burning mode
4. USB Type-A interface
   for connecting to USB port of the host such as Raspberry Pi for 4G communication, power supply, and extending USB ports
5. 3x USB extended ports
6. PWRKEY
7. USB Type-C port
   for connecting to USB port of the host such as Raspberry Pi for 4G communication, power supply, and extending USB ports
8. GNSS IPEX 1 connector
9. LED indicators
10. LTE IPEX 1 connector
11. Nano SIM card slot
12. 4G UART pads
    compatible with Raspberry Pi 5 3PIN UART connector
13. Reserved test pads
    for connecting with other host boards
14. FE1.1S USB 2.0 HUB
    USB HUB chip

Pinout Definition

Application Example

Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service

Waveshare.Cloud Support

Provides Tutorial And Demo For Quick Start Of Smart IoT Solutions, With Large-Screen Data Visualization Display To Meet Various Application Scenarios

Smart garden solutions:
The SIM7670G LTE Cat-1/GNSS HAT can report various sensor data of the garden through MQTT to remotely control device ON/OFF, irrigation, fertilization, and so on.

Server Performance Cloud Monitoring:
The SIM7670G LTE Cat-1/GNSS HAT can report various performance parameters of the Raspberry Pi server through MQTT, and monitor the operation status in real-time through the cloud platform.

IoT GPS Mobile Positioning:
The SIM7670G LTE Cat-1/GNSS HAT can regularly report the data of the GPS positioning module through MQTT to realize mobile detection, animal or device positioning and tracking, etc.
