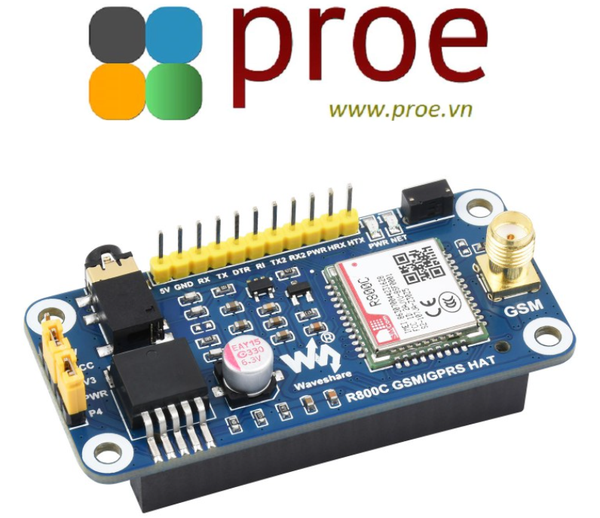

R800C GSM/GPRS HAT For Raspberry Pi

Mã sản phẩm: R800C GSM/GPRS HAT
Nhà sản xuất: Waveshare
Website hỗ trợ: https://www.proe.vn

600.000₫

PACKAGE CONTENT

Weight: 0.031 kg

R800C GSM/GPRS HAT x1
GSM Antenna x1
RPi screws pack (2pcs) x1

R800C GSM/GPRS HAT For Raspberry Pi

Support 2G Communication, Phone Call & SMS

Features At A Glance

The R800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi-communication functionalities: GSM, GPRS, and phone call, applicable to countries or regions with 2G network coverage, up to 85.6kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on.

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
UART interface, for connecting controller boards like Arduino/STM32
Onboard voltage translator, 3.3V by default, switch to 5V via jumper
2x LED indicators, easy to monitor the working status
SIM card slot, supports 1.8V/3V SIM card
Baudrate: 2400bps ~ 115200bps (115200bps by default)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

GSM / GPRS / AUDIO
Frequency band	GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+
Emitting power	Class 4 (2W @ 900 MHz) Class 1 (1W @ 1800 MHz)
GPRS connectivity	GPRS multi-slot class 12/10 (default) GPRS multi-slot class 1~12 (configurable)
GPRS data feature	UL/DL speed: ≤85.6kbps Supports Packet Broadcast Control Channel (PBCCH) Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD)
SMS	Supports: MT, MO, CB, Text, PDU SMS storage: SIM card
Audio	Voice encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi Rate Support echo cancellation Support noise reduction
OTHERS
Power supply	5V
Logic level	5V / 3.3V (default)
Operating temperature	-40°C ~ 85°C
Storage temperature	-45°C ~ 90°C
Dimensions	30.2 x 65mm

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

Connecting with Raspberry Pi Zero

Connecting with Raspberry Pi 4B

Connecting with Jetson Nano

Connecting with Jetson Nano LITE

* For reference only, the above controller boards are not included.

Phone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

What's On Board

R800C module
RT9193-33 power chip
MIC29302 power chip
TXS0108EPWR voltage translator
translates 3.3V/5V into 1.8V
Raspberry Pi GPIO Header
for connecting with Raspberry Pi
Operating voltage selection jumper
VCC-3.3V: set operating voltage as 3.3V
VCC-5V: set operating voltage as 5V
PWR selection jumper
PWR-P4: startup/shutdown by the Raspberry Pi P4 pin

3.5mm earphone/mic jack
R800C control header
for easily connecting with host boards like STM32
GSM Antenna Connector
SIM Card slot
R800C power on/off
Press for 1s to start up the R800C.
Press for 1s to shutdown the R800C after booting
NET Indicator
Fast flashing when module starts, flashing slowly after GSM register succeed
Power Indicator

Pinout Definition

Product Show

Outline Dimensions

Product Selection

PRODUCT	SIM868	SIM800C	R800C
FREQUENCY BAND
GSM	GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+
GNSS	GPS, GLONASS, BeiDou	-
Bluetooth	Integrates AT commands Compliant to Bluetooth specification3.0 + EDR Support functions such as SPP, OPP, HFP/HSP		-
DATA TRANSMISSION
GPRS (Kbps)	85.6(DL)/85.6(UL)
OTHERS
Network protocol	TCP/UDP/HTTP/HTTPS/SSL/TLS/FTP, etc.
Internet access	PPP
SIM card slot	1.8V/3V
UART	Support UART to send and receive AT commands
USB port	for testing AT commands, getting GPS positioning data, firmware upgrade, etc.	for powering and catching log	-
Audio	Onboard audio jack for phone calls	-	Onboard audio jack for phone calls
Antenna connector	GSM antenna + Bluetooth antenna + GNSS antenna	GSM antenna + Bluetooth antenna	GSM antenna
Power supply	5V (USB port or pinheader)
Logic level	5V/3.3V (default)
Operating temperature	-40 ~ 85°C
Storage temperature	-45°C ~ 90°C
Dimensions	30.4 × 65.0mm		30.5 × 65.0mm
APPLICATIONS
Applicable regions	Applicable to countries or regions with 2G network coverage
Examples	Environmental monitoring, Smart payment, Smart home, Smart city, Intelligent agriculture and animal husbandry, etc.

Resources & Services

WIKI: www.waveshare.com/wiki/R800C_GSM/GPRS_HAT
