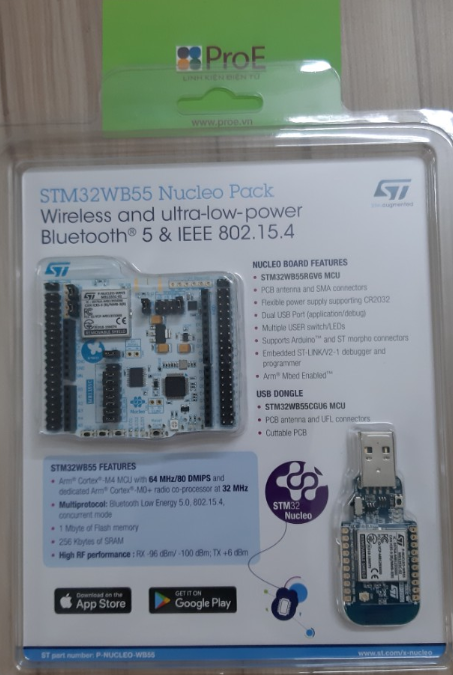

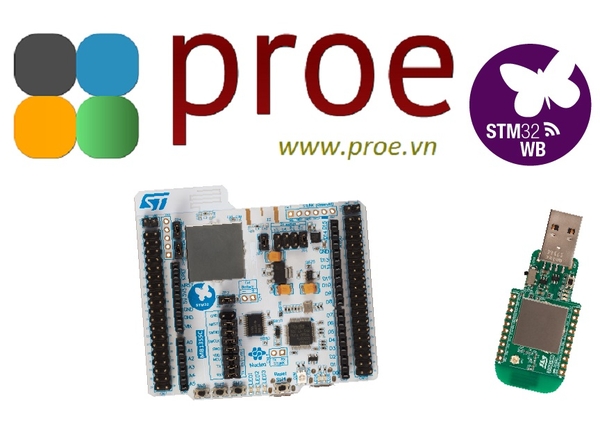

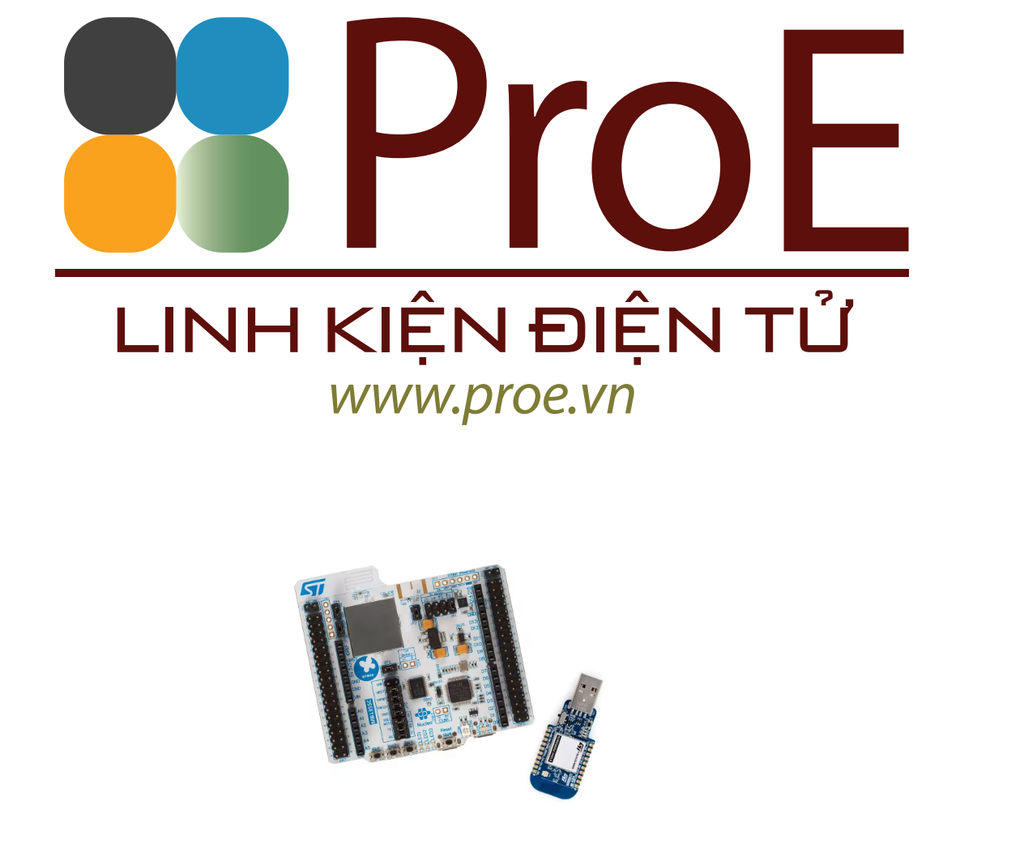

P-NUCLEO-WB55

Bluetooth™ 5 and 802.15.4 Nucleo Pack including USB dongle and Nucleo-68 with STM32WB55 MCUs, supports Arduino™ Uno V3 and ST morpho connectivity

The P-NUCLEO-WB55 pack is a multi-protocol wireless and ultra-low-power device embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy (BLE) SIG specification v5.0 and with IEEE 802.15.4-2011.

Key Features

• Nucleo68
  • STM32WB microcontroller in a VFQFPN68 package
  • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
  • Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
  • Three user LEDs
  • Three user buttons and one reset button
  • Board connector: USB user with Micro-B
  • Board expansion connectors:
    • Arduino™ Uno V3
    • ST morpho
  • Integrated PCB antenna or footprint for SMA connector
  • Flexible power-supply options: ST-LINK USB VBUS or external sources
  • On-board socket for CR2032 battery
  • On-board ST-LINK/V2-1 debugger/programmer with USB re- enumeration capability: mass storage, virtual COM port and debug port
  • Comprehensive free software libraries and examples available with the STM32Cube package
  • Support of a wide choice of Integrated Development Environments (IDEs), including IAR™, Keil®, GCC-based IDEs, Arm® Mbed™
• USB dongle
  • STM32WB microcontroller in UFQFPN48 package
  • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
  • Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
  • Switch for boot management
  • User push button
  • Three user LEDs
  • Integrated PCB antenna or UFL connector
