Orange Pi RK3399

Hardware specification

Soc

Rockchip RK3399 (28nm HKMG Process）

CPU

Six-CoreARM® 64-bit processor，up to 2.0GHz frequency
Dual-Core Cortex-A72 and Quad-Core Cortex-A53 with separate NEON coprocessor

GPU

• ARM Mali-T860 MP4 Quad-Core GPU
•Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX1
• Support AFBC

PMU

RK808 PMU
BQ25700 Charger IC
CW2015 Fuel Gas

Memory

2GB DDR3

Storage

16GB High-Speed eMMC
MicroSD (TF) Card Slot
miniPCIe (for LTE / mSATA)
mSATA interface

Wireless

Integrated WiFi Combo Module ( AP6356S ) :
2.4GHz/5GHz Dual-Band WiFi, Support 802.11a/b/g/n/ac, 2x2 MIMO standard
Bluetooth 4.1（Support BLE）

Ethernet

10/100/1000Mbps Ethernet ( Realtek RTL8211E

Display

1 x HDMI 2.0 ( Type-A ), Support maximum 4K@60Hz display
1 x DP 1.2 (DisplayPort) , Support maximum 4K@60Hz display
2 x MIPI , support 2560x1600@60fps output with dual channel
1 x eDP 1.3 ( 4 lanes with 10.8Gbps )
1 x HDMI IN

Audio

1 x HDMI or 1 x DP ( DispalyPort ) for audio output
1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput)
1 x Speaker for audio output ( 1.5W 8Ω or 2.5W 4Ω )
1 x SPDIF
1 x On-board Microphon
1 x I2S (up to 8 channels) for audio input and output
1 x Mic Array Interface

Camera

2 x MIPI-CSI (13Mpixel Max for each port )(OV13850（13M）)
Support USB Camera

Sensor

1 x Gyroscope+G-Sensor(MPU6500)
1 x Gyroscope(LSM6DS3)
1 x HALL Sensor(HAL248TWCL)
1 x Light Sensor(CM32181)
1 x Compass(AK09911)

PCIe

1 x Mini PCIe
Compatible USB, used for LTE or TF Card
Compatible mSATA, used for expand SATA hard disk or SSD

SIM

1 x SIM slot, use as LTE module for miniPCIe extension

USB

4 x USB2.0 HOST, 1 x USB3.0 Type-C

IR

1 x IR, Support IR control function

LED

2 x Power Status LED (Red and Green)
1 x SATA Power Status LED(Green)

Key

1 x Reset Button，1 x Power Button，1 x Recovery Button，
1 x Menu Button，1 x Return Button，1 x Vol+ Button，1 x Vol- Button

Case Orange PiDebugging

1 x Serial Console

Reserved Interface

40pin 2.54mm header
4 x I2C , 1 x SPI, 2 x UART
5 x GPIO

External Power supply interface

DC12V - 2A (2 pins)
DC5V - 2A (2 pins)

Power

DC12V-2A (via DC 5.5*2.1mm Jack)
TypeC 5V-3A
Battery (Dual Battery 7.4V)

OS

Android 6.0、Debian 9

Programming support

C、C++、Kotlin、Java、Shell、Pyhon

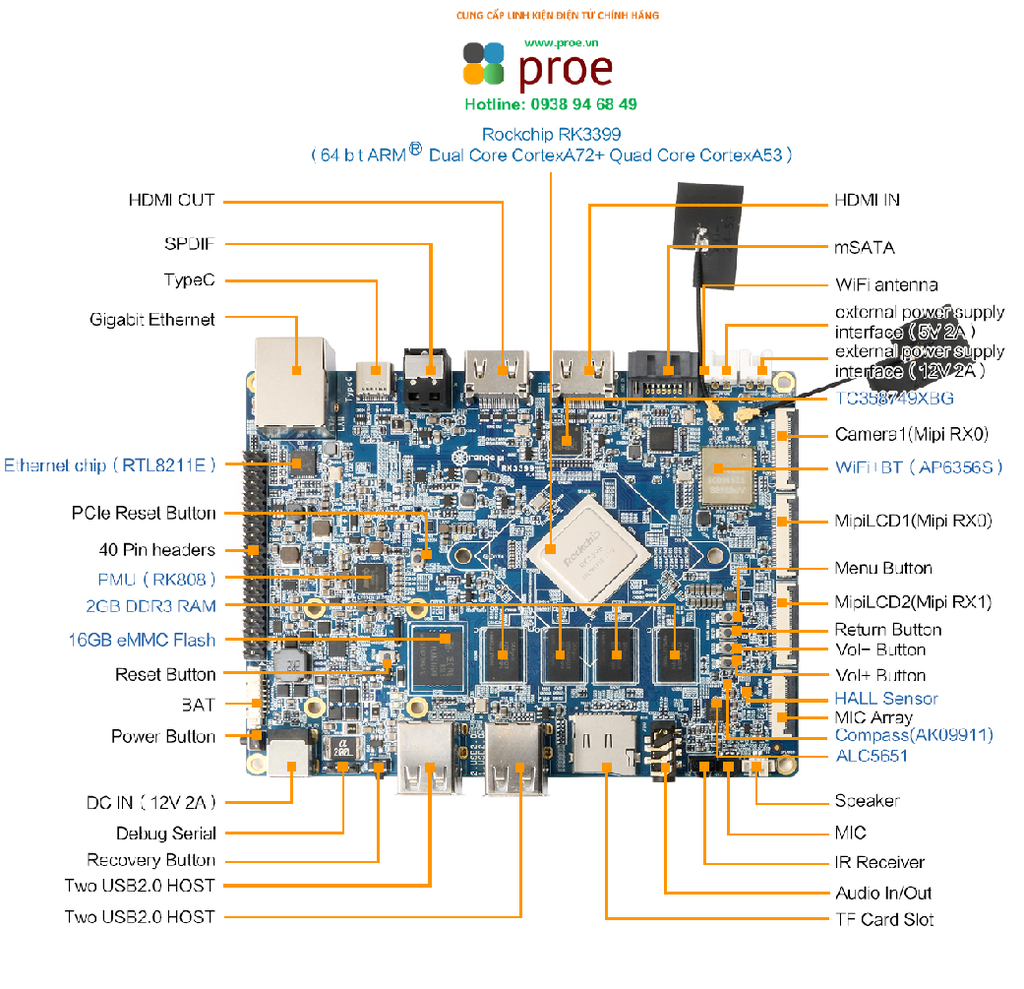

Interface definition

Size

99mm × 129mm

Weight

99g
