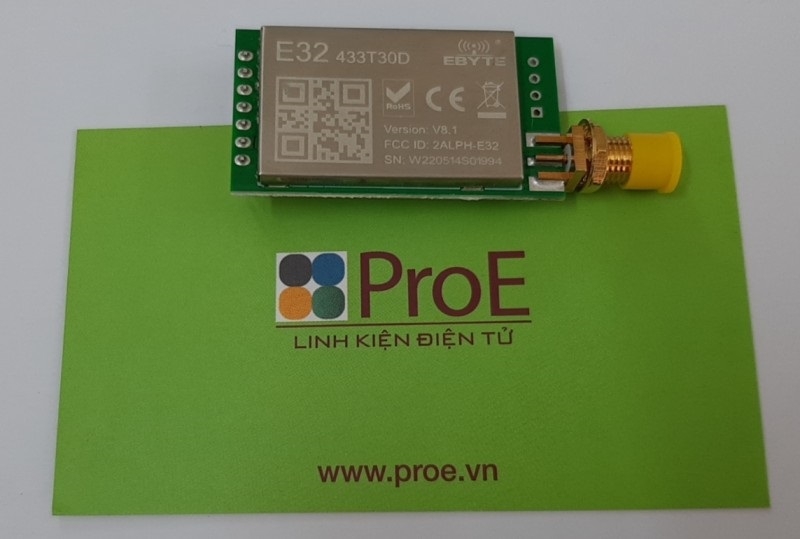

Module SX1278 E32-TTL-1W UART Lora

  • Mã sản phẩm: Module UART Lora SX1278 E32-TTL-1W
  • Nhà sản xuất: EBYTE
  • Website hỗ trợ: https://www.proe.vn
490.000₫

DATASHEET

HƯỚNG DẪN SỬ DỤNG VÀ CẤU HÌNH

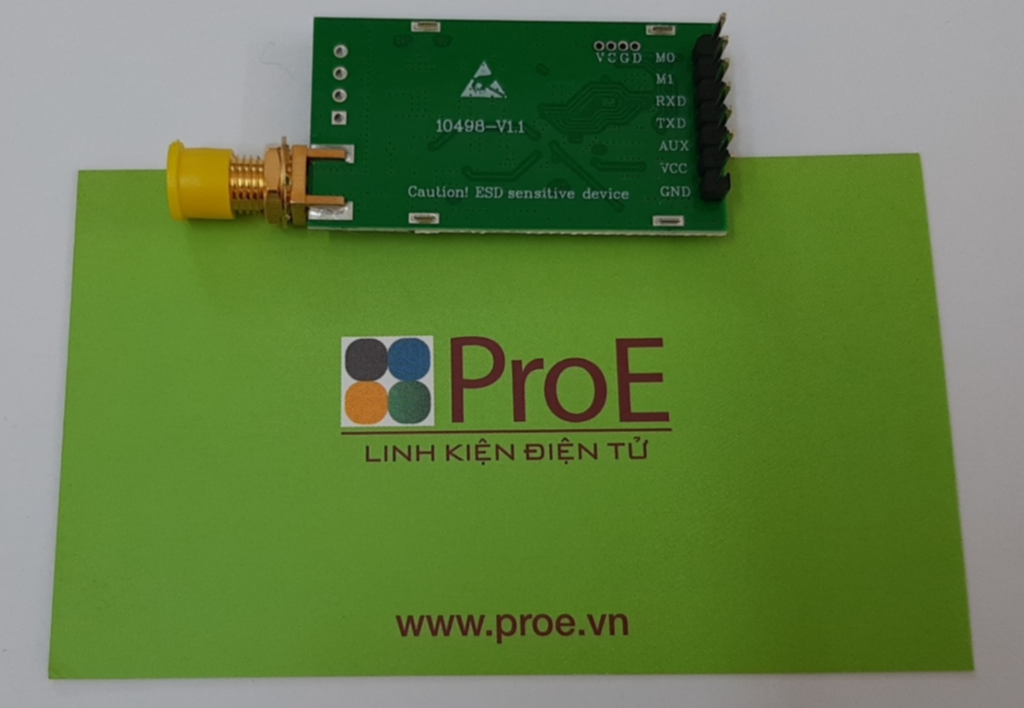

Chân M0,M1 nối GND để truyền nhận bình thường hoặt nối với GPIO của vi điều khiển để thay đổi các Mode như dưới đây

Mode(03)

M1

M0

Mode introduction

Remark

Mode 0

Normal

0

0

Serial port open, wireless channel open, transparent transmission.

The receiver must be in mode 0 or mode 1

Mode 1

Wake-up

0

1

Serial port open, wireless open. The difference between normal mode and wake-up mode is it will increase wake-up code automatically before data packet transmission so that it can awaken the receiver working under mode 2

The receiver could be in mode 0, mode 1 or mode 2.

Mode 2

Power saving

1

0

Serial port closed, wireless is under the air wake-up mode. It will open the serial port and transmit data after receiving the wireless data.

1, the transmitter should be in mode 1

2, cannot transmit under this mode

Mode 3

Sleep

1

1

The mode will sleep and can receive parameter setting command.

For details, pls refer the operating parameter elaboration



PHẦN MỀM CẤU HÌNH MỚI NHẤT

Mua kèm anten 5dBm hoặc 8dBm 433 MHz để sử dụng tốt, có khoảng cách xa

https://www.proe.vn/anten-433mhz-315mhz-5-dbi-sma

https://www.proe.vn/anten-433mhz-8-dbi-sma



Package Included
1 x Wireless Transceiver Module

Features
Model: E32-TTL-1W
E32-TTL-1W is a 30dBm wireless data transceiver module based on IC SX1278 of SEMTECH. It operates at 410 ~ 441MHz.
This module adopts LoRa spread spectrum technology, with which the module can operate in much longer distance with the same power.
It has better anti-interference performance. E32-TTL-1W is compatible with other Ebyte E32 series modules.

Specifications
1.Interface: UART
2.Power: 20dBm
3.Distance: 8000m
4.RF connector: SMA-K
5.Frequency: 433MHz (410-441MHz)
6.Dimension: 24x43mm
7.Slot: SMA

Electrical Parameter
1.Size: 24 x 43mm(without antenna and SMA)
2.Frequency : 410 - 441MHz, default: 433.0MHz, channel:32, 1MHz stepped frequency,Recommending frequency: 433±5MHz,
3.Connector: 1x7x2.54mm,plug-in
4.Supply voltage: 2.8 - 5.5V DC (Note: the voltage higher than 5.5V is forbidden.)
5.Communication level: UART, USART
6.Operation Range: About 8000m(test condition:clear and open area& maximum power,antenna gain: 5dBi,height:> 2m,air date rate: 2.4Kbps)
7.Transmitting power: Maximum 30dBm(1W)| four optional level(0-3),step by 3dBm
8.Air data rate: Default 2.4kbps, can be configured to 0.3,1.2,2.4,4.8,9.6,19.2Kbps
9.Standby current: 2.0uA(mode 3,M1=1,M0=1)
10.Transmitting current: 670mA at 30dBm
11.Receiving current: 14.5mA(mode 0 or mode 1) | minimum 30uA(mode 2 + 2s wake-up time)
12.Communication interface: UART, 8N1,8E1,8O1, eight kinds of UART baud Rate, from 1200 to 115200 bps
13.Driving mode: UART can be configured to push-pull/high pull, open-drain
14.Transmitting length: 512 bytes buffer,58 bytes per package
15.Receiving length: 512 bytes buffer,58 bytes per package
16.Address: 65536 configurable addresses(easy for network, broadcast and fixed transmission)
17.RSSI support: built-in intelligent processing
18.Sensitivity: -130dbm at 0.3Kbps( sensitivity has nothing to do with serial baud rate and timing)
19.Antenna type: SMA-K(External thread hole, 50 ohm impedance)
20.Operating temperature: -40 ~ +85℃
21.Operating temperature: 10% ~ 90%
22.Storage temperature: -40 ~ +125℃
