Mercury Mercury+ FPGA SoC PE1 PCIe Card Mercury, Mercury+ - FPGA Evaluation Board

Base Board for Mercury/Mercury+ FPGA Modules

Overview

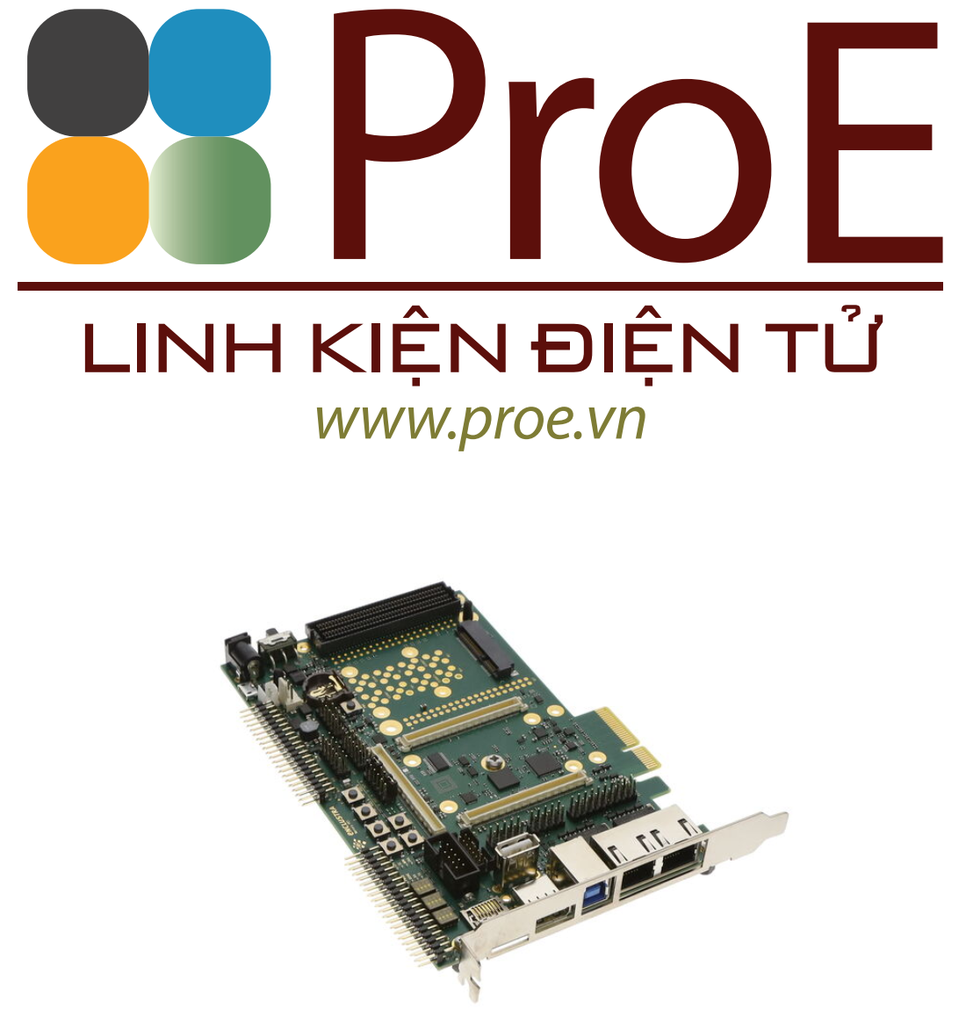

The Mercury+ PE1 is versatile PCIe® base board with 3 models for Mercury (Mercury PE1-200) and Mercury+ (Mercury PE1-300/400) form factor FPGA and SoC modules, providing a head start for building custom FPGA and SoC based hardware systems. It supports up to two FMC low pin count (LPC) connectors, or one FMC high pin count (HPC) connector.
